4.5 Editing Classes, Behavior Models, Property Pages, and Properties

You can update classes, behavior models, and property pages and their properties after they are saved:

4.5.1 Editing a Class

  1. In the Explorer pane, expand Metamodel > Classes.

  2. Right-click the class element, then select Properties to open the Status property page.

  3. In the left pane, click Class to update the property page.

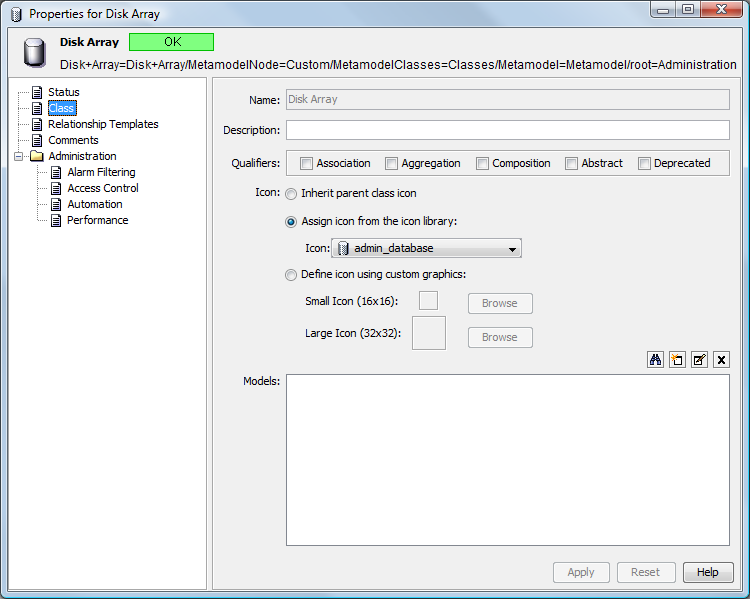

    Properties Dialog Box

  4. Edit the class as appropriate.

    For more information, see Creating and Deleting Classes.

  5. Click Apply to update the class.

4.5.2 Editing a Behavior Model

  1. In the Explorer pane, expand Metamodel > Behavior Models.

  2. Right-click the behavior model, then select Properties to open the Status property page.

  3. In the left pane, click Model to update the property page.

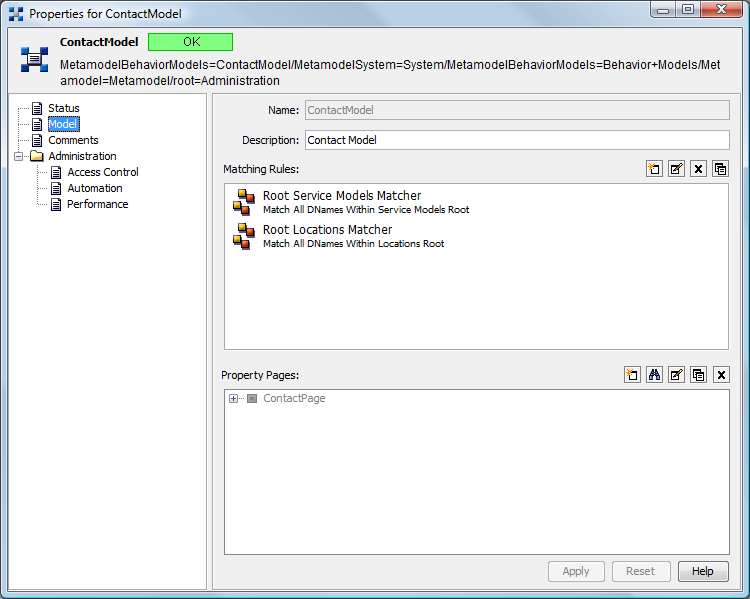

    Properties Dialog Box

  4. Edit the model as appropriate.

    For more information, see Creating and Deleting Behavior Models.

  5. Click Apply to update the behavior model.

4.5.3 Editing a Property Page

  1. In the Explorer pane, expand Metamodel > Property Pages.

  2. Right-click the property page, then select Properties to open the Status property page:

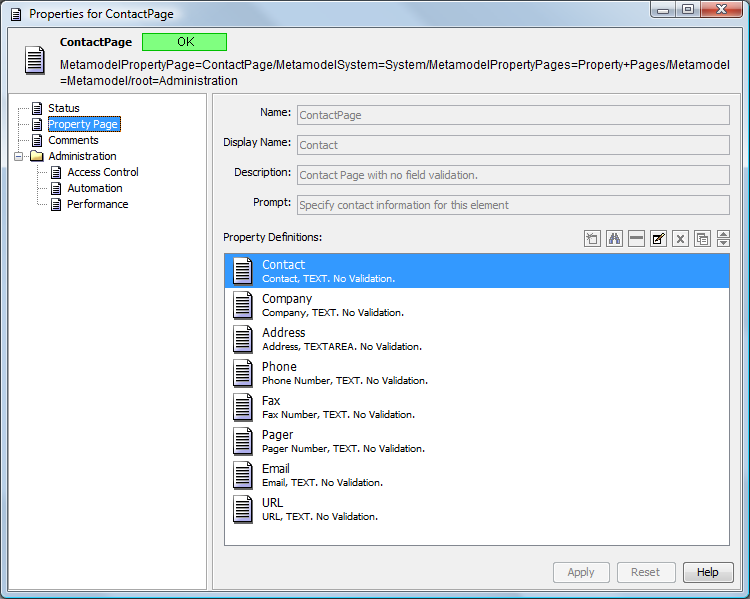

    Properties Dialog Box

  3. In the left pane, click Property Page to update the property page.

  4. Edit the property page as appropriate.

    For more information, see Creating and Deleting Property Pages and Properties.

  5. Click Apply to update the property page.

4.5.4 Editing a Property

  1. In the Explorer pane, expand Administration > Metamodel > Property Pages.

  2. Right-click the property page that contains the property you want to edit, then select Properties to open the Status property page.

  3. In the left pane, click Property Page to update the property page.

  4. In the Property Definitions section, select the property you want to edit, then click Properties Dialog Box Edit to open the Edit Property page.

  5. Edit the property.

    For more information, see Creating a Property Page.

  6. Click Apply on the property page to save changes.
