11.8 Mapping

A map is a collection of values and keys defined in a CSV or text file. You can enrich your data by using maps. With the help of maps you can add additional information to the incoming events from your source device. This additional information which was not present can be used for correlation and reporting.

You can create your custom maps in addition to the default maps available. You can use event mapping which allows you to add additional data to an event by using data already present in the event and by referencing and pulling data from an outside source. For more information, see Section 11.9, Event Configuration and Section 11.9.1, Event Mapping.

NOTE:In order to do Mapping, your configuration.xml file must be pointing to a Communication Server that has DAS_Binary and DAS_Query connected to it. This will normally be the case, by default, as long as the Communication Server and DAS processes are running.

The Mapping tab allows you to:

Mapping works together with the Referenced from Map Data Source setting for individual fields under Section 11.9, Event Configuration. You can map by using a string or number range. The following are the default maps available:

AccountIdentity: Contains information about identities and the accounts associated with them. The keys are UserName, UserDomain, and CustomerName (for MSSPs). This map is populated from information in the Account and Identity tables in the Sentinel database.
Asset: Contains the data from the map data source file asset.csv. The asset.csv is automatically generated from asset data from Sentinel Database when an asset Collector is run. This file could be populated manually instead, if desired. The keys are PhysicalAssetName and CustomerName (for MSSPs).
AssetToRegulation: Contains the data from the map data source file AssetToRegulation.csv. This file must be populated manually.
CustomerHierarchy: Generally used for Managed Security Service Providers (MSSPs), this can be used to organize customers into a four-level hierarchy Contains data from the customerhierachy.csv. This file must be populated manually. The key is CustomerName.
IpToCountry: Contains the data from the map data source file IpToCountry.csv. This file must be populated manually.
IsExploitWatchlist: Contains the data from the map data source file exploitDetection.csv (vulnerabilities and threats). The exploitDetection.csv file is automatically generated from Advisor and Vulnerability data from Sentinel Database when either an Advisor feed is completed or a vulnerability Collector is run. The keys are IP, AttackName, DeviceName, and CustomerName (for MSSPs).

To view maps in the GUI:

Navigate to Admin tab and select Map Data Configuration from the Navigation pane or click Map Data Configuration button.

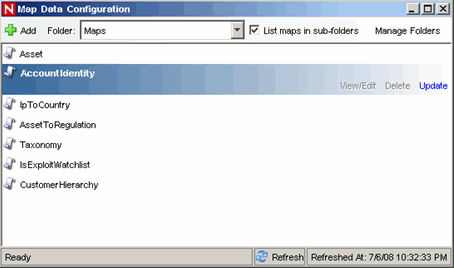

The main Mapping GUI displays a listing of all of the maps that have been defined for the system.

NOTE:Default Sentinel maps cannot be edited or deleted.

11.8.1 Adding Map Definitions

To add a map definition:

Navigate to Admin tab and select Map Data Configuration from the navigation pane or click Map Data Configuration button.
Click Add.
If you are creating a new map folder, click New Dir. Specify a folder name.
Ensure that the folder you want to provide your map definition into is selected. (that is, the folder indicates that it is open).
Specify your Map Name.
Click Next.

NOTE:The Map Type field box is disabled.
Select either Local File or Remote File.
- Local File: Allows you to browse for your file on your local file system (on the machine where Sentinel Control Center was launched from).
- Remote File: Allows you to select from existing map source data files on the server where DAS is running. Remote file points to %ESEC_HOME%\data\map_data (Windows) or $ESEC_HOME/data/map_data (UNIX)

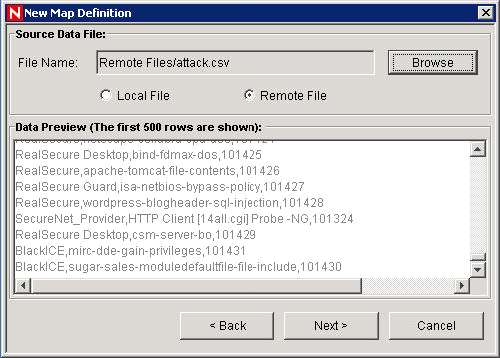

Select your map definition file. Click Next.

NOTE:Only the first 500 rows of the map appear in the interface.

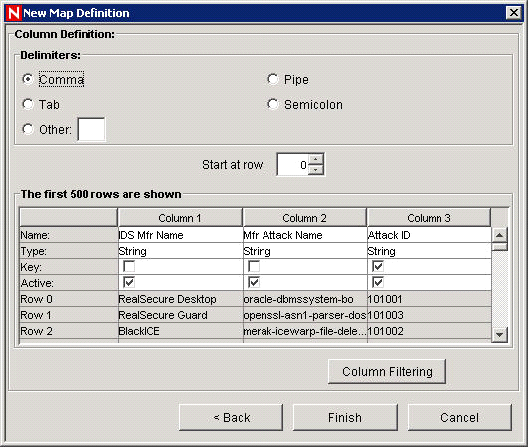

In the New Map Definition window, set the following:
- Delimiter: (pipe, comma, semicolon and so on) of data in rows of the map data source file
- Start at row: The number of rows to skip from the top of the map data source file.
- Column names
- Column types: The currently supported column types are:
  - String: A string is a group of characters used as a single object by a computer. A string might consist of a single letter, word or number. The word FINANCE or IP Address 192.168.2.40 might be a string. A string can also consist of a combination of words, spaces, and numbers. The street address of 1313 LION DOG TOWER could be a string.
  - Number Range: A number range (NumberRange) is a range of numbers. For example, 10 to 200 are represented as 10-200. To use the range map functionality, a map definition must have exactly one key column and the key column must be of type NumberRange. If there are any other key columns, or the key column is of a different type, the mapping service will not consider the map a range map.
- Active columns: When a column is marked as active, the data in the column will be distributed to processes using maps. All key columns must be active. Only active columns (but not key columns) can be selected as the Map Column under the Event Configuration tab.
- Key columns: A key is a unique identifier for the row of data in the map data. If more than one column is selected as a key, the overall key of the map will include all of the columns selected as keys.
- Column filtering: A row can be explicitly included or excluded based on matching criteria for a particular column. This can be used to exclude rows from the map source data that are not needed or will interfere with your mapping.
As you configure each setting and filter, the data table will automatically update to allow you to preview your data and ensure your data is being parsed as expected.
After you finish configuring all parameters and filters for the definition, click Finish.
If you selected Local File in step 7 above, you will be prompted to upload your file to the Remote Files virtual folder located: %ESEC_HOME%\data\map_data. Specify a file name and click OK.

11.8.2 Adding a Number Range Map Definition

To use the range map functionality, a map definition must have exactly one key column and the key column must be of type NumberRange. If there are any other key columns, or the key column is of a different type, the mapping service will not consider the map a range map.

To create a range map, select a single column to be the key of the map and select NumberRange as the type of the column. The format of the data in a column of type NumberRange must be “m-n”, where m is the minimum number in the range and n is the maximum number in the range (that is, 10-200). The maximum number in the range is not included in the range (that is, [m,n)). This means a range of 10-200 will only key off numbers equal to 10 to 199. An example set of data is with the first column as the key:

1-2,AA
2-4,AA
4-12,BB
10-20,BB
30-31,BB
100-200,AA
110-120,CC

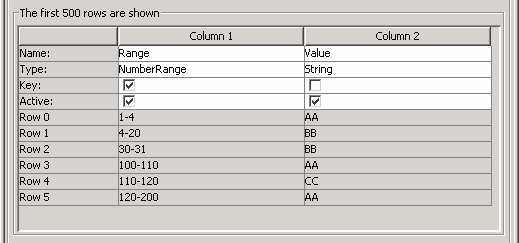

Figure 11-10 Number Range Map Definition

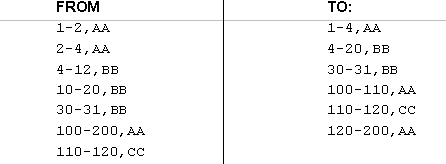

The example table gets transformed to:

Figure 11-11 Table Transformation

An example event configuration on the above map might look like:

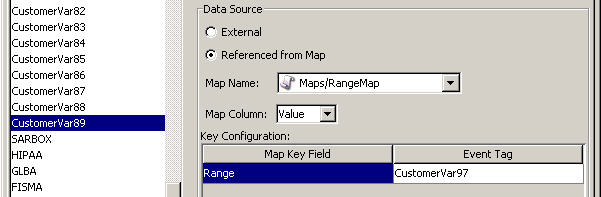

Figure 11-12 Event Configuration

Where CustomerVar97 is expected to contain a numeric value (or is of a type that can be converted to a numeric value, such as an IP or Date).

When performing lookups into the example range map, the value in CustomerVar97 will take the range map and search for the range that the value belongs in (if any). Some examples and their results are:

CustomerVar97 = 1; CustomerVar89 will be set to AA
CustomerVar97 = 4; CustomerVar89 will be set to BB
   CustomerVar97 = 300; CustomerVar89 will not be set

Internally, Sentinel converts IP addresses and dates to an integer for tags of the type IPv4 and Date.

IPv4 tags are:

TargetIP (dip)
InitIP (sip)

Date tags are:

CustomerVar11 to CustomerVar20 (cv11 to cv20)
DateTime (dt)
ReservedVar11 to ReservedVar20 (rv11 to rv20)
DeviceEventTime
SentinelProcessTime
BeginTime
EndTime

For more information on meta-tags, see Sentinel Event Fields in Sentinel 6.1 Reference Guide.

For example, for the table below, column 1 is numerical range equivalent to an IP range of 10.0.0.0 to 10.0.2.255.

167772160-167772415,AAA
167772416-167772671,BBB
167772672-167772927,CCC

Using the same setup as the previous example, if:

The Event Tag is set to TargetIP and key column set to column 1 (range)
Map Column to column 2 (value). The output values for CustomerVar89.

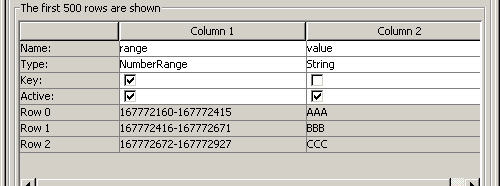

Figure 11-13 Number Range Map Definition

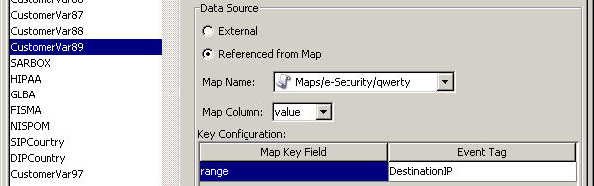

Figure 11-14 Event Configuration

If an event contains a target IP of 10.0.1.14 (equivalent to numerical value of 167772430), the output for column CustomerVar89 within the event will be BBB.

Sentinel supports the following number ranges:

Range from negative number to negative number (for example, “-234—34”)
Range from negative number to positive number (for example, “-234-34”)
Range from positive number to positive number (for example, “234-236”)
Single number range (negative) (for example, “-234”). In this case, the min and the max will both be -234.
Single number range (positive) (for example, “234”). In this case, the min and the max will both be 234.
Range from negative number to max number (for example, “-234-”). In this case, the min will be -234 and the max will be (2^63 - 1).
Range from positive number to max number (for example, “234-”). In this case, the min will be 234 and the max will be (2^63 - 1).

NOTE:In all cases, the min must be less than or equal to the max (for example, “-234- -235” is NOT valid).

11.8.3 Editing Map Definitions

To edit a map definition:

Navigate to Admin tab and select Map Data Configuration from the navigation pane or click Map Data Configuration button.
Expand the folder of interest.
Highlight a map definition and click Edit.

NOTE:The editing function is disabled for map definitions that are under the UNMANAGED ITEMS folder.

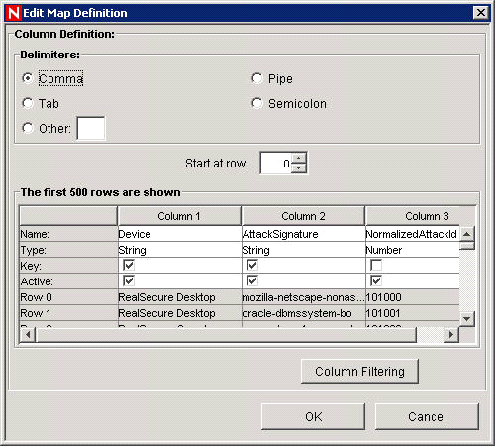

The edit function allows you to:
set your delimiters

set which row to start your map

rename your columns

activate or deactivate a column

set your column keys

column filter
After making your changes, Click OK.

11.8.4 Deleting Map Definitions

To delete a map definition:

Navigate to Admin tab and select Map Data Configuration from the navigation pane or click Map Data Configuration button.
Expand the folder of interest.
Highlight the map definition to be deleted.
Click Delete.

NOTE:Default Sentinel maps cannot be edited or deleted.

11.8.5 Updating Map Data

Updating allows you to replace the map source data file of a map on the server running DAS with another file. Your new map source data file must have the same delimiter, number of columns, and overall structure as the existing map data source file in order for the map to function properly after the update. The new map source data file should only differ from the existing file by the values that appear in the columns. If the new map source data file has a different structure than the existing file, use the “Edit” feature to update the map definition.

Map updates can be performed on demand from the Sentinel Control Center. To set up an automated process to update map data, it is possible to run an equivalent process from the command line using map_updater.sh or map_updater.bat.

There are two map locations; the location referenced by the Event Map Configuration (which is a user-defined location) and the location where Sentinel stores its internal representation of the map ($ESEC_HOME/data/map_data). The internal representation of the map should never be manually updated.

To update map data from the Sentinel Control Center:

If you haven’t already, create a file containing the new map source data. This file can be generated (for example, from a data dump script), created manually from scratch, or be an edited version of the existing map data source file. If needed, you can obtain the existing map data source file from the location:

For Windows:
```
%ESEC_HOME%\data\map_data
```
For UNIX:
```
$ESEC_HOME/data/map_data
```
Navigate to Admin tab and select Map Data Configuration from the navigation pane or click Map Data Configuration button.
Expand the folder of interest. Highlight the mapping to be updated. Click Update.

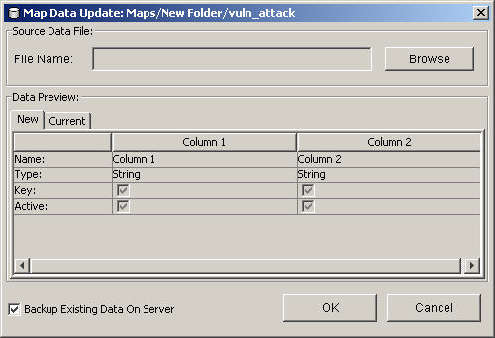

Select the new map data source file by clicking Browse and selecting the file with the new map data. After selecting the file, the data from the new map data source file displays under the New tab. The map data you are replacing will be under the Current tab.
Uncheck or leave the default setting for Backup Existing Data On Server. Enabling this option results in a backup of the existing map data source file being put in the %ESEC_HOME%\bin\map_data (Windows) or $ESEC_HOME/data/map_data (UNIX) folder. The prefix of the name of the backup map data source file will be the name of the existing map data source file. The end of the filename will contain a set of random numbers followed by the .bak suffix. For example: vuln_attacks10197.bak.
Click OK.
The data from the new map data source file will be uploaded to the server, replacing the contents of the existing map data source file. After the source data is completely uploaded, the map data will be regenerated and distributed to map clients (For example, Collector Manager).

To update map data using the command line:

If you haven’t already, create a file containing the new map source data. This file can be generated (for example, from a data dump script), created manually from scratch, or be an edited version of the existing map data source file. If needed, you can obtain the existing map data source file from the location:

For Windows:
```
%ESEC_HOME%\data\map_data
```
For UNIX:
```
$ESEC_HOME/data/map_data
```
Log into the Sentinel database.
Find UUID for the map in the MD_CONFIG table (refer to the CONFIG_ID column for the appropriate map listed in the VALUE column).
On the Sentinel Server machine, log in as esecadm.
Run the following command:

On Windows:
```
map_updater.bat <uuid> <source path> [nobackup]
```
On UNIX:
```
map_updater.sh <uuid> <source path> [nobackup]
```
NOTE:On Windows, if the map data is in a directory including a space (For example, Program Files), it might be necessary to place double quotes around the new data file path.
The data from the new map data source file will be uploaded to the server, replacing the contents of the existing map data source file. After the source data is completely uploaded, the map data will be regenerated and distributed to map clients (for example, Collector Manager).

Unless the optional -nobackup argument is added, the previous map data will be saved in a backup file on the server. Enabling this option results in a backup of the existing map data source file being put in the %ESEC_HOME%\bin\map_data (Windows) or $ESEC_HOME/data/map_data (UNIX) folder. The prefix of the name of the backup map data source file will be the name of the existing map data source file. The end of the filename will contain a set of random numbers followed by the .bak suffix. For example: vuln_attacks10197.bak.
