Resources

All managed resources, which are called nodes, have an agent with a socket connection to the Orchestrate Server. All resource use is metered, controlled, and audited by the Orchestrate Server. Policies govern the use of resources.

PlateSpin Orchestrate allocates resources by reacting as load is increased on a resource. As soon as we go above a threshold that was set in a policy, a new resource is allocated and consequently the load on that resource drops to an acceptable rate.

You can also write and jobs that perform cost accounting to account for the cost of a resource up through the job hierarchy, periodically, about every 20 seconds. For more information, see Auditing and Accounting Jobs.

A collection of jobs, all under the same hierarchy, can cooperate with each other so that when one job offers to give up a resource it is reallocated to another similar priority job. Similarly, when a higher priority job becomes overloaded and is waiting on a resource, the system “steals” a resource from a lower priority job, thus increasing load on the low priority job and allocating it to the higher priority job. This process satisfies the policy, which specifies that a higher priority job must complete at the expense of a low priority job.

Users

PlateSpin Orchestrate users must authenticate to access the system. Access and use of system resources are governed by policies. For more information, see The User Object in the PlateSpin Orchestrate 2.5 Development Client Reference.

Job Definitions

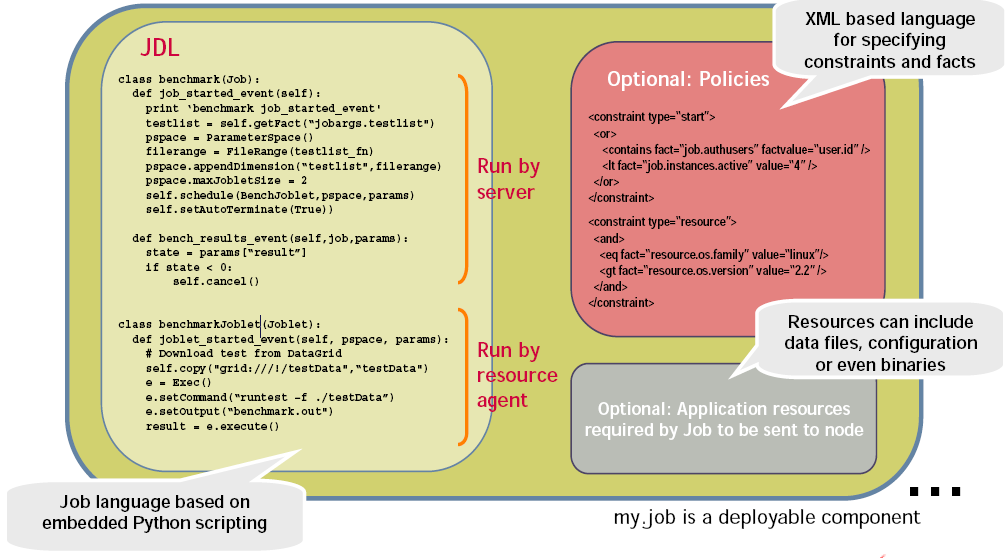

A job definition is described in the embedded enhanced Python script that you create as a job developer. Each job instance runs a job that is defined by the Job Definition Language (JDL). Job definitions might also contain usage policies. For more information, see Job Class in the PlateSpin Orchestrate 2.5 Developer Guide and Reference.

Job Instances

Jobs are instantiated at runtime from job definitions that inherit policies from the entire context of the job (such as users, job definitions, resources, or groups). For more information, see JobInfo in the PlateSpin Orchestrate 2.5 Developer Guide and Reference.

Policies

Policies are XML documents that contain various constraints and static fact assignments that govern how jobs run in the PlateSpin Orchestrate environment.

Policies are used to enforce quotas, job queuing, resource restrictions, permissions, and other job parameters. Policies can be associated with any PlateSpin Orchestrate object. For more information, see Section 1.2.2, Policy-Based Management and Policies in the PlateSpin Orchestrate 2.5 Developer Guide and Reference.

Facts

Facts represent the state of any object in the PlateSpin Orchestrate grid. They can be discovered through a job or they can be explicitly set.

Facts control the behavior a job (or joblet) when it’s executing. Facts also detect and return information about that job in various UIs and server functions. For example, a job description that is set through its policy and has a specified value might do absolutely nothing except return immediately after network latency.

The XML fact element defines a fact to be stored in the Grid object’s fact namespace. The name, type and value of the fact are specified as attributes. For list or array fact types, the element tag defines list or array members. For dictionary fact types, the dict tag defines dictionary members.

Facts can also be created and modified in JDL and in the Java Client SDK. For more information, see Using Facts in Job Scripts in the Job Development Concepts section of the PlateSpin Orchestrate 2.5 Developer Guide and Reference.

There are three basic types of facts:

See the example, /opt/novell/zenworks/zos/server/examples/allTypes.policy. This example policy has an XML representation for all the fact types. For a comprehsive list of facts and fact junctions used in PlateSpin Orchestrate.s, see Grid Object Facts and Fact Junctions in the PlateSpin Orchestrate 2.5 Developer Guide and Reference.

Constraints

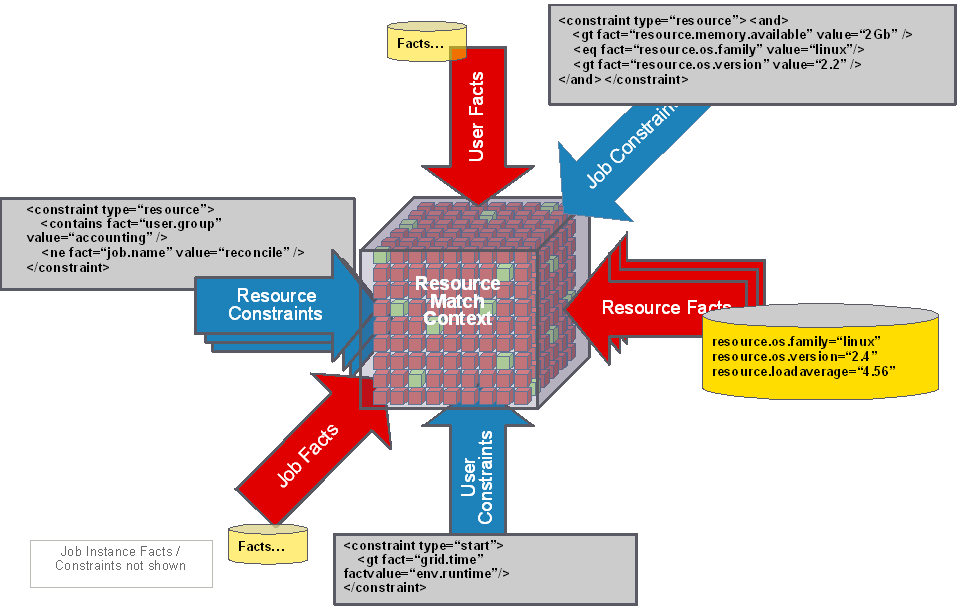

The constraint element of a policy can define the selection and allocation of Grid objects (such as resources) in a job. The required type attribute of a constraint defines the selection of the resource type.

For example, in order for the PlateSpin Orchestrate to choose resources for a job, it uses a “resource” constraint type. A resource constraint consists of Boolean logic that executes against facts in the system. Based upon this evaluation, Orchestrate considers only resources that match the criteria that have been defined in constraints.

For more information about the types of constraints and how they are applied in jobs, see The Role of Policy Constraints in Job Operation in the Job Development Concepts section of the PlateSpin Orchestrate 2.5 Developer Guide and Reference.

Groups

Resources, users, job definitions and virtual machines (VM) are managed in groups with group policies that are inherited by members of the group.

VM: Hosts, Images, and Instances

A virtual machine host is a resource that is able to run guest operating systems. Attributes (facts) associated with the VM host control its limitations and functionality within the Orchestrate Server. A VM image is a resource image that can be cloned and/or provisioned. A VM instance represents a running copy of a VM image.

Templates

Templates are images that are meant to be cloned (copied) prior to provisioning the new copy. For more information, see Creating a Template from a VM in the PlateSpin Orchestrate 2.5 VM Client Guide and Reference.

Controlling Process Flow

Jobs can written to control all operations and processes of managed resources. Through jobs, the Orchestrate Server manages resources to perform work. Automated jobs (written in JDL), are broken down into joblets, which are distributed among multiple resources.

Parallel Processing

By managing many small joblets, the Orchestrate Server can enhance system performance and maximize resource use.

Managing the Cluster Life Cycle

Jobs can detect demand and monitor health of system resources, then modify clusters automatically to maximize system performance and provide failover services.

Discovery Jobs

Some jobs provide inspection of resources to more effectively management assets. These jobs enable all agents to periodically report basic resource facts and performance metrics. In essence, these metrics are stored as facts consisting of a key word and typed-value pairs like the following example:

resource.loadaverage=4.563, type=float

Jobs can poll resources and automatically trigger other jobs if resource performance values reach certain levels.

The system job scheduler is used to run resource discovery jobs to augment resource facts as demands change on resources. This can be done on a routine, scheduled basis or whenever new resources are provisioned, new software is installed, bandwidth changes occur, OS patches are deployed, or other events occur that might impact the system.

Consequently, resource facts form a capabilities database for the entire system. Jobs can be written that apply constraints to facts in policies, thus providing very granular control of all resources as required. All active resources are searchable and records are retained for all off-line resources.

The following osInfo.job example shows how a job sets operating system facts for specific resources:

resource.cpu.mhz (integer) e.g., "800" (in Mhz)
    resource.cpy.vendor (string) e.g. "GenuineIntel"
    resource.cpu.model (string) e.g. "Pentium III"
    resource.cpu.family (string) e.g. "i686"

osInfo.job is packaged as a single cross-platform job and includes the Python-based JDL and a policy to set the timeout. It is run each time a new resource appears and once every 24 hours to ensure validity of the resources. For a more detailed review of this example, see osInfo.job in Job Development Concepts in the PlateSpin Orchestrate 2.5 Developer Guide and Reference.

System Jobs

Jobs can be scheduled to to periodically trigger specific system resources based on specific time constraints or events. As shown in the following figure, PlateSpin Orchestrate provides a built-in job scheduler that enables you or system administrators to flexibly deploy and run jobs.

Figure 1-4 The Job Scheduler

For more information, see How Constraints Are Used in Job Development Concepts in the PlateSpin Orchestrate 2.5 Developer Guide and Reference and The PlateSpin Orchestrate Job Scheduler in the PlateSpin Orchestrate 2.5 Development Client Reference. See also Job Scheduling and Job in the PlateSpin Orchestrate 2.5 Developer Guide and Reference.

Provisioning Jobs

Jobs also drive provisioning for virtual machines (VMs) and physical machines, such as blade servers. Provisioning adapter jobs for various VM hypervisors are deployed and organized into appropriate job groups for management convenience.

The provisioning jobs included in PlateSpin Orchestrate are used for interacting with VM hosts and repositories for VM life cycle management and for cloning, moving VMs, and other management tasks. These jobs are called “provisioning adapters” and are members of the job group called “provisionAdapters.”

For more information, see the PlateSpin Orchestrate 2.5 Virtual Machine Management Guide and Section 1.2.1, Resource Virtualization of this guide.

Auditing and Accounting Jobs

You can create PlateSpin Orchestrate jobs that perform reporting, auditing, and costing functions inside your data center. Your jobs can aggregate cost accounting for assigned resources and perform resource audit trails.
