13.2 Creating and Maintaining Calendars

A calendar defines specific times and days for monitoring and capturing alarm history. Define a general calendar that captures data using the same days and times every month of the year, or define a more specific calendar that restricts data capture to specific months or days of the year.

Calendars consist of one or more time definitions. Each time definition specifies the days and time intervals for capturing data. You can define new time intervals for a calendar or copy existing ones from other calendars.

The Create Calendar dialog box contains a two-month calendar navigator (in the top right corner of the dialog box) for quick browsing and viewing of the scheduled data capture times for a specific date, as shown by colored blocks in the Visualization section directly below the calendar navigator:

Figure 13-2 Calendar Properties

The following sections explain how to create, configure, and maintain calendars:

13.2.1 Creating Calendars

You can create calendars to associate with profiles used to select elements for which performance and alarm data is collected. For more information on profiles, see Section 12.2, Using Profiles and Expressions to Capture Alarm History.

To create a calendar:

  1. In the Explorer pane, expand Administration > Time Management.

  2. Right-click the Calendars element, then select Create Calendar to open the Create Calendar dialog box.

  3. Enter text in the calendar Name and Description fields.

  4. To define the dates and times in the calendar, use the instructions in the following sections:

  5. Make selections for the remaining calendar options:

    Set undefined times: For instructions, see Section 13.2.5, Assigning Undesignated Times.

    Make this calendar a holiday calendar : Select the check box to add the new calendar to the Holidays folder in the Calendar Library.

    Use Time Zone: Select the time zone for the start and end times for the calendar.

    Show as Override for: Merges a view of the current calendar with another calendar selected from the drop-down list. The time definitions of the selected calendar display in a merged view with the current calendar. This is for viewing purposes only. The merged view cannot be saved.

  6. Click Create to save the settings and create the calendar.

    The new calendar is added under the Calendars element in the Explorer pane.

13.2.2 Specifying Time Definitions

In order to define a calendar, consider the days and times when alarm history and performance data should be captured. These time definitions can be created for a calendar or can be copied from an existing calendar.

Concerning defining overnight time definitions, if a time definition is set up to start on one day and finish sometime the next day (it runs overnight), on the first day the calendar is used, it starts at the start time specified by the time definition and there might be no overnight data collection. For example, assume the time definition specifies a peak time from 8 PM until 5 AM. On the first affected day, the calendar starts running at 8 PM, but does not continue to run from midnight until 5 AM on that first day. To capture this early morning time, you must define a separate time definition.

To define a new time definition to the calendar:

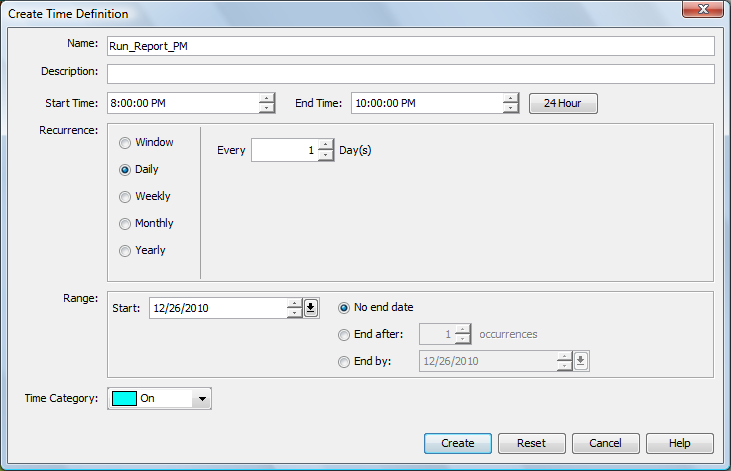

  1. In the Time Definitions section of the Create Calendar dialog box, click New Time Definition to open the Create Time Definition dialog box:

  2. Enter the following information to define the time definition:

    Name: Name for the time definition.

    Description: Description for the time definition.

    Start/End Time: Starting and ending times for the time definition.

    Use 24 hour period: Select to set the time definition to run a full 24 hours from the start time. Start Time and End Time are reset to 12:00 AM.

    Recurrence: Select the interval for applying the time definition; for example, every day, every 2 weeks, and so on. Select Window to select a specific start date/time and end date/time.

    Range: Set the start date and optional ending date.

    Time Category: Click the Time Category drop-down list, then select the appropriate category for the time definition (such as Peak, On/Off time, and so on).

  3. Click Create to save the Time Definition as part of the current calendar.

    It displays in the Time Definitions for this Calendar section of the dialog box.

13.2.3 Using Existing Calendars to Create New Calendars

Time definitions from existing calendars can be copied or linked to a new calendar.

Linked calendars are only editable in the original calendar definition and all changes to the original calendar affect all linked calendars.

To copy or link to an existing calendar:

  1. In the Calendar Library section of the Create Calendar dialog box, navigate to a calendar to use as the basis for the new calendar.

  2. Right-click the calendar or portion of a calendar (entire calendar, or a specific folder or time definition), then select Copy.

  3. In the Time Definitions for This Calendar section, right-click and do one of the following:

    • Select Paste to create an editable duplicate in the current calendar.

    • Select Paste Link to create a link to the original calendar.

      A linked read-only item is created. Only the original can be edited.

13.2.4 Navigating the Calendar Visualization Section

The Calendar Visualization section on the right side of the Calendar page consists of a two-month calendar and a weekly calendar. The weekly calendar displays shaded blocks of time to represent time definitions for the selected week. The colors correspond to the time definition category (Peak, On, Critical, and so on).

Figure 13-3 illustrates how you can view the time definitions as colored blocks in the weekly calendar:

Figure 13-3 The Calendar Visualization Section of the Create Calendar Dialog Box

Tasks that you can perform in this dialog box:

Navigating the Two-Month Calendar

  1. Click the right and left arrows ( and ) to display previous or next month.

  2. Click a day in the calendar to display the associated week in the detailed calendar section below the two-month calendar.

Viewing Shaded Blocks That Represent All Time Definitions in the Calendar

Select the calendar name in the Time Definitions for This Calendar section.

Viewing Only One Time Definition

Select a time definition name in the Time Definitions for This Calendar section.

Returning to the Current Date in the Visualization Window

Click Go to Today to display the current date.

Displaying or Hiding Times When SLM Data Collection Is Disabled

Click Show/Hide BSA Off Times.

When enabled, a black grid displays in the calendar to identify when SLM data collection is turned off.

13.2.5 Assigning Undesignated Times

After designating some specific time periods, it is possible to assign all remaining undefined times to a specific time category. For example, if the time period 12 AM to 5 AM is not associated with a time definition, it can be assigned to an existing time category, such as Blackout.

To assign all undesignated time in a calendar to a specific time category:

  1. Select the Set Undefined Times check box.

  2. Click the drop-down list, then select a time category:

  3. Select the Preview Undefined Times check box.

    The calendar columns update to show the undefined time color.

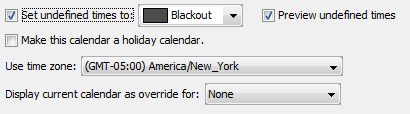

    For example, in the following figure, the undefined times are assigned to the Blackout time category and are shaded black in the calendar:

13.2.6 Editing Calendars

The Default calendar cannot be edited or deleted. You can do the following to edit calendars:

Editing an Existing Calendar

To edit a calendar:

  1. In the Explorer pane, expand Administration > Time Management > Calendars.

  2. Right-click a calendar, then select Properties to open the calendar’s Status property page.

  3. In the left pane, click Calendar to open its property page.

  4. Edit the calendar as needed.

  5. Click Apply to update the calendar.

Editing a Time Definition or Folder

To edit a time definition or folder:

  1. In the Time Definitions section of the Calendar property page, select the time definition or folder, then click Edit to open the Edit Time Definition dialog box.

  2. Edit the time definitions information as needed.

  3. Click Apply to update the time definition.

Deleting a Time Definition or Folder

To delete a time definition or folder:

  1. In the Time Definitions section of the Calendar property page, select a definition or folder, and then click Delete to open a confirmation dialog box.

  2. Click Yes to confirm the deletion to remove the definition or folder.

Adding a New Folder to the Calendar

To add a new folder:

  1. In the Time Definitions section, click New Folder to open the Create Folder dialog box.

  2. Enter a folder name, then click OK.

    The new folder displays in the Time Definitions section.

Editing Calendar Time Intervals

Individual time intervals displayed in the weekly calendar section of the Create Calendar or Edit Calendar dialog box can be modified.

You can do the following to edit calendar time intervals:

Modifying an Individual Time Interval

In the calendar visualization section of the Calendar property page, right-click a time interval, then select an option:

Time Interval Menu

Edit Time Definition: Enables editing the time definition associated with the selected time interval. Note that all changes made apply to all dates affected by the time definition.

Create Override: Enables changing the start and/or end time or time category for the time interval. To remove the override later and use the default interval defined by the time definition, right-click the interval, then select Remove Override.

Cancel this Interval: Removes the time interval from the time definition for the selected date only. To restore the interval, right-click the interval, then select Restore Cancelled Interval.

Select on Definitions Tree: Highlights the time definition associated with the interval. This is useful when many time intervals and definitions exist.

Editing a Time Interval or Time Definition Directly

To edit a time interval or definition:

  1. In the calendar visualization section of the Calendar property page, double-click a time interval to open the Open Recurring Item dialog box:

  2. Do one of the following:

    • Select the Open This Occurrence radio button to edit the start and/or end time or time category associated with this interval only.

    • Select the Open the Series radio button to edit the time definition associated with the time interval.

  3. Click OK to open the Edit Time Definitions dialog box.

  4. Edit the Time Category and start and end times as needed.

  5. Click Apply to update the time interval.

13.2.7 Setting Blackout Calendars on Elements

It is possible to apply a blackout calendar only at the element level for selected elements. Settings in the element’s blackout calendar override all other calendar settings applied to that element.

However, as an exception to the rule, data is collected during all blackout calendars when capturing SLA data, to ensure that data is available in the event that blackout periods change after data capture. In this case, the blackout data can be excluded when running SLA reports. For more information, see the Operations Center Service Level Agreement Guide.

To create a blackout calendar for a specific element:

  1. In the Explorer pane, navigate to the element for which a blackout calendar is needed.

  2. Right-click the element, then select Edit Blackout Calendar to open its dialog box.

  3. Create Time Definitions as necessary to specify blackout times for the element.

    For more information regarding creating calendars and defining time definitions, see Section 13.2.1, Creating Calendars.

  4. Click Apply to save the blackout calendar settings.
