8.3 CardSpace Configuration Scenarios

The following sections explain the configuration process for three common ways of using CardSpace for authentication.

8.3.1 Authenticating with a Personal Card

The following scenario explains how to configure the Identity Server to be a relying party and then allow the user to log in to the Identity Server by using a personal card. Figure 8-3 illustrates this process:

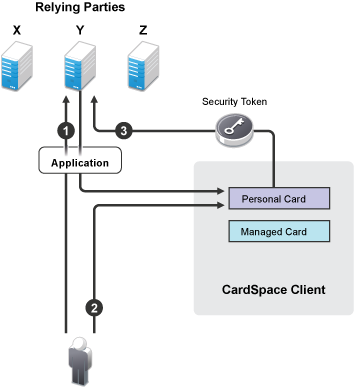

Figure 8-3 Using a Personal Card to Authenticate to a Relying Party

  1. The user requests authentication at the Identity Server by entering the base URL of the Identity Server in the browser. This opens the user portal application.

  2. The user selects an authentication card that requires a personal card.

  3. From the available cards in CardSpace, the user selects the card that meets the security requirements, and the CardSpace client software sends it to the Identity Server.

To configure this scenario:

  1. In the Administration Console, click Devices > Identity Servers > Edit.

  2. In the Enabled Protocols section, enable STS and CardSpace.

  3. Click CardSpace > Authentication Card, then fill in the following fields:

    ID: (Optional) Leave this field blank.

    Text: Specify the text that is displayed on the card to the user, for example, CardSpace.

    Image: Select the image from the drop-down list. For CardSpace, you can use the default CardSpace image or any other image in the list.

    Show Card: Enable the Show Card option. The Identity Server then displays this card as a login option.

  4. In the Profiles section, click New, then fill in the following fields:

    Name: Specify a display name for the profile, such as Personal Card.

    ID: (Optional) Leave this field blank.

    Text: Specify the text that is displayed on the card to the user for this profile, such as Personal Card.

    Issuer: From the drop-down list, select Personal Card.

    Token Type: SAML 1.1 is displayed as the token type for the assertion.

  5. Click Next, then specify the attributes for the personal card.

    Attribute set: Select the CardSpace attribute set.

    Required attributes: From the Available attribute list, select the attributes that you want the card to return and move them to the Required attribute list.

    For this scenario, move Common First Name and Personal Private Identifier to the Required attribute list. The Personal Private Identifier attribute should always be in the required list.

    Optional attributes: From the Available attribute list, select the attributes that the card can return, but is not required to return, and move them to the Optional attribute list.

    For this scenario, move Common Last Name.

  6. Click Next, then specify the user identification method.

    Satisfied contracts: (Optional) For this scenario, do not select a contract.

    Allow federation: Enable this option so that the personal card can be linked with the user’s account. If you do not enable this option, the user is always prompted for credentials.

    Authenticate: Select Authenticate for the user identification method. This prompts the user for a name and a password the first time the card is used for authentication.

  7. Click Finish > OK.

  8. Update the Identity Server.

  9. In the browser, enter the base URL of the Identity Server.

  10. Select the authentication card you have created.

    The CardSpace selector opens.

  11. Create a personal card that meets the requirements of the authentication profile. Provide a value for First Name claim and optionally for the Last Name.

  12. Save the card, then click Send.

  13. Enter the username and a password for an account in the user store.

    You are logged in. On subsequent logins, you do not need to enter the username and password.

A personal card can be used to access resources protected by an Access Gateway, but it must be used with a managed card. For this scenario, you need to complete the tasks in the following sections:

For more information about configuring the Identity Server to be a relying party and the other available options, see Section 8.4, Configuring the Identity Server as a Relying Party.

8.3.2 Authenticating with a Managed Card

To use a managed card, you need both a relying party and an identity provider as illustrated in Figure 8-2. If you completed the steps in Section 8.3.1, Authenticating with a Personal Card, you have set up an Identity Server as a relying party. The following scenario explains how to set up a second Identity Server to be the identity provider. It also explains how to configure a trusted relationship between the relying party and the identity provider, so that a user can authenticate to the relying party with a managed card.

These sections describe only a few of options available for configuring the Identity Server as a CardSpace identity provider. For information about all the available options, see Section 8.5, Configuring the Identity Server as an Identity Provider.

Prerequisite

For CardSpace and managed cards, you need to make sure that the SSL certificate and the signing certificate of the Identity Server use the same name for the certificate’s subject name. When you configured the Identity Server for SSL, you replaced the default SSL certificate with a certificate that uses the DNS name of the Identity Server as the subject name. For CardSpace, you need to replace the default signing certificate. You can use the same certificate for signing as you did for SSL.

Both Identity Server that is the relying party and the Identity Server that is the identity provider need a signing certificate that uses the DNS name of the Identity Server as the subject name.

  1. In the Administration Console, click Devices > Identity Servers > Edit > Security.

  2. In the Keys and Certificate section, click Signing.

  3. Click Replace.

  4. In the Replace pop-up, click the Select Certificate icon, select the certificate you created for SSL, then click OK.

  5. When the certificate appears in the Certificate box, click OK, then click Close.

  6. Update the Identity Server.

Configuring a CardSpace Identity Provider

When you configure an Identity Server to be a CardSpace identity provider, you need to create a managed card template. Users can then use the template to create and install a managed card in their card selector.

  1. In the Administration Console, click Devices > Identity Servers > Edit > CardSpace.

  2. Click Managed Card Templates > New, then fill in the following fields:

    Name: Specify a display name for the template.

    Description: Specify the text to be displayed on the card. This can contain information about how the card can be used or the type of resource that can be accessed with the card.

    Image: Specify the image to be displayed on the card. Select the image from the drop-down list. To add an image to the list, click Select local image. The default image is the Novell Card.

    Require Identification of Relying Party in Security Token: Select this option to require the relying party to provide identification when it requests a security token. For this scenario, do not enable this option because the instructions haven’t explained how to configure this option for the relying party.

    Allow Users to Back a Managed Card Using a Personal Card: Select this option to allow users to back a managed card with a personal card. If this option is not selected, you cannot complete the steps in Section 8.3.3, Authenticating with a Managed Card Backed by a Personal Card.

  3. Click Next, then fill in the following fields:

    Attribute set: From the list of available sets, select the CardSpace attribute set.

    Selected claims: From the list of available claims, select the attributes for the managed card and move them to the list of selected claims.

    Do not remove the Personal Private Identifier claim. Add the Common First Name claim.

  4. Click Finish.

  5. Click STS > Authentication Methods.

  6. Move the Secure Name/Password - Form method to the Methods list.

  7. Click OK.

  8. Update the Identity Server.

  9. Continue with Creating and Installing a Managed Card.

Creating and Installing a Managed Card

The following instructions assume you are on a Windows client. The procedure is very similar to what is required on a Linux client and should be easily adapted.

  1. In Internet Explorer on the client machine, enter the base URL of the Identity Server that is acting as the identity provider.

  2. Select the Secure Name/Password card, then log in to the Identity Server.

  3. Click New Card, then click the Managed Card Template.

    The card displays the required claims.

  4. Specify a name for the card, then click Create Card.

  5. Click Open.

    CardSpace opens.

  6. Click Install and Exit.

    The managed card is installed.

  7. Log out and close the browser.

  8. Continue with Configuring the Relying Party to Trust an Identity Provider.

Configuring the Relying Party to Trust an Identity Provider

A trusted provider is an issuer of authentication tokens that you want to strongly trust. The provider has given you its issuer ID and its public key for the signing certificate. Tokens issued from this trusted provider are validated by using the public key certificate.

To configure a trusted relationship between the relying party and the identity provider, you need to create a trusted provider configuration for the identity provider. You also need to either modify an existing authentication profile or create a profile that includes the trusted provider as an issuer of security tokens.

To create a trusted provider configuration for the Identity Server acting as the identity provider, you need to know the base URL of the Identity Server and have a file containing the public key of the signing certificate of the Identity Server.

  1. To obtain the public key certificate of the identity provider:

    1. Log in to the Administration Console of the identity provider.

    2. Click Security > Certificates.

    3. Click the certificate you have created for the Identity Server to use for SSL and signing.

    4. On the certificate page, click Export Public Certificate > DER File, then save the certificate to a file.

    5. Copy this file to a location available to the Administration Console for the relying party.

  2. To create a trusted provider configuration for the identity provider:

    1. Log in to the Administration Console for the relying party.

    2. Click Devices > Identity Servers > Edit > CardSpace.

    3. Click Trusted Providers > New, then fill in the following fields:

      Name: Specify a display name for the identity provider. This name appears in the list of trusted providers that you can select for an authentication card profile. You might want to use part of the DNS name of the identity provider.

      Source: This line specifies that the Provider ID is entered manually.

      Provider ID: Specify the issuer ID of the trusted provider. For an Identity Server cluster configuration, the issuer ID is the base URL of the Identity Server plus the following path:

      /sts/services/Trust

      For example, if the base URL is https://test.lab.novell.com:8443/nidp, the Provider ID is the following value:

      https://test.lab.novell.com:8443/nidp/sts/services/Trust

      Identity Provider: Click Browse to browse for and select the certificate that you exported for the identity provider.

    4. Click Next > Finish.

  3. To create a profile that allows this trusted provider to be an issuer of security tokens, click Authentication Card.

    The following steps explain how to create a new profile for the trusted provider. This allows you to see how a CardSpace authentication card can be configured for multiple profiles.

    1. Click New, then fill in the following fields:

      Name: Specify a display name for the profile that indicates which trusted provider is going to use the profile.

      ID: (Optional) Leave this field blank.

      Text: Specify the text that is displayed on the card to the user for this profile. If the user knows about the identity provider, this should help the user identify the provider.

      Issuer: From the drop-down list, select the name of the trusted provider.

      Token Type: SAML 1.1 is displayed as the token type for the assertion.

    2. Click Next, then specify the attributes for the personal card.

      Attribute set: Select the CardSpace attribute set.

      Required attributes: From the Available attribute list, select the attributes that you want the card to return and move them to the Required attribute list.

      For this scenario, move Common First Name and Personal Private Identifier to the Required attribute list. The Personal Private Identifier attribute should always be in the required list.

      Optional attributes: From the Available attribute list, select the attributes that the card can return, but is not required to return, and move them to the Optional attribute list. For this scenario, do not select any optional attributes.

    3. Click Next, then specify the user identification method.

      Satisfied contract: (Optional) For this scenario, do not select a contract.

      Allow federation: Enable this option so that the managed card can be linked with the user’s account. If you do not enable this option, the user is always prompted for credentials.

      Authenticate: Select Authenticate for the user identification method. This prompts the user for a name and a password the first time the card is used for authentication.

  4. To add a trusted root to a trust store, click Security > Certificates.

    The Certificates page is displayed.

    1. Click Trusted Roots > Auto-Import From Server.

      In the pop-up dialog box, fill in the following fields:

      Server IP/DNS: Specify the server IP address or DNS name for the identity provider.

      Server Port: Specify 8443 for the server port number.

      Certificate name: Specify a name for the certificate.

    2. Click OK.

    3. Select the imported certificate, then click Add Trusted Roots to Trust Stores.

    4. In the Trust store(s) field, click the Select Keystore icon.

    5. Select NIDP-truststore, then click OK > OK.

  5. Update the Identity Server.

  6. Continue with Logging In with the Managed Card.

Logging In with the Managed Card

  1. In the browser on the client machine, enter the base URL of the Identity Server acting as the relying party.

  2. On the CardSpace card, click the Card Options icon in the top right corner.

  3. Select the profile option for the managed card.

  4. When the CardSpace application opens, select the managed card you imported, then click Send.

  5. In the CardSpace application, enter the password for the user, then click OK.

  6. When prompted by the Identity Server, enter the name and password.

    On subsequent logins, CardSpace prompts you for a password, but the Identity Sever uses the card for authentication. For single sign-on with the managed card, you need to back it with a personal card. Continue with Section 8.3.3, Authenticating with a Managed Card Backed by a Personal Card.

    Managed cards can be used to access resources protected by the Access Gateway. For configuration information, see Section 8.6, Using CardSpace Cards for Authentication to Access Gateway Protected Resources.

8.3.3 Authenticating with a Managed Card Backed by a Personal Card

The following configuration assumes that you have completed the configuration steps for Section 8.3.2, Authenticating with a Managed Card and that you enabled the Allow Users to Back a Managed Card Using a Personal Card option. This configuration scenario uses the managed card that you have created and explains how to install a new instance of it and back it with a personal card.

  1. In a browser on the client machine, enter the base URL of the Identity Server acting as the identity provider.

  2. Select the Secure Name/Password card, then log in to the Identity Server.

  3. Click New Card, then click the Managed Card Template.

  4. Specify a name for the card, then enable the Use Personal Card For Authentication option.

  5. When CardSpace opens, select a personal card, then click Send.

  6. On the New Card page, click Create Card.

  7. Click Open.

    CardSpace opens.

  8. Click Install and Exit.

    The managed card backed by a personal card is installed.

  9. Log out and close the browser.

  10. In the browser, enter the base URL of the Identity Server acting as the relying party.

  11. Select the CardSpace card.

  12. In your card selector, select the managed card that is backed by a personal card, then click Send.

  13. When prompted, enter the username and password, and log in.

    On subsequent logins, you can use the card to log in without entering any credentials.

  14. Click the Federation tab.

    It displays the name of the card that you used to log in with and allows you to break the federation with the personal card. When you break the federation, you must supply credentials to log n.

    For information on using this card with resources protected by the Access Gateway, see Section 8.6, Using CardSpace Cards for Authentication to Access Gateway Protected Resources
