10.3 Custom Branding

This policy allows you to customize the look and feel of the web portals, such as Helpdesk, Report, Tokens, Search card, new Enrollment and Administration Portals. By configuring this policy, you can change the title, logos, and application bar colors of the portals.

NOTE:When you make modifications, you can preview the changes you have applied in the sample Application Bar placed on the top of the page.

To configure the Custom Branding policy, perform the following steps:

Specify the title that you want to display in the application bar in App Bar Title.
Set Show Title Text to OFF to hide the title in the application bar. The Show Title Text is set to ON by default.
Specify the logo or title URL in Title/Logo Link URL. When a user clicks the logo or title in the application bar, the user is directed to the specified link.
Set the Use Logo in App Bar to OFF to hide logo in the application bar. The Use Logo in App Bar is set to ON by default.
Click Choose File in App Bar Logo and select the image from the local drive.

NOTE:The resolution of image must not exceed 200x200 pixels. The image must be in .png format.
Skip Collapsed App Bar Logo. The option doesn't do anything and will be removed in the next release.
Click the Select Colors icon in Title Text Color and select the preferred text color.
Click the Select Colors icon in Background Color and select the preferred background color.
Set Blend Two Background Color to ON to add two background colors and blend the colors in the application bar.

If Blend Two Background Color is set to ON, click the Select Colors icon in Background Color Left and Background Color Right, and select the preferred background colors.

10.3.1 Customizing the Login Page of Web Authentication Events

NOTE:For more information about customizing the login page of Web Authentication events before Advanced Authentication 6.3 Service Pack 5 Patch Update 1 and SaaS 21.8.1 releases, see Customizing the Login Page of Web Authentication Events.

You can customize the login page of the OAuth 2.0 or Open ID Connect and SAML 2.0 events. To do this, perform the following steps:

Set Use Custom Branding File for Web Authentication to ON.

By default, this option is set to OFF.
Click Choose File to upload the osp-custom-resources.jar file in the Web Authentication Branding File.
Click Template to download the branding template in the Download Custom Branding Template.
1. Save the osp-custom-resources.jar file.
2. Unzip the osp-custom-resources.jar file and in the resources folder open the file that you want to customize as follows:
  - naaf_enduser_custom_resources_<language>.properties - Use this file to customize the text related to the all methods on the login and Chain Selection pages.

    For example, to edit the text on the Authentication Chain Selection page, customize the values of the following parameters in the naaf_enduser_custom_resources_<language>.properties file:

    NAAFENDUSER.ChainPageHeader: To edit the title

    NAAFENDUSER.ChainPageSubHeader: To edit the paragraph after the title

    NAAFENDUSER.ChainSelectChain: To edit the name of chain list drop down

    NOTE:In case, you have customized the messages in the following files:

    The naaf_enduser_custom_resources_<language>.properties file of osp-custom-resources.jar

    Policies > Custom Messages

    Depending on the status of Custom Branding, the messages are displayed to end-users as follows:

    With Use Custom Branding File for Web Authentication set to ON, Web authentication events display the customized messages from the osp-custom-resources.jar file

    With Use Custom Branding File for Web Authentication is set to OFF, Web authentication events display the messages from Custom Messages policy
  - oidp_enduser_custom_resources_<language>.properties - Use this file to customize css, logo, copyright text and links of the login page.

    For examples, refer to Example of Customizing a Login Page.

    NOTE:Ensure that you edit the attributes in the Login page properties section of the oidp_enduser_custom_resources_<language>.properties file for the custom branding of the login page.

    You must also add your customized .css file in the css folder and required logo to the images folder of the osp-custom-resources.jar file.
3. After you edit the specific file in the resources folder, zip the file osp-custom-resources.jar.

  NOTE:To avoid the manifest file overwriting, make sure the jar file has been unzipped and zipped instead of opening and closing it with the Java .jar tool. Otherwise use the following command line switch to set the manifest file and make sure the name of the manifest file matches the filename in the template:

  jar -cm <jar file name> <manifest file name>.
(Conditional) To restore the default look and feel of the new Enrollment Portal, Administration Portal, and login page of web authentication events, click Restore adjacent to Restore Default Branding.
Click Save.

The following section describes an example of the customization that you can achieve for the Web authentication.

Example of Customizing a Login Page

To achieve the customized login page in the Figure 10-1 for Acme Group of company, you can perform the following:

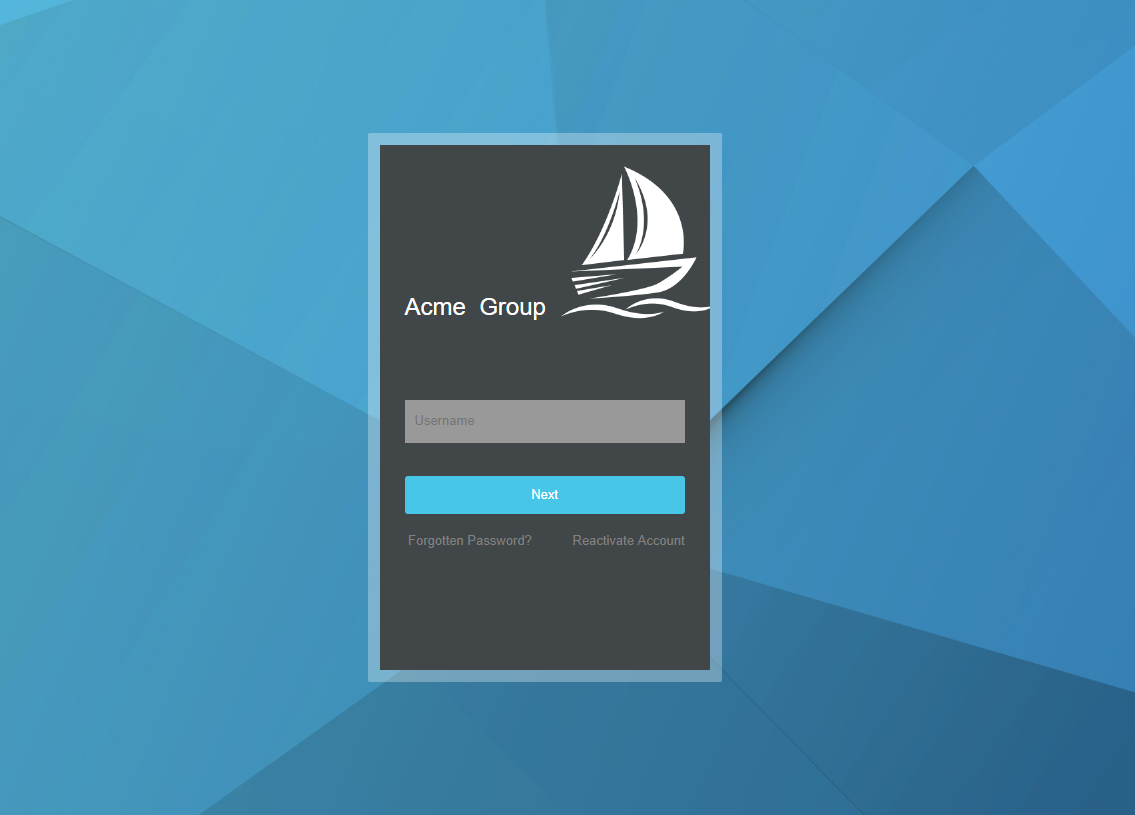

Figure 10-1 Customized Page for Acme Group

Adding a Customized CSS for the Login Page

You can add a customized css file to reflect changes for the login pages.

The following sample.css file has been customized for achieving the customized login page in Figure 10-1 for the Acme Group of company.

/* general styles
------------------------------- */
body {
  margin:0;
  padding:0;
  background:#fff url("/osp/TOP/images/login_bg.jpg") no-repeat center center fixed;
  -webkit-background-size: cover;
  -moz-background-size: cover;
  -o-background-size: cover;
  background-size: cover;
  font-family:Arial, Helvetica, sans-serif;
}
img {
  border:none;
  max-width: 100%;
}
/* login box
------------------------------- */
div.page-container {
  position:absolute;
  top: 50%;
  left: 0px;
  width:100%;
  margin:-265px auto 0 auto;
}
div.dialog {
  border: 12px solid rgba(255, 255, 255, 0.3);
  border-radius: 2px;
  width: 318px;
  max-width:100%;
  margin:0 auto;
  background-color: transparent;
}
div.dialog-content {
  height:525px;
  padding:0 15px;
  background:url(/osp/TOP/images/acme.png);
  background-color:#414749 ;
  background-position:180px 20px;
  background-repeat:no-repeat;
  font-family: Arial, Helvetica, sans-serif;
  text-align: left;
  }
.dialog-header {
  margin:0;
  padding: 150px 0 40px 0;
  color:#48c6e7;
  font-size:22px;
  font-weight:100;
  background: none;
}
div.dialog-header-content {
  display:block;
  color:#fff;
  font-weight: 200;
}
p { margin:0; padding:0; }
div.dialog-body {
  padding: 0;
}
.product-name {
  margin: 0;
}
#password, #Ecom_User_ID {
  color: #000 !important;
  background-color: #999;
  font-size: 13px;
  line-height: 20px;
  margin: 0 0 3px 0;
  padding: 11px 10px 12px;
  width: 100%;
  box-sizing: border-box;
  border: none;
  border-radius: 0;
}
.dialog-footer-content {
  display: none;
}
.button-container button, .btn {
  display: block;
  text-align: center;
  color: #fff;
  font-size: 13px;
  background-color: #48c6e7;
  border: none;
  margin: 30px 0 0 0;
  padding: 11px 10px 12px;
  box-sizing: border-box;
  width: 100%;
  cursor: pointer;
  -webkit-appearance: none;
  text-decoration: none;
}
.button-container button:hover {
  background-color:#00B4DF;
  border: none;
}
.input-box input {
  box-sizing: border-box;
  background-color: #999;
}
p.error {
    color: #cccccc;
    font-size: 13px;
    margin: 0;
    padding: 0 0 18px;
}
#logoutmsg, #logoutmsgsub { color:#fff; }
.error h1 { padding-bottom:20px; }
.help p { margin:0; padding:20px 0 0 0; font-size:11px; }
.help a { color:#cccccc; text-decoration:none; }
.help a:hover { color:#fff; }
.title {
  display: none;
}
.image-custom-link, .login-custom-link {
  display: inline;
}
.image-custom-link a {
  padding: 0;
}
.image-custom-link a:hover {
  color: #fff;
  background-color: transparent;
  display: inline;
  padding: 0;
}
.image-custom-link img {
  height: 0;
  width: 0;
}
#loginCustomLink1 {
  float: right;
}
/*------------------------------------*\
    RESPONSIVE
\*------------------------------------*/
@media only screen and (max-width:480px) {
  div.page-container {
    position: static;
    top: 0;
    margin: 0;
  }
  div.dialog {
    width: auto;
    margin: 0;
  }
}

Perform the following steps to add the sample.css file to the osp-custom-resources.jar file.

Open the osp-custom-resources.jar file.
Upload your .css file to the css folder.
Open the resources folder.
Open the oidp_enduser_custom_resources_en_US.properties file to edit the custom branding of the login pages in the English language.
Uncomment the line OIDPENDUSER.LoginCss=reset.css,uistyles.css,uistyles_loginselect.css by removing the # sign.

You can add your .css file here. For example, OIDPENDUSER.LoginCss=sample.css.
Save the oidp_enduser_custom_resources_en_US.properties file.

Customizing the Logo of an Enterprise

You can edit the logo displayed on the login page of web authentication event using the parameter OIDPENDUSER.LoginProductImage available in the Login page properties.

For example, to edit the logo of the login page of an OAuth 2.0 event in the English language, perform the following:

Open the oidp_enduser_custom_resources_en_US.properties file and edit the following attribute:

OIDPENDUSER.LoginProductImage=company_img.png.

You can also edit the .css file. The following code has been added to the sample.css file to display the logo in the Figure 10-1:

div.dialog-content {
  height:525px;
  padding:0 15px;
  background:url(/osp/TOP/images/company_img.png);
  background-color:#414749 ;
  background-position:180px 20px;
  background-repeat:no-repeat;
  font-family: Arial, Helvetica, sans-serif;
  text-align: left;
  }

Ensure that you add the image that you want as a logo to the images folder with the name that matches with the attribute value in OIDPENDUSER.LoginProductImage.

By default the images folder contains the image company_img.

Customizing the Copyrights

You can edit the copyright text displayed on the login page of web authentication event using the parameter OIDPENDUSER.50004 available under the JSP Strings.

For example, to remove the copyright note that is displayed on the login page of an OAuth 2.0 event in the English language:

Open the oidp_enduser_custom_resources_en_US.properties file and search the following parameter:

#OIDPENDUSER.50004=Copyright [copy] [year] NetIQ[nbsp]Corporation, a Micro[nbsp]Focus company. All rights reserved
Uncomment the following parameter as follows:

OIDPENDUSER.50004=

This removes the copyright note from the web authentication event - login page.

Customizing the Branding Text

You can edit the branding text displayed on the login page of web authentication event using the parameter OIDPENDUSER.LoginProductName available in the Login page properties section of the oidp_enduser_custom_resources_en_US.properties file.

For example, to edit the branding of the company to Acme Group, perform the following:

Open the oidp_enduser_custom_resources_en_US.properties file and search the following parameter:

#OIDPENDUSER.LoginProductName=Company[nbsp]Name[reg]
Edit the following parameter as follows:

OIDPENDUSER.LoginProductName=Acme[nbsp]Group[reg]

If you want to remove the branding text Acme Group, perform the following:

Open the oidp_enduser_custom_resources_en_US.properties file and search the following parameter:

#OIDPENDUSER.LoginProductName=Company[nbsp]Name[reg]
Uncomment the following parameter as follows:

OIDPENDUSER.LoginProductName=

This removes the branding text, Acme Group, from the web authentication event - login page.

Adding Links on the Login Page

You can add links for the login page of the web authentication event.

For example, if you want to add the link Forgotten Password that is displayed on the login page in the English language, add the following:

Open the oidp_enduser_custom_resources_en_US.properties file.
Add the following:
```
OIDPENDUSER.50078=Click here if you've forgotten your username or password, or if you need to register.
```
NOTE:The hyperlink for the text is taken from Methods > LDAP Password > SSPR URL in the Administration Portal.
