3.2 Introducing the Filters Interface

3.2.1 Filters Panel

To access the Filters panel, click Filters in the navigation panel on the left of the Sentinel Web interface. The Filters panel lists the default filters, filters you create, and the filters that other users have shared with you.

The Filters panel includes the following:

  • Find Filters: Allows you to search the specified filter. Specify the filter name, description of the filter, or keywords to search for a filter.

  • Create: Launches the filter builder that allows you to specify the filter criteria.

  • My Filters: Lists the default filters and the filters you created.

  • Shared Filters: Lists the filters that other users have shared with you.

To view events based on filters, select the desired filter. The associated events are displayed in the search results panel.

3.2.2 Filter Builder

The Filter Builder provides a list of parameters required to build search queries ranging from simple to complex. You can either select the parameters, or you can manually specify the search query.

For information on building search queries, see Section A.0, Search Query Syntax.

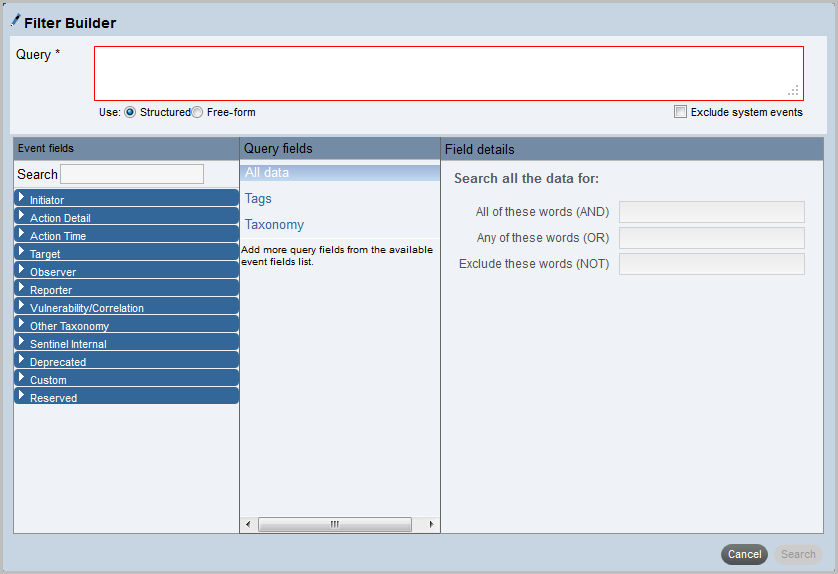

Figure 3-1 Filter Builder

The Filter Builder dialog box includes the following elements:

Table 3-1 Filter Builder Elements

Element

Description

Query

The behavior of this field depends on the filter creation method you select:

If you select Structured, this field displays the query formed by the parameters you select. You cannot modify or specify the filter query.

If you select Free-form, this field is enabled. You can manually specify the filter query.

Structured

Allows you to select the various parameters to build the filter query.

Free-form

Allows you to manually specify the filter criteria rather than selecting from the available parameters.

The search query is based on the standard Lucene syntax with some Sentinel extensions. For information on creating a filter query (search query), see Section A.0, Search Query Syntax.

If this option is selected, the following elements are not displayed:

  • Event fields

  • Query fields

  • Field details

Exclude system events

Select this option to exclude Sentinel internal events such as audit events and performance events from the search results.

Event fields

Displays a categorized list of possible event fields that can be added to the filter query. Each category can be expanded to display the set of fields in that category. If you know the name of the field you want, specify the name in the Search field. The event category list will adjust to present only matching fields.

For more information on event fields, click Tips located at the top right of the Sentinel Web interface.

Query fields

Lists a set of overlay queries that can be used on top of per-field searches. The following fields are displayed by default:

  • All data: Performs a search across all event fields.

    For more information, see Section A.1.4, The Default Search Field in Section A.0, Search Query Syntax.

  • Tags: Events can be tagged in various ways to help identify relationships between events. Queries that include a “Tags” search will look at the event tags (rv145) for matches.

  • Taxonomy: Events are also classified using a number of taxonomic categories for the action, outcome, and so forth. Queries that include a “Taxonomy” search will search for specific classes of events.

    For more information on taxonomy, see Sentinel Taxonomy.

Field details

The fields in this section vary depending on the event or query fields you select. For example:

  • For tokenized fields, you can specify the words that you want to include or exclude in the filter criteria. For information on the tokenized and non-tokenized fields, click Tips located at the top right of the Sentinel Web interface.

  • For non-tokenized fields, you can specify a value or a range of values.

  • For taxonomy fields, specific taxonomy options are displayed.

  • For date attributes, a date-time calendar is displayed as you type the date. You can select a date.

  • For fields that contain internal Sentinel UUIDs, such as the CollectorID field, the corresponding Sentinel object names are displayed and can be selected.

Condition: AND OR

Allows you to specify the AND or OR condition between the query fields. These options are available when you add additional event fields to the query fields.

Cancel

Allows you to cancel the filter creation process.

Search

Runs a search to test the filter before saving it.
