4.6 Correlation Actions

The Action Manager allows you to configure repeatable actions. There are several different types of actions that can be configured and then associated with a correlation rule deployment:

NOTE:Although all of these actions can be used in Correlation rule deployments, only the JavaScript actions can be used in other areas of the Sentinel Control Center. For more information, see Section 17.0, Action Manager and Integrator.

Actions associated with a Correlation rule are executed when the deployed Correlation rule fires (with the frequency of the execution determined by settings on the Update Criteria window of the Correlation Rule Wizard).

If no action is specifically selected when deploying a correlation rule, a correlated event with the following default settings is created:

Table 4-4 Default Settings

Field Name

Default Values

Severity

4

Event Name

Final Event Name

Message

<message>

Resource

Correlation

SubResource

<Rule Name>

4.6.1 Configuring a Correlated Event

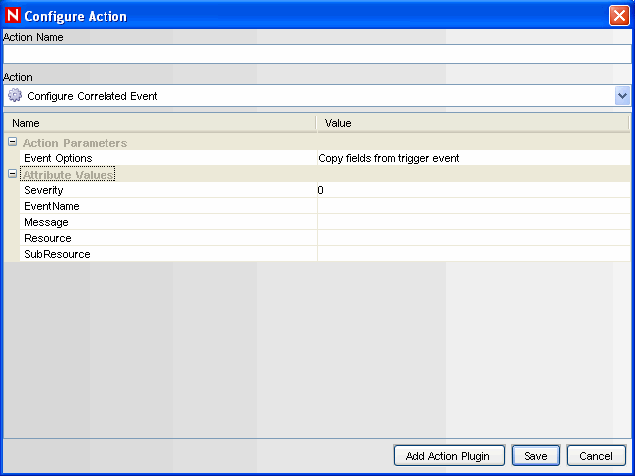

Figure 4-2 Configure Correlated Event

NOTE:This type of action can only be used in Correlation deployments.

To override the default values for the correlated event created when a rule fires, an action can be created to populate the following fields in the correlated event:

  • Severity

  • Event Name

  • Message

  • Resource

  • SubResource

4.6.2 Adding to a Dynamic List

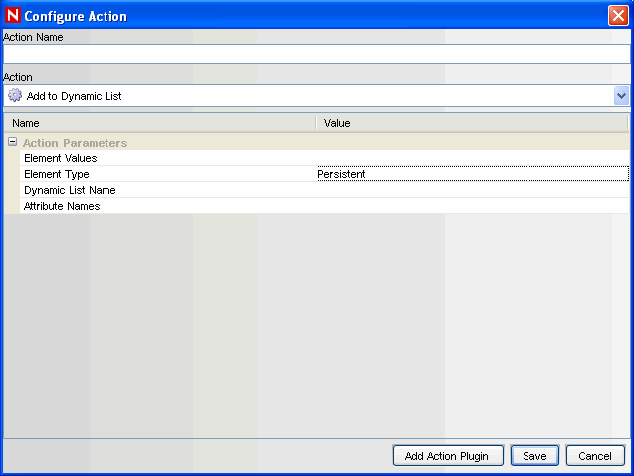

Figure 4-3 Adding to a Dynamic List

NOTE:This type of action can only be used in Correlation deployments.

This action type can be used to add a constant value or the value of an event attribute (such as Target IP or Initiator User Name) to an existing dynamic list. Any values that are repeated across multiple events are only added to the dynamic list once. The various parameters available are:

Table 4-5 Parameters

Option

Function

Element Values

(Optional) Specify a constant value to add to the dynamic list. If this is blank, Attribute Name must be populated.

Element Type

Persistent or Transient.

Dynamic List Name

Select an existing dynamic list from the drop-down menu.

Attribute Names

(Optional) For every event that is part of a correlated event, the value or values of the selected event attribute are added to the dynamic list. If this is blank, element values must be populated.

If there are entries for both Element Values and Attribute Names, both are added to the dynamic list when the rule fires. If the Element Value is filled in and the Element Type is Transient, the time stamp for the element in the dynamic list is updated each time the rule fires.

4.6.3 Removing a Value from a Dynamic List

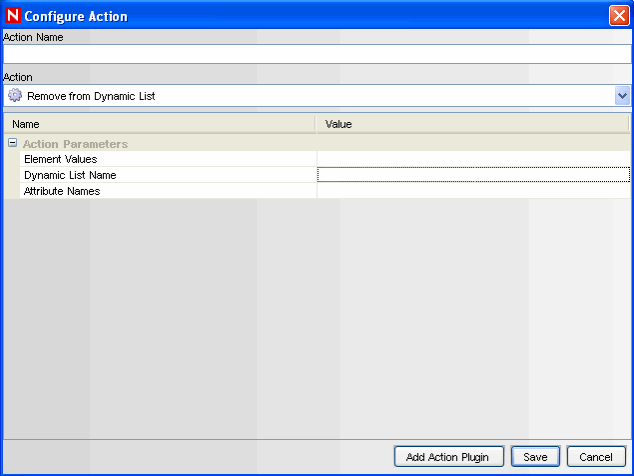

Figure 4-4 Removing a Value from a Dynamic List

NOTE:This type of action can only be used in Correlation deployments

This action type can be used to add a constant value or the value of an event attribute (such as Target IP or Initiator User Name) from an existing dynamic list. The various parameters available are:

Table 4-6 Parameters

Option

Function

Element Values

Specify a constant value to remove from the list.

Dynamic List Name

Select an existing dynamic list from the drop-down menu.

Attribute Names

For every event that is part of a correlated event, the value or values of the selected event attribute are deleted from the dynamic list.

4.6.4 Executing a Command

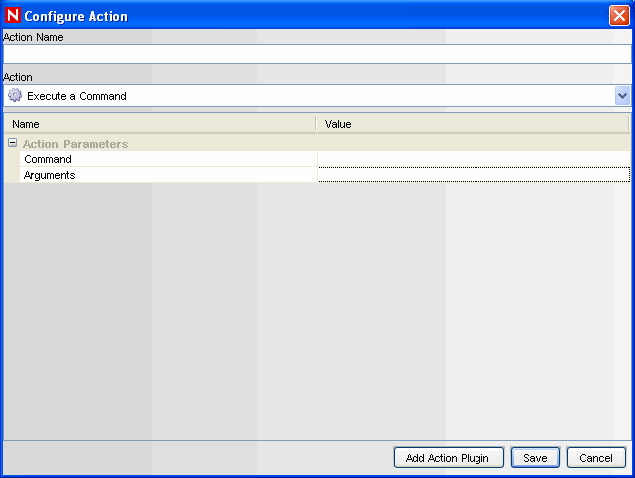

Figure 4-5 Executing a Command

NOTE:This type of action can only be used in Correlation deployments

This action type can be used to execute a command when a correlated event triggers. You can set the following parameters:

Command: Arguments: This can include constants or references to an event attribute in the last event, the one that caused the rule to fire.

References to event attributes must use the values in the meta tag column enclosed in % or $ symbols. For example, %InitIP% represents the initiator IP address value from the Correlated event, except in the Configure Correlated Event action. Because the Correlated event was not created before the action is executed, the InitIP value comes from the trigger event. $InitIP$ always represents the value from the current event. Both %all% and $all$ are the same, and they pass information (a limited set of attributes from both the trigger event and the Correlated event along with some Correlation rule data) to a Correlation action. They are provided primarily for backward compatibility with existing Correlation actions. They cannot be used in JavaScript actions or in the Configure Correlated Event action. For more information on meta tags, see Sentinel 6.1 Rapid Deployment Event Fields in the Sentinel Rapid Deployment Reference Guide.

Command actions can be created to perform a non-interactive action, such as modifying a firewall policy, entering a record in a database, or deactivating a user account. For an action that generates output, such as a command to run a vulnerability scan, the command should refer to a script that runs the command and then writes the output to a file.

NOTE:By default, the action output is stored to the working directory, <install_directory>/data. The action output can be written to a different directory by specifying a different storage location for the output file in the script

4.6.5 Creating an Incident

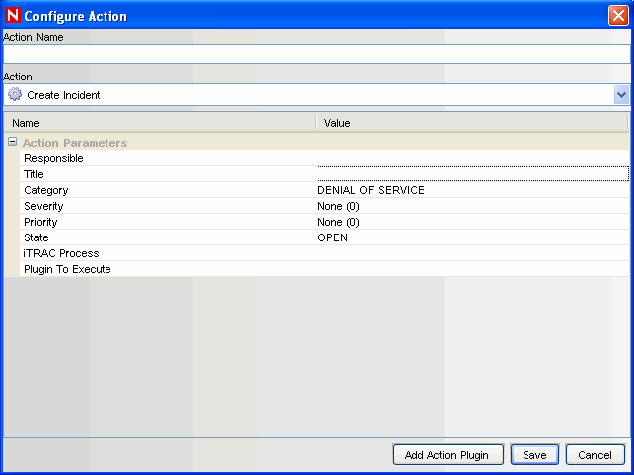

Figure 4-6 Configure Action:Create Incident

NOTE:This type of action can only be used in Correlation deployments.

This action type create an incident whenever a correlated event fires. You can also initiate an iTRAC workflow process for remediation of that incident. For more information about the values of the following parameters, see Section 5.0, Incidents Tab.

  • Responsible

  • Title

  • Category

  • Severity

  • Priority

  • State

  • (Optional) iTRAC Process list for configured iTRAC processes

  • (Optional) Action Plugin to Execute list for configured JavaScript actions

IMPORTANT:Do not enable the Create Incident action until the correlation rule has been tuned. If the rule fires frequently, the system can create more incidents or initiate more iTRAC workflow processes than desired.

4.6.6 Sending an E-mail

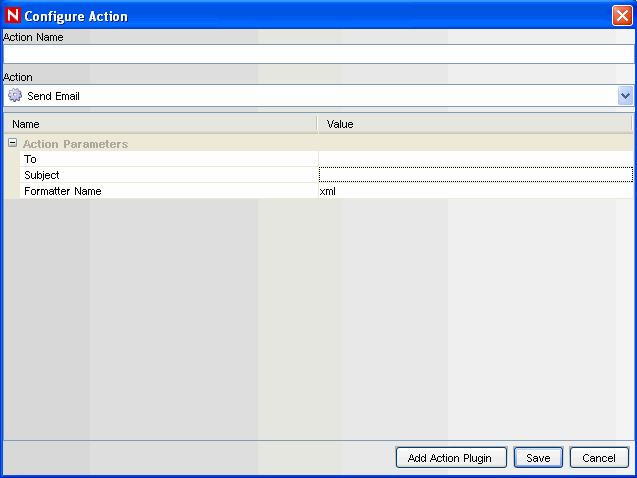

Figure 4-7 Configure Action: Send Email

NOTE:This type of action can only be used in Correlation deployments

This action type can be used to send an e-mail when a correlated event triggers. The various parameters available are:

Table 4-7 Parameters

Option

Function

To

Specify the recipient e-mail address

Subject

Specify the subject of the message

Formatter Name

The format of the e-mail contains the correlated event formatted as “xml” or “Name Value Pair”, depending on what you select

4.6.7 Imported JavaScript Action Plugins

For information on JavaScript actions and how to debug them, see Section 17.1, Action Manager. The JavaScript actions can be used in many places throughout the Sentinel interface.
