Connectors and Collectors

A Connector is a concentrator or multiplexed adapter that connects the Collector Engine to the actual monitored devices.

Collectors are the component-level aggregator of event data from a specific source. Sentinel primarily supports remote “Collector-less” connections to sources; however, Collectors can be deployed on specific devices where a remote approach is less efficient.

Collectors are controlled from the Sentinel Control Center, which orchestrates the communication between the Collectors and the Sentinel platform for real time analysis, correlation computation and incident response.

Collector Manager and Engine

Collector Manager manages the Collectors, monitors system status messages and performs event filtering as needed. Main functions of the Collector Manager include transforming events, adding business relevance to events through taxonomy, performing global filtering on events, routing events and sending health messages to the Sentinel server.

A Collector Engine is the interpreter component that parses the Collector code.

Collector Builder

Collector Builder is a standalone application that is used to build, configure and debug Collectors. This application serves as an integrated development environment (or IDE) that allows the user to create new Collectors to parse data from source devices using a special-purpose interpretive language designed to handle the nature of network and security events.

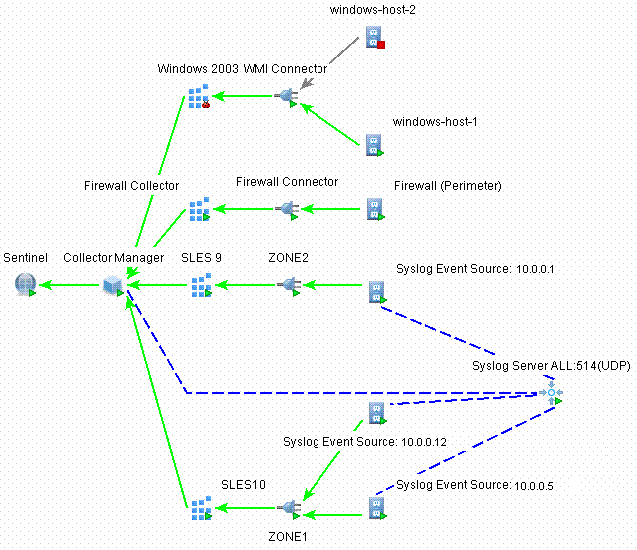

ESM introduces a new hierarchy of deployment objects that allow users to group multiple connections into sets. The hierarchy is as follows:

Figure A-9 ESM Hierarchy

The Event Source, Event Source Server, Collector, and Connector are configuration related objects and can be added through the ESM user interface.

Common Services

All of the above-described components in this Collection and Enrichment layer are driven by a set of common services. These utility services form the fabric of the data collection and data enrichment and assist in filtering the noise from the information (through global filters), applying user-defined tags to enrich the events information (through business relevance and taxonomy mapping services) and governing the data Collectors’ functions (through command and control services).

Taxonomy:

Nearly all security products produce events in different formats and with varying content. For example, Windows and Solaris report a failed login differently.

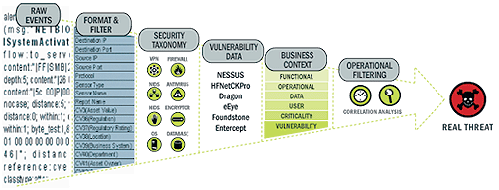

Sentinel’s taxonomy automatically translates heterogeneous product data into meaningful terms, which allows for a real-time homogeneous view of the entire network security. Sentinel Taxonomy formats and filters raw security events before adding event context to the data stream. This process formats all the security data in the most optimal structure for processing by the Sentinel Correlation engine, as you can see in the following diagram.

Figure A-10 Sentinel Taxonomy

Business Relevance:

Sentinel injects business-relevant contextual data directly into the event stream. It includes up to 135 customizable fields where users can add in asset specific information such as business unit, owner, asset value, geography. After this information is added into the system, all other components can take advantage of the additional context.

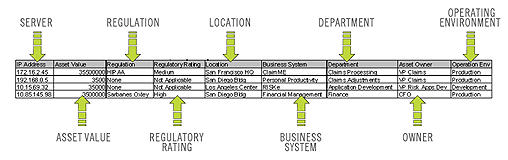

Figure A-11 Injecting Business Relevance

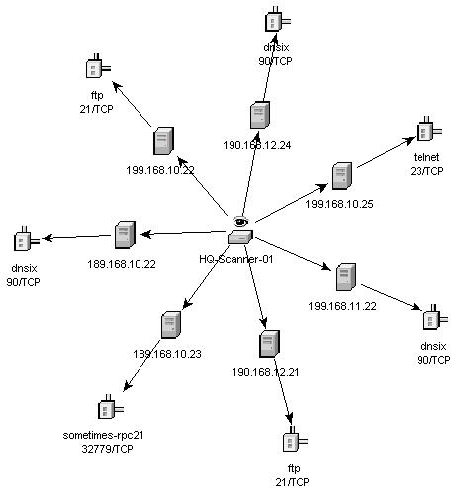

Exploit Detection provides users with updates of mappings between IDS and vulnerability scanner product signatures. The mappings include a comprehensive list of IDS and vulnerability scanners, Users simply upload vulnerability scan results into Sentinel. Exploit Detection automatically parses them and updates the appropriate IDS Collectors. It uses the embedded knowledge of vulnerability status to efficiently and effectively prioritize responses to security threats in real time.

When an attack is launched against a vulnerable asset, Exploit Detection alerts users with the corresponding severity level of the exploited vulnerability. Users can then take immediate action on high-priority events. This takes the guesswork out of alert monitoring and increases incident response efficiency by focusing reaction on known attacks against vulnerable assets.

Exploit Detection also enables users to map or “un-map” signatures and vulnerabilities to tune out false positives and negatives and to leverage custom signatures or vulnerability scans.

Remoting Service

Sentinel’s Remoting Service provides the mechanism by which the server and client programs communicate. This mechanism is typically referred to as distributed object application.

Remoting Service provides the following capabilities:

Data Access Service

Data Access Service (DAS) is an object management service, which allows users to define objects using metadata. DAS manages the object and access to objects and automates transmission and persistence. DAS also serves as a facade for accessing data from any persistent data store such as databases, directory services or files. The operations of DAS include uniform data access through JDBC.

Query Manager Service

The Query Manager Service orchestrates drill-down and event history requests from the Sentinel Control Center. This service is an integral component for implementing the paging algorithm used in the Event History browsing capability. It converts user-defined filters into valid criteria and appends security criteria to it before events are retrieved. This service also ensures that the criteria do not change during a paged event history transaction.

Correlation Service

Sentinel’s correlation algorithm computes correlated events by analyzing the data stream in real time. It publishes the correlated events based on user-defined rules before the events reach the database. Rules in the correlation engine can detect a pattern in a single event of a running window of events. When a match is detected, the correlation engine generates a correlated event describing the found pattern and can create an incident or trigger a remediation workflow through iTRAC. The correlation engine works with a rules checker component which computes the correlation rule expressions and validates syntax of filters. In addition to providing a comprehensive set of correlation rules, Sentinel’s correlation engine provides specific advantages over database-centric correlation engines.

Users are encouraged to measure a metric called Event Rules per Second (ERPS). ERPS is the measure of the number of events that can be examined by a correlation rule per second. This measure is a good performance indicator as it estimates the impact on performance when two factors intersect: events per second and number of rules in use.

Workflow Service (iTRAC)

The Workflow Service receives triggers on incident creation and initiates workflow processes based on pre-defined workflow templates. It manages the lifecycle of these processes by generating work items or executing activities. This service also maintains a history of completed processes that can be used for auditing incident responses.

Event Visualization

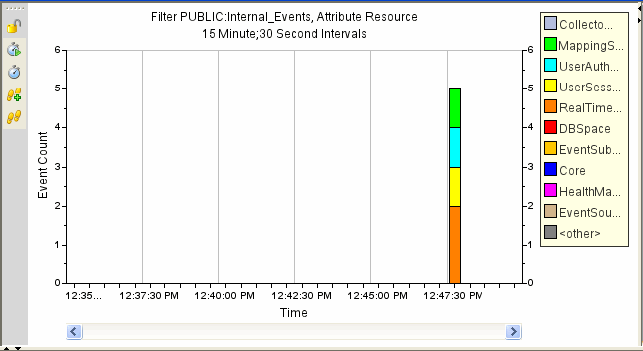

Active Views, the interactive graphical user interface for event visualization, provides an integrated, security management dashboard with a comprehensive set of real-time visualization and analytical tools to facilitate threat detection and analysis. Users can monitor events in real time and perform instant drill-downs from seconds to hours in the past. A wide array of visualization charts and aids allow monitoring of information through 3D bar, 2D stacked, line and ribbon chart representation and others. Additional valuable information can be viewed from the Active Views dashboard, including notification of asset exploits (exploit detection), viewing asset information and graphical associations between pertinent source IPs and destination IPs.

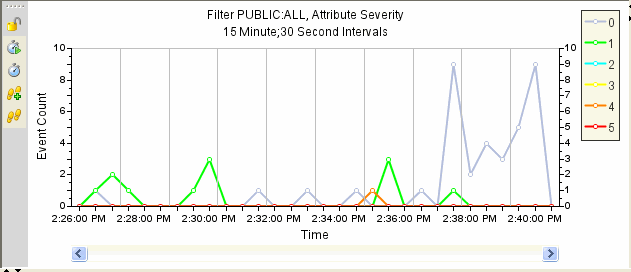

Because Active Views uses the iSCALE architecture, analysts can quickly drill down for further analysis because Active Views provides direct access to the real-time memory-resident event data, which easily handles thousands of events per second without any performance degradation. Data is kept in memory and written to the database as needed (Active Views can store up to 8 hours of data in memory with typical event loads). This uninterrupted, performance-oriented real-time view is essential when under attack or in steady-state.

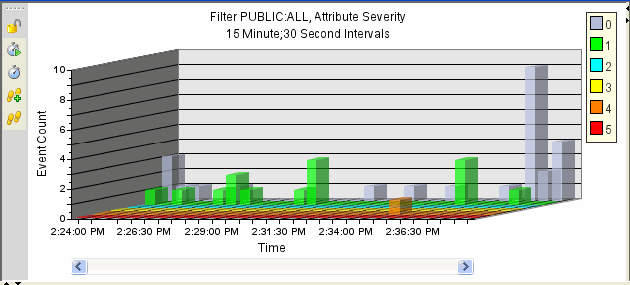

Figure A-12 Active View

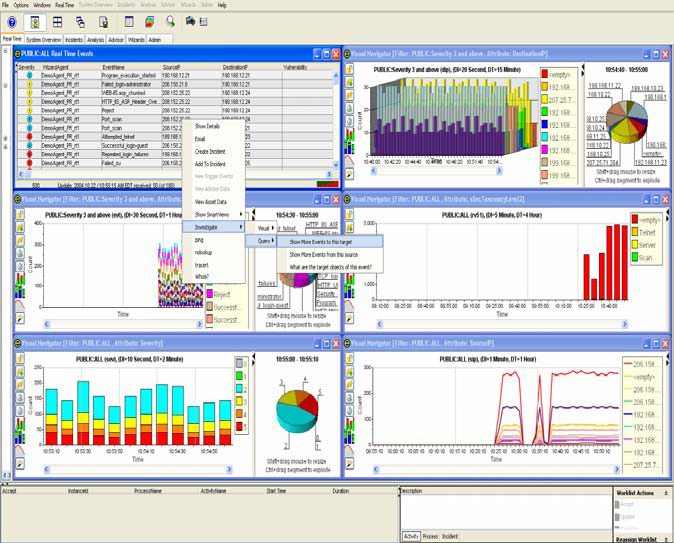

Figure A-13 Network

Incident response through iTRAC

Sentinel iTRAC transforms traditional security information management from a passive “alerting and viewing” role to an “actionable incident response” role by enabling organizations to define and document incident resolution processes and then guide, enforce and track resolution processes after an incident or violation has been detected.

Sentinel comes with “out-of-the-box” process templates that use the SANS Institute’s guidelines for incident handling. Users can start with these pre-defined processes and configure specific activities to reflect their organization’s best practices. iTRAC processes can be automatically triggered from incident creation or correlation rules or manually engaged by an authorized security or audit professional. iTRAC keeps an audit trail of all actions to support compliance reporting and historical analysis.

Figure A-14 Process Template

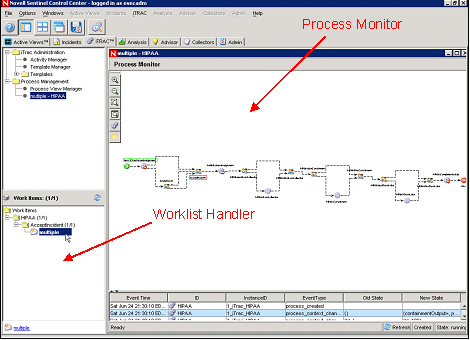

A worklist provides the user with all tasks that have been assigned to the user and a process monitor provides real-time visibility into process status during a resolution process lifecycle.

iTRAC’s activity framework enables users to customize automated or manual tasks for specific incident-resolution processes. The iTRAC process templates can be configured using the activity framework to match the template with an organization’s best practices. Activities are executed directly from the Sentinel Control Center.

iTRAC’s automation framework works using two key components:

Activity container

It automates the activities execution for the specified set of steps based on input rules

Workflow container

It automates the workflow execution based on activities through a work-list.

The input rules are based on the XPDL (XML Processing Description Language) standard and provide a formal model for expressing executable processes in a business enterprise. This standards-based approach to the implementation of business-specific rules and rule sets ensures future-proofing of process definitions for customers.

The iTRAC system uses three Sentinel 6 objects that can be defined outside the iTRAC framework:

Sentinel 6 workflows have four major components that are unique to iTRAC:

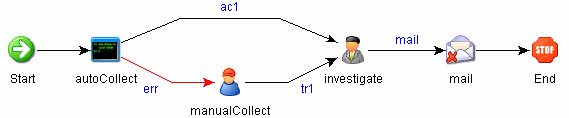

Figure A-15 iTRAC Workflow

Reporting Service

The Reporting service allows for reporting, including historical and vulnerability reports. Sentinel comes with out-of-the-box reports and enables users to configure their own reports using Crystal Reports. Some examples of reports included with Sentinel are:

Figure A-16 Sentinel Top 10 Reports

Advisor

Sentinel Advisor, an optional module, cross-references Sentinel’s real-time alert data with known vulnerabilities and remediation information, bridging the gap between incident detection and response. With Advisor, organizations can determine if events exploit specific vulnerabilities and how these attacks impact their assets. Advisor also contains detailed information on the vulnerabilities that attacks intend to exploit, the potential effects of the attacks if successful and necessary steps for remediation. Recommended remediation steps are enforced and tracked using iTRAC incident response processes.

Health

The Health service enables users to get a comprehensive view of the distributed Sentinel platform. It aggregates health information from various processes that are typically distributed on various servers. The health information is periodically displayed on the Sentinel Control Center for the end user.

Administration

The Administration facility allows for user management and settings setup facilities typically needed by application administrators of Sentinel.

Common Services

All of the above described components in this business logic layer of the architecture are driven by a set of common services. These utility services assist in fine-grain filtering (through Filter Engine) of events to users, continuous monitoring of system health statistics (through Health Monitor) and dynamic updates of system wide data (through Map Service). Together, these utility services form the fabric of the loosely-coupled services that allow for unparalleled processing and scaling over the message bus-based transport for real-time analytics and computation.

Active Browser

Active Browser facility helps in viewing the selected events. In Active Browser, the events are grouped according to the metatags. In these metatags various sub-categories are defined. The numbers in the parentheses against these sub-categories display the total number of event counts corresponding to the value of the metatag.

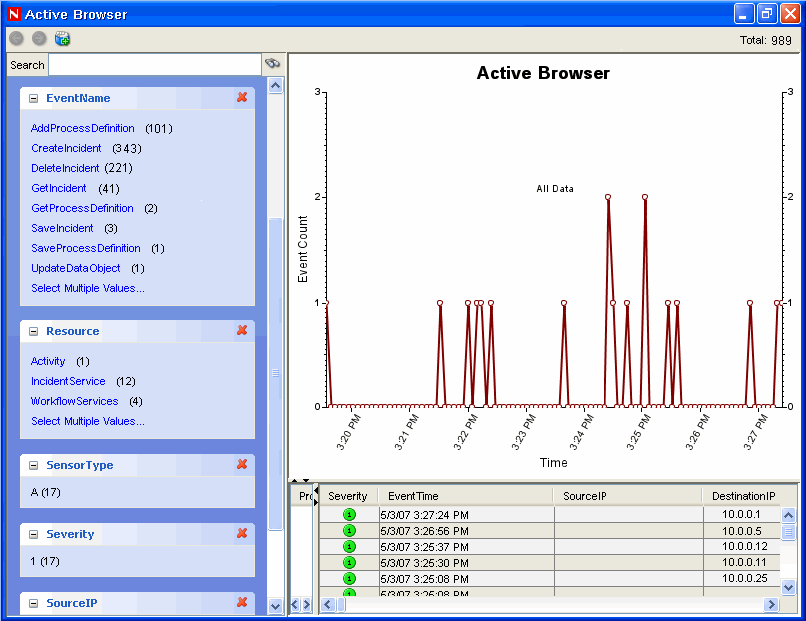

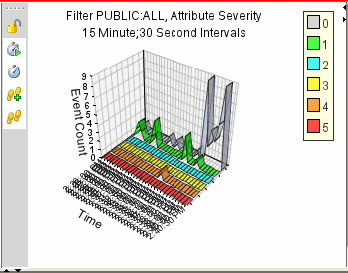

Figure A-22 Active Browser

In Active Browser, the query manager service retrieves a list of events taken from any part of the system and performs a statistical analysis of these events to break them down into ranges of values for each desired attribute of the event. Using single clicks through a Web browser interface, you can select ranges to quickly drill down on a large set of events. Then individual event details can be viewed or exported to an html or csv file. Additional event attributes for analysis can be added dynamically at any time, and the interface provides an interactive way to drill down on events in a given time range.
