16.4 Managing Action Plug-Ins

The Sentinel system includes several Action plug-ins by default, but you can download updates, documentation, and additional Actions from the Sentinel Plug-ins Web site. For more information on specific Actions, see the documentation that is available with the Action. Alternatively, you can view a specific Action’s documentation by clicking the Help button while configuring that Action in the Action Manager.

Although common Action plug-ins can be obtained from the Sentinel Plug-ins Web site, you can create and manage your own Action plug-ins. New Action plug-ins can be developed by using the Sentinel Plug-in SDK.

16.4.1 Understanding the Action Plug-In Manager Interface

The Action Plug-in Manager window lists the available Action plug-ins and allows you to import and manage action plug-ins.

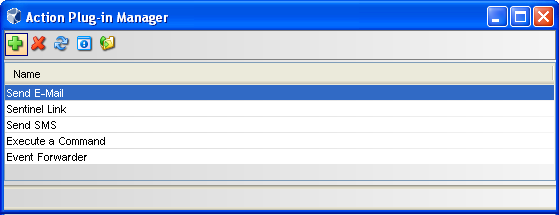

Figure 16-3 Action Plug-In Manager

The Action Plug-in Manager window includes the following options:

  • Add : Allows you to import or update an Action plug-in.

  • Delete : Allows you to delete an Action plug-in.

    NOTE:You can delete an Action plug-in only if there are no Action instances configured to use it. For example, if an Action is referenced by an Integrator, the Action cannot be deleted.

  • Refresh : Refreshes the list of plug-ins.

  • View Details : Displays the plug-in details such as the version number, release date, and a brief description of the Action.

  • Add Auxiliary file : Allows you to add an auxiliary file to the Action plug-in. Auxiliary files are occasionally required if a specific file is not available within the plug-in for licensing reasons, or if you want to customize or extend the Action in some way.

16.4.2 Importing an Action Plug-In

You can download and import an action plug-in package file or you can import an action plug-in file that is in a directory.

When you import a file from a directory, it is important to define the required objects correctly so that the Actions are available for the appropriate Sentinel features.

Downloading and Importing an Action Plug-In

  1. Download the appropriate Integrator plug-in from the Sentinel Plug-Ins Web site.

  2. Launch the Sentinel Control Center.

  3. Launch the Action Manager:

    • If the Configuration menu is not enabled, click the Configuration tab, then click the Configuration menu > Action Manager or click the .icon in the toolbar.

    • If the Configuration menu is enabled, click the Configuration menu > Action Manager or click the .icon in the toolbar.

  4. Click Manage Plug-ins, then click the Import icon.

  5. To import an Action plug-in package file, select Import an Action plug-in file (.zip, acz), then click Next.

  6. Click Browse to select the location of the package file.

    The file must be in .zip of acz format.

  7. .(Conditional) If you have selected an Action file that already exists, the Replace Existing Plug-in window is displayed. Click Next to replace the existing plug-ins.

  8. Review the plug-in details, then click Finish.

Importing an Action Plug-In File from a Directory

  1. Download the appropriate Integrator plug-in from the Sentinel Plug-Ins Web site.

  2. Launch the Sentinel Control Center.

  3. Launch the Action Manager:

    • If the Configuration menu is not enabled, click the Configuration tab, then click the Configuration menu > Action Manager or click the .icon in the toolbar.

    • If the Configuration menu is enabled, click the Configuration menu > Action Manager or click the .icon in the toolbar.

  4. Click Manage Plug-ins, then click the Import icon.

  5. Select Import an Action plug-in from directory.

  6. Click Browse to select the location of the directory, then click Next.

  7. Review the details and make changes as necessary.

    If you have selected an Action file that already exists, the Replace Existing Plug-in window is displayed. Click Next to replace the existing plug-ins.

  8. Select the objects you want to associate with the action, then click Next.

    This affects where the Action is available in the Sentinel interface.

  9. (Optional) Customize the plug-in by adding or editing the parameters.

    For example, if you want to include the attachment option for the Send E-mail action, you can add a parameter named “Attachment” and configure it appropriately. Also, you must modify the code in the action script to handle the new parameter.

  10. Click Add to add parameters that can be set when an Action is configured.

    This option should be used for any file that expects to receive information as parameters.

    1. Specify the parameter name.

      The name used here should be identical to the one used in the JavaScript API method scriptEnv.getParameter("<name>") in the script that is being imported.

    2. Select the parameter type from the Type drop-down list.

      • String: Passes the string value to the parameter.

      • Boolean: The parameter can take a True or False value.

      • Integrator: Select an Integrator for the action.

      • Event Tag: Select an Event Tag for the parameters.

      • Severity: Select a severity for the parameters.

      NOTE:The Options area is available only for the String type parameters.

    3. (Optional) Specify a description.

    4. Click Next.

  11. Review the plug-in details, then click Finish.
