B.1 Rebranding the UI Using PlateSpin Configuration Parameters

You can change the look and feel of the Web Interface to match the proprietary look of your organization websites.

To customize the branding of the Web Interface, modify the configurable UI elements of your PlateSpin Server host:

  1. Log in as Administrator to the PlateSpin Migrate Web Interface, then open the PlateSpin Server Configuration page at:

    https://Your_PlateSpin_Server/PlateSpinConfiguration/

  2. Locate the required PlateSpin Server Configuration parameter and click Edit to change its value.

  3. Click Save.

    After you modify the settings in the configuration tool, it might take up to 30 seconds for the change to take reflect on the interface. You need not reboot or restart the services.

The following sections provide information about the configurable elements in the UI for PlateSpin Migrate Web Interface.

B.1.1 About Configurable UI Elements for PlateSpin Migrate Web Interface

The look and feel of the PlateSpin Migrate Web Interface is consistent across the various pages. The illustration in Figure B-1 of the PlateSpin Migrate Dashboard identifies the elements that you can modify in the Web Interface UI with numbered callouts. For information about the related parameter for each element, see Section B.1.2, Modifying PlateSpin Configuration Settings for Configurable UI Elements.

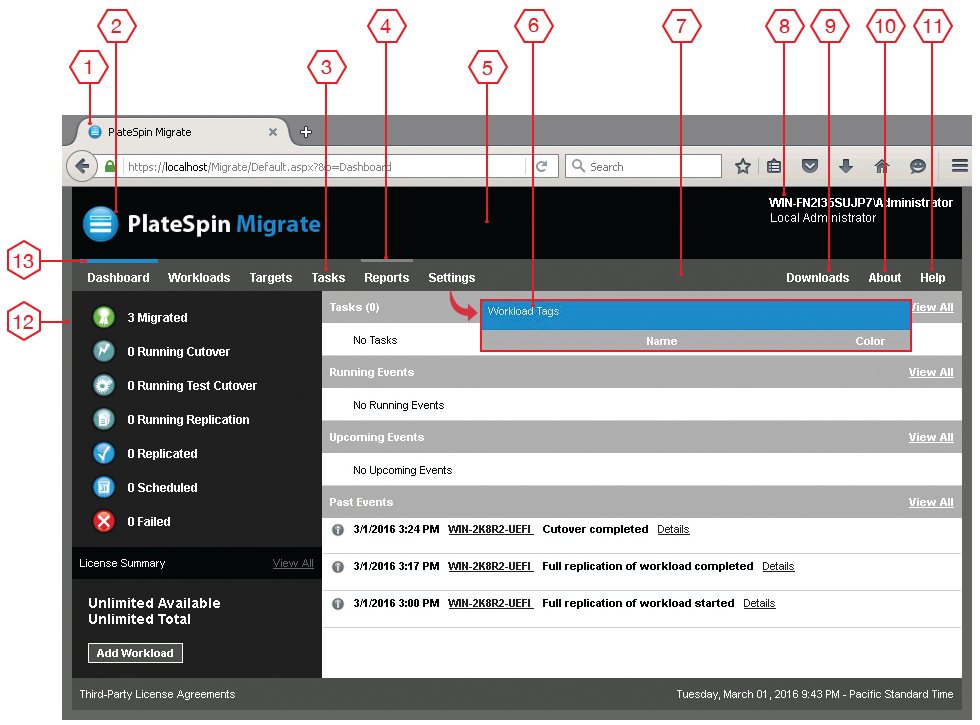

Figure B-1 Configurable UI Elements in the PlateSpin Migrate Web Interface

B.1.2 Modifying PlateSpin Configuration Settings for Configurable UI Elements

Table B-1 provides information about the setting you must use to modify the corresponding interface element. The ID column in the table lists the ID of the interface element identified in Figure B-1 provided in Section B.1.1, About Configurable UI Elements for PlateSpin Migrate Web Interface.

Table B-1 Parameters for Configurable UI Elements in the PlateSpin Migrate Web Interface

ID

Setting Name and Description

Default Value

1

WebUIFaviconUrl

Location of a valid .ico graphic file. Specify one of the following:

  • A valid URL to the appropriate .ico file on a different machine.

    For example: https://myserver.example.com/dir1/dir2/icons/mycompany_favicon.ico

  • A relative path below the root of the local web server where you have uploaded the appropriate .ico file.

    For example, if you create a path called mycompany\images\icons at the root of the web server to store your custom icon graphics:

    ~/mycompany/images/icons/mycompany_favicon.ico

    In this example, the actual file system path that contains the file is C:\Program Files (x86)\PlateSpin Migrate Server\PlateSpin Forge\web\mycompany\images\icons\mycompany_favicon.ico.

~/doc/en/favicon.ico 1

2

WebUILogoUrl

Location of product logo graphic file. Specify one of the following:

  • A valid URL to the appropriate graphics file on a different machine.

    For example: https://myserver.example.com/dir1/dir2/logos/mycompany_logo.png

  • A relative path below the root of the local web server where you have uploaded the appropriate graphics file.

    For example, if you create a path called mycompany\images\logos at the root of the web server to store your custom logo images:

    ~/mycompany/images/logos/mycompany_logo.png

    In this example, the actual file system path that contains the file is C:\Program Files (x86)\PlateSpin Migrate Server\PlateSpin Forge\web\mycompany\images\logos\mycompany_logo.png.

~/Resources/protectLogo.png 2

3

WebUISiteNavigationFontColor

Color of site navigation link font color in Web UI (RGB hex value)

#FFFFFF

4

WebUISiteNavigationLinkHoverBackgroundColor

Color of site navigation link background in hover state (RGB hex value)

#808080

5

WebUISiteHeaderBackgroundColor

Site header background color (RGB hex value)

#000000

6

WebUISiteAccentFontColor

Font color to display with accent color in Web UI (RGB hex value)

#FFFFFF

7

WebUISiteNavigationBackgroundColor

Color of site navigation background in Web UI (RGB hex value)

#4D4D4D

8

WebUISiteHeaderFontColor

Site header font color in Web UI (RGB hex value)

#FFFFFF

9

WebUIShowDownloadsTab

Toggles the visibility of the Downloads tab:

  • True: The Downloads tab is visible on the interface.

  • False: The Downloads tab is not visible on the interface.

True

10

WebUIShowAboutTab

Toggles the visibility of the About tab:

  • True: The About tab is visible on the interface.

  • False: The About tab is not visible on the interface.

True

11

WebUIShowHelpTab

Toggle the visibility of the Help tab:

  • True: The Help tab is visible on the interface.

  • False: The Help tab is not visible on the interface.

True

12

WebUISiteBackgroundColor

Site background color (RGB hex value)

#666666

13

WebUISiteAccentColor

Accent color (RGB hex value)

#0088CE

1 Actual file path is C:\Program Files (x86)\PlateSpin Migrate Server\PlateSpin Forge\web\doc\en\favicon.ico.

2 Actual file path is C:\Program Files (x86)\PlateSpin Migrate Server\PlateSpin Forge\web\Resources\protectLogo.png.
