1.3 Gathering Information for Support

1.3.1 Running probe to Retrieve Configuration and Environment Information

The probe script gathers information on your patch level, platform, Java* environment, memory and GC usage, configurations, adapters, and logs for a specified number of days. This tool can safely be run while the Operations Center server is up.

The configprobe.xml configuration file is used to specify the files and log files that are captured in the output file.

To generate a probe output file to attach to your service request:

  1. If necessary, update the /OperationsCenter_install_path/config/configprobe.xml file to change any default probe configuration values.

    By default, probe retrieves all log files available in the log directories, but is not recursive. Modify the number of days of log files to retrieve by editing any log element daystogather attribute values.

    If log files are in different directories, uncomment the Logs section and specify the directories where logs are located.

  2. At a command prompt, issue the following command from the /OperationsCenter_install_path/bin directory:

    ./probe


    where OperationsCenter_install_path is the Operations Center installation directory.

  3. Attach the output ZIP file to your open service request.

    The output file is saved to the /OperationsCenter_install_path/bin directory, in the format of probe.Version_Number.zip.

1.3.2 Running probe to Retrieve Dashboard Configuration Information

The /OperationsCenter_Dashboard_install_path/bin/probe script gathers information on your dashboard configuration. This tool can safely be run while the dashboard is running.

To generate a probe output file to attach to your service request:

  1. At a command prompt in the /OperationsCenter_Dashboard_install_path/bin directory, issue the following command:

    ./probe

    where OperationsCenter_Dashboard_install_path is the Operations Center Dashboard installation directory.

  2. Attach the output ZIP file to your open service request.

    The output file is saved to the /OperationsCenter_Dashboard_install_path directory, in the format of dashboardprobe.Version_Number.zip.

1.3.3 Gathering Information about the Operations Center Console

The context of each thread in the client application is written to the Java console. You can cut and paste this information into an e‑mail and send it to support.

To obtain information about the Operations Center console on Windows* and UNIX:

  1. From the desktop, click Start > Run to open the Run dialog box.

  2. Open the Java Web Start Application Manager by doing one of the following:

    • Windows: Enter javaws -viewer in the Open field (use lowercase), then click OK.

    • UNIX: At a command line in the directory where Java is installed, enter javaws (use all lowercase).

    The Java Web Start Application Manager dialog box opens.

  3. Click File > Preferences to open the Java Web Start Preferences dialog box.

  4. Click the Advanced tab.

  5. Select the Show JAVA Console check box.

  6. Click OK.

  7. Click (Close) to close the Java Web Start Application Manager dialog box.

  8. Close all Operations Center consoles.

  9. Restart the Operations Center console.

    The JavaConsole dialog box opens each time the Operations Center console starts.

  10. Cut and paste the information in the Java Console dialog box into your open service request.

1.3.4 Diagnosing the Operations Center Server

Operations Center provides the ability to execute a dump of Operations Center system information to a file that can assist Technical Support with troubleshooting the problem. The information is obtained by identifying the process ID (PID) for Operations Center, which is found in the daemon.trc file in the stdout directory.

Windows

To obtain information about the Operations Center server on Windows:

  1. From the desktop, right-click an empty space on the task bar at the bottom, then select Task Manager to open the Windows Task Manager.

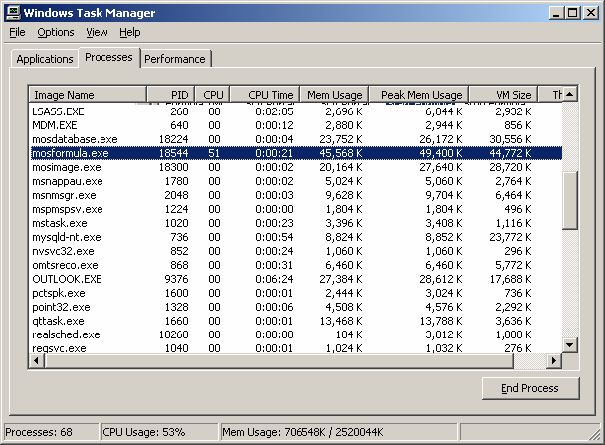

  2. Click the Processes tab to display the Processes page:

  3. Locate the PID of the mosformula.exe process in the Windows Task Manager.

    In the example above, the mosformula.exe PID is 18544.

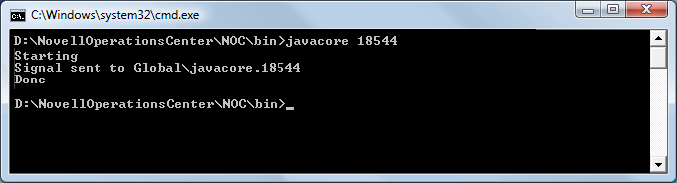

  4. From a command line in the /OperationsCenter_install_path/bin directory, enter javacorePID to initiate a process to write the system information about Operations Center to the daemon.trc file.

    PID means Process ID for mosformula.exe.

    It can take several minutes to complete writing the information.

  5. Using a text editor, open /OperationsCenter_install_path/logs/daemon.trc to verify that the results of the thread dump are recorded.

  6. Repeat Step 4 and Step 5 twice to ensure that all system information is recorded.

  7. Attach the daemon.trc, formula.trc, and fsgc.log files to your open service request.

UNIX

To obtain system information about Operations Center on UNIX, a signal is sent to the application to generate a core file. Before a signal can be sent, determine the type of signal required. The core file is written to the standard Operations Center trace file (daemon.trc).

  1. To display the Operations Center PID, go to a command line and enter the following command:

    $ ps ef|grep Formula.properties


    The Formula process properties display, as shown:

    The formula 35442 38448 0 10:56:43 pts/0 117:04 /usr/java130/jre/bin/java –classpath /apps/formula/html/classes/common.jar:/apps/formula/html/classes:
    /apps/formula/html/classes/swingall.jar:/apps/formula/classes/server.j
    ar:/apps/formula/classes:/apps/formula/classes/rsa.jar ‑Xmx256m com.mo
    sol.Formula.Server.ServerImpl /apps/formula/config/Formula.properties ‑CORBA.Port 2000

  2. Identify the Formula PID number, which is located following formula in the properties. In the example above, the Formula PID is 35442.

  3. Send a SIGQUIT signal by issuing the following command:

    kill –s -QUIT formula_PID_number

    The operating system dumps the thread information into the daemon.trc file.

  4. Verify that the daemon.trc file contains the system information.

  5. Attach the /OperationsCenter_install_path/logo/daemon.trc file to your open support ticket.

1.3.5 Using the SIGQUIT Command to troubleshoot the Operations Center server for UNIX

Issue the SIGQUIT command to troubleshoot the Operations Center server for UNIX systems. The SIGQUIT command captures system information when the Operations Center server is running and is in the locked state. It is often useful to have several consecutive SIGQUIT signals issued to be able to see if the server is processing information or if it has locked up in a certain segment of code.

The SIGQUIT command is indicated when:

  • The mosstatus command does not return any output and hangs

  • The server appears to be running with a mosstatus command, but users cannot log in

  • A ps –ef | grep jre or a ps –ef | grep java on UNIX indicates that your server processes are running, but the mosstatus command doesn’t return a running server

  • The Operations Center console displays the message Locating server..., and your server processes are running

  • The Operations Center console displays the message Initializing user interface..., but the Operations Center console does not display properly and your Operations Center processes are running

  • A grep for the Web server port on 8080 is not established and the Operations Center console cannot locate the Operations Center server for connection, but your Operations Center server processes are running
