7.5 Filtering Alarms

The Alarm Filter pane in the Operations Center console is available only for elements that can display alarms.

Alarms can be filtered using criteria based on one or more alarm properties, such as severity, element name, ID, or dates and times. Filtering is useful when you want to see a subset of alarms. For example, you can apply a filter to display only those alarms with a specified severity level and a time stamp within a specified date range.

Both administrators and users can create and apply alarm filters. Administrators can create alarm filters and apply them to service models or metamodel classes to select a subset of alarms. This provides a way to control the alarms seen by users when they open the Alarms view. Service model and class filters can be applied in the console, or through scripts.

Users can create and apply alarm filters in their own Alarm views. These filters do not affect other users’ view of alarms.

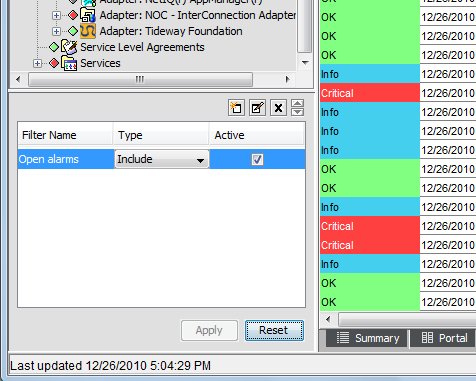

Users can define their own alarm filters using the Alarm Filter pane, which is located in the bottom left corner of the Alarms view:

Figure 7-4 Alarms View

Applying an alarm filter displays a subset of alarms in the Alarms view. For example, apply a filter to display only those alarms with a specific severity message or class, or alarms within a specific date and time range. Combine the filter criteria using AND or ANY logic, as explained in subsequent subsections.

Applying an alarm filter does not change the total number of alarms displayed next to each filter button at the top of the console. For example, if there are 100 CRITICAL alarms, but an applied filter removes these alarms from the Alarms view, 100 still displays next to the red filter button in the console tool bar.

HINT:Click and drag up the top border of the Alarm Filter pane to view many filters. Click and drag between column headings to resize filter columns.

To filter alarms, review the following sections:

7.5.1 Displaying or Hiding the Alarm Filter Pane

To hide or show the Alarm Filter pane:

  1. From the Format menu, select Show Alarm Filters.

    When selected, the Alarm Filter pane displays.

  2. To hide the Alarm Filters pane, deselect Show Alarm Filters from the Format menu.

7.5.2 Creating an Alarm Filter

The options available for a filter depend on the adapter associated with the currently selected element.

To create an alarm filter:

  1. In the Explorer pane, select an element.

  2. Click Create in the Alarm Filter pane to open its dialog box.

  3. In the Filter Name field, specify a name for the filter.

    The name can contain between 1-50 alphanumeric or space characters only.

  4. Do one of the following to determine the type of match: Select the Match All radio button to determine if an alarm must match any or all of the condition statements in order to be selected.

    • Select the Match any of the following radio button to match one or more condition expressions. Selecting this option joins more than one statement with an OR operator.

    • Select the Match all of the following radio button to match all of the condition expressions. Selecting this option joins more than one statement with an AND operator.

    • Select the Custom boolean expression radio button to specify a boolean expression to match.

    For more information, see the table in Step 8.

  5. To determine how the condition statements are applied in the filter, do one of the following: or Match all of the following radio button to determine if an alarm must match any or all of the condition statements in order to be selected.

    • Select the Match any of the following radio button to match one or more alarm expressions. Selecting this option joins the statements with an OR operator.

    • Select the Match all of the following radio button to match all alarm expressions. Selecting this option joins statements with an AND operator.

      For example, to view alarms that have a specific severity and ID prefix, create two filter statements, then select the Match All radio button to join the statements with an AND operator. This is seen as “and” at the beginning of the filter row for the second filter. If you select Match Any, “or” begins each subsequent filter row.

    • Select the Custom boolean expression radio button to join the statements using a custom boolean expression.

  6. Click Add.

    A blank row displays for defining a filter statement.

  7. Click the first drop-down list, then select the alarm column name to match in the filter.

    The list varies among adapters and also depends on the currently selected element. For example, select Date/Time for the filter to search alarms based on the date and time they were received:

    Depending on which filter you select, other fields are displayed.

  8. Select comparison operators and specify match criteria using the other fields in the row.

    When defining the alarm filters, refer to Table 7-3 to understand the relationships among the fields.

    Table 7-3 Alarm Filters - Parameters

    Alarm Column Type

    Operators

    Match Criteria

    Notes

    Text-based (such as Element, Class, Status, Description)

    • contains
    • does not contain
    • is
    • is not
    • begins with
    • ends with

    Specify an appropriate value based on the selected alarm column.

    • For exact matches, use is or is not.

    • For partial matches anywhere in an alarm value, use contains or does not contain.

    • For partial matches using the first or last characters, use begins with or ends with.

    • For partial matches using the first or last characters, use begins with or ends with.

    • is greater than
    • is greater than or equal
    • is less than
    • is lss than or equal

    Specify an appropriate value to compare to the alarm column value.

    These are lexicographical comparisons.

    • matches regex

    Specify a regular expression to perform on the alarm column value.

    In regular expressions, standard wildcards (?) and (*) are allowed, as well as standard operators such as OR, AND, or BETWEEN.

    Date, Time

    • is
    • is not
    • is before
    • is before or equal
    • is after
    • is after or equal

    Specify a date and time.

    To select a date range, create a before and an after statement, joined by selecting Match All; or use is between.

    • is less than
    • is more than

    Specify a date/time interval to compare with the alarm date/time.

    These are relative date/time comparisons. For example, to match dates that are within 30 days earlier than the current date, use the criteria: date/time is less than 30 days before the current date.

    • is within the last

    Specify an aligned interval based on a number of minutes, hours, days, weeks, months, or months.

    This is a comparison within an aligned interval that is inclusive to the current time interval. For example, to match dates that are within the current month and previous month, select is within the last 2 months. In this case, if the current date is July 15, the filter searches for dates between June 1 to July 31, but will any alarms from June 1 to July 15.

    • is today
    • was yesterday



    These are comparisons based on the current date.

    • is between

    Specify beginning and ending dates to compare with the alarm date.

    This is a comparison based on a date range.

    Severity

    • is
    • is not
    • is higher than
    • is lower than

    Select from severity levels appropriate to the adapter.

    Use is not to exclude all but one severity code.

    To select a contiguous range of severity codes, create two statements using higher than and lower than, joined by selecting Match All.

    Numeric (such as ID)

    • contains
    • does not contain
    • is
    • is not
    • begins with
    • ends with
    • is greater than
    • is greater than or equal
    • is less than
    • is less than or equal
    • is between

    Specify the number.

    • For exact matches, use is or is not.

    • For partial matches anywhere in an alarm value, use contains or does not contain.

    • For partial matches using the first or last characters, use begins with or ends with.

    • For a relative match, use is greater than or is less than.

    • To select a contiguous range of values, create two statements using greater than and less than, joined by selecting Match All; or use is between.

    After placing the cursor in the filter value column (the last column in the row), specify a value, or an error message prompts for a numeric value. It is not possible to edit the other columns or close the Alarm Filter dialog box without first specifying a value.

    Some examples of alarm filters:

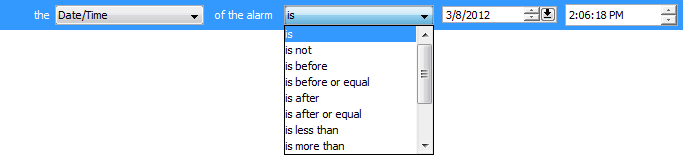

    • Matching Alarm Dates and Times: If you select Date/Time in the first drop-down list, you can select Is Before in the second drop-down list:

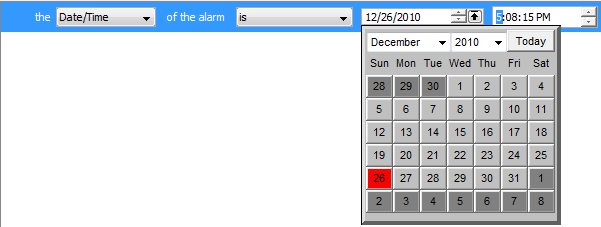

      Then, if the comparison involves a specific date and time, use the calendar selector to select a date:

      In some cases, a relative “rolling” date/time comparison is necessary. For example, a filter could select alarms that are within 30 days of the current date and time. Use the is less than or is more than operator to specify the time interval for comparing the current date and time. Also specify whether the filter should pull alarms that are before or after the current date and time.

      The following example filters alarms whose date/time stamp is within 24 hours before the current date/time:

    • Matching Exact Cases: Case-sensitive matching in alarm filters is optional. When a text type alarm column is used in a filter, the Case-Sensitive check box is selected by default. This means that when searching for a specific text string, a match occurs only if each letter in the string matches exactly the string entered in the third field of the alarm filter.

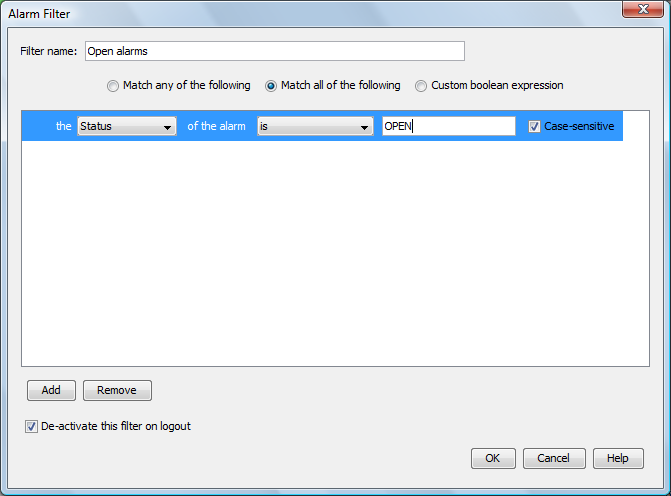

      For example, if the Status alarm column values are all capitalized, such as OPEN, use all capital letters to enter the value for the alarm filter:

      If case matching is irrelevant in the search, then deselect the Case-Sensitive check box.

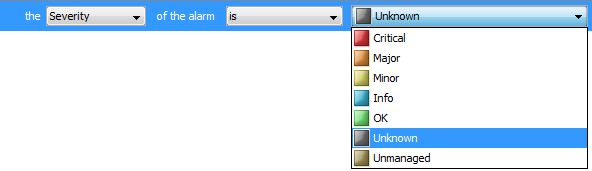

    • Matching Alarm Severity Codes: When Severity is the selected alarm column, a drop-down list of severity codes and colors displays in the right column:

      The codes vary among adapters.

  9. (Optional) Click Add to create another alarm filter.

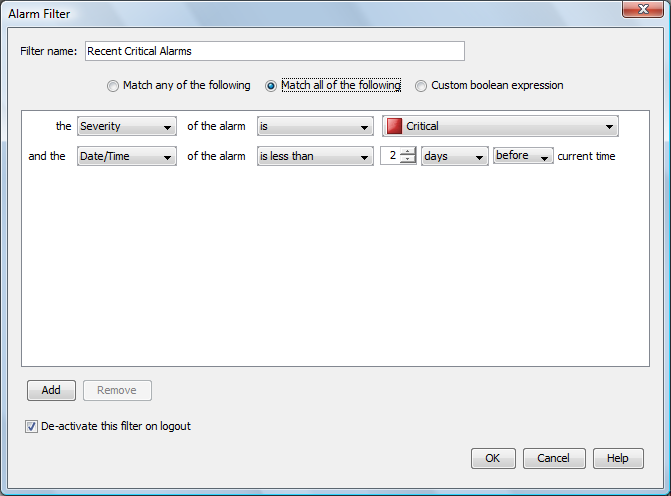

    The following example shows a filter with two statements:

    The filter matches alarms with a date and time stamp before the specified date and time and a CRITICAL severity.

  10. If the Custom boolean expression radio button was selected in Step 4, specify a boolean expression using alarm expression ids to indicate how the condition statements are to be applied:

    • Expression ids display in the front of each condition statement.

    • Use AND to join two expressions.

    • Use OR to match any of two expressions.

    • Use NOT to not match an expression.

    • The boolean expression is not case-sensitive. Not all alarm expressions must be applied as boolean expressions can be formed in a way that ignores an expression. For example, if the following expression is used, (AF1 OR AF2) AND (NOT AF4), then AF3 would be ignored.

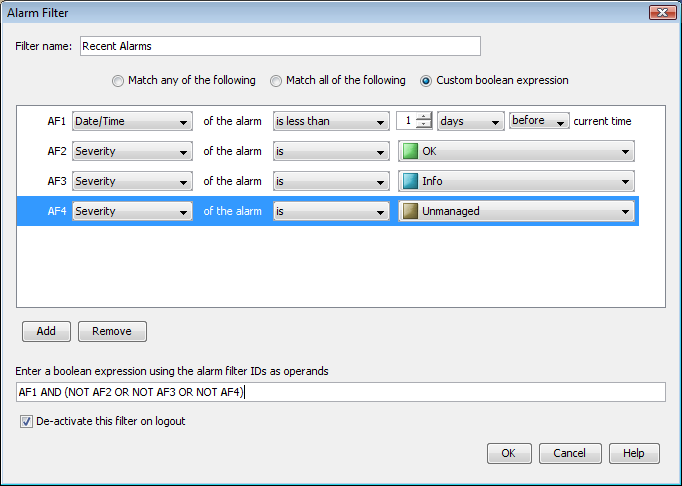

    • In the figure below, the filter allows alarms no older than 24 hours with a severity of CRITICAL, MAJOR, MINOR and UNKNOWN.

  11. (Conditional) To automatically deactivate the filter upon logout from the console, select the Deactivate This Filter on Logout check box.

    To leave the filter activated from session to session, leave the check box deselected.

    Deactivating filters upon logout ensures that all alarms display after the next login.

    If filters remain active upon logout, the active filters apply automatically upon login and only the selected alarms display in the Alarms view. Problems might arise from not realizing that all alarms are not displayed.

  12. Click OK to create the filter.

    The new filter displays in the Alarm Filter pane.

7.5.3 Applying Filters

After creating filters, you can apply them to the Alarms view using the Alarm Filter pane. Multiple filters are applied using the AND operator, meaning the resulting alarm set must match all the active filters. The Figure 7-5 example selects and includes alarms whose IDs begin with 443 and have a MAJOR or CRITICAL severity:

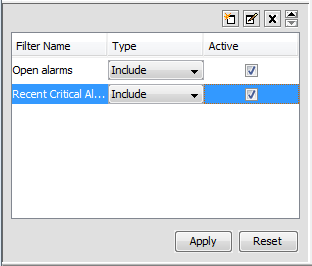

Figure 7-5 Alarm Filter Pane: Apply multiple filters at the same time.

After applying a filter, the status bar at the bottom of the Alarms view displays the total number of alarms selected by the active filters, and identifies in red the number of alarms that are not displayed because of the filter.

To apply an alarm filter:

  1. Do one of the following:

    • To include alarms selected by the filter in the Alarms view, click the Type drop-down list, then select Include.

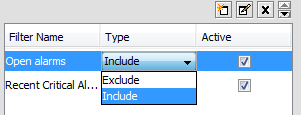

    • To exclude alarms selected by the filter from the Alarms view, click the Type drop-down list, then select Exclude.

  2. Select the Active check box to apply the filter.

    It is possible to apply more than one filter at the same time.

    Alarms must match all active filters in order to be selected.

  3. Click Apply.

    Alarms are selected based on the active filters and the “included” option. The selected alarms display in the Alarms view.

7.5.4 Changing Filter Order

Filters apply in the order in which they display in the Alarm Filter pane.

To change the order in which filters apply:

  1. Select the filter in the Alarm Filter pane.

  2. Click (the up or down scroll arrow button) to move the filter.

7.5.5 Editing and Deleting Filters

Editing a Filter

To edit a filter:

  1. Select the filter, then click Edit to open the Alarm Filter dialog box.

  2. Edit the filter.

  3. Click OK to save changes to the filter.

Deleting a Filter

To delete a filter:

  1. Select the filter, then click Delete to open the Delete Confirmation dialog box.

  2. Click OK to confirm the deletion.

    The filter disappears from the Alarm Filter pane.

7.5.6 Reapplying Filters to Update the Alarms View

Alarm filters are reapplied and the Alarms view is updated when alarm activity occurs, such as when a new alarm is received, a condition filter is selected in the console toolbar, or the Apply button is clicked. However, it is possible to set a timer to reapply all alarm filters at a specified interval. This requires editing the /OperationsCenter_install_path/html/applet_params.xml file.

To specify a time interval for reapplying all alarm filters and updating the Alarms view:

  1. Open the /OperationsCenter_install_path/html/applet_params.xml file.

  2. Set the following parameter:

    param name="AlarmPanel.AlarmFilterTimerFrequency" value="900000"


    The time interval is in milliseconds. 900000 equals 15 minutes:

7.5.7 Disabling Filters

To disable alarm filters and display all alarms in the Alarms view:

  1. In the Alarm Filter pane, click Reset to clear all Active check boxes.

  2. Click Apply.

    All alarms display in the Alarms view.

7.5.8 Resolving Filters with No Data in Alarms View

In some situations, applying a filter results in no matching alarms; the Alarms view is blank. Attempting to edit a filter results in being unable to select a different alarm column value in the Alarm Filter dialog box.

For example, if Severity is the selected alarm column, it is the only option in the drop-down list.The reason for this behavior is there are no alarm columns currently available for editing (or creating) alarm filters.

To restore alarm data:

  1. Deactivate the alarm filter by clicking to clear the Active check boxes in the Alarm Filter pane.

  2. Click Apply.

    The Alarms view updates to display one or more alarms.

    It is now possible to edit the alarm filters.
