After you install an Identity Server, you must create a cluster configuration in order to configure the Identity Server. Even if you have only one Identity Server, you must assign it to a cluster configuration to configure it. If you have multiple Identity Servers, you can create multiple configurations and assign different Identity Servers to them as shown in Figure 1-1.
Figure 1-1 Identity Server Configurations
When you assign multiple Identity Servers to the same configuration, you need to install a load balancer that supports either Layer 4 or Layer 7. This device is referred to as an L4 switch in this manual. The L4 switch allows the work load to be balanced among the machines.
Whether you have one machine or multiple machines in a cluster, the Access Manager software configuration process is the same. This section describes the following cluster management tasks:
This section discusses all the settings available when creating an Identity Server configuration. If you want a description of just the options required to get a functional configuration, see NetIQ Access Manager 3.1 SP5 Setup Guide.
An Identity Server always operates as an identity provider and can optionally be configured to run as an identity consumer (also known as a service provider), using Liberty, SAML 1.1, SAML 2.0, CardSpace or WS Federation protocols. These topics are not described in this section.
In an Identity Server configuration, you specify the following information:
The DNS name for the Identity Server or clustered server site.
Certificates for the Identity Server.
Organizational and contact information for the server, which is published in the metadata of the Liberty and SAML protocols.
The LDAP directories (user stores) used to authenticate users, and the trusted root for secure communication between the Identity Server and the user store.
To create an Identity Server configuration:
In the Administration Console, click> .
Select the Identity Server’s check box, then click.
Selecting the server is one way to assign it to the cluster configuration.

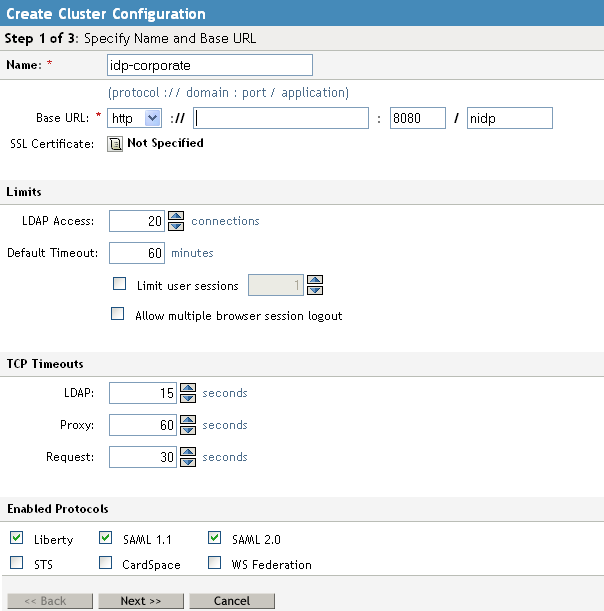

In thedialog box, specify a name for the cluster configuration.
If you did not select the server in the previous step, you can now select the server or servers that you want to assign to this configuration.
For more information about assigning servers to a configuration, see Section 1.1.2, Assigning an Identity Server to a Cluster Configuration.
Fill in the following fields to specify the Base URL for your Identity Server configuration:
Name: Specify a name by which you want to refer to the configuration. This field is populated with the name you provided in thedialog box. You can change this name here, if necessary.
IMPORTANT:Carefully determine your settings for the base URL, protocol, and domain. After you have configured trust relationships between providers, changing these settings invalidates the trust model and requires a reimport of the provider’s metadata.
Modifying the base URL also invalidates the trust between the Embedded Service Provider of Access Manager devices. To re-establish the trust after modifying the base URL, you must restart the Embedded Service Provider on each device.
Base URL: Specify the application path for the Identity Server. The Identity Server protocols rely on this base URL to generate URL endpoints for each protocol.
Protocol: Select the communication protocol. Specify HTTPS in order to run securely (in SSL mode) and for provisioning. Use HTTP only if you do not require security or have installed an SSL terminator in front of the Identity Server.
Domain: Specify the DNS name assigned to the Identity Server. When you are using an L4 switch, this DNS name should resolve to the virtual IP address set up on the L4 switch for the Identity Servers. Using an IP address is not recommended.
Port: Specify the port value for the protocol. Default ports are 8080 for HTTP or 8443 for HTTPS. If you want to use port 80 or 443, specify the port here.
If you are configuring a Linux Identity Server, you must also configure the operating system to translate the port. See Section 1.5, Translating the Identity Server Configuration Port.
If you are configuring a Windows Identity Server, you must also modify the Tomcat server.xml file located in the \Program Files\Novell\Tomcat\conf directory for Windows Server 2003 or the \Program Files (x86)\Novell\Tomcat\conf directory for Windows Server 2008. Change the ports from 8080 and 8443 to 80 and 443, then restart the Tomcat service.
Application: Specify the Identity Server application. Leave the default value.
SSL Certificate: Displays the currently assigned SSL certificate.
The Identity Server comes with a test-connector certificate that you must replace to use SSL in your production environment. You can replace the test certificate now or after you configure the Identity Server. If you create the certificate and replace the test-connector certificate now, you can save some time by restarting Tomcat only once. Tomcat must be restarted whenever you assign an Identity Server to a configuration and whenever you update a certificate key store. See Section 1.3.3, Managing the Keys, Certificates, and Trust Stores.
To configure session limits, fill in the following fields:
LDAP Access: Specify the maximum number of LDAP connections the Identity Server can create to access the configuration store. You can adjust this amount for system performance.
Default Timeout: Specify the session timeout you want assigned as a default value when you create a contract. This value is also assigned to a session when the Identity Server cannot associate a contract with the authenticated session. During federation, if the authentication request uses a type rather than a contract, the Identity Server cannot always associate a contract with the request.
The traditional SSL VPN server uses theoption for authentication. The user is assigned the timeout value of the contract used for authentication, and not this default timeout value.
If you want to know what timeout value the SSL VPN user is assigned, you need to select a contract with the appropriate timeout value. Click. The name is the default name for the SSL VPN protected resource. If you have modified this name, select that protected resource. In the Authentication Procedure option, select a name/password contract with the appropriate timeout value.
Limit User Sessions: Specify whether user sessions are limited. If selected, you can specify the maximum number of concurrent sessions a user is allowed to authenticate.
If you decide to limit user sessions, you should also give close consideration to the session timeout value (the default is 60 minutes). If the user closes the browser without logging out (or an error causes the browser to close), the session is not cleared until the session timeout expires. If the user session limit is reached and those sessions have not been cleared with a logout, the user cannot log in again until the session timeout expires for one of the sessions.
When enabled, this option affects performance in a cluster with multiple Identity Servers. When a user is limited to a specific number of sessions, the Identity Servers must check with the other servers before establishing a new session.
Allow multiple browser session logout: Specify whether a user with more than one session to the server is presented with an option to log out of all sessions. If you do not select this option, only the current session can be logged out. Deselect this option in instances where multiple users log in as guests. Then, when one user logs out, none of the other guests are logged out.
When you enable this option, you must also restart any Embedded Service Providers that use this Identity Server configuration.
To configure TCP timeouts, fill in the following fields:
LDAP: Specify how long an LDAP request to the user store can take before timing out.
Proxy: Specify how long a request to another cluster member can take before timing out. When a member of a cluster receives a request from a user who has authenticated with another cluster member, the member sends a request to the authenticating member for information about the user.
Request: Specify how long an HTTP request to another device can take before timing out.
To control which protocols can be used for authentication, select one or more of the following protocols.
IMPORTANT:Enable only the protocols that you are using.
If you are using other Access Manager devices such as the Access Gateway, SSL VPN, or the J2EE Agents, you need to enable the Liberty protocol. The Access Manager devices use an Embedded Service Provider. If you disable the Liberty protocol, you disable the trusted relationships these devices have with the Identity Server, and authentication fails.
Liberty: Uses a structured version of SAML to exchange authentication and authorization data between trusted identity providers and service providers and provides the framework for user federation.
SAML 1.1: Uses XML for exchanging authentication and authorization data between trusted identity providers and service providers.
SAML 2.0: Uses XML for exchanging encrypted authentication and authorization data between trusted identity providers and service providers and provides the framework for user federation.
STS: A security token service that creates digital identities from claims, which can then be used as a card or a token for authentication.
CardSpace: Uses Microsoft client software that stores a user’s information in a digital identity or information card, which can then be presented and used as authentication credentials.
WS Federation: Allows disparate security mechanisms to exchange information about identities, attributes, and authentication.
To continue creating the Identity Server configuration, click.

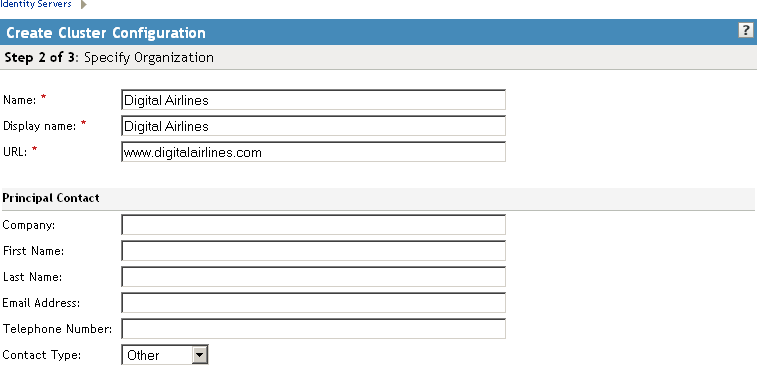

The system displays the Organization page.
Use this page to specify organization information for the Identity Server configuration. The information you specify on this page is published in the metadata for the Liberty 1.2 and SAML protocols. The metadata is traded with federation partners and supplies various information regarding contact and organization information located at the Identity Server.
The following fields require information:
Name: The name of the organization.
Display Name: The display name for the organization.
URL: The organization’s URL for contact purposes.
Optional fields include Company, First Name, Last Name, Email, Telephone, and Contact Type.
Clickto configure the user store.
You must reference your own user store and auto-import the SSL certificate. See Section 3.1, Configuring Identity User Stores for information about this procedure.

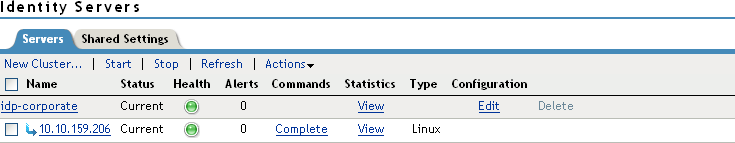

After you configure the user store, the system displays the new configuration on the Servers page.
The status icons for the configuration and the Identity Server should turn green. It might take several seconds for the Identity Server to start and for the system to display a green icon. If it does not, it is likely that the Identity Server is not communicating with the user store you set up. Ensure that you have entered the user store information correctly, and that you imported the SSL certificate to the user store. (> > .)
After you create a configuration, you must assign an Identity Server to it. For clustering, you can assign more than one Identity Server to the configuration (see Section 1.1.3, Configuring a Cluster with Multiple Identity Servers for the steps to set up a cluster). A configuration uses any shared settings you have specified, such as attribute sets, user matching expressions, and custom attributes that are defined for the server.
In the Administration Console, click> .
On the Servers page, select the server’s check box.
You can select all displayed servers by selecting the top-level Server check box.
Select the configuration’s check box, then click.
You are prompted to restart Tomcat. The status icon for the Identity Server should turn green. It might take several seconds for the Identity Server to start and for the system to display the green icon.
To add capacity and to enable system failover, you can cluster a group of Identity Servers and configure them in a cluster configuration to act as a single server. You can also configure the cluster to support session failover, so that users don’t have to reauthenticate when an Identity Server goes down.
A cluster of Identity Servers should reside behind an L4 switch. Clients access the virtual IP (VIP) address of the cluster presented on the L4 switch, and the L4 switch alleviates server load by balancing traffic across the cluster. Whenever a user accesses the virtual IP address assigned to the L4 switch, the system routes the user to one of the Identity Servers in the cluster, as traffic necessitates.
To set up a cluster, complete the following tasks:
Install an L4 switch. You can use the same switch for Identity Server clustering and Access Gateway clustering, provided that you use different virtual IPs. The LB algorithm can be anything (hash/sticky bit), defined at the Real server level. For configuration tips, see NetIQ Access Manager 3.1 SP5 Setup Guide.
Enable persistence (sticky) sessions on the L4 switch. Normally you define this at the virtual server level.
Create an Identity Server configuration for the cluster. You assign all the Identity Servers to this configuration.
See Section 1.1.1, Creating a Cluster Configuration for information about creating an Identity Server configuration.
See Section 1.1.2, Assigning an Identity Server to a Cluster Configuration for information about assigning identity servers to configurations.
Ensure that the DNS name of the base URL for the cluster configuration resolves via DNS to the IP address of the L4 virtual IP address. The L4 switch balances the load between the Identity Servers in the cluster.
Ensure that the L4 administration server using port 8080 has the following TCP ports open:
8443 (secure Administration Console)
7801 + 1 (for back-channel communication with cluster members). You need to open two consecutive ports, such as 7801 and 7802.
636 (for secure LDAP)
389 (for clear LDAP)
524 (network control protocol on the L4 switch for server communication)
The identity provider ports must also be open:
8080 (non-secure login)
8443 (secure login)
1443 (server communication)
If you are using introductions (see Section 7.2, Configuring General Provider Options), you must configure the L4 switch to load balance on ports 8445 (identity provider) and 8446 (identity consumer).
To enable session failover so users don’t have to reauthenticate when an Identity Server goes down, see Section 1.1.4, Configuring Session Failover.
To modify the name of the cluster or edit communication details, see Section 1.1.5, Editing Cluster Details.
When you set up an Identity Server cluster and add more than one Identity Server to the cluster, you have set up fault tolerance. This ensures that if one of the Identity Servers goes down, users still have access to your site because the remaining Identity Server can be used for authentication. However, it doesn’t provide session failover. If a user has authenticated to the failed Identity Server, that user is prompted to authenticate and the session information is lost.
When you enable session failover and an Identity Server goes down, the user’s session information is preserved. Another peer server in the cluster re-creates the authoritative session information in the background. The user is not required to log in again and experiences no interruption of services.
An Identity Server cluster with two or more Identity Servers.
Sufficient memory on the Identity Servers to store additional authentication information. When an Identity Server is selected to be a failover peer, the Identity Server stores about 1 KB of session information for each user authenticated on the other machine.
Sufficient network bandwidth for the increased login traffic. The Identity Server sends the session information to all the Identity Servers that have been selected to be its failover peers.
All trusted Embedded Services Providers need to be configured to send the attributes used in Form Fill and Identity Injection policies at authentication. If you use any attributes other than the standard credential attributes in your contracts, you also need to send these attributes. To configure the attributes to send, click> > > > > .
In the Administration Console, click> .
In the list of clusters and Identity Servers, click the name of an Identity Server cluster.
Click the, then select the number of failover peers you want each Identity Server to have.
To disable this feature, select 0.
To enable this feature, select one or two less than the number of servers in your cluster. For example, if you have 4 servers in your clusters and you want to allow for one server being down for maintenance, select 3 (4-1=3). If you want to allow for the possibility of two servers being down, select 2 (4-2=2).
If you have eight or more servers in your cluster, the formula 8-2=6 gives each server 6 peers. This is probably more peers than you need for session failover. In a larger cluster, you should probably limit the number of peers to 2 or 3. If you select too many peers, your machines might require more memory to hold the session data and you might slow down your network with the additional traffic for session information.
The failover peers for an Identity Server are selected according to their proximity. Access Manager sorts the members of the cluster by their IP addresses and ranks them according to how close their IP addresses are to the server who needs to be assigned failover peers. It selects the closest peers for the assignment. For example, if a cluster member exists on the same subnet, that member is selected to be a failover peer before a peer that exists on a different subnet.

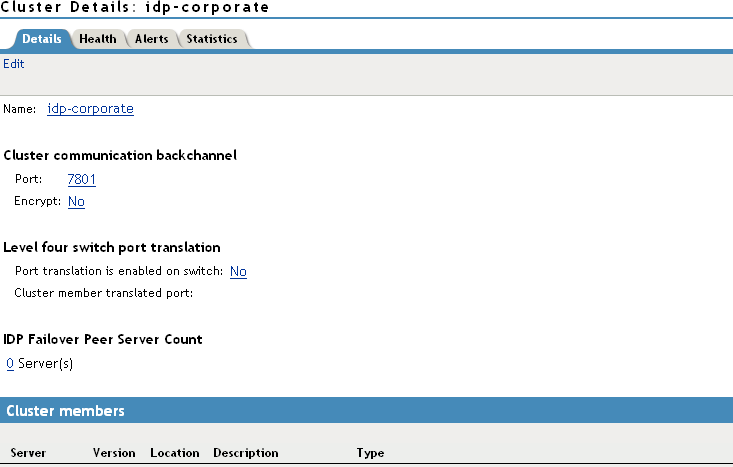

The Cluster Details page lets you manage the configuration’s cluster details, health, alerts, and statistics.
In the Administration Console, click.
Click the name of the cluster configuration.
Select from the following actions:
Details: To modify the cluster name or its settings, click Step 4., then continue with
Health: To view the health of the cluster, click thetab.
Alerts: To view the alerts generated by members of the cluster, click thetab.
Statistics: To view the statistics of the cluster members, click thetab.
Modify the following fields as required:
Cluster Communication Backchannel: Specify a communications channel over which the cluster members maintain the integrity of the cluster. For example, this TCP channel is used to detect new cluster members as they join the cluster, and to detect members that leave the cluster. A small percentage of this TCP traffic is used to help cluster members determine which cluster member would best handle a given request. This back channel should not be confused with the IP address/port over which cluster members provide proxy requests to peer cluster members.
Port: Specify the TCP port of the cluster back channel on all of the Identity Servers in the cluster. 7801 is the default TCP port.
Because the cluster back channel uses TCP, you can have cluster members on different networks. However, firewalls must allow the ports specified here plus one to pass through. You need to open two ports for each cluster, for example, 7801 and 7802.
Encrypt: Encrypts the content of the messages that are sent between cluster members.
Level Four Switch Port Translation: Configure the L4 switch to translate the port of the incoming request to a new port when the request is sent to a cluster member. Because the cluster members communicate with each other over the same IP address/port as the L4 switch, the cluster implementation needs to know what that port is. The translated port is the port on the cluster members where other cluster members can contact it. This is the IP address and port where cluster members provide proxy requests to other cluster members.
Port translation is enabled on switch: Specify whether the port of the L4 switch is different from the port of the cluster member. For example, enable this option when the L4 switch is using port 443 and the Identity Server is using port 8443.
Cluster member translated port: Specify the port of the cluster member.
IDP Failover Peer Server Count: For configuration information, see Section 1.1.4, Configuring Session Failover.
Click, then update the Identity Server as prompted.
Removing an Identity Server from a configuration disassociates the Identity Server from the cluster configuration. The configuration, however, remains intact and can be reassigned later or assigned to another server.
In the Administration Console, click> .
Select the server, then click. Wait for the Health indicator to turn red.
Select the server, then choose.
For information about deleting an Identity Server, see Section 15.1, Managing an Identity Server.
IMPORTANT:When there there are only two identity providers in a cluster, then introduce a new identity provider to the cluster and remove the other identity provider.
You can control which protocols can be used for authenticating with an Identity Server configuration. A protocol must be enabled and configured before users can use the protocol for authentication. For tight security, consider disabling the protocols that you are not going to use for authentication.
When you disable a protocol, updating the Identity Server configuration is not enough. You must stop and start the Identity Server.
In the Administration Console, click> > .
In thesection, select the protocols to enable
To disable a protocol, deselect it.
(Conditional) If you have enabled a protocol, update the Identity Server.
(Conditional) If you have disabled a protocol, stop and start the Identity Server.
Select the Identity Server, then click.
When the health turns red, select the Identity Server, then click.
Repeat the process for each Identity Server in the cluster.
When you configure an Identity Server, you must carefully determine your settings for the base URL, protocol, and domain. Changing the base URL invalidates the trust model and requires a reimport of the provider’s metadata, and a restart of the affected Embedded Service Providers. It also changes the ID of the provider and the URLs that others use for access.
When you change the base URL of the Identity Server, you invalidate the following trusted relationships:
The trusted relationships that the Identity Server has established with each Access Manager device that has been configured to use the Identity Server for authentication
The trusted relationship that each Access Manager device has established with the Identity Server when the Identity Server configuration was selected.
The trusted relationships that the Identity Server has established with other service providers.
The sessions of any logged-in users are destroyed and no user can log in and access protected resources until the trust relationships are reestablished.
To modify the base URL and reestablish trust relationships:
In the Administration Console, click> > .
Change the protocol, domain, port, and application settings, as necessary.
On the Identity Servers page, click.
This re-creates the trusted Identity Server configuration to use the new Base URL and metadata.
Restart Tomcat on each Identity Server in the configuration:
Linux Identity Server: Enter the following command:
Windows Identity Server: Enter the following commands:
net stop Tomcat5 net start Tomcat5
For each Access Manager device configured to trust the configuration of this modified base URL, you must update the device so that the Embedded Service Provider trusts the new Identity Server configuration:
Click, then click for any servers with a of .
Click, then click for any servers with a of .
Click, then click for any agents with a of .
For each service provider you have configured to trust the configuration of this modified base URL, you must send them the new metadata and have them re-import it.
