It is possible to configure the Explorer pane in various ways. Some configurations are related to the icon indicators next to the element objects in the hierarchy tree. Other options are related to the size and state of the Explorer pane.
To hide or display the condition indicators in the
pane:In the

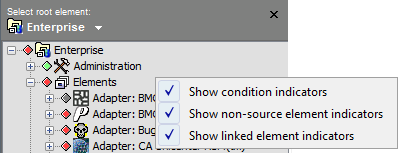

pane, right-click the background, then select :When selected, condition indicators display.
A linked element icon displayed in the
hierarchy indicates that the element was created elsewhere in the hierarchy and later linked to this parent using the option.Figure 3-1 Linked Element Indicator
Linked elements contribute to the state of the parent unless the link has been severed. For more information, see Section 3.1.3, Displaying Nonsource Element Indicators
To hide or display linked element indicators:
In the
pane, right-click the background, then select .When selected, the linked element indicators display next to elements that are linked from another hierarchy.
Broken connector lines that display in the
hierarchy indicate that a child element does not contribute to the state of its parent. This symbol is known as a nonsource contributing link.The
option is used to link a element as a child of another element. In this case, the child to contribute to the condition of the new parent. Removing the link allows the child to still display in that part of the hierarchy, but with its condition no longer affects the parent, as symbolized by the nonsource element link icon:Figure 3-2 Nonsource Element Indicator
To hide or display nonsource element indicators:
In the
pane, right-click the background, then select :When selected, the non-source element indicators display next to elements.
To expand or reduce the width of the
pane:Click the right border of the pane and drag the mouse to the left or right when a horizontal arrow appears.
To hide the Explorer pane:
Click the x in the top right corner of the
pane.The
pane disappears and the pane maximizes to fill the console. The current the root element name displays in the pane title bar, under the toolbar menu.To restore the Explorer pane:
From the
menu, select to display the pane.To select a new root element when the Explorer pane is hidden:
In the
pane title bar, click the root element name to display the pane.Click the
drop-down list, then select a different root element.The title bar and
pane update. The pane disappears.
