Supporting the Change Management lifecycle can be a daunting task. Using SCM, views can be created to show the technology and state of the production environment. If a snapshot can be taken of these views, in order to create a proper baseline, then as the production environment view updates and changes, it can be compared to the baseline snapshot in order to expose any changes.
This scenario uses:
A
hierarchy that shows a simple listing of all key servicesA discovery tool that provides discovery on networks and dependency information
A Tivoli T/EC Adapter that provides state information to newly discovered objects found as a result of discovery by the discovery tool
Two different service configuration definitions that build the

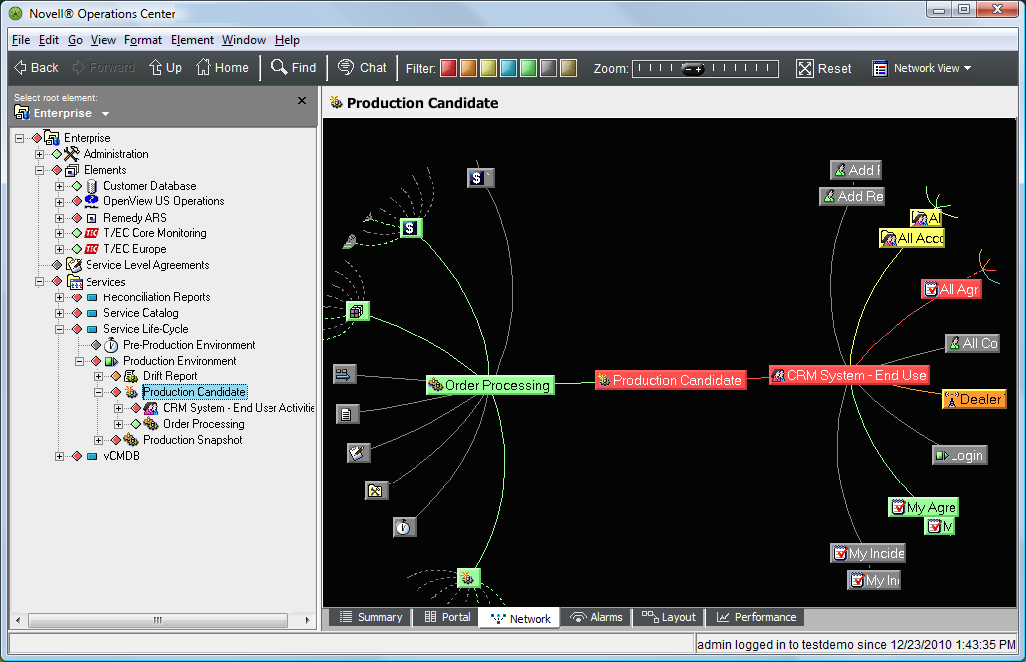

and viewsIn this example, the goal is to create an accurate view of a production environment, to use as a baseline snapshot of all the networks. As changes occur in the network environment, identify the services affected by these changes by comparing the snapshot baseline with the current
view.Start by taking a snapshot or baseline of the environment.
To do this, define a service configuration that creates a
hierarchy, which shows key business services and the technology that supports them. This view remains an active and constantly updated view of the network.Create another configuration named
.Take a “picture” of this view, then save it as
, which becomes the baseline view:As the
view is updated to reflect current status and change as they occur, compare it to the baseline to identify changes.This section assumes you are familiar with the Service Configuration Editor. For descriptions of all the steps required to define a service configuration definition, see Section 8.3, Creating Service Configuration Definitions.
To set up a production candidate:
In the Explorer pane, create an element that is the parent of the new tree.
In this example, the new element is named
:Right-click the element, then select
> to open the Service Configuration Editor.To define the Structures for the element by identifying an existing hierarchy that drives the shape of the new tree, create a Structure definition that adds the
element as the .The
hierarchy contains a series of elements that represent key services.To see all elements contained in the
hierarchy, leave and at 0.Use the default Matching Rule to apply a simple name match to select elements.
For more information on Matching Rules, see Creating a Matching Rule.
Define the Sources for the configuration by identifying an existing hierarchy that provides state and information to the new elements in the configuration.
In doing this, create a Source definition that uses the
branch of the Tivoli T/EC adapter.For more information on defining sources, see Section 8.3.3, STEP 3: Define Sources.
Use the default join rule to link state information to structure elements using a simple name match.
This definition allows state and property information to be available for any new elements found when the configuration searches for dependencies.
For more information on join rules, see Using Join Rules.
To define Dependencies for the configuration by specifying dependency rules to apply to a related hierarchy:
Create a Dependency Consumer definition, then select the

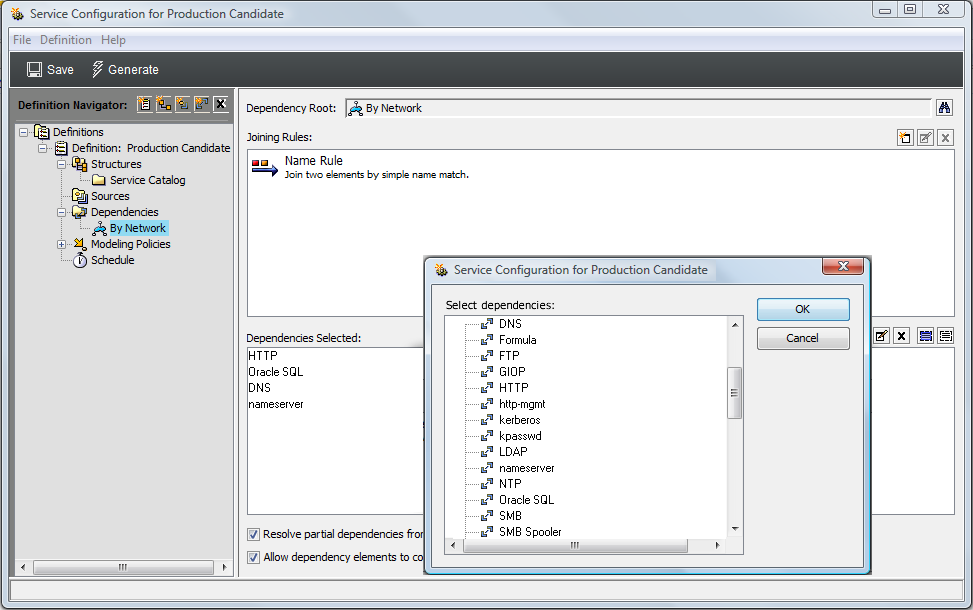

branch of a discovery Adapter to be the , as shown in the following illustration:For more information on creating dependencies, see Section 8.3.4, STEP 4: Define Relationship Dependencies.
Use the default join rule to link discovered elements to structure elements using a simple name match.
The
hierarchy is from a discovery tool adapter that has run discovery on networks. It contains listings of servers and applications organized by network.Browse and select Step 8.
as shown in the illustration inThe selected dependencies along with the join rules select the information for the new configuration.
To define
and policy rules to further define how the configuration is generated and elements are correlated:In the left pane, expand
, then click or .The right pane updates.
For more information on STEP 5: Select Generation Options.
, seeTo create a link to source branches where matches occur (displays source elements as children), select the
check box.If you do not want to include source information from the Tivoli T/EC adapter for structure elements (in this case, sources provide state to the new objects discovered from the search for dependencies), select the
and/or check boxes.Retain
defaults to correlate configuration objects using a basic Static Match.Those objects that are matched are included in the new configuration tree.
For more information on STEP 6: Select Element Correlation Options.
, seeClick Save on the toolbar to save configuration settings.
Click Generate on the toolbar to generate the new tree.
After the configuration is run and results are verified, create a schedule for the generation of the service configuration on a routine basis.
For an up-to-date view of the network, schedule this configuration to update every 5 minutes.
In the Explorer pane, create an element that is the parent of the new tree.
In this example, the new element is named
:Right-click the element, then select
> to open the Service Configuration Editor.To define the Structures for the element by identifying an existing hierarchy that drives the shape of the new tree, create a Structure definition that adds the

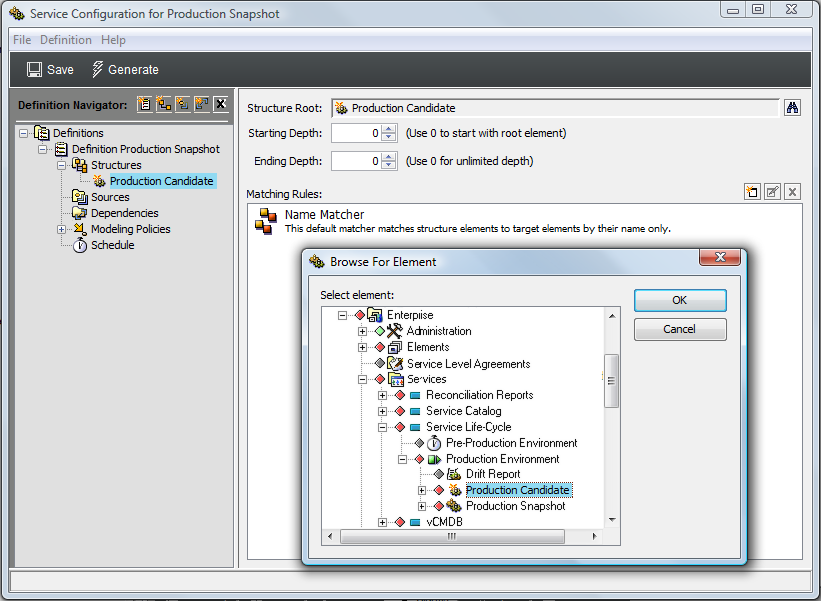

element as a , as shown in the illustration:The PART 1: Set Up a Production Candidate of this scenario.
hierarchy is the same view created by the configuration that was defined inDefine the Sources for the configuration by identifying an existing hierarchy that provides state and information to the new elements in the configuration.
Because this configuration is meant to be a snapshot of the
hierarchy, it is desirable to copy the configuration as it exists. It can be assumed there is greater interest in the current state information as provided by the Structure. Instead of creating any Source definitions, use policy options to capture properties and state calculations from the elements.To define
and policy rules to further define how the configuration is generated and elements are correlated:In the left pane, expand
, then click or .The right pane updates.
To obtain the state directly from the structure, select the
check box.To have the hierarchy correlate directly as defined, accept the default
setting in policies.Those elements that are matched are included in the new configuration tree.
Click Save on the toolbar to save configuration settings.
Click

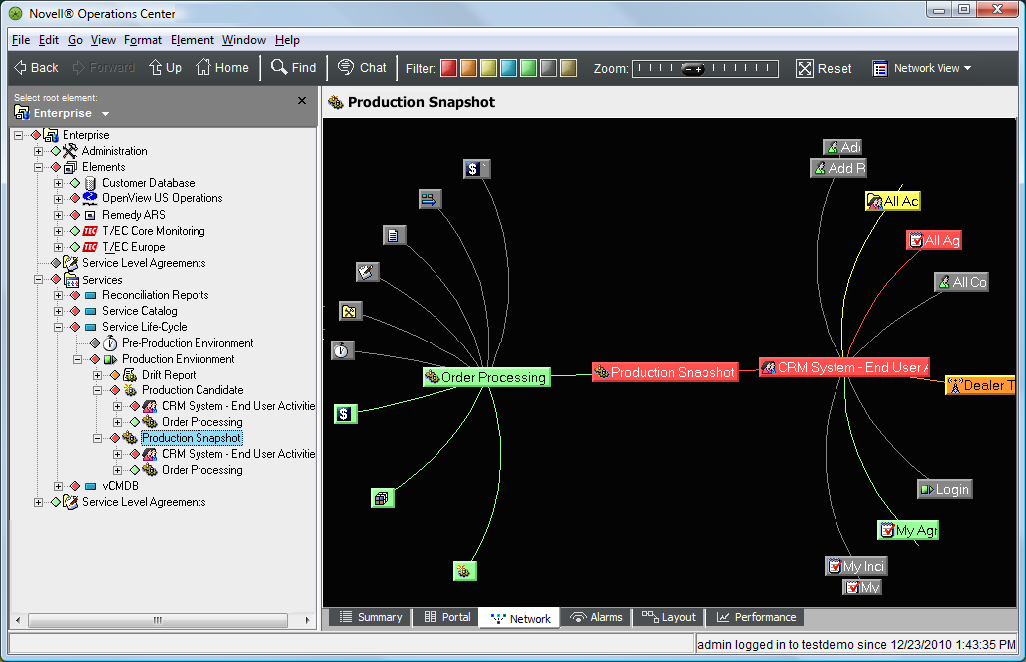

to generate the new tree.The following illustration shows the
view:After the configuration is run and results are verified, create a schedule for the generation of the service configuration on a routine basis.
Because this configuration is the baseline used to compare against the
configuration, it could be desirable to update the configuration manually when deemed necessary. A schedule is not created to update the configuration.
