Custom tooltips allow you to view important information about a service model or adapter element without opening property pages. The default tooltip shows basic information: element condition, class, and custom algorithm (if it exists). Use a custom tooltip property to display additional information in the element tooltip, such as user contact information.

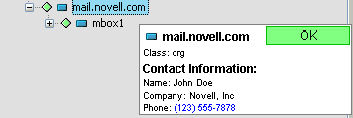

In the following illustration, a custom tooltip property definition displays an element’s Contact information:
Figure 4-10 Tooltip with Contact Information
In the Explorer pane, expand
> > .From an existing property page or from a newly created property page, click
to create a new property.The Add Property dialog box opens.
For more information about property pages and custom properties, see Creating and Deleting Property Pages and Properties.

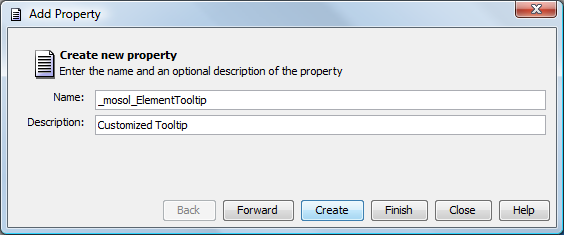

Enter _mosol_ElementTooltip in the field as shown:
This is an important step as the _mosol_ElementTooltip property name tells Operations Center to expose the property as a tooltip.
Click
.The dialog box updates to define property attributes.
Define the property attributes using the following information:
A custom tooltip property can be any property type that allows you to store text. Custom tooltips support the use of HTML, but it is not necessary to enter the <html> and <body> tags. Just enter the actual markup tags.
Use the

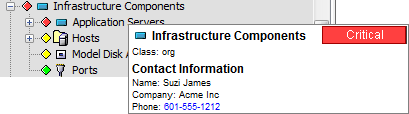

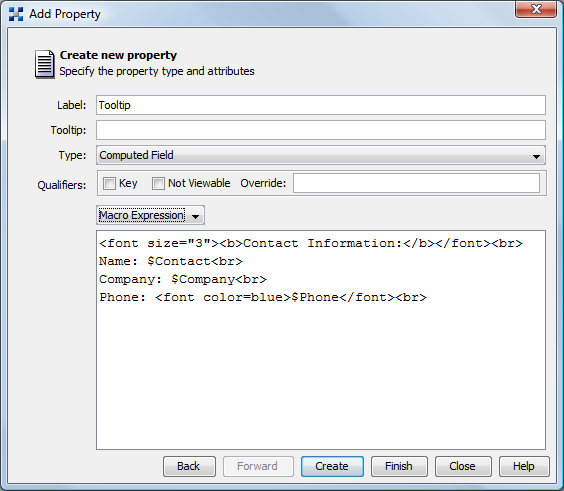

type to embed logic when the custom tooltip is generated. For example, in the following illustration, a Macro Expression is used to show contact information from the element’s property page, with a code check to not display anything if the property hasn’t been defined.The code in the above illustration results in the following tooltip:

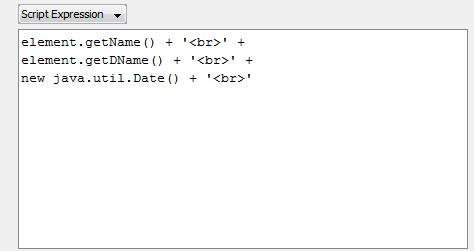

The computed field can contain NOC Script language or a velocity macro. For more information about velocity macros, go to http://velocity.apache.org/engine/devel/user-guide.html. For example, the following Script Expression uses NOC Script to get and display element name, DName, and current time in a table format using HTML:
Click Finish to apply the custom property page to adapter or service model elements.
When a user hovers the mouse over an element with the _mosol_ElementTooltip property, the tooltip displays information based on the custom tooltip definition.
By default, element class displays in element tooltips. It can be disabled if necessary in the applet_params.xml file.
To disable class name from tooltips:
Open the /OperationsCenter_install_path/html/applet_params.xml file in a text editor.
Set the following line to f"alse" to omit the class name from tooltips:
<param name="ElementToolTip.ShowClass" value="false" />
