6.1 Understanding the Node Style and the Node Style Library

Operations Center ships with many different node styles. It’s easy to change the node style used in a drawing. Simply drag and drop a node style from the Explorer pane to an element in the drawing.

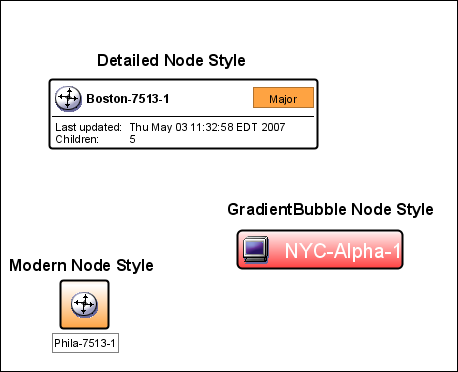

Figure 6-1 shows some of the standard node styles:

Figure 6-1 Node Style Sample

The node styles display under Administration > Graphics > Nodes. Click a node style and a sample drawing representing the node style displays in the Layout view.

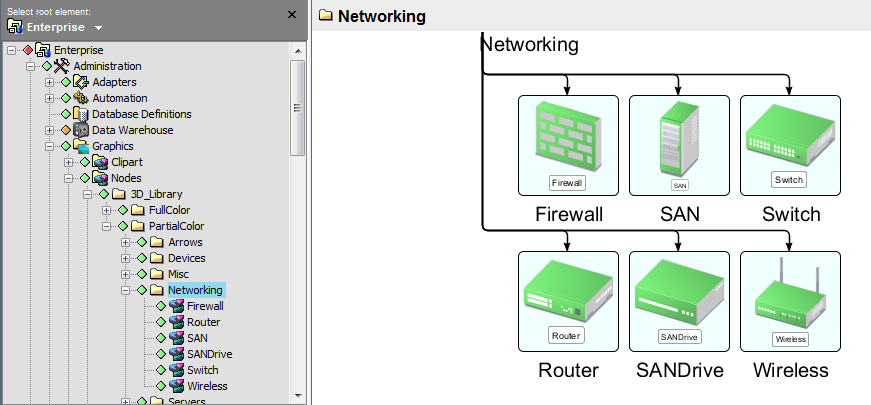

Figure 6-2 illustrates some of the node styles that are available under the 3D_Library folder.

Figure 6-2 3D, Partial-Filled Node Styles

You can change the node style for all elements in a drawing, for a specific element, or for all elements of a class.
