The Experience Manager Monitor status is updated automatically. In the Explorer pane, the colored diamonds beside the Experience Manager Monitors indicate the status. Table 4-1 describes the color codes.
Table 4-1 Experience Manager Monitor Status Colors
Status Color |
Description |
||
---|---|---|---|
Green |
A connection exists between Operations Center and the Experience Manager Monitor. |
||
Gray |
The monitor has not started, or if it has started, it might have a connection problem. If the monitor can successfully push alarms to the Operations Center server, the indicator changes back to green. |
||
Yellow |
A heartbeat communication problem with the monitor is probable. |
||
Red |
A heartbeat communication with the monitor has failed 10 times. |
The monitor status is also summarized on the View pane title bar. The condition indicators display and the title bar indicates the adapter has started:

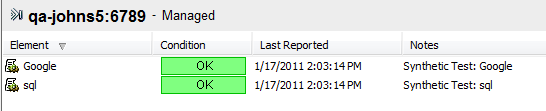

Figure 4-1 The Operations Center Title Bar Shows Status for the Monitor Element
NOTE:To hide or display the status indicators, right-click anywhere in the Explorer pane background, then select or deselect
. When the option is selected, the indicators display.To view monitor metrics and statistics in the monitor’s property pages:
In the Explorer pane, expand the
root element > > > .Right-click the monitor, then click
. The Status property page opens.In the left pane, click

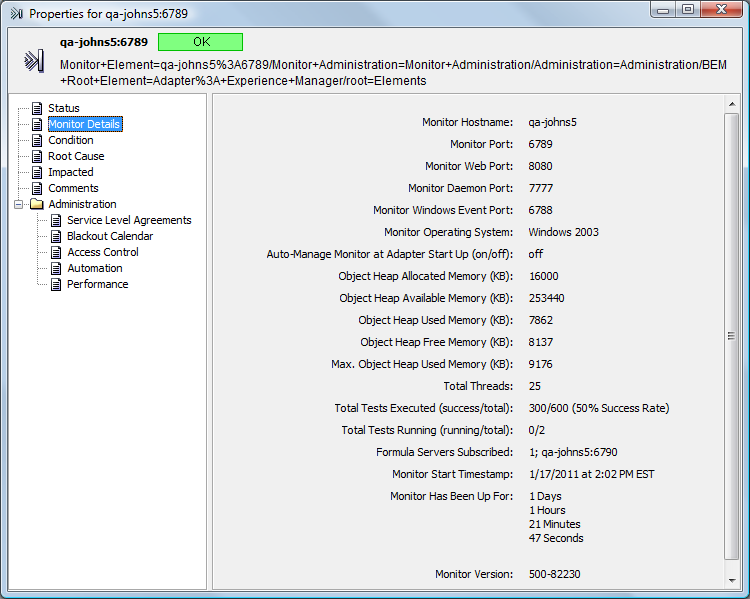

.The Monitor Details property page displays all metrics for the monitor:
