7.16 Using the Intersite Transfer Service

7.16.1 Understanding the Intersite Transfer Service URL

The Intersite Transfer Service is used by an identity provider to provide authentication to occur at a service provider that it trusts. The URLs for accessing the Intersite Transfer Service differ for each supported protocol (Liberty, SAML 1.1, and SAML 2.0). The NetIQ Access Manager identity and service provider components use the following format of the Intersite Transfer Service URL:

<identity provider URL>?PID=<entityID>&TARGET=<final_destination_URL>

The <identity provider URL> is the location where the authentication request can be processed. For an Access Manager Identity Server, the URL is the Base URL of the server that provides authentication, followed by the path to the protocol application being used for federation.

For example:

SAML 1.1: https://idp.sitea.novell.com:8443/nidp/saml/idpsend

SAML 2.0: https://idp.sitea.novell.com:8443/nidp/saml2/idpsend

Liberty: https://idp.sitea.novell.com:8443/nidp/idff/idpsend

If a third-party server provides the authentication, refer the documentation for the format of this URL.

The <entityID> is the URL to the location of the metadata of the service provider. The scheme (http or https) in the <entityID> must match what is configured for the <identity provider URL>.

For SAML 1.1 and SAML 2.0, search the metadata for its entityID value. For Liberty, search the metadata for the providerID value. Access Manager Identity Servers acting as service providers have the following types of values:

SAML 1.1: https://idp.siteb.novell.com:8443/nidp/saml/metadata

SAML 2.0: https://idp.siteb.novell.com:8443/nidp/saml2/metadata

Liberty: https://idp.siteb.novell.com:8443/nidp/idff/metadata

If you are setting up federations with a third-party service provider, refer the documentation for the URL or location of its metadata.

The <final_destination_URL> is the URL to which the browser is redirected following a successful authentication at the identity provider. If this target URL contains parameters (for example, TARGET=https://login.provo.novell.com:8443/nidp/app?function_id=22166& amp;Resp_Id=55321 &amp;Resp_App_Id=810&amp;security_id=0), the URL must be encoded to prevent it from being truncated.

For example:

  • SAML 1.1: https://idp.sitea.novell.com:8443/nidp/saml/idpsend?PID=https://idp.siteb.novell.com:8443/nidp/saml/metadata&TARGET=https://eng.provo.novell.com/saml1/myapp

  • SAML 2.0: https://idp.sitea.novell.com:8443/nidp/saml2/idpsend?PID=https://idp.siteb.novell.com:8443/nidp/saml2/metadata&TARGET=https://eng.provo.novell.com/saml2/myapp

  • Liberty: https://idp.sitea.novell.com:8443/nidp/idff/idpsend?PID=https://idp.siteb.novell.com:8443/nidp/idff/metadata&TARGET=https://eng.provo.novell.com/liberty/myapp

To read more about configuring an intersite URL, see Configuring an Intersite Transfer Service Target for a Service Provider.

If you configure an Intersite Transfer Service URL for an Identity Server that is the Access Manager Identity Server and the service provider is either another Identity Server or a third-party server, you can simplify the Intersite Transfer Service URL to the following format:

<identity provider URL>?id=<user_definedID>

For example:

  • SAML 2.0: https://test.blr.novell.com:8443/nidp/saml2/idpsend?id=testsaml2&TARGET=https://eng.provo.novell.com

  • SAML 1.1: https://testsb.blr.novell.com:8443/nidp/saml/idpsend?id=testsaml&TARGET=https://eng.provo.novell.com

  • Liberty: https://testsb.blr.novell.com:8443/nidp/idff/idpsend?id=libertytest&TARGET=https://eng.provo.novell.com

If the Allow any target option is enabled and if the Intersite Transfer Service URL has a target value, then the user is redirected to target URL.

The Intersite Transfer Service URL for SAML 2.0 will be https://testsb.blr.novell.com:8443/nidp/saml2/idpsend?id=testsaml2&TARGET=http://www.google.com where http://www.google.com is the target URL.

NOTE:Depending on the usage, the target parameter serves different purpose. It is case-sensitive.

  • target: Specifies the idpsend URL with a contract id.

  • TARGET: Specifies URL of the final destination.

Use case: If authentication with a particular contract is enabled in Intersite URL, you are redirected to the default target URL. Use the following format: http(s)://<$idp_host_name>/nidp/app?id=<$contract_to_be_executed>&target=http(s)://<$idp_host_name>/nidp/saml2/idpsend?id=<$saml_sp_identifier>.

For more information, see How to access an Identity Server Intersite Transfer URL with a specific contract.

NOTE:The contract_to_be_executed is executed by the Identity Server and is case sensitive.

For example, https://www.idp.com:8443/nidp/app?id=npbasic&target=https://www.idp.com:8443/nidp/saml2/idpsend?id=serviceprovider1.

How it works?

In the above example, identity provider authentication is done with the contract id npbasic. You are now redirected to the service provider by using the saml_sp_identifier id (serviceprovider1). After authentication (if configured with persistent federation), the page redirects you to the available default target, or to the nidp login page of the service provider.

For configuration and ID information, see Configuring an Intersite Transfer Service Target for a Service Provider.

In the Intersite Transfer Service URL, id can be used for the following purposes:

  1. To simplify the intersite URL.<identity provider URL>?id=<user_definedID>

  2. To execute a particular contract in the Identity Server login service with intersite URL.

    http(s)://<$idp_host_name/nidp/app?id=<$contract_to_be_executed>&target=http(s)://<$idp_host_name/nidp/saml2/idpsend?id=<$saml_sp_identifier>

7.16.2 Specifying the Intersite Transfer Service URL for the Login URL Option

Liberty and SAML 2.0 support a single sign-on URL. Because SAML 1.1 does not support a single sign-on URL, you need to specify the Intersite Transfer Service URL in the Login URL option on the authentication card for the SAML 1.1 identity provider:

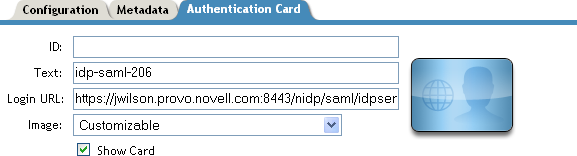

Figure 7-3 SAML 1.1 Authentication Card

For a card to appear as a login option, you must specify a Login URL and select the Show Card option. Figure 7-4 illustrates a possible configuration that requires the Intersite Transfer Service for the SAML 1.1 protocol.

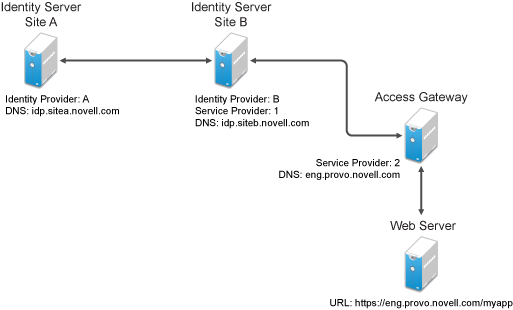

Figure 7-4 Federated Identity Configuration

If you want a card to appear that allows the user to log in to Site A (as shown in Figure 7-3), you need to specify a value for the Login URL option.

Using the DNS names from Figure 7-4, the complete value for the Login URL option is as follows:

https://idp.sitea.novell.com:8443/nidp/saml/idpsend?PID=https://idp.siteb.novell.com:8443/nidp/saml/metadata&TARGET=https://idp.siteb.novell.com:8443/nidp/app

The following happens when this link is invoked:

  1. The browser performs a Get to the identity provider (Site A).

  2. If the identity provider (Site A) trusts the service provider (Site B), the identity provider prompts the user for authentication information and builds an assertion.

  3. The identity provider (Site A) sends the user to the service provider (Site B), using the POST or Artifact method.

  4. The service provider (Site B) consumes the assertion and sends the user to the TARGET URL (the user portal on Site B).

To configure the settings for the intersite transfer service, see Section 7.15.2, Modifying the Authentication Card for SAML 1.1.

7.16.3 Using Intersite Transfer Service Links on Web Pages

The Intersite Transfer Service URL can be used on a Web page that provides links to various protected resources requiring authentication with a specific identity provider and a specific protocol. Links on this Web page are configured with the URL of the Intersite Transfer Service of the identity provider to be used for authentication. Clicking these links directs the user to the appropriate identity provider for authentication. Following successful authentication, the identity provider sends a SAML assertion to the service provider. The service provider uses the SAML assertion to verify authentication, and then redirects the user to the destination URL as specified in the TARGET portion of the Intersite Transfer Service URL.

Below are sample links that might be included on a Web page. These links demonstrate the use of SAML 1.1, SAML 2.0, and Liberty formats for the Intersite Transfer Service URL:

SAML 1.1: <a href="https://idp.sitea.novell.com:8443/nidp/saml/idpsend?PID=https://idp.siteb.novell.com:8443/nidp/saml/metadata&TARGET=https://eng.provo.novell.com/saml1/myapp">SAML1 example</a>

SAML 2.0: <a href="https://idp.sitea.novell.com:8443/nidp/saml2/idpsend?PID=https://idp.siteb.novell.com:8443/nidp/saml2/metadata&TARGET=https://eng.provo.novell.com/saml2/myapp">SAML2 example</a>

Liberty: <a href="https://idp.sitea.cit.novell.com:8443/nidp/idff/idpsend?PID=https://idp.siteb.novell.com:8443/nidp/idff/metadata&TARGET=https://eng.provo.novell.com/liberty/myapp">Liberty example</a>

Figure 7-5 illustrates a network configuration that could use these sample links.

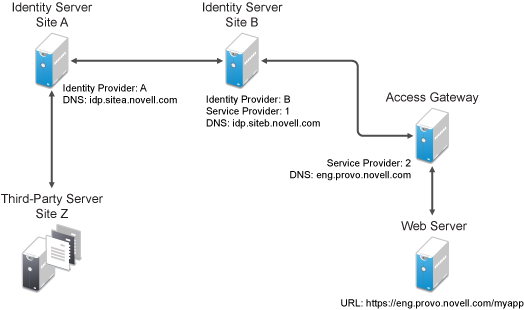

Figure 7-5 Using the Intersite Transfer Service URL

In this example, Site Z places links on its Web page, using the Intersite Transfer Service URL of Site A. These links trigger authentication at Site A. If authentication is successful, Site A sends an assertion to Site B. Site B verifies the authentication and redirects the user to the myapp application that it is protecting.

When defining the intersite transfer URL within the Administration Console, you can define an id and target for the SAML service provider (SP) you are accessing. For more information about accessing an Identity Server intersite transfer URL with a specific contract, see TID 7005810.

To access Access Manager intersite transfer URL with a specific contract, modify the web URLs to the following format:<identity server login URL>?id=<contract>&target=<identity consumer URL>?PID=<entityID>&TARGET=<final_destination_URL>

The <identity server login URL> is the location of where the authentication request can be processed and the <contract_Authentication Card_IDP> is contract authentication card Identity Provider. For example: https://idp.sitea.novell.com:8443/nidp/app/login

Modified Web URL Example

https://idp.sitea.novell.com:8443/nidp/app/login?id=formLogin&target=https%3A%2F%2Fidp.sitea.novell.com%3A8443%2Fnidp%2Fsaml2%2Fidpsend%3FPID%3Dhttps%3A%2F%2Fidp.siteb.novell.com%3A8443%2Fnidp%2Fsaml2%2Fmetadata%26TARGET%3Dhttps%3A%2F%2Feng.provo.novell.com%2Fsaml2%2Fmyapp

7.16.4 Configuring an Intersite Transfer Service Target for a Service Provider

If you have created Web pages that have links that specify a Intersite Transfer Service URL (see Using Intersite Transfer Service Links on Web Pages), you can have the Identity Server control the TARGET parameter.

  1. Click Devices > Identity Servers > Edit > [Liberty, SAML1.1, or SAML 2.0] > [Service Provider] > Intersite Transfer Service.

  2. Fill in the following:

    ID: (Optional) Specify an alphanumeric value that identifies the target.

    If you specified an ID for the target, you can use this value to simplify the Intersite Transfer URL that must be configured at the service provider. This is the <user_definedID> value in the following format for the Intersite Transfer URL.

    <identity consumer URL>?id=<user_definedID>


    The ID specified here allows the Identity Server to find the service provider’s metadata.

    Target: Specify the URL of the page that you want to display to users when they authenticate with an Intersite Transfer URL.The behavior of this option is influenced by the Allow any target option. NetIQ recommends you to specify a default target URL, for example, https://www.serviceprovider1.com.

    Allow any target: You can either select or not select this option.

    • When you select this option,

      • if the Intersite Transfer URL has a target value, then the user is sent to target url.

      • if the Intersite Transfer URL does not have a target value, then the user is sent to the configured target, that is, www.serviceprovider1.com.

    • When you do not select this option,

      • if the Intersite Transfer URL has a target value, then the user is sent to the target www.serviceprovider1.com irrespective of the target mentioned in the Intersite Transfer URL.

      • if the Intersite Transfer URL does not have a target value, the user is sent to www.serviceprovider1.com.

  3. Click OK twice.

  4. Update the Identity Server.

7.16.5 Configuring Whitelist of Target URLs

Redirection, which is required by many applications and services, inherently brings in a security risk. Redirects are dangerous because unsuspecting users who are visiting trusted sites can be redirected to malicious sites that exploit the users' trust. A new featured, called whitelist, has been added that restricts target URLs to specific domains.

The whitelist feature allows you to restrict target URLs to URLs which match the domains in the whitelist. Any target URLs that use a domain that is not in the list are blocked and the user receives the following error message: The request to provide authentication to a service provider has failed (outsidedomain.com-89F57BF823DFE551).

  1. Click Devices > Identity Servers > Edit > [Liberty, SAML1.1, or SAML 2.0] > [Service Provider] > Intersite Transfer Service.

  2. In the Domain List, click New.

  3. Enter the domain name, then click OK.

    The domain name must be a full domain name, such as www.novell.com. Wildcard domain names, such as www.novell.*.com, do not work.

  4. To edit an existing domain name, click the name, modify the name, then click OK.

  5. To delete an existing domain name, select the check box by the domain, click Delete, then click OK to delete or Cancel to close the window.

  6. Click OK.

  7. Update the Identity Server.

7.16.6 Federation Entries Management

Identity federation is the association of accounts between an identity provider and a service provider.
