NOTE:For JBoss 5.0.1, the installation program requires the Java 2 Platform Standard Edition Development Kit version 1.6 (JRE or JDK) from Sun. If you use a different version, the installation procedure does not successfully configure the User Application WAR file. The installation appears to succeed, but you encounter errors when trying to start the User Application.
Launch the installer for your platform from the command line:
Be sure to use the version of the Sun JDK to start the User Application installer as follows:
Linux/Solaris
$ /opt/jdk1.6.0_14/bin/java -jar IdmUserApp.jar
Windows
C:\Novell\InstallFiles\> "C:\Program Files\Java\jdk1.6.0_14\bin\java.exe" -jar IdmUserApp.jar
When the installation procedure asks for the full path of your Java installation, provide the root path of the Sun JDK. For example, the root path on Linux could be /opt/jkd1.6.0_14.
NOTE:SLES users: Do not use the IBM* JDK that comes with SLES. This version is incompatible with some aspects of the installation and can cause master key corruption errors.

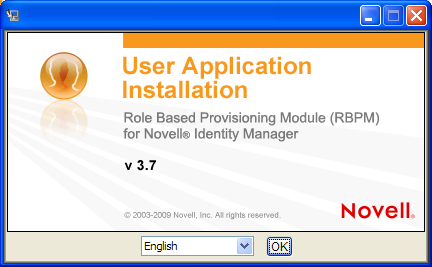

When the installation program launches, you are prompted for the language:
Use the following information to choose the language, confirm the license agreement, and select the Application Server platform:
Installation Screen |
Description |
---|---|
User Application Installation |
Select the language for the Installation program. The default is English. |
License Agreement |
Read the License Agreement, then select . |
Application Server Platform |

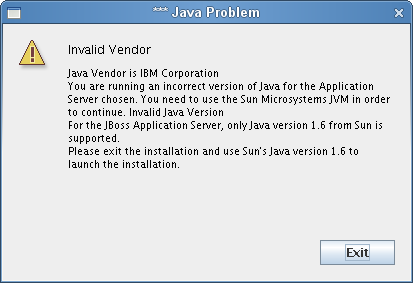

Select .When you’re installing on JBoss, you need to launch the installation program by using Sun’s Java environment. If you select JBoss as the application server, and do not use Sun’s Java to launch the installation, you will see a pop-up error message, and the installation will terminate: |
Use the following information to select the installation type, choose an install folder, and configure the database:
Installation Screen |
Description |
---|---|
Installation Type |
: Select this option to install the Roles Based Provisioning Module. This is the only installation type supported with this release. |
Choose Install Folder |
Specify where you want the installer to put the files. |
Database Platform |
Select the database platform. The database and JDBC driver must already be installed. For JBoss, the options include the following:
|
Database Host and Port |
: Specify the database server’s hostname or IP address. For a cluster, specify the same hostname or IP address for each member of the cluster. : Specify the database’s listener port number. For a cluster, specify the same port for each member of the cluster. |
Database Username and Password |
(or SID): For MySQL, or MS SQL Server, or PostgreSQL provide the name of your preconcerted database. For Oracle, provide the Oracle System Identifier (SID) that you previously created. For a cluster, specify the same database name or SID for each member of the cluster. name: Specify the database user. For a cluster, specify the same database user for each member of the cluster. : Specify the database password. For a cluster, specify the same database password for each member of the cluster. Provide the Thin Client JAR for the Database Server. This is required. |
SQL Output File |
In this release, the database tables can be created during the User Application installation, rather than when the Application Server starts (as in previous releases). The SQL Output File screen gives you the option to create a schema file, which the Database Administrator can use to create the tables, instead of having the Installation program create the tables. If you want to generate a schema file, select the checkbooks and provide a name for the file in the field. |
Database Administrator |
This screen is pre-populated with the same username and password from the Database Username and Password page. If the database user that was specified earlier does not have enough permissions to create tables in the Database Server, then a different user ID that has the necessary rights needs to be entered. |
Update database or New database |
If the database that will be used is new or empty, then select the button. If the database is an existing one from a previous installation, select the button. |
Test Database Connection |
To confirm that the information provided in the previous screens was correct, you can test the database connection by selecting the checkbox: |
Use the following information to configure Java, the JBoss installation, and IDM, as well as audit settings and security.
Installation Screen |
Description |
---|---|
Java Install |
Specify the Java root install folder. The Java Install provides the path to Java based on your JAVA_HOME environment variable and gives you the option to correct it: At this point, the Installation program also validates that the Java selected is the correct one for the Application Server selected. In addition, it validates that it can write to the cacerts in the JRE that was specified. You are then prompted for information about where your JBoss application server is installed: |

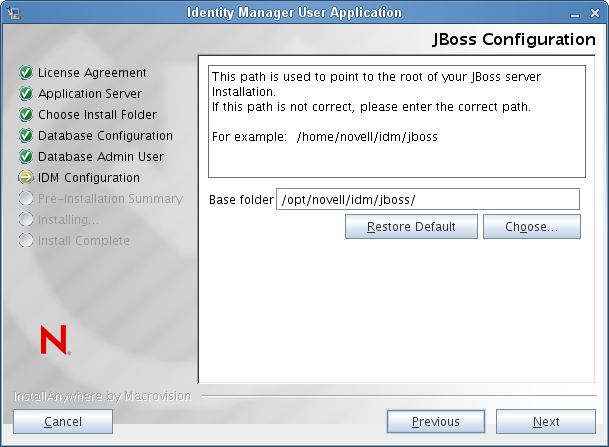

JBoss Configuration |
Tells the User Application where to find the JBoss Application Server. This installation procedure does not install the JBoss Application Server. For directions on installing the JBoss Application Server, see Installing the JBoss Application Server and the MySQL Database. : Specify the location of the application server. |

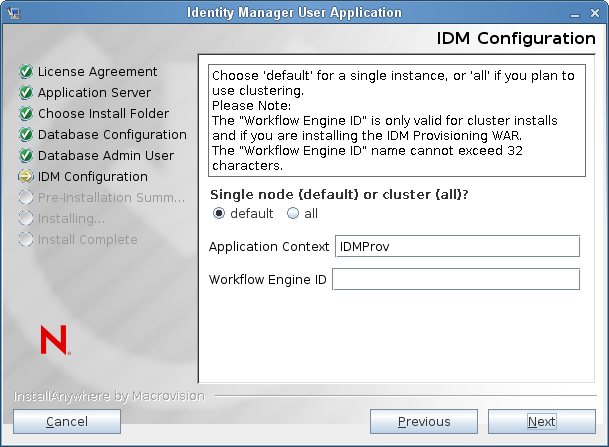

IDM Configuration |
Select the type of application server configuration:
: The name of the application server configuration, the name of the application WAR file, and the name of the URL context. The installation script creates a server configuration and by default names the configuration based on . Make a note of the application name and include it in the URL when you start the User Application from a browser. User Application: Administration Guide in the section on configuring workflows for clustering. : Each server in a cluster must have a unique Workflow Engine ID. The Workflow Engine ID is only valid for cluster installs, and only if you are installing the IDM Provisioning WAR. The engine ID cannot exceed 32 characters. Workflow Engine IDs are described in the |
Audit Logging |
To enable logging, click . To disable logging, click .The next panel prompts you to specify the type of logging. Choose from the following options:
For more information on setting up logging, see the . |
Novell Audit |
: If you enable logging, specify the hostname or IP address for the server. If you turn logging off, this value is ignored. : Specify the directory for the logging cache. |
Security - Master Key |
: Allows you to Import an existing master key. If you choose to import an existing encrypted master key, cut and paste the key into the install procedure window. Section 9.1, Recording the Master Key. : Creates a new master key. After you finish the installation, you must manually record the master key as described inThe installation procedure writes the encrypted master key to the master-key.txt file in the installation directory. Reasons to import an existing master key include:
|
Click Section 2.5, Installing the Java Development Kit.)
to display the Roles Based Provisioning Module Configuration panel. (If you are not prompted for this information, you might not have completed the steps outlined inThe default view of the Roles Based Provisioning Module Configuration panel shows these six fields:
The Installation program will take the value from the Root Container DN and apply it to the following values:
User Container DN
Group Container DN
The Installation program will take the value from the User Application Administrator fields and apply it to the following values:
Provisioning Administrator
Compliance Administrator
Roles Administrator
Security Administrator
Resources Administrator
RBPM Configuration Administrator
If you want to be able to specify these values explicitly, you can click the
button and change them:Use the following information to complete the installation.
Installation Screen |
Description |
---|---|
User Application Configuration |
The User Application install enables you to set User Application configuration parameters. Most of these parameters are also editable with configupdate.sh or configupdate.bat after installation; exceptions are noted in the parameter descriptions. For a cluster, specify identical User Application configuration parameters for each member of the cluster. See Section A.0, IDM User Application Configuration Reference for a description of each option. |
Pre-Installation Summary |
Read the Pre-Installation Summary page to verify your choices for the installation parameters. If necessary, use to return to earlier installation pages to change installation parameters.The User Application configuration page does not save values, so after you re-specify earlier pages in the installation, you must re-enter the User Application configuration values. When you are satisfied with your installation and configuration parameters, return to the Pre-Install Summary page and click . |
Install Complete |
Indicates that the installation is finished. |
If your installation completed without error, continue with Testing the Installation. If the installation issued errors or warnings, review the log files to determine the problems:
Identity_Manager_User_Application_InstallLog.log holds results of the basic installation tasks.
Novell-Custom-Install.log holds information about the User Application configuration done during installation.
