To configure the Org Chart portlet, complete the steps in Table 12-1.
Table 12-1 Org Chart Portlet: Configuration Steps
Step |
Task |
Description |
---|---|---|
1 |
Define the relationship that you want to display. |
You can use one of the predefined relationships that are installed with the Identity Manager User Application, or you can create your own. For more information about defining a relationship, see Section 1.2.2, Directory Abstraction Layer. |
2 |
Verify that the entities and attributes that you want to use in the relationship are available in the directory abstraction layer. |
For more information about defining a relationship, see Section 12.2.1, Directory Abstraction Layer Setup. |
3 |
Determine where you want to display this relationship. |
Do you want to create a new page for launching the org chart? Or, do you want to launch it from the Detail portlet or from another org chart? For more information about creating pages and adding portlets to those pages, see Section 6.0, Page Administration. |
4 |
Set preferences for the portlet. |
Preferences let you define:
For more information, see Section 12.2.2, Setting Preferences. |
5 |
Test. |
Test the relationship definitions and layout. |
6 |
Set eDirectory™ rights and establish any indexes needed to enhance performance. |
Effective rights. To display attributes defined by the portlet, users must have Read rights to the attributes. Performance enhancement. The performance of the org chart display can be enhanced by adding an eDirectory value index to the relationship’s target attribute because the target attribute is used to do the LDAP search. |
The entities and attributes displayed within an Org Chart must be defined in the directory abstraction layer. Table 12-2 shows the attributes and properties that you must set for each entity and attribute displayed in an org chart.
Table 12-2 Org Chart Portlet: Entity and Attribute Settings
Definition Type |
Setting |
Value |
---|---|---|
entity |
view |
Selected (true) |
attribute |
read |
Selected (true) |
search |
Selected (true) |
Lookup Link requirements. require and search access properties set to true (selected in the directory abstraction layer editor). If not, the lookup link’s Object Lookup dialog cannot be populated and is empty when displayed.
allows users to navigate the org chart by performing searches for other objects of the same type as the Source Entity key. The Lookup Link requires that the source entity key have at least one attribute with theFor more information on entity and attribute configuration, see Section 1.2.2, Directory Abstraction Layer.
You can define preferences for the relationships, the presentation (such as attributes and their order) and general display preferences. For more information, see:
This category includes the preferences on the main preferences page and excludes the custom preferences. The preference page is shown in Figure 12-5 and Figure 12-6.

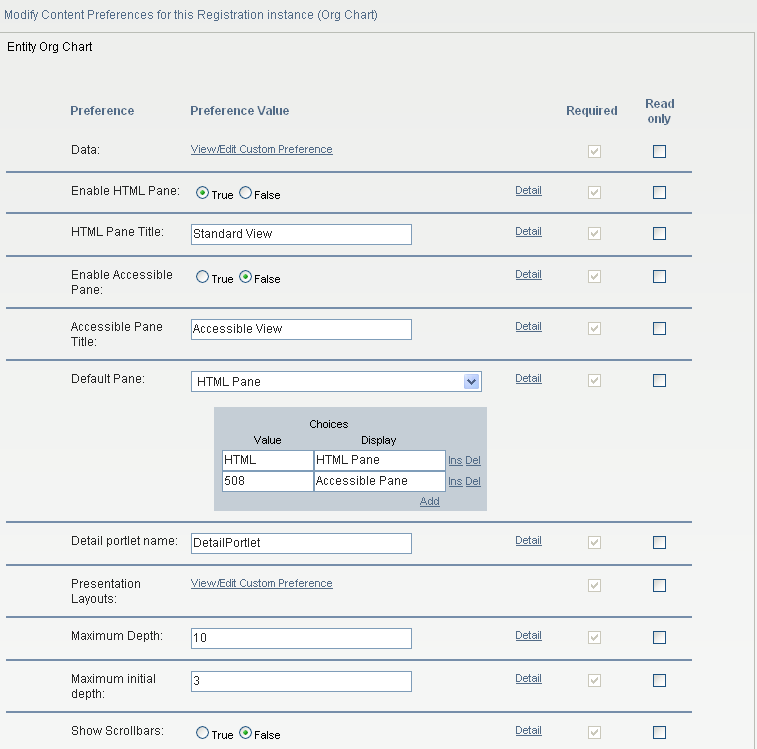

Figure 12-5 Org Chart Preferences

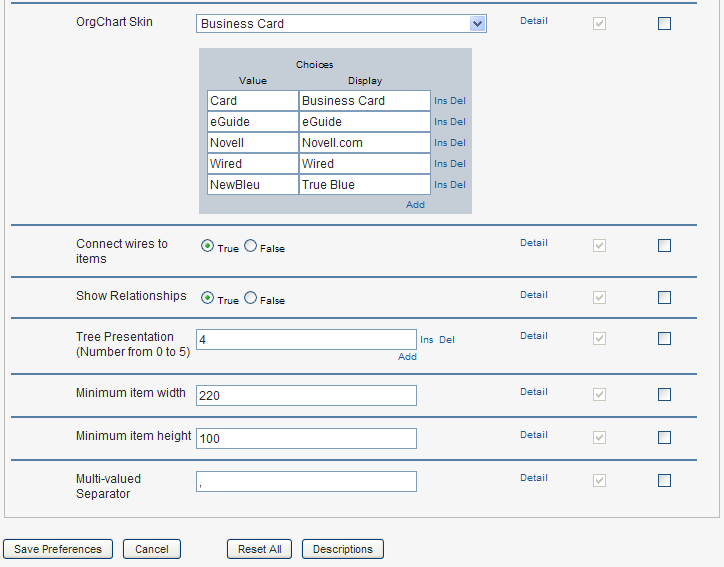

Figure 12-6 Org Chart Preferences (continued)
Table 12-3 Org Chart Portlet: Preferences
Preference |
What to Do |
---|---|
Data |
to access the preferences that define the org chart’s relationships. See |
Enable HTML Pane |
Click to enable the HTML display of related objects. This is the default display. It displays the related objects as business cards. |
HTML Pane Title |
Type the text to display in the tab. If you enable the display of the and the , this text is displayed as the title of the containing the HTML display. |
Enable Accessible Pane |
Click to enable the Accessible display of related objects. The Accessible pane displays the objects and links as text strings. This display provides 508-compliant access. |
Accessible Pane Title |
Type the text to display in the Accessible Pane tab. If the HTML Pane and the Accessible Pane are enabled, this text is displayed as the title of the containing the Accessible display. |
Default Pane |
Choose the pane to display as the default when a user clicks the action. It must be enabled. |
Detail Portlet Name |
Specify the name of the Detail portlet instance to launch when the user clicks the link. |
Presentation Layouts |
to access the layout preferences. They are described in |
Maximum Depth |
Defines the maximum depth the user can drill down in an org chart. This is not the same as the ability to navigate through an org chart, which is restricted by effective rights. |
Maximum Initial Depth |
Defines the depth of the initial display. |
Show Scrollbars |
Click to enable scrollbars. |
OrgChart Skin |
Specify one of the skins for the org chart listed below: : : : : : |
Connect wires to items |
Specifies whether the org chart cards are connected by wires. False means not connected. |
Tree Presentation |
Defines the Org Chart orientation (horizontal or vertical) and whether the chart displays as business cards or text. Values range between 0 and 5. Values of 0, 2, and 4 display business cards. Values of 1, 3, and 5 display text. |

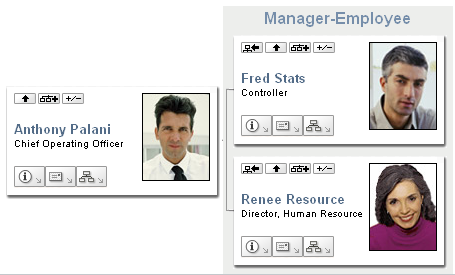

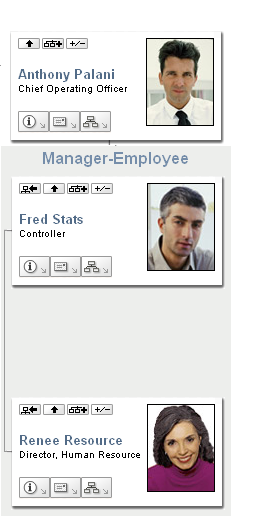

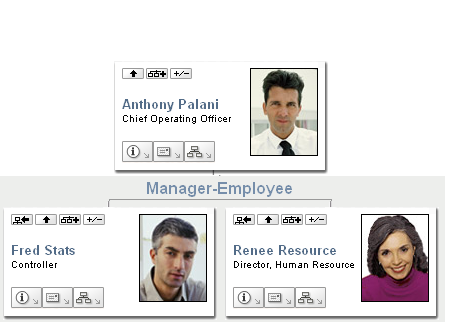

Tree Presentation Values of 0, 2, and 4 display business cards. Specify , to place a card above a vertical list of items.Specify , to place a business card above a horizontal list of items.Specify , to place card before a vertical list of items |
|
|

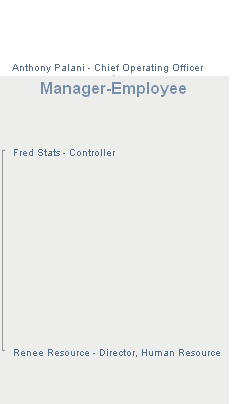

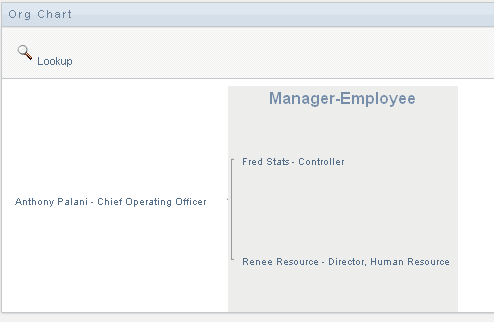

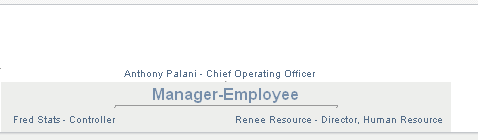

Tree Presentation Values of 1, 3, and 5 display the org chart using lines. Specify , to display a line above a vertical list of itemsSpecify , to display a line above a horizontal list of itemsSpecify , to display a line before a vertical list of items |
Minimum item width |
The minimum width (in pixels) of the business card display (in HTML mode). This value should equal to round ('item min height' * 1.618). |
Minimum item height |
The minimum height (in pixels) of the business card display. This value should equal to round ('item min width' / 1.618). |
Separator for multi-valued attributes |
The character used as a separator for attributes with more than one value. |
You access the Org Chart relationship preferences by clicking the

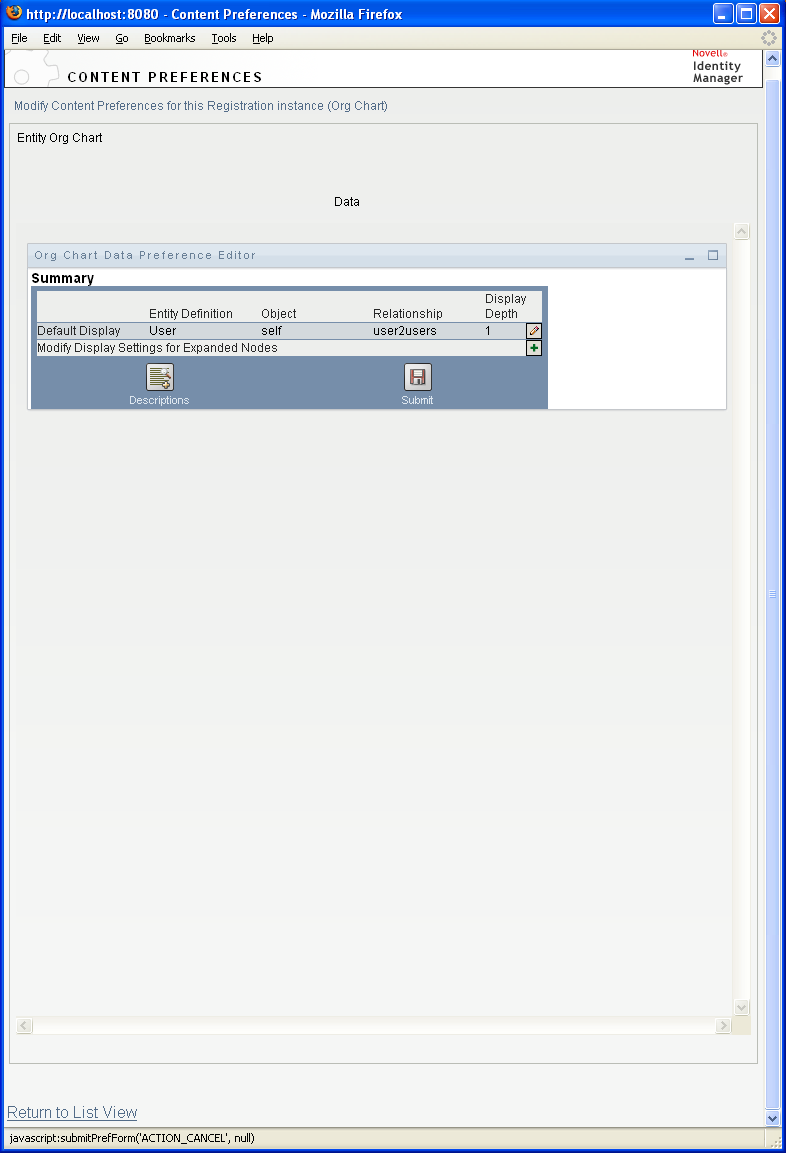

link of the preference. The initial preference page is shown below. It displays the default relationship used in the default Org Chart.Figure 12-7 Org Chart Data/Relationship Preferences
To edit the entity and relationships available to the org chart, click edit button . See Editing Data/Relationship Preferences. To modify the display settings for the expanded nodes, click the modify button . See Modifying Expanded Nodes.
This set of preferences affects the initial display of the org chart and the relationships displayed when users click the expand/collapse relationship button. . You can define any number of relationship levels.

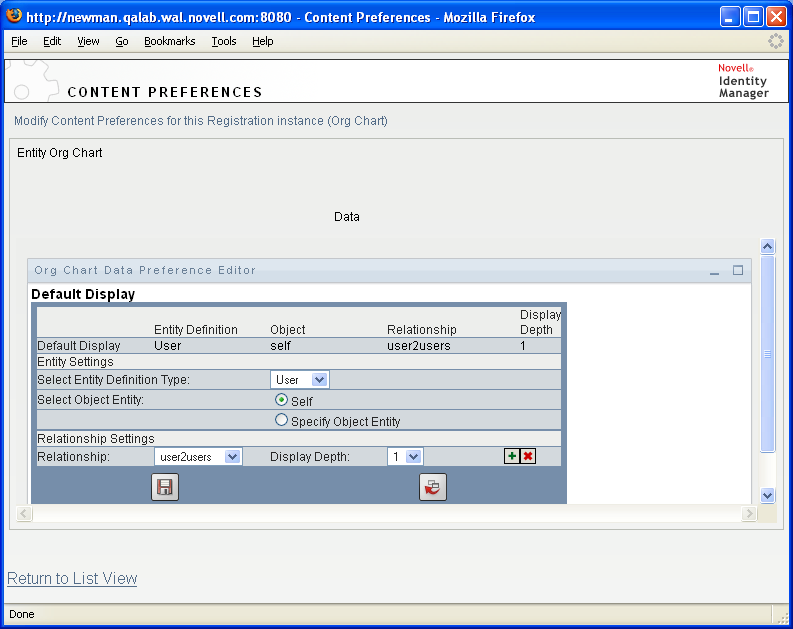

Figure 12-8 Edit Default Data/Relationship Preferences
Table 12-4 Org Chart Data/Relationship Preference
Preference |
Description |
---|---|
|
The preference lets you choose the entity whose relationships you want to display. Only entities defined in the directory abstraction layer are available in this drop-down list.The preference lets you choose the chart’s root entity. Click the object selector button to search for an object. If the selected entity type definition is a user, then you can select Self instead of an object. Choosing Self means that the org chart root is the logged-on user. |
|
The settings in this category let you specify the details about the relationships displayed by the default chart. The preference lets you choose a relationship from the drop-down list. Only the relationships that make sense for the selected entity are included in this list.The preference controls how many levels of the relationship are displayed. Only display depths allowed for the selected relationship are displayed. |
The expanded node preferences are the same, except that they control the relationships displayed after the user clicks the expand/collapse button .
preferences let you control what is displayed when the user clicks the expand/collapse button of the org chart. .

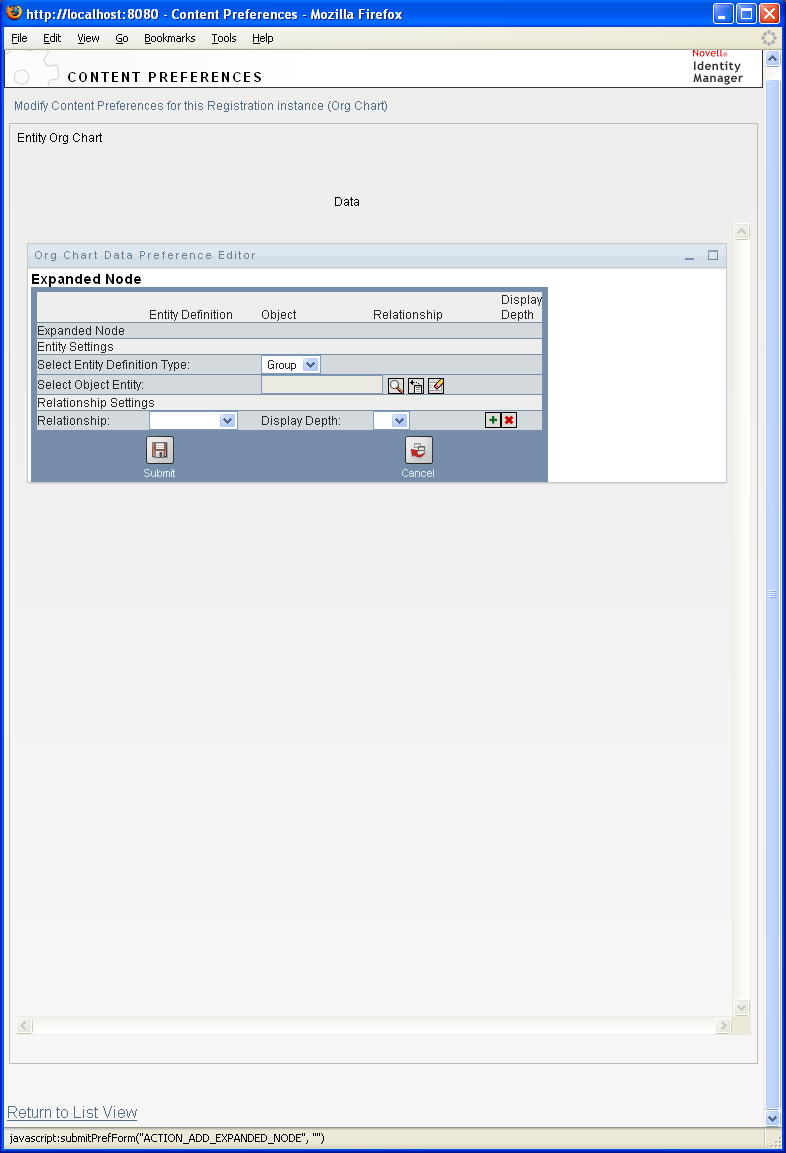

Figure 12-9 Preferences for Modifying Expanded Nodes
The Using an External HTML Editor.

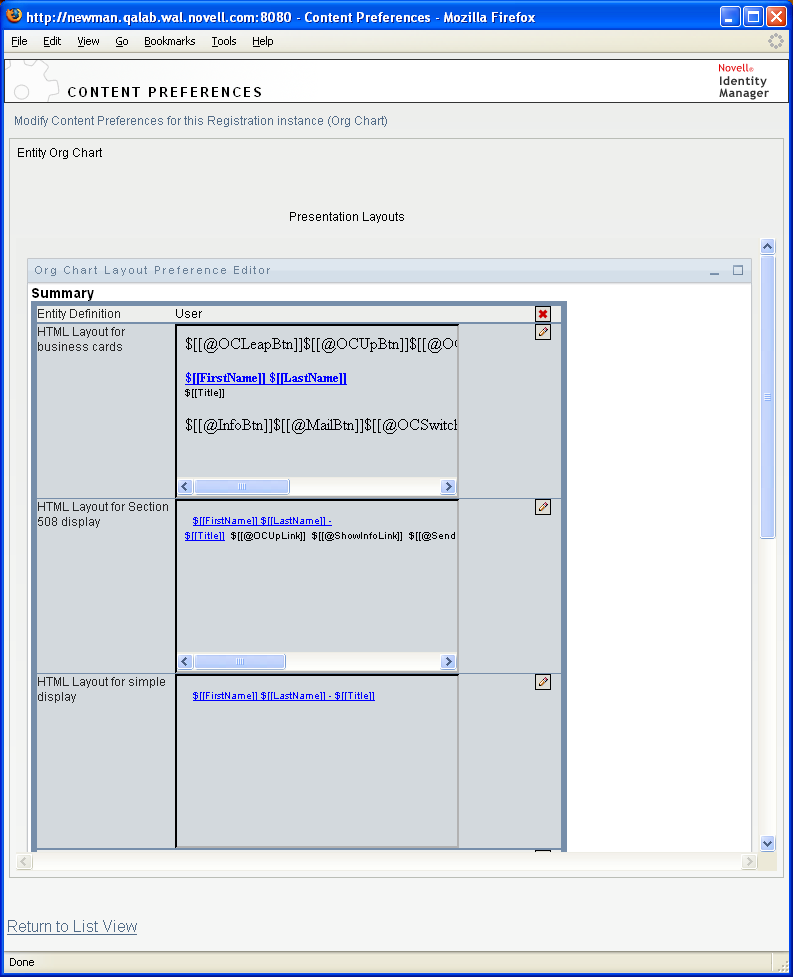

preferences let you define the HTML layout for the display of the org chart entries. You can use the HTML editor available from the preferences sheet, or you can use the HTML editor of your choice for more precise editing. SeeThe HTML editor, available from the preferences page, provides a WYSIWYG interface for defining the layout of the leaves of the org chart. It provides the typical features of an HTML editor for defining text formatting and lists, specifying anchors and images, and so on. Use the
drop-down list to place attributes, commands, and navigation URLs within the layout area. When you choose a keyword from the drop-down list, it is inserted with the proper syntax, but you can also add HTML within the layout area.Figure 12-10 Org Chart Presentation Layouts Preferences
Table 12-5 HTML Layout Definitions
You access the HTML editor by clicking the Figure 12-11.

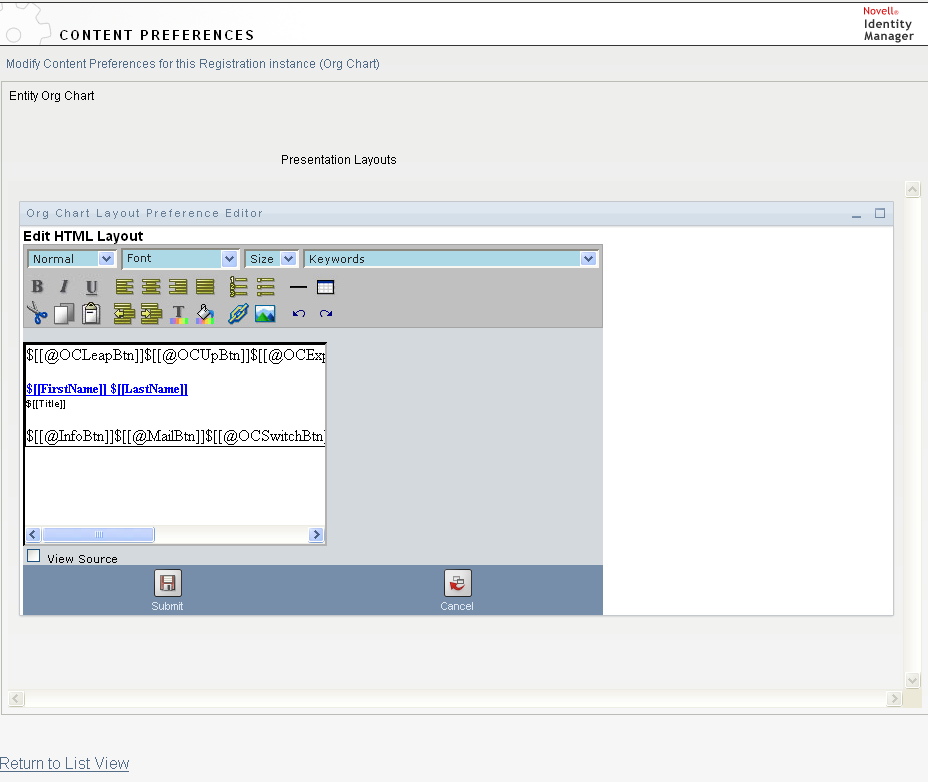

button. The HTML editor is shown inFigure 12-11 HTML Editor
Table 12-6 describes the HTML editor features and drop-down list. To save your layouts, click .
Table 12-6 HTML Editor Features
Feature |
Tip |
---|---|
Insert Link button |
In Mozilla:
In IE:
NOTE:If your image or URL is located in the upper-left quadrant of the HTML editor, the pop-up window overlaps it. Because the pop-up cannot be moved, you must create the text you want elsewhere in the editor and cut and paste it to the correct location. |
Add Image button |
In Mozilla:
In IE:
NOTE:If your image or URL is located in the upper-left quadrant of the HTML editor, the pop-up window overlaps it. Because the pop-up cannot be moved, you must create the text you want elsewhere in the editor and cut and paste it to the correct location. |
drop-down List: Attributes |
The set of attributes available for this entity. When designing your layout, you can use the Keywords drop-down list to insert variables that are replaced at runtime with specific attribute values. You can also type the attributes directly in the editor using the following syntax:
$[[keyword]]
where keyword is the value of an entity attribute such as LastName. You can concatenate attributes using this syntax: $[[keyword+keyword]] $[[FirstName+LastName]] For example, you can concatenate as many attributes as you want and can also include quoted strings like this: $[[keyword+”sample text”+keyword]] This renders the values of the keywords and the quoted text. NOTE:When a keyword is mistyped in a layout, it is rendered as-is in the org chart (including the $[[]]). |
drop-down List: Commands |
These commands allow the Org Chart portlet to display the links or buttons for the built-in links described in Built-in links.. The keyword commands generate:
There is a set of commands that generate buttons for the HTML display and a set of commands that generate links for the accessible view. The links do not display with link attributes. See Table 12-8. |
Table 12-7 Org Chart Keywords: Built-in Action URLs
Menu Item |
Source Created |
Usage |
---|---|---|
> |
@OCNavClick |
Use this keyword for an onClick event. It makes the clicked entity the new org chart root. To use this keyword:
<A href="javascript:return false;" onClick="$[[@NavClick]]">$[[SomeAttribute]]</A>
where SomeAttribute is an entity attribute that becomes a clickable link. The "javascript:return false;" is required. Omitting it will cause an error. |
|
@OCUpClick |
Use this keyword for an onClick event. It navigates to the current entity’s parent. If there is more than one parent, it displays a popup menu with selectable options. To use this keyword, you must:
<A href="javascript:return false;" onClick="$[[@OCUpClick]]">$[[SomeAttribute]]</A>
where SomeAttribute is an entity attribute that becomes a clickable link. The "javascript:return false;" is required. Omitting it will cause an error. |
|
@OCExpCollClick |
Use this keyword on an onClick event. It allows the user to Expand/Collapse existing relationships from the clicked entity. To use this keyword, you must:
<A href="javascript:return false;" onClick="$[[@OCExpCollClick]]">$[[SomeAttribute]]</A>
where SomeAttribute is an entity attribute that becomes a clickable link. The "javascript:return false;" is required. Omitting it will cause an error. |
|
@OCNavURL |
Specify a URL or entity attribute to display as a link. When clicked, the org chart displays with the clicked entity becoming the root node. This is only valid when the Source and Target entities are the same object type. For example, in the Manager-Employee relationship, both are users. Use this keyword as follows:
<a href="javascript:$[[@NavUrl]]">someText</a>
where someText is the text or an entity attribute. In the following example, Click here becomes a clickable link: <a href="javascript:$[[@NavUrl]]">Click here</a> Here, the FirstName attribute is the clickable link: <a href="javascript:$[[@NavUrl]]">$[[FirstName]]</a> With Internet Explorer, do not use the following syntax. IE adds a context before the @NavURL; it will not display correctly.
<a href="$[[@NavUrl]]">someText</a>
|
The keywords in Table 12-8 generate localized text links for use on the HTML pane.
Table 12-8 Org Chart Keywords: Built-in Action Links
Menu Item |
Source Created |
Renders as a Localized Link of This Text |
---|---|---|
|
@OCLazyExpCollLink |
Finds the first reentrant relationship and collapses it. |
|
@OCUpLink |
Goes to the current entity’s parent. If there is more than one parent, it displays a popup that allows the user to select the parent. |
|
@ShowInfoLink |
Launches the Detail portlet for the selected entity. |
: |
@SendInfoLink |
Launches an e-mail that contains the clicked entity’s information. |
|
@MailTeamLink |
Launches an e-mail to the selected entity’s team. |
The keywords in Table 12-9 generate image buttons for use with the HTML pane.
Table 12-9 Org Chart Buttons Built-in Action Buttons
Menu Item |
Syntax |
Renders As |
---|---|---|
|
@OCLeapBtn |
The button makes the clicked entity the new root. |
|
@OCUpButton |
The button goes to the current entity’s parent. If there is more than one parent, it displays a popup that allows the user to select the parent. |
|
@OCExpColBtn |
This buttons expands/collapses existing relationships from the clicked entity. |
|
@OCLazyExpColBtn |
This button finds the first reentrant relationship and collapses it. |
|
@OCSwitchBtn |
This buttons shows the available relationships from the clicked entity. When the user picks one, the clicked entity becomes the new root and the selected relationship is expanded. |
|
@InfoBtn |
Displays the detail portlet for the selected entity. |
|
@IMBtn |
Allows the user to send instant messages and add contacts. The entity must include the appropriate attributes or the org chart displays a message indicating that no data is available. |
|
@MailBtn |
Launches an e-mail that contains the clicked entity’s information. |
Use the following process to work in an external HTML editor:
Create the HTML source for the entity attributes, commands, and keywords using
, available in the preferences.Copy the HTML source to the editor of your choice.
Make the changes that you want.
Copy the HTML source back to the HTML Layout Editor preference when you have finished editing it.
To display images that are stored in your Identity Vault (such as user photos), you can add the attribute name to the business card. For example, adding the User Photo attribute to the business card layout displays the user’s photo.
If you store images outside the Identity Vault, you need to use the IMG: tag within the View Source mode of the HTML Editor as follows:
Go to the Org Chart portlet’s preferences and access the HTML Editor.
Click
.Use the IMG: tag to combine a location, an attribute key, and a file extension using a syntax like this:
$[[IMG:”URL” + attribute-key-name + ”fileextension”]]
The following example shows the syntax you would use if you stored employee photos as JPG images by Last Name in the /images subdirectory of your application server:
$[[IMG:"http://myhost:8080/images/"+LastName+".jpg"]]
At runtime, the org chart concatenates the URL with the LastName attribute and the file extension .jpg.
The HTML Editor supports a flexible syntax. It supports any combination of text and attributes so that the syntax is:
$[[IMG:”some text” + attribute-key-name + ...]]
