6.7 Guidelines for Creating Resource Based Workflows

Resource based workflows must follow the same guidelines outlined in Section 6.5, Guidelines for Creating Workflows. In addition, resource based workflows have the unique requirements described in the following sections:

6.7.1 About Resource Approval Workflows

Resource approval workflows are specialized workflows that provide support for resource approval and revocation on the User Application’s Roles tab. The Roles Based Provisioning Module includes a read-only Resource Approval workflow (named Resource Approval) whose design pattern supports:

  • The ability to process resource approvals in either serial or quorum mode.

  • The retrieval of approver DNs from the resource object (nrfResourceRequest). If you create a custom workflow, the approvers must be defined in the workflow; however, this might lead to addressee evaluation problems and less security concerning who can approve a resource.

  • The ability to display the resource using localized display names.

  • All nrfResourceRequest object mappings for request and approval forms.

  • Logging and reporting functions.

  • Read-only display of request information. The resource approval workflow does not allow changes to the request. Approvers have only the ability to approve or deny the resource request.

  • An e-mail notification is sent to all approvers of resource approval workflows. A completed notification e-mail is sent upon completion of the resource approval workflow. The recipient e-mail address is used when the workflow is intended to be assigned to a user identity.

This pattern is shown in Figure 6-11.

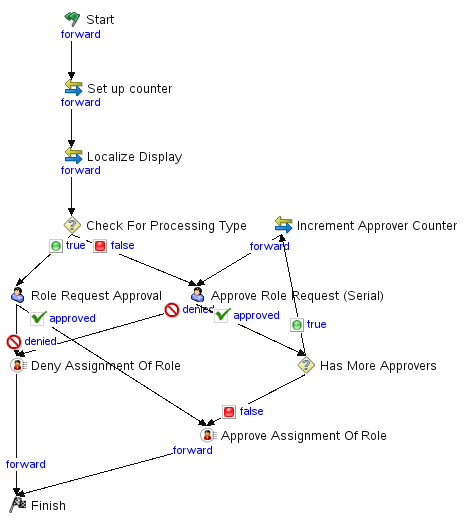

Figure 6-11 Default Resource Approval Workflow

The components of this workflow, and their responsibilities are summarized in Table 6-13.

Table 6-13 Standard Resource Approval Activities

Activity Name

Activity Type

Description

Start

Start

Logical starting point for all workflows. For resource approvals it must instantiate the nrfResourceRequest object.

Set up counter

Mapping

Sets up the counter for the number of approvers in case the mode is Serial.

Localize Display

Mapping

Sets up the display labels for each of the associated display names for the user’s locale.

Check for Processing Type

Condition

Determines whether the approval is a quorum condition by setting the Condition property to this ECMA expression:

nrfResourceRequest.isQuorumProcess()

If the quorum condition exists, control proceeds to the Approve Resource Request (Quorum). If the quorum condition does not exist, control proceeds to the Approve Resource Request (Serial).

Approve Resource Request (Quorum)

Approval

This is where the decision to approve or deny the request is recorded as part of the workflow instance. The quorum condition required to make the process successful is retrieved from the nrfQuorum attribute of the nrfResourceRequest object.

Approve Resource Request (Serial)

Approval

This is where the decision to approve or deny the request is recorded as part of the data flow associated with the workflow instance.

The workflow loops through the list of approvers found in the nrfResourceRequest object. The request is approved if all approvers in the serial process approve the request. The request is denied upon the first rejection from an approver in the serial process

Deny Assignment of Resource

Resource Request Binding

Changes the deny attribute in the nrfResourceRequest object to true.

Approve Assignment of Role

Resource Request Binding

Changes the approve attribute in the nrfResourceRequest object to true.

Finish

Finish

Logical end point of all workflows.

To use the standard Resource Approval workflow in your user application, you must specify your own users as Trustees. For information on setting the Trustees property, see Section 4.2.6, Modifying Settings of a Provisioning Request Definition.

6.7.2 Writing Custom Resource Workflows

If the standard resource approval workflow does not support your business needs, and cannot be customized to do so, you can write your own. At a minimum, a custom resource approval workflow must:

  • Contain two Resource Request Binding activities

    One Resource Request Binding activity must be set to approved and the other set to denied. You must link each of the Resource Request Binding activities to the Finish activity. If the workflow does not meet this requirement, it is invalid, and Designer prevents you from deploying it. The Role and Resource Service driver needs these values to set the status for the workflow and to then apply the logic to associate the resource to the identity.

  • Contain the following control in the request form:

    • Form Field Name: nrfResourceRequestDN

    • Data Type: Resource Request

    • Control Type: Text

  • Instantiate the nrfResourceRequestDN in the Pre Activity Data Item Mapping.

  • Contain the following in the Post Activity Data Item Mapping:

    • Source Form Field: nrfResourceRequestDN

    • Target Expression: flowdata.nrfResourceRequestDN

    • Data Type: dn

  • Not contain the following ECMA expressions in the Data Item Mapping or Properties definitions because they might return null:

    • getApprovalDN()

    • getAllApproversDN()

    • getAllSodApproversDN()

    Because Designer and the User Application user interface do not allow entry of approvers for custom resource approval workflows, you must specify the approvers in the workflow itself. Therefore, if you create a custom workflow based on a copy of the Resource Approval provisioning request definition, you must remove the ECMA methods from Data Item Mapping or Properties definitions.

In the following example, a user requests a resource and the user’s manager approves it.

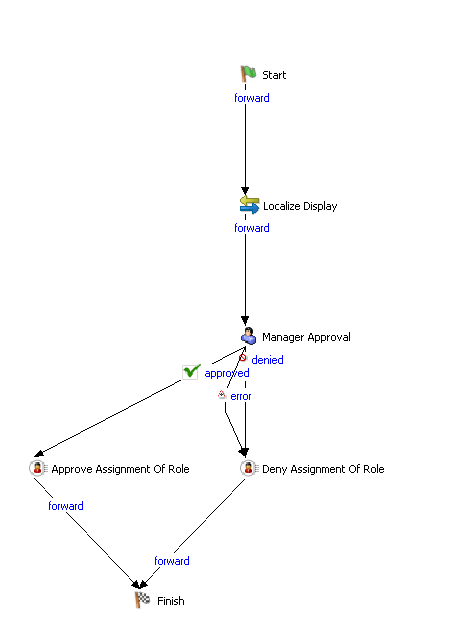

Figure 6-12 Sample Custom Resource Approval Workflow

The components of this workflow, and their responsibilities are summarized in Table 6-14.

Table 6-14 Sample Custom Workflow Components

Activity Name

Activity Type

Description

Start

Start

Logical starting point of all workflows.

Localize Display

Mapping

Sets up the display labels for the user’s locale.

Manager Approval

Approval

This is where the decision to approve or deny the request is recorded as part of the workflow instance. The resource request approval is needed only by the requestor’s manager.

Approve Assignment of Role

Role Binding

Changes the approve attribute in the nrfResourceRequest object to true.

Deny Assignment of Role

Role binding

Changes the deny attribute in the nrfResourceRequest object to true.

Finish

Finish

Logical end point of all workflows.

The data item mapping for the sample custom resource approval workflow is defined in Table 6-15

Table 6-15 Sample Custom Resource Approval Workflow Data Item Mapping

Activity Name

Property Type

Property Value

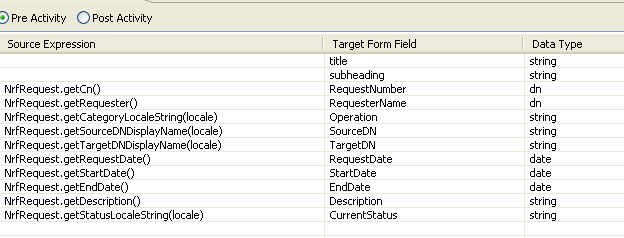

Start

Data Item Pre Activity

Source Expression: None

Target Form Field: nrfResourceRequestDN

Data Type: dn



Data Item Post Activity

Source Form Field: nrfResourceRequestDN

Target Expression: flowdata.nrfResourceRequest/DN

Data Type: DN

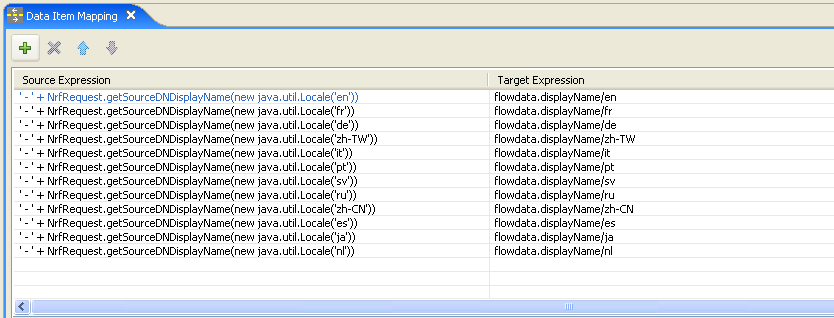

Localize Display

Data Item Source and Target mapping

Manager Approval

Addressee Property

Addressee  IDVault.get(recipient,'user','manager')



Data Item Pre Activity



Data Item Post Activity

None

Approve Assignment of Resource

Action Property

approved

Deny Assignment of Resource

Action Property

denied

Finish



None
