4.20 Configuring Application Properties

To view or change an application’s settings, double-click the application (for example, LDAP Directory) in the Modeler.

4.20.1 General

Table 4-29 Application General Settings

Field

Description

Type

Changes the type of application your driver connects to. For example, if you configure a JDBC driver to connect to a MySQL* database, but then need to change to an Oracle database, you can scroll to Database, select Oracle, then click Apply.

New

Enables you to edit a driver’s icon. See Section 4.7.12, Driver iManager Icon.

Edit

Enables you to use the Icon editor to customize the application’s icon. This field is available after you click New, edit an icon, and click Update.

Browse

Enables you to navigate to and select an image file.

Name

Enables you to customize the application’s name or label.

Version

Enables you to document the application’s version.

4.20.2 AD Domain

You can capture information about an Active Directory application. This information is useful if you want Document Generator to include this information when you document the project.

If you provided information in the LDAP settings, Designer populates the AD Domain fields.

4.20.3 Administrator

The Administrator option is divided into three sections. Entering information in these sections is optional.

  • Personal Information: Use this section to enter information specific to the Identity Vault, such as Name, Title, Department, and Location,

  • Contact Information: Use this section to enter information such as Email, Phone, Cell phone, Pager, and Fax.

  • Notes: Use this section to type any reminders you might need for future reference.

4.20.4 Connectivity

Host Names

NOTE:This control is available only for eDirectory applications.

The Host Names field lets you create a list of server IP addresses and DNS names for your eDirectory application. Because servers can have multiple IP addresses and DNS names, it is useful to be able to create a list of those host names that you can easily access when configuring connectivity for your eDirectory application.

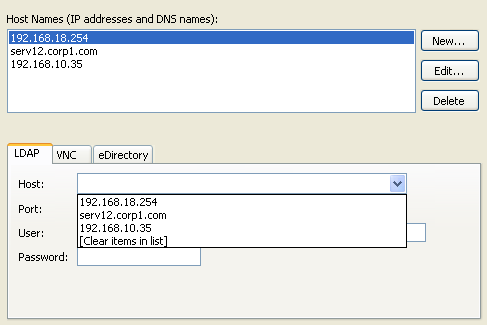

Figure 4-7 Host Name List for eDirectory Applications

You can add, modify, and delete host names from the Host Names list.

When you specify a host on the LDAP, VNC, or eDirectory tabs, the host entry is automatically added to the Host Names list.

Double-click an entry in the Host Names list to automatically populate the Host field in the LDAP, VNC, or eDirectory tabs.

Host entries in the Host Names list are also available from the Host field drop-down list in the LDAP, VNC, and eDirectory tabs.

LDAP

You can configure some applications (for example, Active Directory, eDirectory, and LDAP) for an LDAP connection. If the application doesn’t support an LDAP connection, the LDAP tab doesn’t display.

Host: The server’s IP address or DN.

Port: The server port to communicate with the directory.

User: The user’s name (in LDAP format).

Password: The user’s password.

VNC

From within Designer, you can view the desktop of the machine that is running your applications, and remotely control that desktop by interacting with it. This feature enables you to administer users or your applications with the native tools of that system, from one location.

This functionality is hosted in an embedded editor inside Designer. You can have multiple remote control sessions with different systems, all open at the same time.

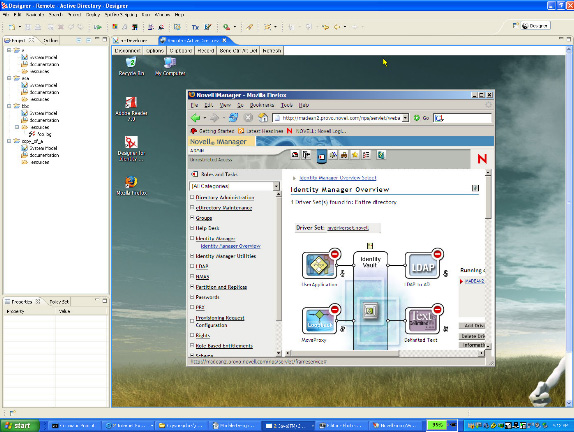

Figure 4-8 A Remote Desktop

eDirectory

You can configure connectivity to eDirectory applications. This is similar to configuring an LDAP connection, but uses native eDirectory protocols instead of LDAP.

Host: The server’s IP address or DN.

Port: The server port to communicate with the directory.

User: The user’s name (in eDirectory format).

Password: The user’s password.

Configuring a Remote Connection

To remotely control a desktop, the machine that is running your application needs to have a VNC (virtual network computing) server installed and running. You can usually download a free VNC server from the Internet.

You can easily configure any system or design element in Designer for this feature by editing any application or design element:

  1. Right-click an application or design element.

  2. Select Properties > Connectivity.

  3. On the VNC tab, type the authentication information.

    Host: The DN (for example, server33.houston.company.com) of the server where the VNC is running.

    Port: Typically 5901 for Linux servers or 5900 for Windows.

    Password: The password to the VNC server.

  4. Click OK.

Customizing the Viewer

A toolbar at the top of the desktop viewer enables you to configure the following:

  • Encoding type (RAW, RRE, CoRRE, Hextile, Zlib, Tight). The default is Tight.

  • Compression level

  • JPEG Image Quality (0 - 9). The default is 6.

  • Cursor shape updates. The default is Enable.

  • Use CopyRect. The default is Yes.

  • Mouse buttons 2 and 3. The default is Normal.

  • View only. The default is No, so that you can interact with the desktop.

  • Clipboard

  • Record session and save to file.

  • Send Ctrl+Alt+Delete.

  • Refresh

For more information, see the TightVNC documentation Web site.

4.20.5 Environment

You can enter notes about the application’s platform, hardware, and environment.
