21.4 Novell

The following Preferences categories appear as Novell sub-pages:

21.4.1 Designer

The following preferences categories appear as Designer sub-pages:

DS Trace

This setting lets you configure DS Trace settings.

Table 21-15 DS Trace Preferences

Setting

Description

Live DS Trace Display

Specifies the size of the DS Trace window buffer, in lines (or entries). When the number of DS Trace entries exceeds the Window Size, DS Trace drops the oldest entry for each new entry it captures.

Auto-scroll display

Enables auto-scrolling of the live DS Trace window so that the latest log entries are always on screen. When this option is deselected, you must manually scroll down the list of log entries.

JavaScript Validation

Designer automatically validates the JavaScript as it is typed into the UI. By default, it is enabled.

Language

When you installed Designer, you selected a language to display Designer’s UI. This setting enables you to change the language.

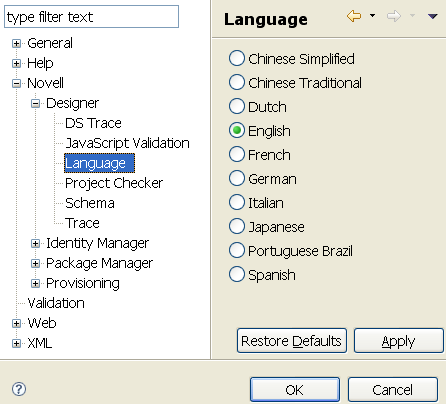

Figure 21-2 Preferences: Novell > Designer > Language

  1. Select a language, then click OK.

    You must restart Designer for the language change to take effect.

  2. Restart Designer.

NOTE:Restore Defaults reads the config.ini file, detects the previous language setting, and then defaults to that setting. When the changed property is written back to the .ini file, all comments are removed from the file. To preserve these comments, Designer copies the original config.ini to config.ini.bak and uses the backup to determine the default setting.

Project Checker

This settings lets you configure the Project Checker.

Table 21-16 Preferences: Novell > Designer > Project Checker

Setting

Description

Limit Visible Items to

Allows you to limit the number of items displayed in the Project Checker. The default value is 100.

Prompt me to save the editor before running Project Checker

Allows you to receive a prompt asking you to save your project before running the Project Checker. By default, this is enabled.

Schema

Allows you to manage the Identity Vault and managed system’s schema.

Table 21-17 Preferences: Novell > Designer > Schema

Setting

Description

Warn when LDAP names are different from eDirectory names during .ldif import/export

Allows you to turn off this warning prompt, which appears during the import or export of the schema.

Warn when exporting base classes to .ldif

Allows you to turn off this warning prompt, which appears during the export of the schema.

Show the information message for the Manage Application Schema context menu

Allows you to turn off the information message that appears when managing the application schema.

Trace

The Trace view is useful in the following situations:

  • To trace internal errors and messages, so that you can find out why something might not work as expected.

  • To provide information for Novell Support, engineers, or other consulting resources.

All Designer-specific trace messages go to the Trace view if this view is open. Otherwise, no trace messages are sent.

Warnings and error messages are sent to the .log file, found in the run-time workspace metadata directory. Use the Error view to view this information.

Table 21-18 Parameters: Novell > Designer > Trace

Setting

Description

Enable tracing

Writes events to the Trace view. By default, tracing is off. To increase performance, disable tracing when you don’t need it.

Include stack traces

Provides separate traces. Dumps the entire stack where an internal exception occurs, so that you can see in the code where the internal exception is failing.

Include XML processor traces

Provides separate traces that detail all of the processing of XML documents. This trace can become quite verbose.

Show plug-In names in the trace

In the Trace view, displays names of plug-ins where tracing has occurred. This is useful if you are tracing more than one plug-in.

Show view when tracing

Automatically brings up the Trace view if a trace is trying to be logged. By default, this setting is On.

Trace buffer size

Increases the buffer to show more characters. As the buffer increases in size gets higher, performance might degrade, depending on your system.

Plug-Ins to Trace

Lists all Designer plug-ins (in their simple name form). Select plug-ins that you want to trace.

Select All

Enables tracing in all Designer plug-ins.

Deselect All

Disables tracing in all Designer plug-ins.

Version Control

This setting determines how often Version Control polls the SVN server for updates. The polling interval is in minutes.

21.4.2 Identity Manager

The following preferences categories appear as Identity Manager sub-pages:

Identity Manager

The Identity Manager option contains multiple tabs:

Versions

Specifies the Identity Manager version running on a server.

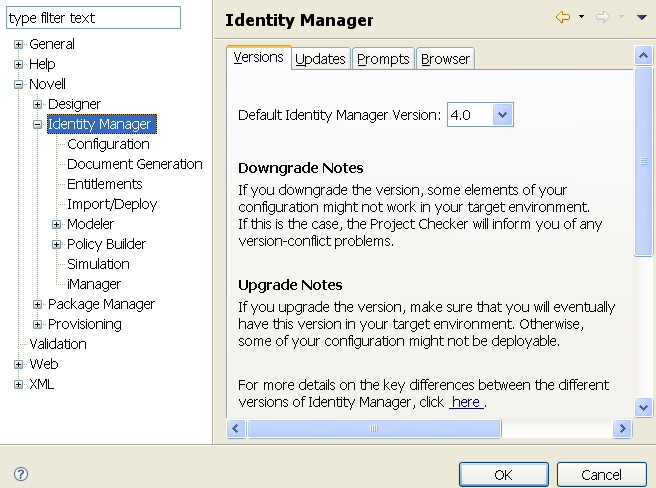

Figure 21-3 Preferences: Novell > Identity Manager > Versions

Updates

Table 21-19 Preferences: Novell > Identity Manager > Updates

Settings

Description

Do not check for updates

Prevents Designer from checking for updates on startup. Hides the Designer Updates dialog box.

Prompt to check for updates on startup

Displays a prompt each time you run Designer. You can disable this prompt.

Automatically check for updates on startup

Always checks for updates. If you disable the prompts that appear on startup, select this option.

Notify me when no updates are available

Displays a No New Updates message when you select to check for updates.

Prompts

Table 21-20 Preferences: Novell > Identity Manager > Prompts

Setting

Description

Warn when downgrading server versions

Prompts you when you select an earlier server version for a project. If you downgrade, some elements of your configuration might not work in your target environment.

Warn when upgrading server versions

Prompts you when you select a later server version for a project. If you upgrade, some of your configuration might not be deployable unless you have this later server version in your environment.

Warn when another editor has updated files in the same project space

Warns you that your project might be erased from your workspace. The prompt occurs when overwriting a file in the file system for notification templates and policies.

Warn when deleting items from the outline view

Confirms that you want to delete the selected items.

Browser

You can use Designer to open a Web browser. After you enter the URL, Designer stores it. To change the URL, type a new one in Preferences, then click OK.

Configuration

Each driver has a startup parameter. If it is disabled, the driver never starts until you change the setting. By default, Identity Manager drivers are disabled when you create them in the Modeler or start Designer. You must start them manually.

For more information, see Section 4.5, Configuring Driver Sets.

General

These general settings specify how drivers start up and how their global configuration values (GCVs) act on specified target servers. The default state uses Disabled and Merge GCVs.

Table 21-21 Preferences: Novell > Identity Manager > Configuration > General Tab Settings

Setting

Description

Auto-Start

The driver automatically starts after you create it or whenever you start or load Designer.

Manual

You must start the driver manually.

Disabled

The driver never starts.

Merge GCVs on the target server during copy

Copies the GCVs from one driver/driver set to multiple targets of the same type. For example, you might configure GCVs on one driver and then copy them to multiple drivers. You also have the option of overwriting the target GCVs or merging your source GCVs with the existing target driver GCVs, if they exist.

Overwrite GCVs on the target server during copy

Overwrites existing GCVs when they are copied to the server.

eDir-to-eDir SSL/TLS

This setting configures how two eDirectory drivers communicate with each other over a secure channel. For more information, see Section 18.7, Configuring TLS for eDir-to-eDir Drivers.

Table 21-22 Preferences: Novell > Identity Manager > Configuration > eDir-to-eDir SSL/TLS Tab Settings

Setting

Description

Preferred key size

Specifies the preferred key size that is generated when drivers are encrypted and stored in eDirectory: 512, 768, 1024, or 2048 bytes.

Preferred secure hash algorithm

Specifies the preferred hash algorithm to use when encrypting drivers: SHA1-RSA, MD2-RSA, or MD5-RSA.

Preferred validity period

Specifies the validity period for a driver certificate, ranging from 6 months to 10 years.

Always overwrite existing certificates

Specifies that existing driver certificates are overwritten with each deployment. If you select this option, Designer deletes existing certificates and creates new ones. The new certificates are then good for another two years (assuming the default value is two years, as defined in the Preferred Validity Period field.) If you select Live > Create eDir-to-eDir Certificates, Designer deletes old certificates and creates new ones.

Overwrite certificates only if they have expired

Specifies that only expired driver certificates are overwritten with each deployment. This is the default setting. The default expiration length is two years. If a certificate expires, SSL/TLS stops working. If a certificate is expired, Designer deletes it and creates a new one.

Never overwrite existing certificates

Never overwrites driver certificates.

Restart drivers after building certificates

Restarts drivers after certificates have been updated or created.

When you create certificates, Designer reads the preferences, including Preferred Key Size, Preferred Secure Hash Algorithm, and Preferred Validity Period. These options are also available through Secure Connection Settings > Advanced TLS Configuration.

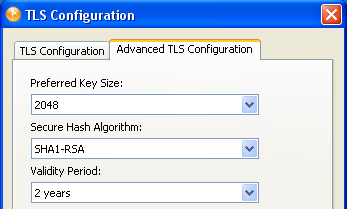

Figure 21-4 The Advanced TLS Configuration Dialog Box

NOTE:Designer reads these preferences after you first set them. If you subsequently change the preferences by using the driver’s configuration page, those changes override the settings in Preferences.

After you change default settings and click OK, that configuration information is recorded. When you deploy the driver, Designer creates the certificates, or deletes and creates new certificates with a new time stamp.

Prompts

These settings specify how users are prompted to manage driver certificates on the target server. All are selected in the default state.

Table 21-23 Preferences: Novell > Identity Manager > Configuration > Prompts Tab Settings

Setting

Description

Prompt to replace existing certificates

Prompts the user to provide new certificates.

Prompt to merge/overwrite GCVs on target server during copy

Prompts the user to merge or overwrite when copying GCVs to the target server.

Prompt to create certificates after configuration

Prompts the user to create certificates after configuring a secure connection.

Prompt to overwrite existing settings and policies from the Driver Configuration Wizard

In the Driver Configuration Wizard, prompts the user whether to reset (overwrite) all driver settings and policies.

Prompt when policy operations affect multiple policy sets

Turns on and turns off a warning dialog box associated with policy operations. The dialog box appears when you move policies in a pre-3.5 environment and the move operation affects multiple policy sets.

Prompt for server selection on live driver actions

Any time you perform a live action on a driver (such as starting or stopping the driver) it prompts you to specify the server associated with the driver.

Prompts for errors when validating XML DTD for all Policy Editors

Designer validates the policies you create against the Identity Manager DTDs. This helps you verify that the policies you create are valid.

Document Generation

The Document Generator comes with the following settings:

Table 21-24 Preferences: Novell > Identity Manager > Document Generation

Setting

Description

Automatically open the rendered file after document generation.

If you have a PDF reader installed on your workstation, the rendered file automatically opens in the reader. If you have enabled the RTF format and have a TRTF reader installed, the rendered file automatically opens in the reader. The default is On.

Show warning dialog box when the style is an older version.

Displays a warning when generating documents on out-of-version styles. The default is On.

Warn me before overwriting existing file during document generation

Displays a warning when overwriting previously generated files.

Enable RTF support

Allows you to save documents to RTF format. The default is Off.

Output XML source files

Generates XML files as part of the document generation process.

Document applications and drivers related to other selected items.

With this option selected, parent objects and direct child objects are included to give context to the document. Deselecting this option excludes direct children of the selected item. The default is On.

Document Language

Allows you to select a language other then English in which to generate documents. Languages include Chinese Simplified, Chinese Traditional, Dutch, English, French, German, Italian, Japanese, Portuguese Brazil, and Spanish. The default is English.

Font settings

Allows you to select the font you want to use for document generation. This selection adds double-byte font support. The default is the Arial font.

Entitlements

Controls whether or how often you receive a prompt whenever you add the DirXML-EntitlementRef attribute to a driver filter. The default is Prompt me, but because this attribute is added only if it doesn’t already exist on the driver filter, you can select Always add it to not see the pop-up window.

You can also never add the attribute. However, the DirXML-EntitlementRef attribute is added only if it doesn’t already exist in the driver filter. If the attribute already exists, the options have no effect.

Import/Deploy

The Import/Deploy preferences window contains three tabs: Behaviors, Prompts, and Trace. The following tables describe their options.

Behaviors

There are multiple sections in the Behaviors tab.

Table 21-25 Preferences: Novell > Identity Manager > Behaviors (Import Settings)

Setting

Description

Perform prompt checking when running a driver configuration file

Displays the Do you wish to perform all mandatory and required prompt checking when running this Driver configuration file? prompt. If you select Yes to the prompt, you must then enter information in required fields while configuring the driver. If you select No, you temporarily disable this setting and can skip required fields.

Include application schema when importing drivers

Imports the eDirectory application schema when you select this option. You might not want to import all the associated data. The default is Off. See Section 12.5.3, Importing a Schema.

Table 21-26 Preferences: Novell > Identity Manager > Behaviors (Deploy Settings)

Setting

Description

Replace driver set/server associations when deploying a driver set

If you want driver set and server associations when deploying, select this option. The default is Off.

Always deploy both drivers of an eDir-to-eDir connection

With this option selected, you are prompted to deploy both sides on the connection. With both drivers deployed, Deploy is integrated with the creation of eDir-to-eDir certificates, if the certificates are created in Designer. Deploy adheres to the settings set in Preferences > Designer for IDM > Configuration > eDir-to-eDir. The default is On. This is the recommended setting.

Restart running drivers after deploying the driver

Restarts the driver after it is deployed. The default is On.

Table 21-27 Preferences: Novell > Identity Manager > Behaviors (Summary Dialog)

Setting

Description

Show the summary dialog prior to performing an import

Allows you to view what’s being imported in a summary screen. The default is On.

Show the summary dialog prior to performing a deployment

Allows you to view what’s being deployed in a summary screen. The default is On.

Filter passwords out of summary and compare dialogs

Select this box if you want to filter passwords out of summary and compare dialog boxes.

Table 21-28 Preferences: Novell > Identity Manager > Behaviors (Export Settings)

Setting

Description

Copy cross driver policy references into exported configuration files

Selected by default, this option saves you the trouble of manually inputting cross-driver policy references.

Prompts

Table 21-29 Preferences: Novell > Identity Manager > Prompts Tab Settings

Setting

Description

Show dialog to export cross driver policy references to configuration files

Selected by default. If you do not want to see a dialog box about these references, deselect the option.

Show a warning dialog when overwriting a driver set/server association

Warns that the driver set being deployed has a different server association than the server that you are about to deploy to. The association in the deployed driver set overwrites the existing server association.

Show the dialog box to deploy both drivers of an eDir-to-eDir connection

This is the default, and it is also the recommended setting. With this option selected, you are prompted to deploy both sides of the connection.

Show the dialog box to restart drivers after a deployment

Selected by default. If you do not want to see a dialog box about these references, deselect the option.

Trace

Table 21-30 Preferences: Novell > Identity Manager > Trace Tab Settings

Setting

Description

Trace import and deploy event information

Deselected by default. If you need to troubleshoot an import or a deploy, select this option, then open the Trace view to inspect the import or deploy.

Generate debug messages for the Driver configuration prompt dialog box

Deselected by default. If you need to generate debug messages, select this option.

Show verbose debug messages

Deselected by default. If you need to generate verbose debug messages, select this option.

Time import and deploy operations

Deselected by default. If you need to time how long it takes to import or deploy an object, select this option.

Modeler

The Modeler preferences window contains seven tabs: Behaviors, Display, Guidance, Layouts, Pages, Prompts, and Themes. The following tables describe their options.

Additionally, the following preferences categories appear as Modeler sub-pages:

Table 21-31 Preferences: Novell > Identity Manager > Modeler > Behaviors Tab Settings

Setting

Description

Auto-create servers when connecting a driver to a different driver set

Automatically creates a server for a driver set when you connect a driver to a different driver set.

Launch the driver Properties dialog box

Launches the driver’s Properties page.

Show the driver’s Policy Flow view

Displays the driver’s Policy Flow diagram in the Outline view.

Table 21-32 Preferences: Novell > Identity Manager > Modeler > Display Tab Settings

Setting

Description

Show labels by Applications and Identity Vaults (Architect. mode)

Shows labels below applications (in both modes) and above Identity Vaults (Architect mode only).

Show driver icons in Developer mode

Displays a driver icon on the line that represents a driver in the Modeler.

Show password icons in Developer mode

Displays a password sync icon below a driver icon in the Modeler.

Auto-expand Identity Vaults to fit contents

Causes Identity Vaults to expand to accommodate objects that you place in them.

Auto-shrink Identity Vaults to fit contents

Causes Identity Vaults to shrink when you remove objects from them.

Auto-size Identity Vaults to fit their titles

Enables vaults to expand horizontally, to accommodate long titles. Otherwise, the titles concatenate after approximately 20 characters.

Grid Width

Increases or decreases cells in the Modeler’s grid. To access the grid, select the Modeler, then click View > Grid.

Table 21-33 Preferences: Novell > Identity Manager > Modeler > Guidance Tab Settings

Setting

Description

If an Identity Vault doesn’t already exist, one will be created when you drop the application

Creates an Identity Vault when you drag or drop an application from the palette into the Modeler.

eDir-to-eDir connection tip, when you’ve connected the same eDir app to two driver sets

Prompts you to connect a line directly between the end driver sets when you set up an eDir-to-eDir relationship.

Setting dataflows in architect mode will default all policy and schema settings

Sets policy and schema settings to defaults when you set data flows in architect mode. To edit the settings, use the Developer mode.

Saving Dataflow to disk will first force a project save

Requires you to save a project before you can save a dataflow to disk.

Table 21-34 Preferences: Novell > Identity Manager > Modeler > Layouts Tab Settings

Setting

Description

Default Layout for Applications on Import

Specifies the default layout for application objects when you import a project into Designer.

To arrange an existing project in a particular layout:

  1. In the Modeler, right-click a driver set.

  2. Select Arrange Applications.

  3. Select a layout.

Table 21-35 Preferences: Novell > Identity Manager > Modeler > Pages Tab Settings

Setting

Description

Check the additional Modeler pages you want visible

Determines whether the Architect, Dataflow, and Table pages display as tabs at the bottom of the Modeler. The Developer mode is always enabled.

Table 21-36 Preferences: Novell > Identity Manager > Modeler > Prompts Tab Settings

Setting

Description

Show the Driver Config Wizard at connection time

Launches the Driver Configuration Wizard when you drag or drop an application in the Modeler.

Confirm when a driver is being deleted

Provides a Yes/No prompt for you to choose whether you want to delete the driver and its policies.

Table 21-37 Preferences: Novell > Identity Manager > Modeler > Themes Tab Settings

Setting

Description

Developer

Specifies the theme for Developer mode. Themes define the colors used for background, text, line, domain group background, and domain group title in the Modeler.

Architect

Specifies the theme for Architect mode. Themes define the colors used for background, text, line, domain group background, and domain group title in the Modeler.

Dataflow Page

Specifies the number of columns per page that the Dataflow editor saves in the HTML reports.

To view or use the Dataflow editor, select the Dataflow tab in the Modeler.

Figure 21-5 The Dataflow Tab

Palette Page

The Palette page includes the following settings:

Table 21-38 Preferences: Novell > Identity Manager > Modeler > Palette

Setting

Description

Arrange applications in folders

Displays folders (for example, Database) in the palette and places applications in appropriate folders.

Arrange applications in an alphabetical list

Places all applications into one folder in the palette, and lists the applications alphabetically.

Policy Builder

The Policy Builder preferences page includes the following settings:

Additionally, the following preferences categories appear as Policy Builder sub-pages:

Table 21-39 Preferences: Novell > Identity Manager > Policy Builder

Setting

Description

Localize actions, conditions and tokens

Translates the names of policy actions, conditions and tokens into the selected Designer language. When this option is not selected, policy actions, conditions and tokens display in English.

Include project name in title

Includes project name in the title.

Expand all rules when the Policy Builder is loaded

Automatically expands rules in the Rules pane when you open the Policy Builder.

Show version/author/last changed information

Adds additional fields in the Rule Inline editor (available when you double-click a rule.) Designer adds the information from these fields to the policy.

Policy Description

The Policy Description preferences page includes the following settings:

Table 21-40 Preferences: Novell > Identity Manager > Policy Builder > Policy Description

Setting

Description

Expand the Policy Description field

Automatically expands the Policy Description field. You can hide the field by selecting the check box.

Number of rows of text to display

Determines how many rows to display in the Policy Description field. The default is 10.

Policy Description position on the page

Places the Policy Description field above or below the Rules pane.

Simulation

The Simulation preferences page includes the following settings:

Table 21-41 Preferences: Novell > Identity Manager > Simulation

Setting

Description

Directories: Java Extensions

Enables you to simulate policies that contain references to external Java extensions. Specify the .jar file or the directory where the .jar file is located to add it to the class path.

You can specify multiple Java extensions.

Referenced Directories

A reference directory table and a new configuration option to specify the current working directory have been added in the Simulation preferences page.You can add directories through this table when they need to be included in the Simulator's classpath. The configuration or reference files in the directory are available at runtime while simulating the policy.

Options: Clear the policy simulation log file prior to performing a simulation

Automatically clears the log file. If you don’t enable this setting, Designer displays a Clear Log icon that you can use. If you do many simulations in succession, you might want to disable this option. The log file then captures and displays the events of all the tests, until you click Clear Log.

Options: Show the information prompt when a query is generated

Displays a prompt when the Simulator generates a query. It simulates what the engine would do when a query is required to process the policy.

Options: Notify user when converting the Input Document schema

Notifies a user when the Policy Simulator must convert the Application schema to the ID Vault schema, or vice versa. This is typically necessary when changing the input document’s simulation point.

iManager

The iManager preferences page includes the following settings:

Table 21-42 Preferences: Novell > Identity Manager > iManager

Setting

Description

iManager URL

The IP address and port for the iManager server.

Show Novell iManager Information Dialog

Prompts you for the URL to the iManager server after you select Tools > iManager. If the URL is missing or incorrect, iManager is unable to launch.

21.4.3 Package Manager

The following options allow you to manage packages in Designer. You access the preferences page through Windows > Preferences > Novell > Package Manager.

Auto Imports

This setting allows you to change how Designer imports package updates into the package catalog. When there are updates to packages that have not been imported into the package catalog, select how you want Designer to handle these updates.

Table 21-43 Preferences: Novell > Package Manager > Auto Imports

Setting

Description

Do not import packages when a project opens

Designer does not prompt you to import updated packages into the package catalog. If there are package updates that need to be imported, you must manually import these packages before they can be installed. For more information, see Section 6.2.4, Importing Packages into the Package Catalog.

Prompts to import packages when a project opens

If there are package updates, every time you open the project, you are prompted to import the package updates into the package catalog.

Automatically import packages when a project opens

If there are package updates, every time you open the project, Designer automatically imports the package updates into the package catalog.

Custom Shims

Allows a developer to specify information about a custom driver shim. The information is used as a template so that a developer does not need to specify this information repeatedly when creating a package.

Table 21-44 Preferences: Novell > Package Manager > Custom Shims

Setting

Description

Display Name

Displays the driver name and version in the driver manifest. This name can change with each release of the driver.

Shim ID

Associates the driver with the shim file in the driver manifest. This ID never changes.

Driver Palette ID

This ID associates the driver shim with a certain types of drivers. This allows you to group packages together. For example, if your driver palette ID associates your custom driver with the JDBC driver, your packages are available for installation if the customer has a JDBC base package installed.

To add a custom shim:

  1. Click the Add shim type icon Add shim type icon.

  2. Specify the display name for the driver shim.

  3. Specify the shim ID for the driver shim.

  4. Specify the driver palette ID for the drivers you want this custom shim to be associated with.

  5. Click Apply.

License Defaults

If you have a license for packages you are developing, you can specify that information in this preference page, so that each time you create a new package you don’t need to specify that information again.

To add a license:

  1. Click Browse, then browse to and select your license file.

  2. Click Apply.

Locations Defaults

This option allows you to specify your package development directories so that you don’t need to specify this information each time you create a new package.

Table 21-45 Preferences: Novell > Identity Manager > Package Manager > Location Defaults

Setting

Description

Build Directory

This directory is where you build packages.

Import Directory

This directory contains all imported packages.

Localization Directory

This directory contains all of the packages that are localized.

Publish Directory

This directory contains all packages ready to publish.

Online Updates

The following settings configure how packages are updated online:

Table 21-46 Preferences: Novell > Package Manager > Online Updates

Setting

Description

Do not check for updates

Designer does not automatically check for updates. With this option selected, you need to manually check for updates by clicking Help > Check for Package Updates in Designer’s toolbar.

Prompt to check for updates on startup

Designer prompts you to check for package updates when it starts.

Automatically check for updates on startup

Designer checks for any package updates when it starts.

NOTE:This options fails if a custom site requires authentication and the authentication information has not been added in Designer.

You add the authentication information into Window > Preferences > General Settings > Network Connections. For more information, see Section 21.2.6, Network Connections.

Notify me when no updates are available

If there are no package updates, Designer returns a message stating that no updates are available.

Package Update URLs

Lists the URLs where Designer checks for package updates. Partners can add their own URLs for custom packages. For more information see, Section 7.16, Releasing and Publishing Packages.

Add URL

Allows you to add the vendor’s name and URL for publishing custom packages. For more information, see Section 7.16, Releasing and Publishing Packages.

Edit URL

Allows you to edit the vendor’s name and URL for publishing custom packages.

Delete URL

Deletes the select URL from the list of URLs.

Restore Defaults

Restores all settings to their default values.

To add a URL:

  1. Click the Add URL icon Add URL icon.

  2. Specify the vendor of the package and the URL where packages are available for download.

  3. Click OK.

Package Based Policies

When a user modifies a policy object that belongs to a package, Designer marks the object as being customized. You can configure Designer to warn users that this occurs when they modify a package-based policy object. This setting is enabled by default.

To configure how Designer displays a warning when a user opens a policy that belongs to a package:

  1. In the Preferences window in Designer, expand Novell > Package Manager and click Package Based Policies.

  2. If you want to disable the warning, select Do not prompt for policy customization on opening package based policies.

  3. If you want to enable the warning, select Prompt for policy customization on opening package based policies.

  4. Click OK.

Vendor Information

Allows you to specify your vendor information for your packages in one location, instead of specifying the information each time you create a package. For more information, see Section 7.8, Creating Feature Packages.

Table 21-47 Preferences: Novell > Package Manager > Vendor Defaults

Setting

Description

Vendor > Name

Specify the vendor name. If this is for internal consumption, specify the name of your company.

Vendor > Address

Specify the address for the vendor or your company.

Vendor > URL

Specify the URL of the vendor your company.

Vendor > eMail

Specify an e-mail for the vendor or your company.

Contact > Name

If there is a specific contact person for this package, specify the name.

Contact > eMail

If there is a specific e-mail address for the contact person, specify it in this field.

21.4.4 Provisioning

You can customize some Provisioning view behaviors by setting preferences. You access the preferences page through Windows > Preferences > Novell > Provisioning. The following table explains the settings on Provisioning preferences main page.

Table 21-48 General Preferences

Setting

Description

Prompt for deletion of User Application Configuration

When this option is selected and you delete a User Application from the Modeler, Designer asks whether to delete the provisioning objects on disk as part of the delete operation. By default, the provisioning objects are left on disk, even if the User Application is deleted.

Set delete from Identity Vault as default for all “Confirm Delete” dialogs

When you delete an object in the Provisioning view or the directory abstraction layer editor, you are prompted to confirm the deletion. This preference determines whether the check box labeled Delete object in Identity Vault on deploy in the confirmation dialog box is selected by default.

Selecting this preference means the default is to delete the Identity Vault object. The local object is always deleted.

Show Provisioning View when new User Application is created or imported

Select this option if you want Designer to launch the Provisioning view when you create a new User Application driver or import an existing User Application driver.

Show Tooltips in Provisioning view

Select this option to enable (the default) tooltips in the Provisioning view.

Show Categories in Provisioning view

Select this option so Designer displays provisioning request definitions organized by category. You specify the category in the Overview panel. Categories are defined in the Provisioning Category list defined in the directory abstraction layer.

Show all localized e-mail templates

Select this option so Designer displays all localized e-mail templates as selectable options in the E-Mail notification tab. The Java language code is appended to the name of the e-mail template. For example, cn=Provisioning Notification Activity_es, cn=Default Notification Collection,cn=security indicates this is the Spanish language version of this template.

When you select a localized template, that language is used regardless of the user’s default language. When you select the default template (the template without a locale code), the e-mail is in the user’s default language (if the default is a supported language).

Validate display names for supported locales

Select this option if Designer should validate display names. It ensures uniqueness of the display name within a locale, and that a display name is supplied (not blank) for each locale.

Applies to display names defined by using the directory abstraction layer editor, provisioning request editor, or provisioning teams editor.

Prompt before performing query on Role Entitlement

When this option is selected, and you click Run query in the Identity Vault, Designer informs you that the query can take a long time to execute. It prompts to run the query or not. If this option is not selected, Designer runs the query and does not prompt you.

Identity Vault Connection Timeout (in milliseconds)

The amount of time (in milliseconds) for Designer to connect to the Identity Vault. When it is set too low, you might encounter an error when setting Trustee Rights on a provisioning request definition or when trying to access the Identity Vault through the ECMA expression builder.

The following sections explain the additional preferences settings for provisioning:

Import/Deploy Preferences

Table 21-49 Import/Deploy Preferences

Setting

Description

Import > Delete local object on import when object has been deleted in Identity Vault

Select this option for Designer to delete local objects if the corresponding Identity Vault objects were deleted. This ensures that the Identity Vault and local files are in sync. Deselect this option if you want to leave the local files alone.

Import > Prompt whether to overwrite runtime configuration on import from file

Select this option if you are importing the driver from a test environment and want to deploy to a production environment. The User Application driver runtime relies on objects stored in the driver that you are not able to access in Designer. If you deploy a driver that does not contain these objects, it does not work properly. Deselect this option if you are importing the driver, modifying it, and deploying it back to the same driver set because the driver already has the runtime configuration objects.

Deploy > Allow deployment of objects with validation errors

Select this option if you want to deploy objects that fail validation checks. At deployment, Designer validates the definitions being deployed following the validation rules outlined in Validating Provisioning Objects in the User Application: Design Guide. Deselect this option to prevent deployment of definitions that fail validation.

WARNING:Deploying objects that fail validation can result in errors in the User Application runtime.

Migration Preferences

Table 21-50 Migration Preferences

Setting

Description

Show warning about Identity Vault schema changes

When you select Migrate, Designer displays a dialog box warning you that schema changes (needed to support new features) must be made before you can deploy the migrated driver. If the updates have not been made, cancel the migration until they are complete. If you don't want to see this warning when you select Migrate, deselect this option.

Always deploy (un-deployed) User Application Driver

Applies to User Application drivers that have not been deployed to the Identity Vault (for example, User Application drivers imported from a driver configuration file). When you migrate an undeployed User Application driver, Designer prompts you to deploy the driver. Select the Always deploy (un-deployed) User Application driver option if you always want Designer to deploy the User Application driver, and do not want the dialog box displayed.

Show warning that editors will be closed

When you select the Migrate command, Designer warns you that all editors will be closed. Select this option if you don’t want this warning displayed each time you choose the Migrate command.

Novell Integration Manager

The Novell Integration Manager is used by the User Application workflow engine to provide Integration Activity support.

Validation Mask Preferences

Table 21-51 Validation Mask Preferences

Setting

Description

Validation Mask Table

Use this to define the validation masks available to form controls. Validation masks are regular expressions and must follow regular expression syntax.

Designer provides a default set of validation masks. If they do not display validation masks in the form controls property sheets, enable them by clicking Restore Defaults, then clicking Apply.

Workflows Preferences

Table 21-52 Workflow Preferences

Setting

Description

Form Templates

Use this dialog box to remove or preview existing form templates.

Diagram Preferences

Show Activity Id: Select this preference when you want the Workflow tab of the provisioning request definition editor to display the Activity IDs for each activity in the flow. Activity IDs are used by the ECMA expression builder and are written to the User Application’s error logs.

Show Flow Path Types: Select this preference when you want the Workflow tab of the provisioning request definition editor to display the Flow Path Types for each activity in the flow. Flow Path Types are used by the ECMA expression builder and are written to the User Application’s error logs.
