3.1 Creating the Driver in Designer

You create the Blackboard driver in Designer by importing its basic configuration file and then modifying the configuration to suit your environment. After creating and configuring the driver, you need to deploy it to the Identity Vault and start it.

3.1.1 Importing the Current Driver Packages

The driver packages contain the items required to create a driver, such as policies, entitlements, filters, and Schema Mapping policies. These packages are only available in Designer and can be updated after they are initially installed. You must have the most current version of the packages in the Package Catalog before you can create a new driver object.

To verify you have the most recent version of the driver packages in the Package Catalog:

  1. Open Designer.

  2. In the toolbar, click Help > Check for Package Updates.

  3. Click OK to update the packages

    or

    click OK if the packages are up-to-date.

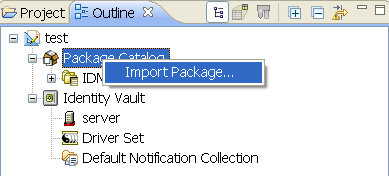

  4. In the Outline view, right-click the Package Catalog.

    Click Import Package.

  5. Select any Blackboard driver packages

    or

    Click Select All to import all of the packages displayed.

    NOTE:By default, only the base packages are displayed. Deselect Show Base Packages Only to display all packages.

  6. Click OK to import the selected packages, then click OK in the successfully imported packages message.

  7. After the current packages are imported, continue with Installing the Driver Packages

3.1.2 Installing the Driver Packages

  1. In Designer, open your project.

  2. In the Modeler, right-click the driver set where you want to create the driver, then select New > Driver.

  3. Select Blackboard Base, then click Next.

  4. Select the optional features to install the Blackboard driver. All options are selected by default. The options are:

    Blackboard Default Configuration: This package contains the default configuration information for the Blackboard driver. Always leave this option selected.

    Blackboard Group Based Enrollments: This package contains the policies required if you want to use Group attributes for Blackboard Enrollments .

    Blackboard User Entitlements: This package contains the policies and entitlements required to enable the driver to account creation and management with entitlements. For more information, see the Identity Manager 4.0.1 Entitlements Guide on the Identity Manager 4.0.1 Documentation Site.

  5. Click Next.

  6. On the Driver Information page, fill in the following field:

    Driver Name: The name that identifies the driver in Designer and eDirectory®.

  7. Click Next.

  8. On the Remote Loader page, fill in the following fields:

    Host Name: Enter the Host Name or IP Address where the Remote Loader Service has been installed and is running for this driver.

    Port: Enter the Port Number where the Remote Loader Service has been installed and is running for this driver. The Default Port is 8090.

    Remote Password: The Remote Loader password is used to control access to the Remote Loader instance. It must be the same password that is specified as the Remote Loader password on the Identity Manager Remote Loader.

    Driver Password: The Driver Object Password is used by the Remote Loader to authenticate itself to the Identity Manager server. It must be the same password that is specified as the Driver Object Password on the Identity Manager Remote Loader.

    Use Secure Remote Loader: Choose if the driver should use SSL to connect to the remote loader.

    (optional) Key Material Object (KMO): If Yes was selected for Use Secure Remote Loader enter the Key Material Object to be used for the SSL connection to the remote loader..

  9. Click Next.

  10. On the next page fill in the following fields:

    Location of the bb-config.properties file: Specify the path to the location of the bb-config.properties file. You MUST include a trailing slash.

    NOTE:The path on most Windows systems is c:\blackboard\config\.

    Name of Virtual Installation: Name of the Virtual Installation for Blackboard. Leave blank if using the default installation.

  11. (Conditional) This page displays only if you selected to install the Blackboard Group Based Enrolments package. Fill in the following field:

    Choose the roles that should be used for users who are added to the following group attributes: This setting holds mappings from Group attributes to Blackboard Enrollment Roles. The default map contains mappings that map members of the Member attribute to Student enrollment object and members of the Owner attribute to Instructor enrollment objects. Additional roles can be supported by extending the schema and mapping the desired group attribute to a Blackboard role.

    NOTE:You must remember to add the additional attributes to the filter.

  12. Click Next.

  13. (Conditional) This page displays only if you selected to install the Blackboard User Entitlements package. Fill in the following field:

    If a user loses the bbAccount Entitlement take the following action: Choose the desired action if a user loses the bbAccount Entitlement.

  14. Click Next.

  15. (Conditional) This page displays only if you selected to install the Blackboard Default Configuration package. (This package should always be selected.) Fill in the following fields:

    Limit the driver to a base container in the Identity Vault for synchronization: Limit events the driver processes to a base container in eDirectory.

    Specify the base container in the Identity Vault for User synchronization: This container is used in the Subscriber channel Event Transformation policies to limit the Identity Vault objects being synchronized. Example: users.myorg.

    Specify the base container in the Identity Vault for Group synchronization: This container is used in the Subscriber channel Event Transformation policies to limit the Identity Vault objects being synchronized. Example: groups.myorg

    What action should be taken on an enrollment when a Person is removed from a Group: If set to Delete enrollments dropped from a Group will result in the Person being removed from the Course or Organization. If set to Disable the Person's enrollment will be disabled in the Course or Organization.

    Automatically set the required ID attribute for new Person, Course, and Organization objects to the source name of the object : If true then the required id attribute for Person, Course, and Organization types in Blackboard will be automatically set to Source Name if the id attribute is not already set. The attributes are DirXML-BB-p-id for Person, DirXML-BB-c-id for Course, and DirXML-BB-o-id for Organization.

    Automatically set the required title attribute for new Course, and Organization objects to the source name of the Group: Automatically set required attribute DirXML-bb-c-course-title to the source name for Course objects if it is not already set. Automatically set required attribute DirXML-bb-o-title to source name for Organization objects.

    Automatically set the required user roles attributes for Person objects : If true the default roles chosen below will be set for a user if they are not present on the user object.

    Default System Role for new users: The default system role to use for new users. See Blackboard Documentation for more information about System Roles.

    Default Institutional Role for new users. [ex. STUDENT, STAFF, ALUMNI, GUEST, FACULTY, OBSERVER, or any custom defined roles]: Default Institutional Role. See Blackboard documentation for more information about Institutional Roles.

    Group objects in this subtree will be synchronized as Courses in Blackboard: All group objects in this subtree will be synchronized as Courses in Blackboard. Group objects in eDirectory can represent a Course or Organization object in Blackboard.

    Group objects in this subtree will be synchronized as Organizations in Blackboard: All group objects in this subtree will be synchronized as Organizations in Blackboard. Group objects in eDirectory can represent a Course or Organization object in Blackboard.

    Automatically set required Person attribute DirXML-BB-p-email if it is not set: Email address is a required attribute for User creation in Blackboard. If true then the following setting will be used to create the user’s email address in Blackboard.

    Domain name to use for default email address: Email address is a required attribute for a Person in Blackboard. This value will be used to set the email address attribute in Blackboard for users who do not have an email address specified in their eDirectory User object. The CN of the user will be used with the value provided to create the email address.

  16. Click Next.

  17. Review the summary of tasks that will be completed to create the driver, then click Finish.

  18. After you have installed the driver, you must change the configuration for your environment. Proceed to Configuring the Driver.

3.1.3 Configuring the Driver

After importing the driver configuration file, you need to configure the driver before it can run. Complete the following tasks to configure the driver:

  • Configure the driver parameters: There are many settings that can help you customize and optimize the driver. The settings are divided into categories such as Driver Configuration, Engine Control Values, and Global Configuration Values (GCVs). Although it is important for you to understand all of the settings, your first priority should be to configure the driver parameters located on the Global Configuration Values page.

  • Configure the driver filter: Modify the driver filter to include the object classes and attributes you want synchronized between the Identity Vault and Blackboard.

  • Configure Policies: Modify the policies as needed.

    IMPORTANT:Policies should only be modified using Designer or changes could be lost when a package is upgraded or the driver is run in “factory mode.”

    For information about the default configuration policies, see Section A.0, Policies.

  • Configure password synchronization: The basic driver configuration is set up to support password synchronization through Universal Password. If you don’t want this setup, see “Configuring Password Flow ” in the Identity Manager 4.0.1 Password Management Guide.

After completing the configuration tasks, continue with the next section, Deploying the Driver.

3.1.4 Deploying the Driver

After a driver is created in Designer, it must be deployed into the Identity Vault.

  1. In Designer, open your project.

  2. In the Modeler, right-click the driver icon or the driver line, then select Live > Deploy.

  3. If you are authenticated to the Identity Vault, skip to Step 5; otherwise, specify the following information:

    • Host: Specify the IP address or DNS name of the server hosting the Identity Vault.

    • Username: Specify the DN of the user object used to authenticate to the Identity Vault.

    • Password: Specify the user’s password.

  4. Click OK.

  5. Read the deployment summary, then click Deploy.

  6. Read the message, then click OK.

  7. Click Define Security Equivalence to assign rights to the driver.

    The driver requires rights to objects within the Identity Vault. The Admin user object is most often used to supply these rights. However, you might want to create a DriversUser (for example) and assign security equivalence to that user. Whatever rights that the driver needs to have on the server, the DriversUser object must have the same security rights.

    1. Click Add, then browse to and select the object with the correct rights.

    2. Click OK twice.

  8. Click Exclude Administrative Roles to exclude users that should not be synchronized.

    You should exclude any administrative User objects (for example, Admin and DriversUser) from synchronization.

    1. Click Add, then browse to and select the user object you want to exclude.

    2. Click OK.

    3. Repeat Step 8a and 8b for each object you want to exclude.

    4. Click OK.

3.1.5 Starting the Driver

When a driver is created, it is stopped by default. To make the driver work, you must start the driver and cause events to occur. Identity Manager is an event-driven system, so after the driver is started, it won’t do anything until an event occurs.

To start the driver:

  1. Make sure the Remote Loader driver instance is running:

    • Windows: Open the Remote Loader console on the driver’s server, select the driver in the list, then click Start.

    • Linux, AIX or Solaris: At the server command line, enter:

        /etc/init.d/rdxml start

  2. In Designer, open your project.

  3. In the Modeler, right-click the driver icon or the driver line, then select Live > Start Driver.
