6.1 Managing XSLT Style Sheets in Designer

XSLT policy style sheets can be added, modified, and deleted using Designer’s XML Editor. The following sections provide details:

6.1.1 Adding an XSLT Style Sheet in Designer

  1. Open a project in Designer and select the Outline tab.

  2. Select the driver and location where you want the style sheet.

  3. Right-click and select New > XSLT.

  4. Specify the name of the style sheet.

  5. Select Open Editor after creating policy, then click OK.

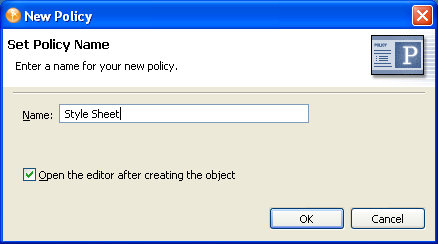

    Open Editor after creating policy check box

  6. Select Yes to save the project before editing the new style sheet.

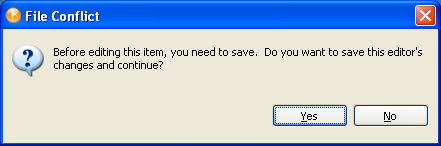

    Select Yes to save the project

  7. Add the style sheet information below the line Add your custom templates here.

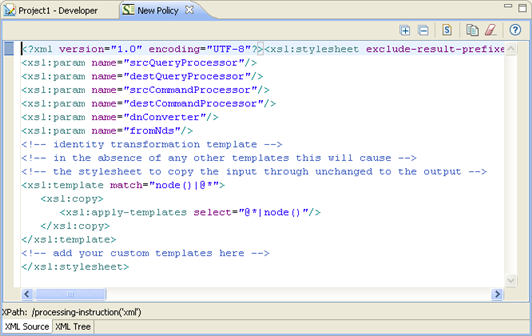

    Add your custom templates here

  8. Click File > Save to, to save the style sheet.

6.1.2 Modifying an XSLT Style Sheet in Designer

  1. Open a project in Designer and select the Outline tab.

  2. Select the XSLT style sheet you want to modify.

  3. Right-click, then select Edit.

    Modify the style sheet as desired. To clear the existing style sheet content, click Clear Add your custom templates here in the XML editor toolbar.

6.1.3 Deleting an XSLT Style Sheet in Designer

  1. Open a project in Designer and select the Outline tab.

  2. Select the XSLT style sheet that you want to delete, right-click, then select Delete.

    Alternatively, you can clear the XSLT policy without deleting the object. To do this, right-click the XSLT policy, then select Clear.
