9.3 Using the Operation Data Editor

The Operation Data editor allows you to create an operation data element for the selected operation by specifying attributes and values that should be included in the node. An XML fragment should also be included in the node.

  1. In the Parameter column of the Policy Simulator, double-click the Operation Data field.

  2. In the Operation Data editor, click Add to add the desired attribute.

  3. Specify the name of the attribute in the Attribute field.

  4. Specify the value of the attribute in the Value field.

  5. If you want to add an additional attribute, repeat Step 2 through Step 4.

  6. Click the Data field, then specify the XML fragment.

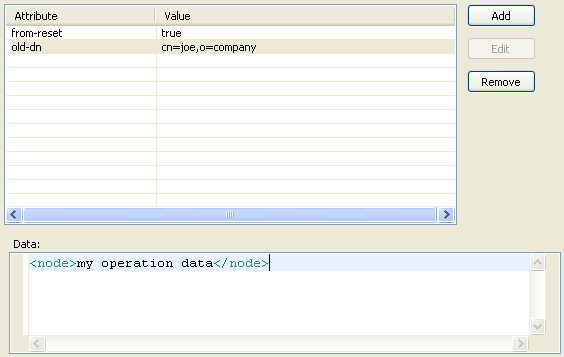

    XML fragment in the Data field

  7. Click OK to save the information.
