3.6 Setting the Report Definition Parameters

Reports support runtime parameters that allow users to specify values when they run a report. This section provides instructions for defining runtime parameters.

3.6.1 Defining the Parameter XML File

Parameters specific to your report are located in the 6.1/parameters directory for your report. Each parameter is in its own XML file. Each of these XML files must be referenced in the release.pml file in the order in which you want them to appear. The release.pml file lists the parameters by name (without the file extension), as shown below:

Figure 3-1 Release.pml file

The template.pml file lists commonly shared parameters:

Figure 3-2 Template.pml file

3.6.2 Defining the Type for a Parameter

Identity Reporting supports the following values for <Type>:

  • String

  • Date

  • Integer

  • Boolean

The user interface shows a specific control for each data type:

Table 3-1 Controls for Parameter Data Types

Data Type

Control

String

TextBox

String with Options

ListBox

String with OptionQuery

Autocompleter

Date

DatePicker

Integer

IntegerTextBox

Boolean

Checkbox

All of the parameters need to have this setting:

<IsForPrompting>1</IsForPrompting>

If you know that your report cannot run without a particular value specified, you can mark a parameter as required with the following setting:

<Required>1</Required>

To make an Options parameter or OptionQuery parameter allow for multiple values, you should include these two settings:

<OptionMultivalue>1</OptionMultivalue>
<OptionMultivalueDelimiter>;</OptionMultivalueDelimiter>

3.6.3 Defining an OptionQuery Parameter

Suppose you want to generate a report that shows role information, and you want to allow the role as a parameter, so that the definition can be scoped at runtime. In this case, you can use an OptionQuery so that Identity Reporting shows you a list and allows for typeahead automatic completion, based on the roles that are stored in the database on which to report. To provide support for this capability, you need to follow a specific syntax that uses cascaded parameters. The syntax ##parameter_name## within the OptionQuery references another parameter definition. NetIQ provides shared common parameters that serve this purpose already, Role.xml and Search_Role.xml. They can be reused by specifying them in the template.pml or copied into your local parameters folder and modified to suit your needs.

The User.xml and Search_Name.xml are the respective parameters for allowing Identity Vault user to be a parameter. The User.xml parameter also demonstrates the ability to include a special cascaded parameter, ##NAME_ORDER##. This allows you to localize the Name Order of a name (Given-name Surname vs. Surname Given-name), or allow for a Middle Initial in the name. If you would like your OptionQuery to make use of this feature, follow the name order example shown below.

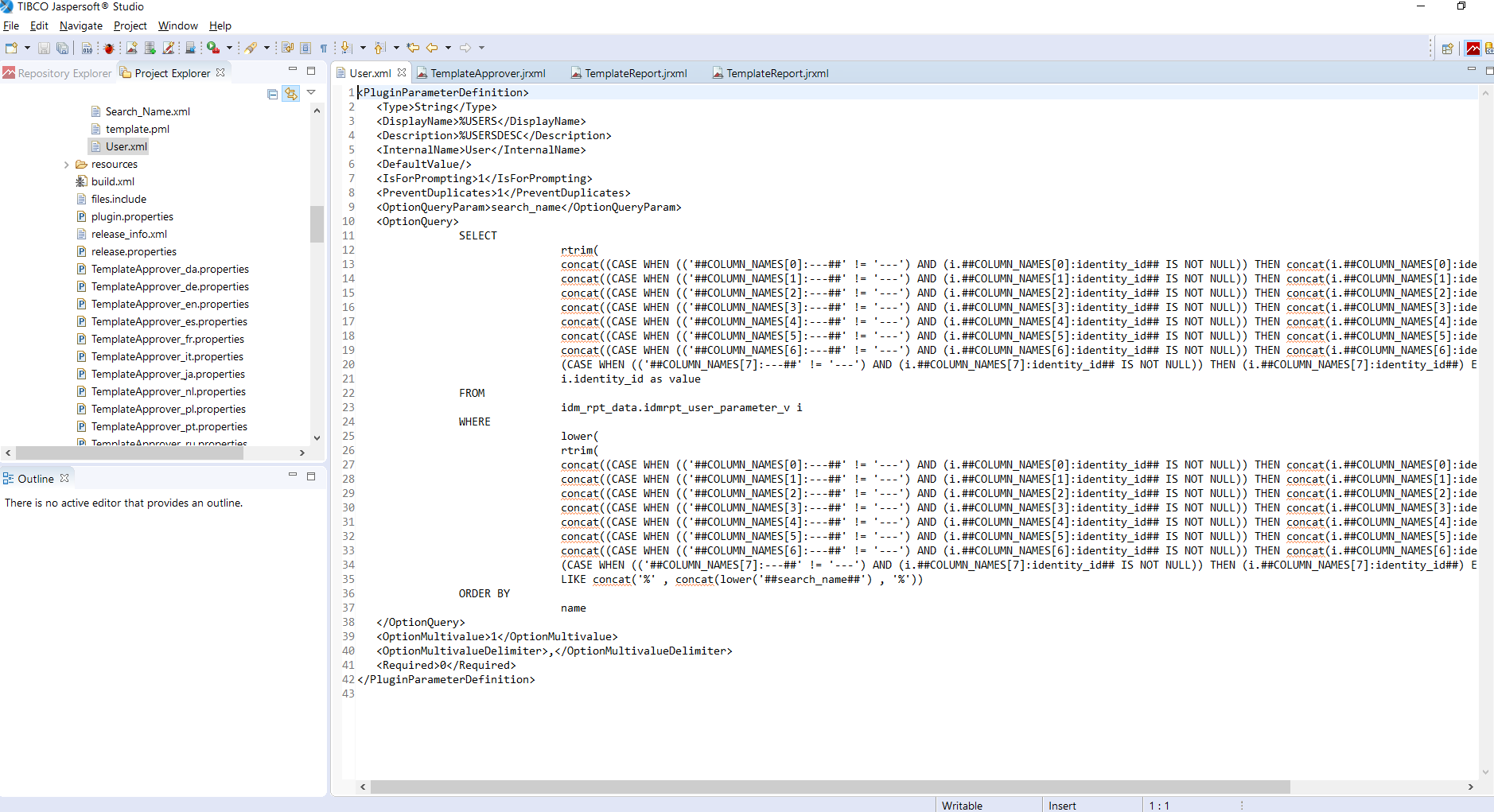

The User.xml file is shown below:

Figure 3-3 User.xml file

For this example to work properly, the ##NAME_ORDER## cascaded parameter must match the <InternalName>NAME_ORDER</InternalName> of the name order parameter.

All OptionQuery parameters must have a cascaded parameter such as a search_name, where the OptionQuery SQL is using it as its WHERE clause. Its internal name does not matter, as long as it is unique and is used in the SQL appropriately. It should have these settings:

<DefaultValue></DefaultValue>
<IsForPrompting>0</IsForPrompting>
