4.1 Grid Object Facts and Fact Junctions

Every component discovered in a PlateSpin Orchestrate-enabled network is identified and abstracted as an object. Within the PlateSpin Orchestrate management framework, objects are stored within an addressable database called a Grid. Every Grid object has an associated set of facts and constraints that define its properties and characteristics. Essentially, by building, deploying, and running jobs on the PlateSpin Orchestrate Server, you can individually change the functionality of any and all system resources by managing an object’s facts and constraints.

The components that have facts include Jobs, Resources (including physical machines, virtual machines and VM hosts), Virtual Disks (vDisks), Virtual NICs (vNICs), Repositories, Virtual Bridges, and Users. The PlateSpin Orchestrate Server assigns default values to each of the component facts, although they can be changed at any time by the administrator (unless they are read-only).

The XML fact element defines a fact to be stored in the grid object’s fact namespace. The name, type and value of the fact are specified as attributes. For list or array fact types, the element tag defines list or array members. For dictionary fact types, the dict tag defines dictionary members.

See the examples in the directory, /allTypes.policy. This example policy has an XML representation for all the fact types.

Facts can also be created and modified in JDL and in the Java Client SDK

As a Job Developer, you might want certain constraints to be used for a job and you might specify these in the policy. These comprise a set of logical clauses and operators that are compared with the respective component’s fact values when the job is run by the Job Scheduling Manager. See

Remember, all properties appear in the job context, which is an environment where constraints are evaluated. These constraints provide a multilevel filter for a job in order to ensure the best quality of service the grid can provide.

This section includes the following information:

For further fact information found in jobs, see Section 7.0, Job Examples and Section 2.2.2, Using Facts in Job Scripts.

4.1.1 Fact Type Definitions

The following table explains the abbreviated codes used to describe facts for PlateSpin Orchestrate Grid objects:

Table 4-1 PlateSpin Orchestrate Fact Types

Type	Description
Automatic	The fact should be automatically set after the successful discovery of virtual resources (VM Hosts and VMs).
Boolean	The fact is a Boolean value.
Default	The specified default value of the fact is set.
Dictionary	The fact is selected from a specified dictionary listing.
Dynamic	The fact is dynamically generated.
Enumerate	The fact is a specified enumerated value.
Example	When available, provides an example how a fact might be applied to an object.
Integer	The fact is an integer value.
Real	The fact is a real number.
String	The fact is a string value.
Datagrid	Facts relate to datagrid object types.
Local	Facts relate to local object types.
NAS	Facts relate to Network Attached Storage (NAS) object types.
SAN	Facts relate to Storage Area Network (SAN) object types.
Virtual	Facts relate to virtual object types.

4.1.2 Understanding Fact Junctions

A fact junction is a special type of fact that provides a convenient way to access facts on Grid objects related to the one where the fact lookup is being performed. The following diagram shows the fact junction relationships of all the Grid objects:

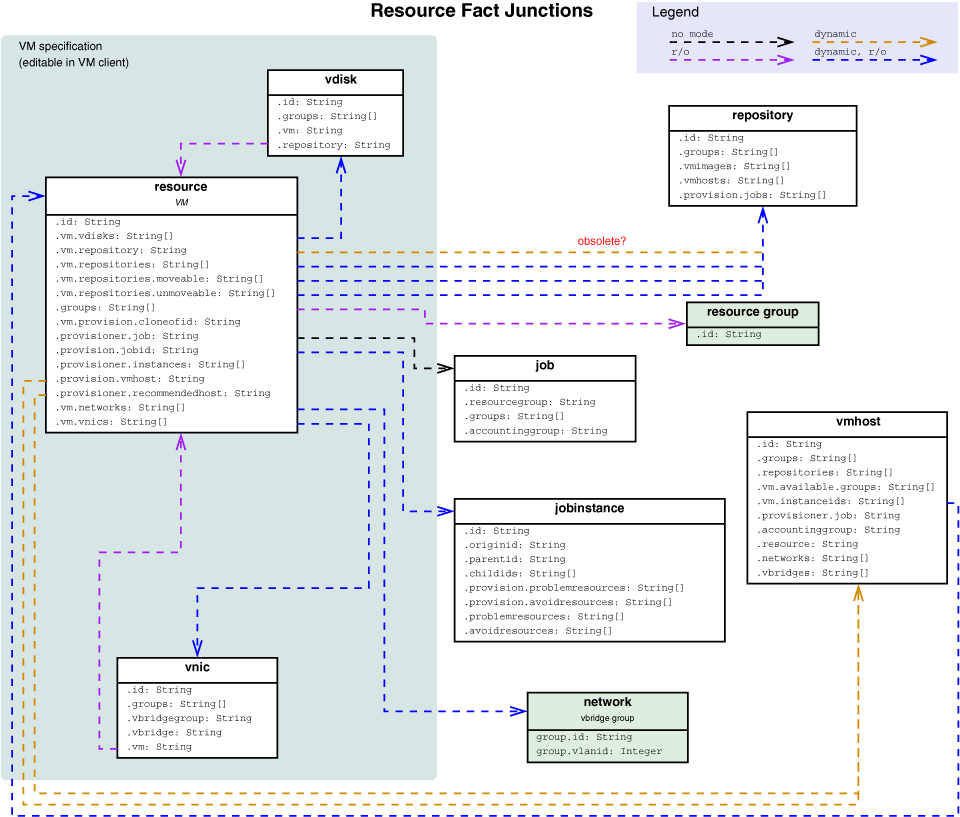

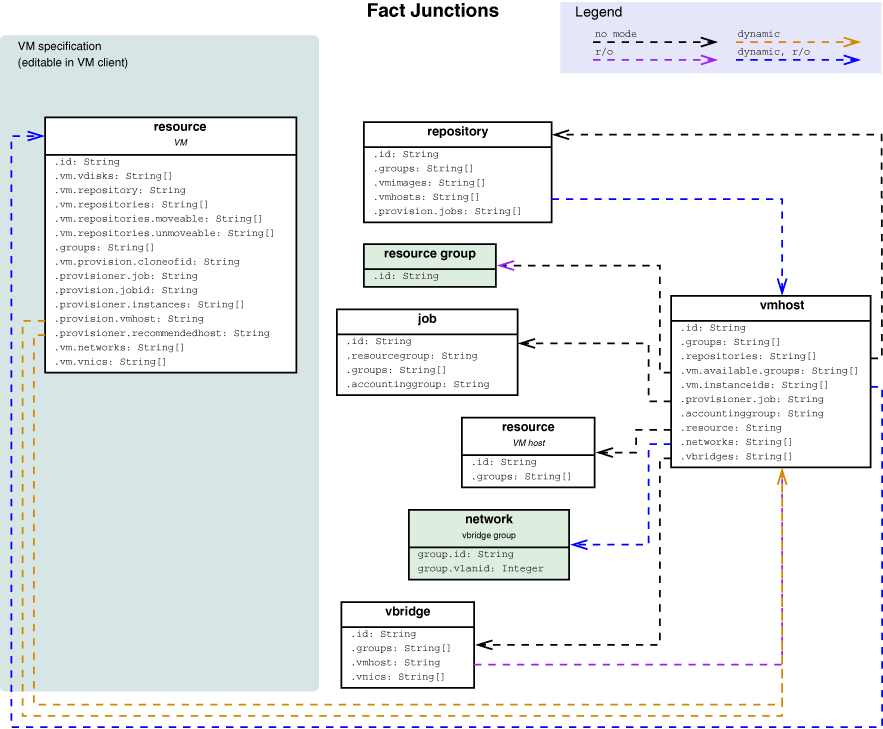

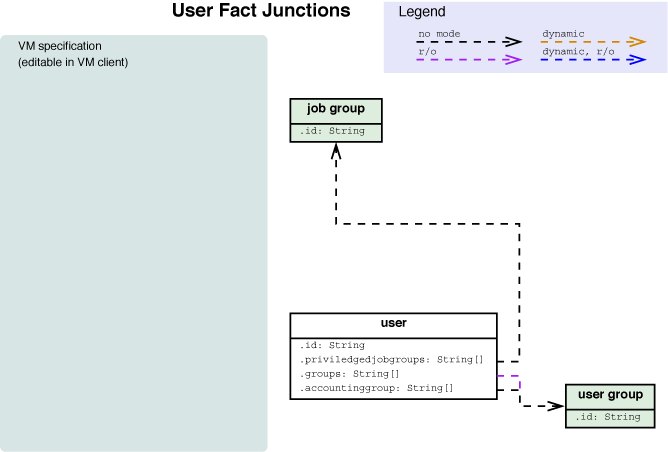

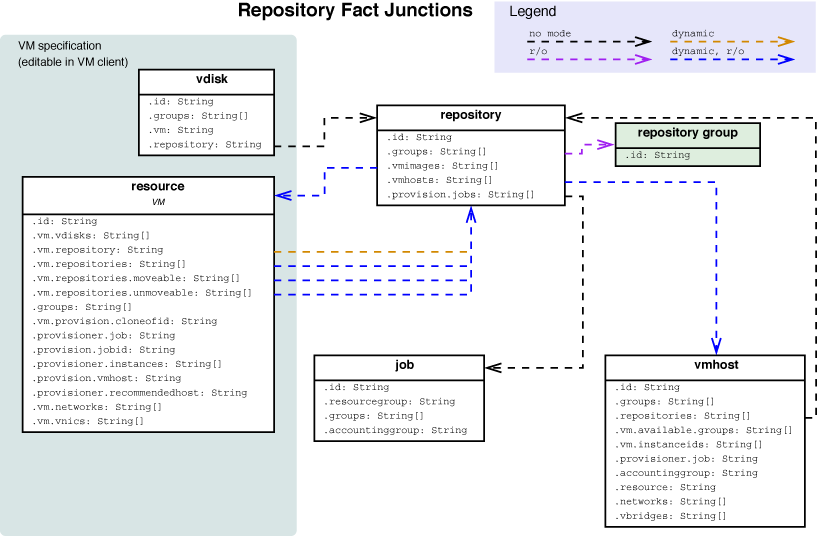

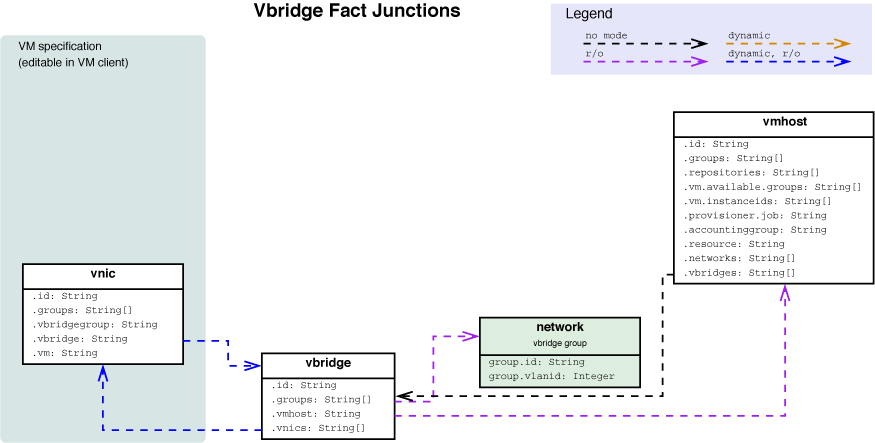

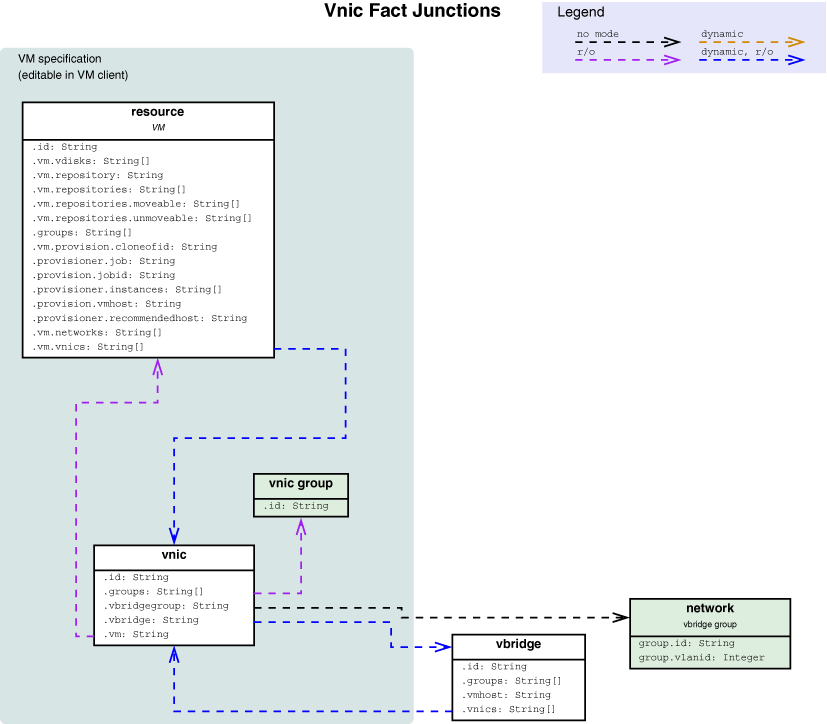

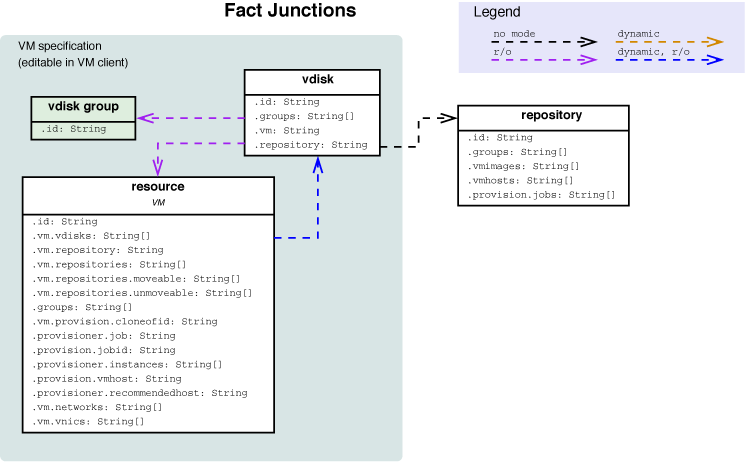

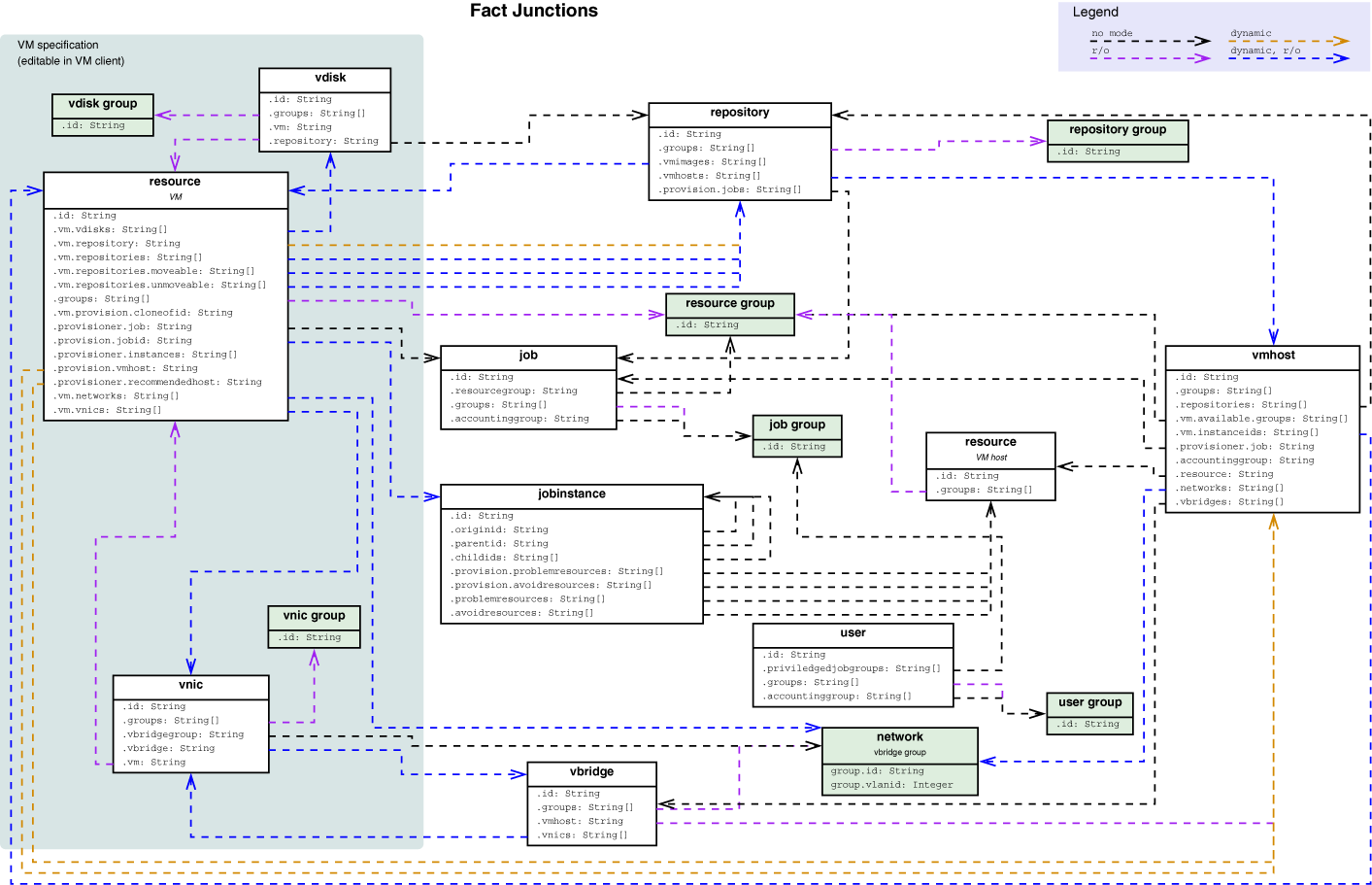

Figure 4-1 Fact Junctions Between Objects in a Sample PlateSpin Orchestrate Grid

As an example of how a fact junction works, a fact lookup on vmhost.resource.id is redirected from the VM host object, through the junction onto the underlying physical Resource object. In other words, the value returned is the same as if a fact lookup for resource.id was performed on the underlying physical resource. This is accomplished with the following JDL:

vmhost1 = getMatrix().getGridObject(TYPE_VMHOST, "vmhost1")
print vmhost1.getFact("vmhost.resource.id")

Another example is vdisk.repository.freespace, which returns the amount of free space in the repository that is associated with the virtual disk where the fact lookup is being performed:

vdisk = getMatrix().getGridObject(TYPE_VDISK, "vm1_vdisk1")
print vdisk.getFact("vdisk.repository.freespace")

Note that the fact junction refers to the related Grid object rather than to any of its facts. Therefore, to obtain the ID of the repository associated with a given virtual disk, you must perform a lookup on vdisk.repository.id rather than vdisk.repository.

It is important to understand how the fact name is constructed from the junction, otherwise certain usages of fact junctions can be confusing, especially when used with facts that contain the dot (“.”) character. For example, starting with a vDisk Grid object as above:

vdisk = getMatrix().getGridObject(TYPE_VDISK, "vm1_vdisk1")

vDisk objects have a fact junction, vdisk.vm, that points to the VM associated with the vDisk. If you want to find all VNICs associated with this VM, remember that VMs have a fact resource.vm.vnics that provides the desired array. However, because PlateSpin Orchestrate accesses this fact by using the vdisk.vm fact junction, you must replace the resource component of the resource.vm.vnics fact with vdisk.vm. Therefore, the required code is:

print vdisk.getFact(“vdisk.vm.vm.vnics”)

Some fact junctions return an array of values rather than a single value. For example, the junction vmhost.repositories returns an array of all the repositories visible to the VM host where the lookup is being performed:

vmhost1 = getMatrix().getGridObject(TYPE_VMHOST, "vmhost1")
print host1.getFact("vmhost.repositories")

In this case, you can also single out one of the Grid objects returned in the array and perform fact lookups on that object. For example, if the repository san1 is accessible by vmhost1, then

print vmhost1.getFact("vmhost.repositories[san1].freespace")

returns the amount of free space available in the san1 repository.

repo_host1 = getMatrix().getGridObject(TYPE_REPOSITORY, "host1")
print repo_host1.getFact("repository.vmhosts[host1_demoAdapter].networks")

Fact junction lookups can be chained multiple times, even mixing use of single-valued and array-valued junctions:

vdisk = m.getGridObject(TYPE_VDISK, "vm1_vdisk1")
print vdisk.getFact("vdisk.repository.vmhosts[vmhost1].networks")

host1 = m.getGridObject(TYPE_RESOURCE, "host1")
print host1.getFact("resource.vmhosts[host1_demoAdapter].repositories[san1].freespace")

For a more comprehensive list of available fact junctions, see the example factJunction.job stored at /opt/novell/zenworks/zos/server/examples on your server installation system.

4.1.3 Job, Jobinstance, and Joblet Object Facts and Fact Junctions

This section includes the following information:

Job Object Facts

The Constraints/Facts tab opens a page that shows all of the effective constraints and facts for a Grid object. Each Grid object has an associated set of facts and constraints that define its properties. In essence, by changing the policy constraints and fact values for a job, you can change the behavior of the job and how the PlateSpin Orchestrate Server allocates available system resources to it. The Orchestrate Server assigns default values to each of the component facts, although they can be changed at any time by the administrator, unless they are read-only.

The following table lists the default facts created by the PlateSpin Orchestrate Server for the Job object.

NOTE:Facts with mode dynamic are dyamic read/write facts, which means you can dynamically change the values for that fact.

Facts with mode r/o have read-only values, which means they can be viewed but changes cannot be made.

Facts with mode del are deleteable, which means they can be deleted at any time. Where facts can be deleted in the Development Client, they can also be deleted in the GridObjectInfo.deleteFact() method in JDL.

Table 4-2 Job Facts

Fact Name	Fact Type	Mode	Description
job.accountinggroup	String		The default job group whose statistics are updated when this job runs.
job.autoterminate	Boolean		Whether this job ends when all child jobs and joblets end
job.cacheresourcematches.ttl	Integer		Indicates the jobs willingness to allow resource maches to be cached if the scheduler becomes too loaded. The value is the TTL of the cache in seconds ('<=0' to disable caching)
job.description	String		Textual description of job
job.enabled	Boolean		True if the job is enabled (able to be run).
job.groups	String[]	r/o	The groups where this job is a member.
job.history.cost.average	Real	dynamic, r/o	The average cost of running this job measured since job deployment or last modification. Only updated if the job finishes successfully.
job.history.cost.total	Real	dynamic, r/o	The total cost of running this job measured since job deployment or last modification
job.history.gcycles.average	Integer	dynamic, r/o	The average amount of normalized grid time (gcycles) taken by running this job. Only updated if the job finishes successfully.
job.history.gcycles.total	Integer	dynamic, r/o	The total amount of normalized grid time (gcycles) consumed by this job since deployment
job.history.jobcount	Integer	dynamic, r/o	The total number of job instances of this job ever initiated on the system (includes those denied by 'accept' constraints
job.history.jobcount.cancelled	Integer	dynamic, r/o	The total number of job instances of this job that were cancelled
job.history.jobcount.complete	Integer	dynamic, r/o	The total number of job instances of this job that were completed
job.history.jobcount.failed	Integer	dynamic, r/o	The total number of job instances of this type that failed
job.history.queuetime.average	Integer	dynamic, r/o	The average wall time spent waiting for this job to start in seconds
job.history.queuetime.total	Integer	dynamic, r/o	The total amount of time this job has spent in a queued state since last deployment.
job.history.runtime.average	Integer	dynamic, r/o	The average runtime of this job in seconds. Only updated if the job finishes successfully.
job.history.runtime.total	Integer	dynamic, r/o	The total runtime of the job since deployment in seconds
job.history.samplesize	Integer		The number of points used in the trailing average calculation for all historical averages
job.history.time.average	Integer	dynamic, r/o	The average wall time taken by running this job in seconds. This fact is updated only if the job finishes successfully.
job.history.time.total	Integer	dynamic, r/o	The total combined resource wall time of all work performed on behalf of this job since deployment in seconds
job.id	String	r/o	The name of the job.
job.instances.active	Integer	dynamic, r/o	The number of job instances of this type that are active in the system ('running' or 'paused')c
job.instances.queued	Integer	dynamic, r/o	The number of job instances of this type that are in a queued state
job.instances.total	Integer	dynamic, r/o	The total number of job instances of this type that exist in the sytem
job.joblet.immediateretry	Boolean		Specifies whether the system to attempt to immediately retry a joblet rather than waiting until all others are running/complete before retrying
job.joblet.max	Integer		The absolute maximum number of joblets this job may schedule.
job.joblet.maxfailures	Integer		Specifies the number of non-fatal joblet errors to tolerate before failing completely or '-1' to attempt to continue after errorsc
job.joblet.maxperresource	Integer		The absolute maximum number of joblets this job may occupy on any one resource ('-1' indicates no limit)
job.joblet.maxretry	Integer		The maximum number of joblet retries of any type that will be attempted before considering the joblet as failed (0 means don't retry, <0 means keep retrying)
job.joblet.maxrunning	Integer		The absolute maximum number of joblets a job is allowed to have running at one time. This value will never be exceeded ('-1' indicates no limit)
job.joblet.maxwaittime	Integer		The maximum (resource) wait time permitted by a joblet in seconds ('-1' indicates no timeout)
job.joblet.retrylimit.disconnect	Integer		The number of joblet retries caused by unexpected resource disconnect that will be allowed before considering the joblet as failed (0 means don't retry, <0 means keep retrying). Can never exceed job.joblet.maxretry
job.joblet.retrylimit.forced	Integer		The number of forced joblet retries (requested by the joblet to run an another resource) that will be allowed before considering the joblet as failed (0 means don't retry, <0 means keep retrying). Can never exceed job.joblet.maxretry
job.joblet.retrylimit.timeout	Integer		The number of joblet retries caused by server inititated joblet timeout that will be allowed before considering the joblet as failed (0 means don't retry, <0 means keep retrying). Can never exceed job.joblet.maxretry.
job.joblet.retrylimit.unforced	Integer		The number of unforced joblet retries that will be allowed before considering the joblet as failed (0 means don't retry, <0 means keep retrying). Can never exceed job.joblet.maxretry
job.joblet.runtype	String		Specify file and executable operations run in Joblet are in behalf of the Job user or not.
job.joblet.timeout	Integer		The timeout after which the server will take action to cancel the joblet (seconds, '-1' indicates no timeout)
job.joblet.tracing	Boolean		Indicates whether the joblet should include tracing information in the job log when executing joblet events
job.jobtime			The average wall time this job should take to run. Used to override the computed average when job is of type 'fixedtime' (in seconds)
job.jobtype	String		The type of job -- used in completion time calulation (normal, workflow, pspace, fixedtime, fixedcycles)
job.maxnodefailures	Integer		The maximum number of resource failures that are to be tolerated before excluding the node from future joblet processing. A value of -1 indicates that unlimited failures are acceptable.
job.maxresources	Integer		The absolute maximum number of resources that a job is allow to use at one time. This value will never be exceeded. A value of -1 indicates no limit.
job.persistfactsonfinish	Boolean		Whether the Grid objects that this job modifies are to be persisted at job end. Used and applicable only when installed in a high availablity cluster.
job.preemptible	Boolean		Indicates whether this job is willing or able to be preempted. Turned on by setting joblet.preemptible. (can be overridden by the job instance).
job.preemption.rankby	String[]		The ranking specification used to select suitable jobs to automatically preempt a resource on. The syntax for each element in the list is <fact>/<order> where order is either “a” for ascending or “d” for descending.
job.provision.hostselection	String		The strategy used in finding a host for any automatically provisioned resource (queue, immediate).
job.provision.maxcount	Integer		The number of resources that can be automatically provisioned on behalf of this job. A value of 0 turns off automatic provisioning behavior. A value of -1 allows unlimited provisioning.
job.provision.maxnodefailures	Integer		The maximum number of provision failures that will be tolerated before excluding the node from future automatic provisioning. A value of -1 indicates that unlimited failures are acceptable.
job.provision.maxpending	Integer		The number of resources tha can be automatically provisioned at one time (simulataneously) on behalf of this job. A value of <=0 turns off automatic provisioning behavor.
job.provision.rankby	String[]		The ranking specification used to select suitable resources to automatically provision. Element syntax is <fact>/<order> where order is either ascending or descending.
job.queuedtimeout	Integer		The timeout (measured in seconds) after which the server takes action to cancel a queued job, including all joblets and subjobs. A value of -1 indicates no timeout.
job.queuetime	String		The average wall time (measured in seconds) spent waiting for this job to start . Used to override the computed average when queue is of type fixedtime.
job.queuetype	String		The type of queue from which this job is typically accessed. This is used in start time calculation (none, pfifo, fifo, lifo, fixedtime).
job.resourcegroup	String		The default resource group from which resources will be selected for this job (in addition to any resource policies).
job.resources.rankby	String[]		The ranking specification used to select suitable resources. Element syntax is <fact>/<order> where order is either ascending or descending.
job.restartable	Boolean		Indicates whether this job is willing to be restarted on server restarts (can be overridden by the job instance).
job.timeout	Integer		The timeout (measured in seconds) after which the server will take action to cancel the whole job including all joblets and subjobs. A value of -1 indicates no timeout.
job.tracing	Boolean		Indicates whether this job should include tracing information in the job log when executing job events.
job.visible	Boolean		Whether this job should be visible to the client in queries or UI (it does not stop it being run).

Job Object Fact Junctions

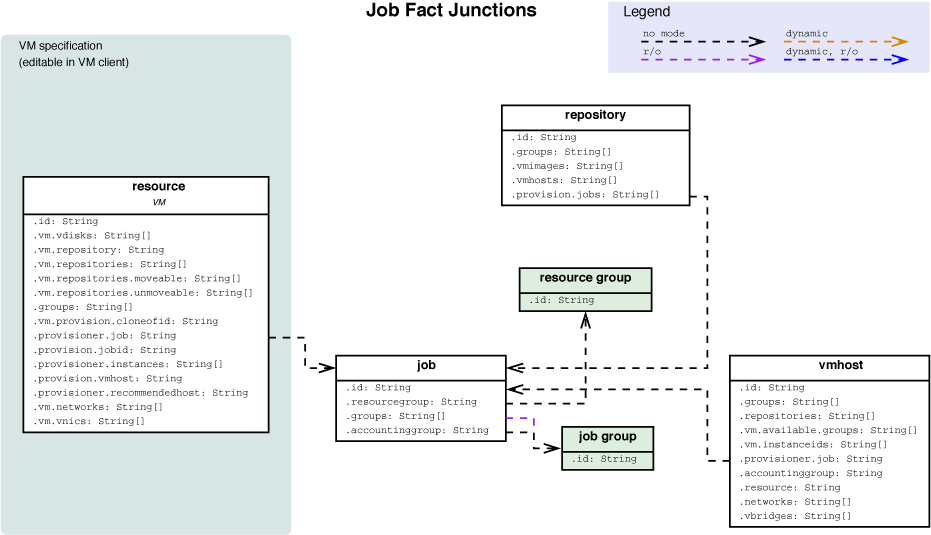

The following diagram illustrates the relationship between the Job Grid object facts and other Grid objects. It also shows the relationship between other discrete Grid object facts and the Job Grid object itself.

Figure 4-2 Job Fact Junctions

Job Group Facts

Table 4-3 Job Group Facts

Fact Name	Fact Type	Mode	Description
group.id	String	r/o	The name of the group.
group.jobinstances.active	Integer	dynamic, r/o	The number of job instances that are active on resources in this group ('running' or 'paused').
group.jobinstances.queued	Integer	dynamic, r/o	The number of job instances that are in a queued state awaiting start on resources in this group.
group.jobinstances.total	Integer	dynamic, r/o	The total number of job instances running on, or awaiting start on resources in this group.

Jobinstance Facts

A job instance is a currently running or recently completed job. All jobinstance facts are viewable only in the Policy Debugger page of the Jobs Monitor. You need to select the All Facts check box to view these facts. These facts are not editable.

NOTE:If the job you want to view finished previously, it is possible that it can no longer be viewed in the Policy Debugger if other jobs followed it on the Orchestrate Server.

Table 4-4 Jobinstance Facts

Fact Name	Fact Type	Description
jobinstance.childids	String[]	String array of child job IDs. If no child jobs were launched, the arrayis empty.
jobinstance.cost	Real	The cost (measured in dollars) of this job.
jobinstance.cost.burnrate	Real	The computed moving average burn rate (measured in dollars per hour) of the job.
jobinstance.errors	String	The error messages recorded for a failed job.
jobinstance.id	String	The job instance unique identifier
jobinstance.instancename	String	The optional, human readable name for this job instance.
jobinstance.joblet.pspace	Integer	The number of rows in a fully expanded p-space definition. Will be equal to the number of joblets only if jobinstance.joblet.size is 1.
jobinstance.joblet.size	Integer	The number of p-space rows encapsulated in each joblet. May be explicitly set of derived as a result of specifing joblet count
jobinstance.joblets.cancelled	Integer	The number of joblets that ended in a cancelled state.
jobinstance.joblets.complete	Integer	Number of joblets that completed successfully.
jobinstance.joblets.count	Integer	The number of joblets under management of this job instance.
jobinstance.joblets.failed	Integer	The number of joblets that ended in a failed state.
jobinstance.joblets.running	Integer	The number of joblets that are actively running on resources.
jobinstance.joblets.waiting	Integer	The number of joblets that are waiting for available resources.
jobinstance.matchingresources	Integer	The number of currently active resources that match the resource contraints.
jobinstance.memo	String	A brief memo set by this job instance that can be seen in user/administrator portals.
jobinstance.originid	String	The job identifier of the root job of this hierarchy or this job if a top level job.
jobinstance.parentid	String	The job identifier of the parent job of this hierarchy or empty if this is a top level job with no parent.
jobinstance.preemptible	Boolean	Specifies that this job instance is willing to give up resources if required. Initially set from the equivalent job fact.
jobinstance.priority	Integer	The numeric representation of the current priority of this job instance (1=lowest, 9=highest). Default value is the user's default priority.
jobinstance.priority.string	String	The string representation of the current priority of this job instance.
jobinstance.problemresources	String[]	The number of resources that are excluded from this job instance due to reaching the job.maxnodefailures limit.
jobinstance.provision.avoidresources	String[]	The names of automatically provisioned resources that are currently being avoided (not yet excluded) because of prior provisioning errors.
jobinstance.provision.count	Integer	The total number of resources that have been automaticaly provisioned (or are in progress) for this job.
jobinstance.provision.pending	Integer	The total number of automatically provisioned resources that are pending online status.
jobinstance.provision.problemresources	String[]	The names of automatically provisioned resources that encountered provisioning errors and have been excluded.
jobinstance.provision.problemresources.count	Integer	The number of automatically provisioned resources that encountered provisioning errors and have been excluded.
jobinstance.resources	String[]	The resources currently in use by this job
jobinstance.resources.count	Integer	Number of resources currently in use by this job
jobinstance.restarted	Boolean	Whether this job instance was been restarted due to server restart.
jobinstance.startat	Date	The date/time that this job was requested to start atc
jobinstance.starttime		The formated start date and time for this job instance
jobinstance.state	Integer	The numeric state of this job instance
jobinstance.state.string	String	String representation of the current state of this job instance
jobinstance.terminationtype	String	The cause of the termination for a cancelled or failed job.
jobinstance.time.completed	Date	The time this job instance completed or an estimation if still active
jobinstance.time.elapsed	Integer	The elapsed wall time this job instance has been running or ran (in seconds)
jobinstance.time.elapsed.string	String	The elapsed wall time this job instance has been in a running
jobinstance.time.queued	Integer	The elapsed wall time this job instance has been a queued (in second)s
jobinstance.time.started	Date	The time this job instance was actually started or an estimating if queued
jobinstance.time.submitted	Date	The time this job instance was submitted

Jobinstance Fact Junctions

The following diagram illustrates the relationship between the Jobinstance facts and other Grid objects.

Figure 4-3 Jobinstance Fact Junctions

Joblet Facts

Joblet facts can be accessed only if you write code within the Joblet subclass of a JDL file. If you code a job to expose the joblet fact values, PlateSpin Orchestrate runs the scheduled joblets and you can see the joblet fact values in the Job Log tab of the Devlopment Client.

The available joblet facts and their descriptions are listed in the following table.

Table 4-5 Joblet Facts

Fact Name	Description
joblet.autoterminate	Whether the joblet ends when all events for the joblet ends.
joblet.errors	The list of error dictionaries encapsulating the error history for this joblet. Dictionary keys: ts: timestamp in milliseconds node: the node name where execution failed error: the error message
joblet.history	The list of resource IDs where the joblet has run.
joblet.id	The unique identifier for this joblet.
joblet.instancename	A human readable name for this joblet instance.
joblet.memo	An (optional) memo field for this joblet that can be displayed in the management console.
joblet.number	The joblet number.
joblet.preemptible	Indicates whether this joblet is willing or able to be preempted.
joblet.retrynumber	The number of retries for this joblet (0 on first attempt).
joblet.state	The numeric state of this joblet instance.
joblet.state.string	String representation of the current state of this joblet instance.
joblet.timeout	The time after which this joblet will be cancelled/retried. (seconds, defaults to job.joblet.timeout).

4.1.4 Resource Object Facts and Fact Junctions

This section includes the following information:

Resource Object Facts

The Resource object (a physical or virtual machine) has an associated set of facts and constraints that define its properties. The PlateSpin Orchestrate Server assigns default values to each of the component facts, although they can be changed at any time by the administrator, unless they are read-only. Facts with mode r/o have read-only values, which can be viewed but changes cannot be made.

The following table lists the default facts created by the PlateSpin Orchestrate Server for the Resource object.

NOTE:Facts with mode dynamic are dyamic read/write facts, which means you can dynamically change the values for that fact.

Facts with mode r/o have read-only values, which means they can be viewed but changes cannot be made.

Facts with mode del are deleteable, which means they can be deleted at any time.

Table 4-6 Resource Facts

Fact Name	Fact Type	Mode	Description
resource.agent.clustered	Boolean		Whether the agent is clustered (converts duplicate logins to failover logins)
resource.agent.config.datagrid.cache	Boolean		Whether the agent caches datagrid files.
resource.agent.config.datagrid.cache.cleanupinterval	Integer		Wait time (measured in minutes) between cleanup sweeps of the datagrid cache.
resource.agent.config.datagrid.cache.lifetime	Integer		How long inactive files should remain in the agent's datagrid cache (in minutes). 0 turns off the cache.
resource.agent.config.exec.asagentuseronly	Boolean		Whether the agent always runs executables only as the agent user. This overrides any Job fact settings ('job.joblet.runtype').
resource.agent.config.exec.daemon.timeout	Integer		How long for the enhanced exec daemon to remain running (in seconds). 0 means remain running.
resource.agent.config.exec.enhancedused	Boolean		Whether the agent uses the enhanced exec or not.
resource.agent.config.gmond.port	Integer		Setting for gmond port (8649 is the default). 0 or less means values will not be read.
resource.agent.config.joblet.cleanup	Boolean		Whether the agent cleans up temporary directories created for each joblet. Can be turned off for debugging purposes and then “catches up” when re-enabled.
resource.agent.config.logdebug	Boolean		Turns on agent debugging (additive to log level)
resource.agent.config.loglevel	String		Controls the verbosity of agent logging (quiet, normal, verbose)
resource.agent.exec.installed	Boolean		Whether the agent is installed with the enhanced exec or not.
resource.agent.home	String		The home directory of the agent install.
resource.agent.jvm.home	String		The home directory of the JVM in use by the agent.
resource.agent.jvm.memory	Integer		The memory available to the agent (megabytes).
resource.agent.jvm.runtime	String		The Java JVM runtime in use by the agent.
resource.agent.jvm.vendor	String		The Java JVM vendor in use by the agent.
resource.agent.jvm.version	String		The Java JVM version in use by the agent.
resource.agent.version	String	dynamic, r/o	The agent version and build number <major>.<minor>.<point>_<build>
resource.auth.provider	String	dynamic, r/o	The authentication provider to which the node authenticates
resource.becameidle	Date	dynamic, r/o	The date/time the resource became idle or '-1' if not idle
resource.billfor	String		Whether to bill on wall time or grid time (walltime, gcycles)
resource.billingrate	Real		The billing rate for this resources in $/hr
resource.cpu.architecture	String	del	The CPU architecture e.g. x86, x86_64, sparc (requires cpuInfo system job).
resource.cpu.hvm	Boolean	del	True if the CPU has hardware virtualization support.
resource.cpu.mhz	Integer	del	The speed (measured in MHz) of the processor (requires cpuInfo system job)
resource.cpu.model	String	del	The CPU model number (requires cpuInfo system job)
resource.cpu.number	Integer		The number of available CPU cores available for processing. This counts each core in a multicore package as its own core, so a Core 2 duo physical CPU displays as two CPUs.
resource.cpu.vendor	String	del	The CPU vendor (requires cpuInfo system job).
resource.cpuload	Integer	dynamic, r/o	The percent CPU load on the resource.
resource.enabled	Boolean		True if the resource is enabled (allowed to log in and accept work).
resource.groups	String[]	r/o	The groups this node is a member of.
resource.hardware.model	String		The vendor-specific hardware model (for example, Dell PowerEdge 1850).
resource.hardware.vendor	String		The name of the hardware vendor (for example, Dell, IBM, or similar).
resource.health	Boolean		The health of this resource. True indicates good health.
resource.history.cost.total	Real	dynamic, r/o	The cost (measured in matrix dollars ($)) of all work performed on this resource.
resource.history.gcycles.total	Integer	dynamic, r/o	The total grid time (gcycles) of all work performed on this resource.
resource.history.jobletcount	Integer	dynamic, r/o	The total number of joblets ever run on this resource.
resource.history.jobletcount.cancelled	Integer	dyanmic, r/o	The total number of joblets that were canceled.
resource.history.jobletcount.completed	Integer	dynamic, r/o	The total number of joblets that completed successfully.
resource.history.jobletcount.failed	Integer	dynamic, r/o	The total number of joblets that failed.
resource.history.time.total	Integer	dynamic, r/o	The total wall time (measured in seconds) of all work performed on this resource.
resource.hostname	String	del	The resource’s hostname
resource.hostname.full	String	del	The fully qualified hostname.
resource.id	String	r/o	The node’s login name
resource.installed.apps	String[]	del	The installed applications
resource.ip	String	del	The resources IP address
resource.joblets.active	Integer	dynamic, r/o	The number of joblets currently active on this resource
resource.joblets.maxslots	Integer	dynamic, r/o	The absolute maximum number of work slots availabe to regular and privileged joblets.
resource.joblets.slots	Integer		The number of regular joblets that this resource runs at one time.
resource.joblets.systemslots	Integer		The number of extra slots that will be made available to privileged “system” joblets.
resource.loadaverage	Real	dynamic, r/o	The load average on the resource (from 'uptime' or equivalent).
resource.memory.physical.available	Integer	del	The amount (measured in Mb) of free physical memory available on the resource.
resource.memory.physical.total	Integer	del	The total amount (measured in Mb) of physical memory on the resource.
resource.memory.swap.available	Integer	del	The amount (measured in Mb) of free swap space.
resource.memory.swap.total	Integer	del	The total amount (measured in Mb) of external VM swap space configured on the host. Wwap space allows the hypervisor or OS to swap out infrequently used memory pages to disk or other storages to make it appear that virtual memory is larger than physical memory.
resource.memory.virtual.available	Integer	del	The amount of available (free) virtual memory (measured in Mb) on the system. This might be more than the amount of physical memor if the host hypervisor or Operating system supports paging of VM to disk or other swap storage.
resource.memory.virtual.total	Integer	del	The total amount (measured in Mb) of virtual memory on the resources.
resource.network.agent.address			The agent side IP address for the current connection
resource.network.agent.port			The agent side TCP port number for the current connection
resource.network.config.server.address			The IP address used by the agent to connect to the server
resource.network.config.server.hostname			The host name used by the agent to connect to the server
resource.network.config.server.port			The TCP port number used by the agent to connect to the server
resource.network.server.address			The server side IP address for the current connection
resource.network.server.port			The server side TCP port number for the current connection
resource.network.throughput			The measured average network connection throughput in Mbits/sec to neighouring resource (requires netInfo system job)
resource.network.throughput.max			The maximium network connection speed in Mbits/sec (requires netInfo system job)
resource.online	Boolean	dynamic, r/o	True if the agent is online
resource.os.arch	String	del	The operating system architecture e.g. x86, amd64, i386, sparc
resource.os.family	String		The family of operating system (windows, linux, solaris, unix, aix, mac
resource.os.file.separator	String	del	The resource operating system file separator
resource.os.name	String		The name of the resource operating system
resource.os.type	String		Unique string identifier for each OS release (e.g. 'sles11')
resource.os.vendor	String		The operating system vendor (SuSE for SLES/SLED)
resource.os.vendor.string	String	del	The operating system full identification string (requires osInfo system job)
resource.os.vendor.version	String	del	The vendor defined version number, for example, 10 for SUSE v10.
resource.os.version	String	del	The operating system version numberc
resource.os.version.string	String	del	The operating system vendor full identification string (requires osInfo system job)
resource.password	string	dynamic	The agents's login password
resource.powerfactor	Real	dynamic, r/o	The normalized power index of this machine relative to a 2.0Ghz, Intel Pentium 4
resource.provision.automatic	Boolean	dynamic, r/o	Signifies that this resource was cloned/provisioned automatically and thus will be shutdown/destroyed automatically as well
resource.provision.currentaction	String	dynamic, r/o	The current management action in progress on this provisionable resource
resource.provision.jobid	String	dynamic, r/o	The current or last job id that performed a provisioning action on this resource. Useful for viewing job log.
resource.provision.resync	Boolean	dynamic	Specifies that the provisioned resource's state needs to be resynced with the underlying provisioning technology and the next opportunity
resource.provision.state	String	dynamic, r/o	The current state of this provisioned instance ('down', 'suspended', 'up', 'paused') or 'unknown' if an admin action is currently being performed.
resource.provision.status	String	dynamic, r/o	The current descriptive status of the provisioned resource
resource.provision.template	String	dynamic, r/o	The id of the template resource that this instance was created from (if applicable)
resource.provision.time.hostwait	Integer	dynamic, r/o	The time (seconds) this resource has been waiting / waited for a suitable host
resource.provision.time.request	Date	dynamic, r/o	The time when the last provision (or other administrative action) request was made
resource.provision.time.shutdown	Date	dynamic, r/o	The time when the resource was last shutdown
resource.provision.time.start	Date	dynamic, r/o	The time when the resource was last successfully provisionedc
resource.provision.vmhost	String	dynamic	The id of the host currently housing this provisioned resource
resource.provisionable	Boolean	dynamic, r/o	True if the resources is a provisionable type
resource.provisioner.autoprep.DNSServers			List of DNS servers for name lookup. This is only for cloning/personalize actions.
resource.provisioner.autoprep.DNSSuffixes			List of suffixes to append to a name for lookup. This is only for cloning/personalize actions.
resource.provisioner.autoprep.Gateways			List of internet gateways available to this VM. This is only for cloning/personalize actions.
resource.provisioner.autoprep.linuxglobal.ComputerName			Host name of new VM. An asterisk (*) means use the new VM's ID.
resource.provisioner.autoprep.linuxglobal.Domain			The name of the domain where the new new VM belongs.
resource.provisioner.autoprep.options.changeSID			The Windows Security ID. If true, sysprep generates a new Security ID.
resource.provisioner.autoprep.options.deleteAccounts			If true, removes all accounts from the destination VM. If false, existing accounts from the source VM are retained.
resource.provisioner.autoprep.sysprep.GuiRunOnce.Command			List of commands that r un the first time a user logs on after the new VM is created. Commands are sched uled using the HKEY_LOCAL_MACHINE\Software\Microsoft\Windows\CurrentVersion\RunOnce registry key.
resource.provisioner.autoprep.sysprep.GuiUnattended.AdminPassword.plainText			True if the AdminPassword is plain text.
resource.provisioner.autoprep.sysprep.GuiUnattended.AdminPassword.value			The AdminPassword.
resource.provisioner.autoprep.sysprep.GuiUnattended.AutoLogon			If true, the VM auto logs into the Administrator account using AdminPassword. If false, login is prompted..
resource.provisioner.autoprep.sysprep.GuiUnattended.AutoLogonCount			The limit count for the VM to auto log in with the Administrator account. AutoLogon must be True.
resource.provisioner.autoprep.sysprep.GuiUnattended.TimeZone			The time zone of the new VM. See provisioning reference for values, for example: 04 indicates PST, 10 indicates MST, 20 indicates CST, and 35 indicates EST.
resource.provisioner.autoprep.sysprep.Identification.DomainAdmin			Windows domain administrator name.
resource.provisioner.autoprep.sysprep.Identification.DomainAdminPassword.plainText			True if DomainAdminPassword is in plain text.
resource.provisioner.autoprep.sysprep.Identification.DomainAdminPassword.value			Windows domain administrator account password.
resource.provisioner.autoprep.sysprep.Identification.JoinDomain			Windows domain n ame. If joining a workgroup, then use JoinWorkgroup. For joining a domain, Domai nAdmin and DomainAdminPassword must be defined.
resource.provisioner.autoprep.sysprep.Identification.JoinWorkgroup			Windows workgroup name. If joining a domain, use JoinDomain.
resource.provisioner.autoprep.sysprep.LicenseFilePrintData.AutoMode			Value is either PerServer or PerSeat. If PerServer, AutoUsers must be set.
resource.provisioner.autoprep.sysprep.LicenseFilePrintData.AutoUsers			The number of client licenses. Used only if AutoMode is PerServer.
resource.provisioner.autoprep.sysprep.UserData.ComputerName			The VM's new host na me. An asterisk (*) means to generate the name based on source VM name.
resource.provisioner.autoprep.sysprep.UserData.FullName			The user's full name.
resource.provisioner.autoprep.sysprep.UserData.OrgName			The organization name.
resource.provisioner.autoprep.sysprep.UserData.ProductID			The Windows product key.
resource.provisioner.count	Integer	dynamic, r/o	The total count of operational instances and provisions in progress
resource.provisioner.debug	Boolean		Controls the debug log level in the provisioner
resource.provisioner.host.maxwait	Integer		The maximum time to wait for a suitable host before timing out (in seconds, '<0' to wait indefinitely
resource.provisioner.host.preferredwait	Integer		The time after which some vmhost constraints will be lifted to increase the available pool by, for example, considering moving the disk image (in seconds, '<0' to wait indefinitely
resource.provisioner.instancecount	Integer	dynamic, r/o	The total count of cloned instances of the template
resource.provisioner.instances	String[]	dynamic, r/o	The list of id's of the instances of this template resource (if applicable)
resource.provisioner.job	String		The name of the provisioning job that manages the lifecycle of this resource
resource.provisioner.maxinstances	Integer		The maximum allowed number of instances of this provisionable resource (applicable only to templates)c
resource.provisioner.recommendedhost	String	dynamic	The host on which the image for this resource is associated. E.g. was suspended or is the preferred host for quick start up. Combined with the 'resource.provisioner.host.preferredwait' can lock a VM to one host.
resource.remotedesktop	Boolean		Whether the resource has a remote desktop (or VNC) access enabled.
resource.repositories			The list of VM repositories visible by this resource (aggregated from VM host containers)
resource.runningjobs	String[]	dynamic, r/o	The list of jobs currently running on this resource
resource.sessions	Integer	dynamic, r/o	The number of active sessions (resource instances with active agent). Will be 0 or 1 unless a resource template
resource.shuttingdown	Boolean	dynamic, r/o	True if the node is attempting to shutdown/pause/suspend and does not want new workc
resource.type	String	dynamic	The type of resource (whether or not the resource is a VM and if so what type of image (physical, vm, vmTemplate)
resource.vm.basepath	String		The filesystem location of the VM file(s) either absolute or relative to the 'repository.location'.
resource.vm.cpu.architecture	String		The required cpu architecture e.g. x86, x86_64, sparc, ppcc
resource.vm.cpu.hvm	Boolean		True if the VM requires host HVM support (for para virtualization otherwise only full virtualization will be possible).
resource.vm.cpu.weight	Real		The CPU weight for this VM. A value of 1.0 represents normal weighting; setting another VM to a weight of 2.0 would mean it would get twice as much cpu as this VM.
resource.vm.files	Dictionary		Files that make up this VM. The dictionary key (String) represents the file type (adapter specific), the value is the file path either absolute or relative to repository.location of the resource.vm.repository.
resource.vm.maxinstancespervmhost	Integer		The maximum allowed number of instances of this VM image per vmhost
resource.vm.memory	Integer		The configured virtual memory requirement of this VM image (megabytes)
resource.vm.networks	String[]	dynamic, r/o	The networks associated with the vm network interfaces.
resource.vm.preventmove	Boolean		Administrator set attribute that will prevent moving VM disks and thus consideration potential other hosts.
resource.vm.repositories	String[]	dynamic, r/o	The repositories where the vm disk images are stored.
resource.vm.repositories.moveable	String[]	dynamic, r/o	The repositories where the moveable vm disk images are stored.
resource.vm.repositories.unmoveable	String[]	dynamic, r/o	The repositories where the unmoveable vm disk images are stored.c
resource.vm.repository	String	dynamic	The default repository where this vm disk images and other config files are/will be stored.
resource.vm.spec			Dictionary containing the specification for building this VM. Interpreted by the Provisioning Adapter.
resource.vm.underconstruction	Boolean		True if the VM is currently under construction
resource.vm.uuid	String		The UUID of a virtual machine (vendor/adapter specific).
resource.vm.vcpu.number	Integer		The number of virtual CPUs for this VM.
resource.vm.vdisks	String[]	dynamic, r/o	The list of virtual disks that make up this VM.c
resource.vm.vdisksize	Integer	dynamic, r/o	The total size of all the moveable virtual disks for this VM image (megabytes)
resource.vm.vendor	String		The vendor of a virtual machine
resource.vm.version	Integer		The version number for this VM.
resource.vm.vmhost.rankby	String[]		The ranking specification used to select suitable vm hosts. Element syntax is '<fact>/<order>' where order is either 'ascending' or 'descending'
resource.vm.vnics	String[]	dynamic, r/o	The list of virtual nics that make up this VM. (aggregated from the VNIC containers)
resource.vmhosts	String[]	dynamic, r/o	The list of VM host containers supported by this resource (aggregated from VM host containers)
resource.vnc.ip	String		The port number for a vnc session running on the resource.
resource.vnc.port	Integer		The port number for a vnc session running on the resource.

Resource Object Fact Junctions

The following diagram illustrates the relationship between the Resource Grid object facts and other Grid objects. It also shows the relationship between other discrete Grid object facts and the Resource Grid object itself.

Figure 4-4 Resource Fact Junctions

VM Host Object Facts

The VM Host Resource object has an associated set of facts and constraints that define its properties. The PlateSpin Orchestrate Server assigns default values to each of the component facts, although they can be changed at any time by the administrator, unless they are read-only. Facts with mode r/o have read-only values, which can be viewed but changes cannot be made.

The following table lists the default facts created by the PlateSpin Orchestrate Server for the VM Host Grid object.

NOTE:Facts with mode dynamic are dyamic read/write facts, which means you can dynamically change the values for that fact.

Facts with mode r/o have read-only values, which means they can be viewed but changes cannot be made.

Facts with mode del are deleteable, which means they can be deleted at any time.

Table 4-7 VM Host Facts

Fact Name	Fact Type	Mode	Description
vmhost.accountinggroup	String		The default VM host group which will be adjusted for VM stats
vmhost.controllingjob	String	dynamic	The ID of a running job that manages VM operations on this host. Setting this informs the VM Manager to prevent other jobs from initiating provisioning actions. This fact is cleared when the managing job ends.
vmhost.enabled	Boolean		True if the VM host is enabled (new VM instances can be provisioned)
vmhost.groups	String[]	r/o	The groups this VM host is a member of
vmhost.health	Boolean		The health of this VM host. True indicates good health
vmhost.hvm	Boolean		True if the hypervisor supports the hardware virtualization.
vmhost.id	String	r/o	The VM host's unique name
vmhost.loadindex.slots	Real	dynamic, r/o	The loading index (the ratio of active hosted VMs to the specified max)
vmhost.loadindex.virtualmemory	Real	dynamic, r/o	The loading index (ratio of consumed memory to the specifed max)
vmhost.location	String		The VM host's physical location
vmhost.maxvmslots	Integer		The maximum number of hosted VM instances
vmhost.memory.available	Integer	dynamic, r/o	The amount of memory available to new virtual machines
vmhost.memory.max	Integer		The maximum amount of memory available to virtual machines (in megabytes)
vmhost.migration	Boolean		True if the VM host can support VM migration (also subject to provision adapter cababilities
vmhost.networks	String[]	dynamic, r/o	List of Networks visible to this VM host
vmhost.online	Boolean	dynamic, r/o	True if the agent on the physical host is online
vmhost.provisioner.job	String		The name of the provisioning adapter job that manages VM discovery on this host
vmhost.provisioner.password	String		The password required for provisioning on the VM host (Used by provisioning adapter)
vmhost.provisioner.username	String		The username required for provisioning on the VM host (Used by provisioning adapter)
vmhost.repositories	String[]		This list of repositories (VM disk stores) visible to this VM host
vmhost.resource	String	r/o	The name of the resource that houses this vm host container
vmhost.resync	Boolean	dynamic	Specifies that the host should be probed to resync all VMs managed on this host at the next opportunity
vmhost.shuttingdown	Boolean	dynamic, r/o	True if the VM host is attempting to shutdown and does not want to be provisioned
vmhost.vbridges	String[]	dynamic, r/o	List of Vbridge objects visible to this VM host
vmhost.vm.available.groups	String[]		The list of resource groups containing VMs that are allowed to run on this host
vmhost.vm.count	Integer	dynamic, r/o	The current number of active VM instances
vmhost.vm.instanceids	String[]	dynamic, r/o	The list of active VM instances
vmhost.vm.placement.score	Integer	dynamic, r/o	The 'cost' (score) of moving the disks for a VM to this vmhost. This is only visible and valid during a 'vmhost' constraint match (-1 = not possible, 0 = affinity, >0 = expense)
vmhost.vm.templatecounts	Dictionary	dynamic, r/o	A dictionary of running instance counts for each running VM templatec

VM Host Resource Object Fact Junctions

The following diagram illustrates the relationship between the Vm Host Resource Grid object facts and other Grid objects. It also shows the relationship between other discrete Grid object facts and the VM Host Resource Grid object itself.

Figure 4-5 VM Host Fact Junctions

Resource Group Facts

Table 4-8 Resource Group Facts

Fact Name	Fact Type	Mode	Description
group.id	String	r/o	The group's name
group.loadaverage	Real	dynamic, r/o	The aggregated load average of all the resource in this group (the membership may be dynamic).
group.loadpercent	Integer	dynamic, r/o	The percentage of online resources in this group that are currently busy.
group.resources.busy	Integer	dynamic, r/o	The total number of available resources that are currently busy performing work in this group.
group.resources.idle	Integer	dynamic, r/o	The total number of available resources that are ready for work in this group.
group.resources.online	Integer	dynamic, r/o	The total number of online resources (busy and idle) in this group.

Understanding Resource Metrics Facts

When you install the PlateSpin Orchestrate Agent on a machine, you can optionally install the Orchestrate Monitoring Agent along with it. The Monitoring Agent uses the Ganglia Monitoring Daemon (gmond) to automatically collect metrics and send them to the Orchestrate Monitoring Server. You can use the following command to check the status of an installed Monitoring Agent:

# /etc/init.d/novell-gmond status

If the daemon is operating normally, it returns a running status.

When you install and configure the Orchestrate Monitoring Agent (gmond), it is set by default to report metrics on port 8649, which is also detected by the Orchestrate Agent. When communication is established, the gmond daemon sends out metrics data, which are then gathered by the Orchestrate Agent and set as fact values associated with the resource where the daemon is running. You can verify the connection with the following command:

telnet localhost 8649

If gmond is running and communicating properly, an XML document listing the reported metrics is displayed.

This section includes information about the resource metrics facts that are gathered, the unit conversion performed by Orchestrate on the Ganglia-provided values, and how you can use these facts to help you manage the resources in the grid.

Resource Metrics Facts

The Orchestrate Agent uses the metrics collected by gmond to create fact values for a given resource. These facts are therefore externally generated and are not among the default facts reported by the PlateSpin Orchestrate Agent. The agent updates these externally generated fact values every 30 seconds. All of these fact values have a resource.metrics. prefix.

For example, gmond collects a metrics value called load_one. The Orchestrate Agent sets this value as the resource.metrics.load_one fact.

To see a list of these facts in the Orchestrate Development Client,

In the Explorer panel, select a resource.
In the Workspace panel, select Constraints/Facts.

The names of the resource metrics facts are displayed in bold font (in the Development Client interface) because they were added as new facts to the default fact list. The following sample is a list of the default Ganglia-generated metrics facts with data type and an example value:

<fact name="resource.metrics.boottime" value="1239122234.0000" type="Real" />
<fact name="resource.metrics.bytes_in" value="208.8800" type="Real" />
<fact name="resource.metrics.bytes_out" value="68.9700" type="Real" />
<fact name="resource.metrics.cpu_aidle" value="76.9000" type="Real" />
<fact name="resource.metrics.cpu_idle" value="95.2000" type="Real" />
<fact name="resource.metrics.cpu_nice" value="0.0000" type="Real" />
<fact name="resource.metrics.cpu_num" value="2" type="Integer" />
<fact name="resource.metrics.cpu_speed" value="1596" type="Integer" />
<fact name="resource.metrics.cpu_system" value="0.3000" type="Real" />
<fact name="resource.metrics.cpu_user" value="4.0000" type="Real" />
<fact name="resource.metrics.cpu_wio" value="0.4000" type="Real" />
<fact name="resource.metrics.disk_free" value="27090" type="Integer" />
<fact name="resource.metrics.disk_total" value="48213" type="Integer" />
<fact name="resource.metrics.gexec" value="OFF" type="String" />
<fact name="resource.metrics.load_fifteen" value="0.2000" type="Real" />
<fact name="resource.metrics.load_five" value="0.4100" type="Real" />
<fact name="resource.metrics.load_one" value="1.1900" type="Real" />
<fact name="resource.metrics.machine_type" value="x86" type="String" />
<fact name="resource.metrics.mem_buffers" value="299" type="Integer" />
<fact name="resource.metrics.mem_cached" value="761" type="Integer" />
<fact name="resource.metrics.mem_free" value="65" type="Integer" />
<fact name="resource.metrics.mem_shared" value="0" type="Integer" />
<fact name="resource.metrics.mem_total" value="1989" type="Integer" />
<fact name="resource.metrics.os_name" value="Linux" type="String" />
<fact name="resource.metrics.os_release" value="2.6.27.19-5-pae" type="String" />
<fact name="resource.metrics.part_max_used" value="70.8000" type="Real" />
<fact name="resource.metrics.part_max_used.units" value="" type="String" />
<fact name="resource.metrics.pkts_in" value="0.4500" type="Real" />
<fact name="resource.metrics.pkts_out" value="0.6300" type="Real" />
<fact name="resource.metrics.proc_run" value="0" type="Integer" />
<fact name="resource.metrics.proc_total" value="411" type="Integer" />
<fact name="resource.metrics.swap_free" value="2039" type="Integer" />
<fact name="resource.metrics.swap_total" value="2047" type="Integer" />
<fact name="resource.metrics.vm_type" value="" type="String" />
<fact name="resource.metrics.vm_type.units" value="" type="String" />

These are the metrics reported in Orchestrate systems that use the gmond.conf created when Orchestrate Monitoring Agent was installed and configured. The open source gmond might include other metrics that can be monitored. You can modify the default Orchestrate gmond configuration file to report these metrics after it is initially installed and configured. For information about modifying the file, see the gmond.conf man page.

By using the XML constraint language, you can utilize these resource metrics facts as you would use any other fact in PlateSpin Orchestrate. For example, you could create an Event that sets thresholds for the amount of incoming network packets. When that threshold is exceeded, a Scheduled Job could be triggered or a notification e-mail sent. For more information, see Section 3.12, Using an Event Notification in a Job.

Interpreting the Units of Metrics Fact Values

The Orchestrate Agent converts most of the Ganglia metrics values to PlateSpin Orchestrate standard units. This allows fact values to be compared in constraints without the need to perform conversions explicitly. In cases where units are not known or cannot be converted, a separate fact with a .units suffix is included. For example:

<fact name="resource.metrics.bytes_in" value="bytes/sec" type="String" />

The following table lists the resource.metrics facts and the units of measure used for each fact value:

Table 4-9 Resource Metrics Facts

Resource Metric Fact With Reported Value	Orchestrate Measurement Unit of the Value
boottime	32-bit seconds timestamp
bytes_in	byte rate measured in bytes per second
bytes_out	byte rate measured in bytes per second
cpu_aidle	percentage
cpu_idle	percentage
cpu_nice	percentage
cpu_num	number of CPUs
cpu_speed	megahertz as an integer
cpu_system	percentage
cpu_user	percentage
cpu_wio	percentage
disk_total	total in binary megabytes
disk_free	total in binary megabytes
gexec	simple string
load_fifteen	real number
load_five	real number
load_one	real number
machine_type	simple string
mem_buffers	memory in megabytes (integer)
mem_cached	memory in megabytes (integer)
mem_free	memory in megabytes (integer)
mem_shared	memory in megabytes (integer)
mem_total	memory in megabytes (integer)
os_name	simple string
os_release	simple string
pkts_in	packet rate in packets per second
pkts_out	packet rate in packets per second
proc_run	processes run (integer)
proc_total	total processes (integer)
swap_free	memory in megabytes (integer)
swap_total	memory in megabytes (integer)

4.1.5 Virtual Disk Object Facts and Fact Junctions

This section includes the following information:

Virtual Disk Object Facts

The vDisk object has an associated set of facts and constraints that define its properties. The PlateSpin Orchestrate Server assigns default values to each of the component facts, although they can be changed at any time by the administrator, unless they are read-only. Facts with mode r/o have read-only values, which can be viewed but changes cannot be made.

The following table lists the default facts created by the PlateSpin Orchestrate Server for the vDisk Grid object.

NOTE:Facts with mode dynamic are dyamic read/write facts, which means you can dynamically change the values for that fact.

Facts with mode r/o have read-only values, which means they can be viewed but changes cannot be made.

Facts with mode del are deletable, which means they can be deleted at any time.

Table 4-10 vDisk Facts

Fact Name	Fact Type	Mode	Description
vdisk.description	String		Description of vDisk
vdisk.groups	String[]	r/o	The groups this vDisk is a member of
vdisk.health	Boolean		The health of this vDisk. True indicates good health
vdisk.id	String	r/o	The vDisk’s unique ID.
vdisk.location	String		The repository dependent location definition
vdisk.moveable	Boolean		True if the vDisk is moveable. The vDisk cannot be deleted if this fact is set to false.
vdisk.repository	String		The name of the repository containing the vDisk image
vdisk.size	Integer		The size of this virtual disks (megabytes)
vdisk.type	String		The type of vDisk: - file (file backed disk) - block (block device)
vdisk.vm	String	r/o	The name of the VM that uses this vDisk

Virtual Disk Object Fact Junctions

The following diagram illustrates the relationship between the Virtual Disk object facts and other Grid objects. It also shows the relationship between other discrete Grid object facts and the Virtual Disk Grid object itself.

Figure 4-6 Virtual Disk Fact Junctions

4.1.6 Virtual NIC Object Facts and Fact Junctions

This section includes the following information:

Virtual NIC Object Facts

The VNIC object has an associated set of facts and constraints that define its properties. The PlateSpin Orchestrate Server assigns default values to each of the component facts, although they can be changed at any time by the administrator, unless they are read-only.

The following table lists the default facts created by the PlateSpin Orchestrate Server for the VNIC Grid object.

NOTE:Facts with mode dynamic are dyamic read/write facts, which means you can dynamically change the values for that fact.

Facts with mode r/o have read-only values, which means they can be viewed but changes cannot be made.

Facts with mode del are deleteable, which means they can be deleted at any time.

Table 4-11 VNIC Facts

Fact Name	Fact Type	Mode	Description
vnic.description	String		Description of vNIC
vnic.groups	String[]	r/o	The groups that this vNIC belongs to.
vnic.health	Boolean		The health of this vNIC. True indicates good health
vnic.id	String	r/o	The unique name of this VNIC.
vnic.mac	String		The MAC address assigned to this VNIC. A empty string implies auto-generate MAC address.
vnic.network	String		The network (vbridge group) on which this Vnic is provisioned or wishes to be provisioned.
vnic.provisioner.autoprep.DNSDomain	String		Windows only. Adapter's Domain.
vnic.provisioner.autoprep.DNSFromDHCP	Boolean		(Optional, SUSE VM only.) If true, then the SUSE VM is configured to retrieve its DNS server settings from DHCP.
vnic.provisioner.autoprep.DNSServers			Adapter's list of DNS servers for name look up.
vnic.provisioner.autoprep.DNSSuffixes			Adapter's suffix appended to name for lookup.
vnic.provisioner.autoprep.Gateways			List of Internet gateways available to the interface.
vnic.provisioner.autoprep.IPAddress	String	del	IP address for this adapter.
vnic.provisioner.autoprep.MACAddress	String	del	MAC address for the interface. Asterisk (*) or not set means to generate a new MAC.
vnic.provisioner.autoprep.UseDHCP	Boolean	del	If true, new VM retrieves its network settings from a DHCP server and any adapter settings are ignored. If false, then any req uired adapter settings must be defined.
vnic.provisioner.autoprep.netBIOS	String	del	NetBios options for VM. The values are: EnableNetBIOSViaDhcp EnableNetBIOS DisableNetBIOS
vnic.provisioner.autoprep.primaryWINS	String	del	Windows only. Adapter's Primary WINS server.
vnic.provisioner.autoprep.secondaryWINS	String	del	Windows only. Adapter's Secondary WINS server.
vnic.provisioner.autoprep.subnetMask	String	del	Subnet mask for this adapter.
vnic.vbridge	String	dynamic, r/o	The name of the Vbridge used by this vNIC
vnic.vm	String	r/o	The name of the VM that uses this vNIC

Virtual NIC Object Fact Junctions

The following diagram illustrates the relationship between the VNIC object facts and other Grid objects. It also shows the relationship between other discrete object facts and the VNIC object itself.

Figure 4-7 Virtual NIC Fact Junctions

4.1.7 Repository Object Facts and Fact Junctions

This section includes the following information:

Repository Object Facts

The Repository object has an associated set of facts and constraints that define its properties. The PlateSpin Orchestrate Server assigns default values to each of the component facts, although they can be changed at any time by the administrator, unless they are read-only.

The following table lists the default facts created by the PlateSpin Orchestrate Server for the Repository Grid object.

NOTE:Facts with mode dynamic are dyamic read/write facts, which means you can dynamically change the values for that fact.

Facts with mode r/o have read-only values, which means they can be viewed but changes cannot be made.

Facts with mode del are deleteable, which means they can be deleted at any time.

Table 4-12 Repository Facts

Fact Name	Fact Type	Mode	Description
repository.capacity	Integer		The maximum amount of storage space available to virtual machines (in megabytes). -1 means unlimited.
repository.description	String		Description of repository
repository.efficiency	Real		The efficiency coefficient used to calculate the cost of moving VM disk images to and from the repository. This value is multiplied by the disk image size in Mb to determine score (thus 0 means no cost -- very efficient).
repository.enabled	Boolean		True if the Repository is enabled (new VM instances can be provisioned)
repository.freespace	Integer	Dynamic r/o	The amount of storage space available to new virtual machines (in megabytes). -1 means unlimited.
repository.groups	String[]	r/o	The groups to which this repository belongs.
repository.health	Boolean		The health of this repository. True indicates good health
repository.id	String	r/o	The Repository’s unique name
repository.location	String		The Repository's logical root location, for example, / or c:/vm or nas:/vol1
repository.preferredpath	String		The relative path from repository.location to search and place VM files for movement and cloning
repository.provisioner.jobs	String[]		The names of the provisioning adapter jobs that can manage VM's on this repository
repository.san.type	String		The type of SAN (Adapter specific, iSCSI or Fibre Channel)
repository.san.vendor	String		The vendor of SAN (Adapter specific, iqn, npiv, emc). An empty string indicates bind/unbind is a noop.
repository.searchpath	String[]		The relative path from repository.location to search for VM configuration files (implicitly includes resource.preferredpath)
repository.type	String		The type of repository: local (for example, local disk) NAS (for example, NFS mount) SAN (a Storage area Network such as iSCSI or Fibre Channel) datagrid (an Orchestrate built-in, datagrid-backed store) virtual (an externally managed store such as VMware Virtual Center)
repository.usedspace	Integer	Dynamic r/o	The amount of storage space used for virtual machines
repository.vmhosts	String[]	Dynamic r/o	The amount of storage space used for virtual machines
repository.vmimages	String[]	Dynamic r/o	The list of VM images stored in this repository (aggregated from individual VM fact)

Repository Object Fact Junctions

The following diagram illustrates the relationship between the Repository object facts and other Grid objects. It also shows the relationship between other discrete Grid object facts and the Repository object itself.

Figure 4-8 Repository Fact Junctions

Repository Group Facts

Table 4-13 Repository Group Facts

Fact Name	Fact Type	Mode	Description
group.id	String	r/o	The name of the group.

4.1.8 Virtual Bridge Object Facts and Fact Junctions

This section includes the following information:

Virtual Bridge Object Facts

The following table lists the default facts created by the PlateSpin Orchestrate Server for the Vbridge Grid object.

NOTE:Facts with mode dynamic are dyamic read/write facts, which means you can dynamically change the values for that fact.

Facts with mode r/o have read-only values, which means they can be viewed but changes cannot be made.

Facts with mode del are deleteable, which means they can be deleted at any time.

Table 4-14 Vbridge Facts

Fact Name	Fact Type	Mode	Description
vbridge.description	String		Description of Vbridge
vbridge.enabled	Boolean		True if the vbridge is enabled
vbridge.groups	String[]	r/o	The groups this Vbridge is a member of
vbridge.health	Boolean		True if the vbridge is in a healthy state
vbridge.id	String	r/o	The unique identifier for the Vbridge.
vbridge.vmhost	String	r/o	The ID of the vmhost containing this vbridge
vbridge.vnics	String[]	dynamic, r/o	The virtual NICs attached to this vbridge

Virtual Bridge Object Fact Junctions

The following diagram illustrates the relationship between the Virtual Bridge (Vbridge) object facts and other Grid objects. It also shows the relationship between other discrete Grid object facts and the Vbridge object itself.

Figure 4-9 Virtual Bridge Fact Junctions

Network Group Facts

Table 4-15 Network Group Facts

Fact Name	Fact Type	Mode	Description
group.id	String	r/o	The group name.
group.provisioner.jobs	String[]	dynamic, r/o	Provision adapters with vBridge instances on this network.
group.provisioner.preferred	String[]		Provision adapters explicitly associated with this network.
group.vlanid	String		The name of the VLAN accessed by this network (Vbridge group).

4.1.9 User Object Facts and Fact Junctions

This section includes the following information:

User Object Facts

The User object has an associated set of facts and constraints that define its properties. The PlateSpin Orchestrate Server assigns default values to each of the component facts, although they can be changed at any time by the administrator, unless they are read-only.

The following table lists the default facts created by the PlateSpin Orchestrate Server for the User Grid object.

NOTE:Facts with mode dynamic are dyamic read/write facts, which means you can dynamically change the values for that fact.

Facts with mode r/o have read-only values, which means they can be viewed but changes cannot be made.

Facts with mode del are deleteable, which means they can be deleted at any time.

Table 4-16 User Facts

Fact Name	Fact Type	Mode	Description
user.account.balance	Real	dynamic	The amount of matrix dollars spent by this user since last reset ($). Useful for implementation of quotas
user.account.gcycles	Integer	dynamic	The amount of grid time (gcycles) spent by this user since last reset. Useful for implementation of quotas
user.account.maxspendrate	Real		This value is used by the resource scheduler to throttle the rate at which matrix computing cycles are comsumed by the user ($/hr, <=0 turns feature off)
user.account.spendrate	Real	dynamic, r/o	The computed moving average spending over the last hour of user activity ($/hr)
user.account.time	Integer	dynamic	The amount of wall time spent by this user since last reset. Useful for implementation of quotas
user.accountinggroup	String		The default user group which will be billed for work conducted by this user
user.auth.provider	String		The authentication provider to which the user authenticates
user.datagrid.maxhistory	Integer		The maximum number job instance directories that should be kept in the datagrid for this user
user.enabled	Boolean		True if the user is enabled (allowed to log in and run jobs)
user.env	Dictionary		The uploaded and default user environment
user.external.groups	String[]	dynamic, r/o	The external groups (e.g. LDAP) this user is a member ofc
user.groups	String	r/o	The groups this user is a member of
user.health	Boolean		The health of this user. True indicates good health
user.history.cost.total	Real	dynamic, r/o	The total amount of matrix dollars spent by this user on the matrix
user.history.gcycles.total	Integer	dynamic, r/o	The total amount of grid time (gcycles) spent by this user on the matrix
user.history.jobcount	Integer	dynamic, r/o	The total number of jobs a user has ever initiated on the matrix
user.history.time.total	Integer	dynamic, r/o	The total amount of wall time spent by this user on the matrix
user.id	String	r/o	The user's login name
user.jobcount	Integer	dynamic	A counter that records the number of jobs a user has initiated since last reset. Useful for implementation of quotas
user.jobs.active	Integer	dynamic, r/o	The number of top-level jobs a user has in an active state
user.jobs.queued	Integer	dynamic, r/o	The number of top-level jobs that are queued for this user
user.jobs.total	Integer	dynamic, r/o	The total number of top-level jobs a user currently has in the matrix
user.location.city	String		The city of location of the user
user.location.country	String		The country of location of the user
user.location.site	String		The site where the users work, for example, a building number.
user.location.state	String		The state of location of the user
user.name.email	String		The user's email address
user.name.first	String		The user's first name
user.name.last	String		The user's last name
user.online	Boolean	dynamic. r/o	Whether the user is currently logged into the matrix
user.password	String	dynamic	The user's login password
user.preemption.enabled	Boolean		Allows this user to preempt willing jobs of a priority less than the priority of the running job instance
user.preemption.priority.delta	Integer		Indicates the highest job priority band that this user is allowed to preempt resources from (acts as a delta from the current job instance priority). The maximum preemptible priority is always <= user.priority.max
user.priority.default	Integer		The numeric representation of the default priority at which this user's jobs will run (1=lowest, 9=highest)
user.priority.default.string	String	dynamic, r/o	The string representation of the default priority at which this user can run a job (matches user.priority.default)
user.priority.max	Integer		The numeric representation of the maximum priority that this user can run a job at (1=lowest, 9=highest)
user.priority.max.string	String	dynamic, r/o	The string representation of the maximum priority at which this user can run a job (matches user.priority.max)
user.privilegedjobgroups	String[]		Allows this user's to run jobs and thus joblets on resources that have reached their slot maximum or are provisioned resources that have been reserved for another user/job. This is primarily to allow discovery jobs to be 'squeezed' onto the resource
user.sessions	Integer	dynamic, r/o	The number of active sessions (connections) a user currently has with the matrix
user.stealing.enabled	Boolean		Allows this user to steal resources running jobs of a priority less than the priority of running job instance
user.stealing.priority.delta	Integer		Indicates the highest job priority band that this user is allowed to steal resources from (acts as a delta from the current job instance priority, must be < '0')

User Object Fact Junctions

The following diagram illustrates the relationship between the User object facts and other Grid objects. It also shows the relationship between other discrete Grid object facts and the User object itself.

Figure 4-10 User Fact Junctions

User Group Facts

Table 4-17 User Group Facts

Fact Name	Type	Mode	Description
group.account.balance	Real	dynamic	he aggregated cost of work done by members of this group since last reset ($).
group.account.gcycles	Integer	dynamic	The aggregated amount of grid time (gcycles) spent by members of this group since last reset.
group.account.time	Integer	dynamic	The aggregated amount of wall time spent by members of this group since last reset
group.id	String	r/o	The name of the group.
group.jobcount	Integer	dynamic	The aggregated number of jobs run by members of this group since last reset.

4.1.10 Matrix Object Facts

The Matrix object has an associated set of facts and constraints that define its properties. The PlateSpin Orchestrate Server assigns default values to each of the component facts, although they can be changed at any time by the administrator, unless they are read-only.

The following table lists the default facts created by the PlateSpin Orchestrate Server for the Matrix Grid object.

NOTE:Facts with mode dynamic are dyamic read/write facts, which means you can dynamically change the values for that fact.

Facts with mode r/o have read-only values, which means they can be viewed but changes cannot be made.

Facts with mode del are deleteable, which means they can be deleted at any time.

Table 4-18 Matrix Facts

Fact Name	Fact Type	Mode	Description
matrix.activejobs	Integer	dynamic, r/o	The number of active jobs (including child jobs) for this Orchestrate Server.
matrix.clustered	Boolean	dynamic, r/o	Server is configured in a high availabilitly cluster.
matrix.datagrid.root	String	dynamic, r/o	The root directory of the datagrid.
matrix.date	Date	dynamic, r/o	The date of this server.
matrix.date.dayofmonth	Integer	dynamic, r/o	The numerical representation of the current day of the month.
matrix.date.dayofweek	String	dynamic, r/o	The string representation of the current week day.
matrix.date.dayofweek.number	Integer	dynamic, r/o	The numerical representation of the current week day.
matrix.date.month	String	dynamic, r/o	The string representation of the current month.
matrix.date.month.number	Integer	dynamic, r/o	The numerical representation of the current month.
matrix.date.year	Integer	dynamic, r/o	The current year.
matrix.groups.job	String[]	dynamic, r/o	List of Group Names of type Job.
matrix.groups.repository	String[]	dynamic, r/o	List of Group Names of type Repository.
matrix.groups.resource	String[]	dynamic, r/o	List of Group Names of type Resource.
matrix.groups.user	String[]	dynamic, r/o	List of Group Names of type User.
matrix.groups.vbridge	String[]	dynamic, r/o	List of Group Names of type Vbridge.
matrix.hostname	String	dynamic, r/o	The server hostname.
matrix.hostname.full	String	dynamic, r/o	The fully qualified server hostname.
matrix.id	String	r/o	The name of the matrix
matrix.loadaverage	Real		Indicates the average load of the grid server. A value less than 1.0 is unloaded.
matrix.maxactive	Integer		The hard limit for the maximum number of active jobs (including child jobs) allowed on this server at one time. Jobs exceeding this value will be queued.
matrix.maxqueued	Integer		The maximum number of queued jobs that will be accepted by this matrix server
matrix.maxtopjobs	Integer		The maximum number of active jobs after which new top-level jobs will be queued (child jobs may be be able to start). Should be less than matrix.maxactive.
matrix.physical.hostname	String	dynamic, r/o	The physical server hostname
matrix.physical.hostname.full	String	dynamic, r/o	The fully qualified physical server hostname.
matrix.queuedjobs	Integer	dynamic, r/o	The number of queued jobs for this matrix server.
matrix.time	Time	dynamic, r/o	The time of this server.
matrix.timeout.jobfinishing	Integer		The approximate number of seconds to wait for a job to complete its finishing state. That is, to run any failed/canceled/completed JDL event handlers.
matrix.timezone	String	dynamic, r/o	The string description of the time zone in which this matrix server resides.
matrix.uptime	String	dynamic, r/o	The time since the last server restart.
matrix.version	String	dynamic, r/o	The version of this server in form <major>.<minor>.<point>_<buildNumber>
