1.10 Protecting an Identity Server Through Access Gateway

For security reasons, you might want to set up your Access Manager configuration so that Identity Server is a resource protected by an Access Gateway. This configuration reduces the number of ports you need to open between the outside world and your network. Figure 1-12 illustrates such a configuration.

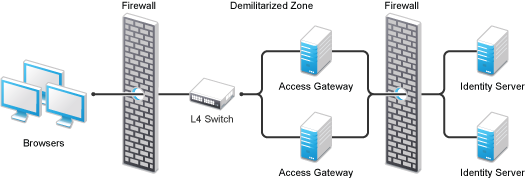

Figure 1-12 Identity Servers behind an Access Gateway

With this configuration, you need an L4 switch to cluster Access Gateways. However, you do not need an L4 switch to cluster Identity Servers. When Identity Server is configured to be a protected resource of Access Gateway, Access Gateway uses its web server communication channel. Each Identity Server in the cluster must be added to the web server list, and Access Gateway uses its web server load balancing and failover policies for the clustered Identity Servers.

Limitations: The following features are not supported with this configuration:

  • Identity Server cannot respond to Identity Provider introductions.

  • Federation to an external service provider that requires the artifact profile with SOAP/Mutual SSL binding cannot be supported with this configuration.

  • The proxy service that is protecting Identity Server cannot be configured to use mutual SSL. For example with this configuration, X.509 authentication cannot be used for any proxy service. To perform X.509 authentication (which is a form of mutual SSL), a user's browser must have direct access to Identity Server.

  • The proxy service that is protecting Identity Server cannot be configured to use NMAS.

For configuration details, see Configuring a Protected Identity Server Through Access Gateways in the NetIQ Access Manager 4.4 Administration Guide.
