1.8 Setting Up Firewalls

It is recommended to use Access Manager with firewalls. Figure 1-10 illustrates a simple firewall setup for a basic Access Manager configuration of an Identity Server, an Access Gateway, and an Administration Console. This is one of many possible configurations.

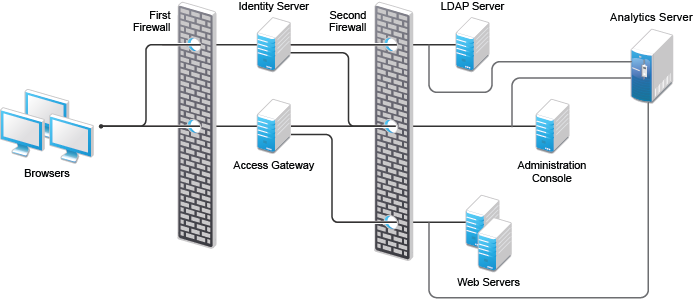

Figure 1-10 Access Manager Components between Firewalls

The first firewall separates Access Manager from the Internet, allowing browsers to access the resources through specific ports.The second firewall separates Access Manager components from web servers they are protecting and from Administration Console.

This section describes the following topics:

1.8.1 Required Ports

Table 1-2 When a Firewall Separates an Access Manager Component from a Global Service

Component

Port

Description

NTP Server

UDP 123

Access Manager components must have time synchronized else the authentication fails. It is recommended to configure all components to use an network time protocol (NTP) server. Depending upon where your NTP server is located, you might need to open UDP 123, so that Access Manager components can use the NTP server.

DNS Servers

UDP 53

Access Manager components must be able to resolve DNS names. Depending upon where your DNS servers are located, you might need to open UDP 53, so that Access Manager components can resolve DNS names.

Remote Linux Administration Workstation

TCP 22

If you want to use SSH for remote administration of Access Manager components, open TCP 22 to allow.

Remote Windows Administration Workstation

Configurable

If you want to use RDP or VNC for remote administration of Access Manager components, open the ports required by your application from the remote administration workstation to your Access Manager components. You need to open ports for console access and for file sharing.

For console access, VNC usually uses TCP 5901 and RDP uses TCP 3389. For file sharing, UDP 135-139 are the default ports.

Table 1-3 When a Firewall Separates Administration Console from a Component

Component

Port

Description

Access Gateway, Identity Server

TCP 1443

For communication from Administration Console to devices.

TCP 8444

For communication from devices to Administration Console.

TCP 1290

For communication from devices to the Syslog server on Administration Console.

TCP 524

For NCP certificate management with NPKI. Open this port so that both the device and Administration Console can use the port.

TCP 636

For secure LDAP communication from devices to Administration Console.

HTTP 2443

HTTP 8443

For the installer to communicate with Administration Console. You can close these port after installation is complete.

Importing an Access Gateway Appliance

ICMP

During an import, Access Gateway Appliance sends two pings through ICMP to Administration Console. When the import has finished, you can disable the ICMP echo requests and echo replies.

LDAP User Store

TCP 524

Required only if the user store is eDirectory. When configuring a new eDirectory user store, NCP is used to enable Novell SecretStore by adding a SAML authentication method and storing a public key for Administration Console. It is not used in day-to-day operations.

TCP 636

For secure LDAP communication from Administration Console to user store.

Administration Console

TCP 524

Required to synchronize the configuration data store.



TCP 636

Required for the secure LDAP communication.



TCP 8080, 8443

Used for the Tomcat communication.

TCP 705

Used by Sub Agent-Master Agent communication inside Administration Console.

UDP 161

Used for communication by an external Network Monitoring System with Administration Console by using SNMP.

Browsers

TCP 8080

For HTTP communication from browsers to Administration Console.

TCP 8443, 2443, 2080.

For HTTPS communication from browsers to Administration Console.

NOTE:2443 and 2080 are optional ports required when Administration Console and Identity Server are collocated.

TCP 8028, 8030

To use iMonitor or DSTrace from a client to view information about the configuration store on Administration Console.

Table 1-4 When a Firewall Separates Identity Server from a Component

Component

Port

Description

Access Gateway

TCP 8080 or 8443

For authentication communication from Access Gateway to Identity Server. The default ports for Identity Server are TCP 8080 and 8443. They are configurable. You need to open the port that you configured for the base URL of Identity Server.

TCP 80 or 443

For communication from Identity Server to ESP of Access Gateway. This is the reverse proxy port that is assigned to be ESP (see the Reverse Proxy /Authentication page). This is usually port 80 or 443.

Administration Console

TCP 1443

For communication from Administration Console to devices. This is configurable.

TCP 8444

For communication from Identity Server to Administration Console.

TCP 1290

For communication from devices to the Syslog server on Administration Console.

TCP 524

For NCP certificate management with NPKI from Identity Server to Administration Console.

TCP 636

For the secure LDAP communication from Identity Server to Administration Console.

Identity Server

TCP 8443 or 443

For HTTPS communication. You can use iptables to configure this for TCP 443. See Section 3.5, Translating Identity Server Configuration Port.

TCP 7801

For back-channel communication with cluster members.

This port is configurable.

LDAP User Stores

TCP 636

For secure LDAP communication from Identity Server to the LDAP user store.

Service Providers

TCP 8445

If you have enabled identity provider introductions, open a port to allow HTTPS communication from the user’s browser to the service provider.

TCP 8446

If you have enabled identity provider introductions, open a port to allow HTTPS communication from the user’s browser to the service consumer.

Browsers

TCP 8080

For HTTP communication from a browser to Identity Server. You can use iptables to configure this for TCP 80. SeeSection 3.5, Translating Identity Server Configuration Port.

TCP 8443

For HTTPS communication from a browser to Identity Server. You can use iptables to configure this for TCP 443. See Section 3.5, Translating Identity Server Configuration Port.

CRL and OCSP Servers

Configurable

If you are using x.509 certificates that include an AIA or CRL Distribution Point attribute, you need to open the port required to talk to that server. Ports 80/443 are the most common ports, but the LDAP ports 389/636 can also be used.

Active Directory Server with Kerberos

TCP 88, UDP 88

For communication with KDC on the Active Directory Server for Kerberos authentication.

Table 1-5 When a Firewall Separates Access Gateway from a Component

Component

Port

Description

Identity Server

TCP 8080 or 8443

For authentication communication from Access Gateway to Identity Server. The default ports are TCP 8080 and 8443, which are configurable. You need to open the port of the base URL of Identity Server.

TCP 80 or 443

For communication from Identity Server to ESP of Access Gateway. This is the reverse proxy port that is assigned to be ESP (see the Reverse Proxy /Authentication page). This is usually port 80 or 443.

Administration Console

TCP 1443

For communication from Administration Console to Access Gateway. This is configurable.

TCP 8444

For communication from Access Gateway to Administration Console.

TCP 1290

For communication from devices to the Syslog server on Administration Console.

TCP 524

For NCP certificate management with NPKI from Access Gateway to Administration Console.

TCP 636

For secure LDAP communication from Access Gateway to Administration Console.

Access Gateway

TCP 7801

For back-channel communication with cluster members.

This port is configurable. It is set by Identity Server cluster configuration that Access Gateway trusts. See Configuring a Cluster with Multiple Identity Servers in the NetIQ Access Manager 4.4 Administration Guide.

TCP 80 or 443

For communication among Embeded Service Providers (ESP) of the Access Gateway cluster memebers. This is the reverse proxy port that is assigned to be ESP (see the Reverse Proxy /Authentication page). This is usually port 80 or 443. This port is configurable.

Browsers/Clients

TCP 80

For HTTP communication from the client to Access Gateway. This is configurable.

TCP 443

For HTTPS communication from the client to Access Gateway. This is configurable.

Web Servers

TCP 80

For HTTP communication from Access Gateway to web servers. This is configurable.

TCP 443

For HTTPS communication from Access Gateway to web servers. This is configurable.

Table 1-6 When a Firewall Separates Analytics Server from Administration Console or any Services

Component

Port

Description

Administration Console

TCP 1444

For communication between Administration Console and Analytics Server.

Browsers

TCP 8445

For HTTPS communication with Analytics Server for Analytics Dashboard.

Browsers

TCP 8443

For HTTPS communication with Analytics Server for Reports console.

Syslog

TCP 1468

For sending Syslog messages from Access Manager components to Analytics Server.

Control Center

TCP 10013

For communicating from a computer to the control center on Analytics Server.

Remote Linux Administration Workstation

TCP 22

For communication from your remote administration workstation to Analytics Server.

High availability configuration

TCP 7360

For communication between the servers in an Analytics Server cluster.

NOTE:On SLES, you can use YaST to configure UDP ports and internal networks.

Table 1-7, Table 1-8, and Table 1-9 are intended for use in configuring the security groups in cloud deployments. The security groups by default do not restrict the outbound ports. Therefore, these tables include only the inbound ports.

Table 1-7 Administration Console on Cloud

Component

Port

Traffic Direction

Description

Access Gateway, Identity Server

TCP 1290

Inbound

For communication from devices to the Syslog server on Administration Console.

TCP 8443

Inbound

For the installer to communicate with Administration Console.

TCP 8444

Inbound

For communication from devices to Administration Console.

TCP 524

Inbound

For NCP certificate management with NPKI. Open this port so that both the device and Administration Console can use the port.

TCP 636

Inbound

For secure LDAP communication from devices to Administration Console.

Access Gateway

TCP 1289

Inbound

For importing Access Gateway into Administration Console.

SSH

TCP 22

Inbound

For accessing Administration Console using SSH.

Access Gateway

ICMP

Inbound

For importing Access Gateway.

Table 1-8 Identity Server on Cloud

Component

Port

Traffic Direction

Description

Administration Console

TCP 1443

Inbound

For communication from Administration Console to devices. This is configurable.

TCP 524

Inbound

For NCP certificate management with NPKI from Identity Server to Administration Console.

Identity Server

TCP 7801

Inbound

For the back-channel communication with cluster members.

This port is configurable.

SSH

TCP 22

Inbound

For accessing Identity Server using SSH.

Access Gateway, Browsers

TCP 8443

Inbound

For authentication communication from Access Gateway to Identity Server.

For HTTPS communication from a browser to Identity Server's base URL when the default ports are used.

Table 1-9 Access Gateway on Cloud

Component

Port

Traffic Direction

Description

Service Providers

TCP 8445

Inbound

If you have enabled identity provider introductions, open a port to allow HTTPS communication from the user’s browser to the service provider.

TCP 8446

Inbound

If you have enabled identity provider introductions, open a port to allow HTTPS communication from the user’s browser to the service consumer.

Access Gateway

TCP 7801

Inbound

For back-channel communication with cluster members.

Administration Console

TCP 1443

Inbound

For communication from Administration Console to Access Gateway. This is configurable.

SSH

TCP 22

Inbound

For accessing Administration Console using SSH.

Identity Server

TCP 80 or 443

Inbound

For communication from Identity Server to Access Gateway ESP. This is the reverse proxy port that is assigned to be ESP.

Browsers/Clients

TCP 443

Inbound

For HTTPS communication from workstation browsers to Access Gateway.

TCP 80

Inbound

For HTTP communication from workstation browsers to Access Gateway.

1.8.2 Restricted Ports

The following ports are reserved for internal use only and other applications should not use these ports:

  • 22
  • 111
  • 524
  • 1443
  • 2443
  • 3443
  • 8028
  • 8030
  • 8080
  • 8443
  • 8444
  • 9000
  • 9001
  • 55982
  • 61222
  • 61613
  • 61616
  • 61617

If required, use port redirection by using IP tables.

1.8.3 Sample Configurations

Access Gateway and Identity Server in DMZ

First Firewall

If you place a firewall between browsers and Access Gateway and Identity Server, you need to open ports so that browsers can communicate with Access Gateway and Identity Server and Identity Server can communicate with other identity providers.

See, Figure 1-10

Table 1-10 Ports to Open in the First Firewall

Port

Purpose

TCP 80

For HTTP communication.

TCP 443

For HTTPS communication.

Any TCP port assigned to a reverse proxy or tunnel.

TCP 8080

For HTTP communication with Identity Server.

For information about redirecting Identity Server to use port 80, see Section 3.5, Translating Identity Server Configuration Port.

TCP 8443

For HTTPS communication with Identity Server.

For information about redirecting Identity Server to use port 443, see Section 3.5, Translating Identity Server Configuration Port.

TCP 8445

For HTTP Identity Provider introductions. If you do not enable Identity Provider introductions, you do not need to open this port.

TCP 8446

For HTTPS Identity Provider introductions. If you do not enable Identity Provider introductions, you do not need to open this port.

Second Firewall

The second firewall separates web servers, LDAP servers, and Administration Console from Identity Server and Access Gateway. You need the following ports opened in the second firewall:

Table 1-11 Ports to Open in the Second Firewall

Port

Purpose

TCP 80

For HTTP communication with web servers.

TCP 443

For HTTPS communication with web servers.

Any TCP connect port assigned to a web server or to a tunnel.

TCP 1443

For communication from Administration Console to the devices.

TCP 8444

For communication from the devices to Administration Console.

TCP 1290

For communication from the devices to the Syslog server installed on Administration Console. If you do not enable auditing, you do not need to open this port.

TCP 524

For NCP certificate management in NPKI. The port needs to be opened so that both the device and Administration Console can use the port.

TCP 636

For secure LDAP communication of configuration information.

A Firewall Separating Access Manager Components from the LDAP Servers

You can configure Access Manager components so that your Administration Console is on the same side of the firewall as your Access Manager components and have a firewall between them and the LDAP servers.

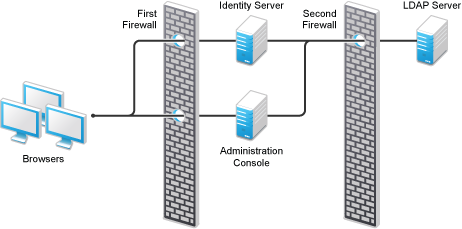

Figure 1-11 A Firewall Separating Administration Console and the LDAP Server

In this configuration, you need to open the following ports in the second firewall for Administration Console and Identity Server:

Table 1-12 Ports to Open in the Second Firewall

Ports

Purpose

TCP 636

For secure LDAP communication. This is used by Identity Server and Administration Console.

TCP 524

For configuring eDirectory as a new User Store. NCP is used to enable SecretStore by adding a SAML authentication method and storing a public key for Administration Console. During day-to-day operations, this port is not used. If your LDAP server is Active Directory or Sun ONE, this port does not need to be opened.
