27.1 SNMP Architecture in Access Manager

Access Manager introduces Master Agent, Sub Agent, and a Management Information base (MIB) file to work with any third-party monitoring software using SNMP.

The Master Agent runs as a service in Administration Console and listens to the Sub Agents registered with it. A Sub Agent is a managed device that is registered with the Master Agent and exchanges information with it using TCP port 705. The MIB file contains a hierarchical list of variables and defines the information that is provided by the devices. Each variable in this list is uniquely identified by an OID (Object Identifier) and are read-only in nature.

Administration Console contains both Master Agent and Sub Agent. Master Agent runs as a separate service and the Sub Agents are registered with the Master Agent for monitoring. Administration Console gathers statistics from all devices and acts as a centralized repository for any monitoring tool to access the data by using SNMP. The external NMS contacts Administration Console to get the data about any Identity Server or Access Gateway by using SNMP. For this communication it uses UDP port 161 (by default).

In a clustered Administration Console setup, the devices send statistics to the secondary Administration Console in case the primary Administration Console is down.

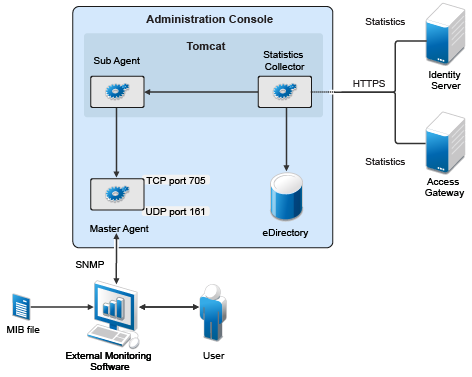

Figure 27-1 Architecture of SNMP Components in Access Manager

This MIB file contains all Identity Server and Access Gateway attributes available to monitor the state of the system. Figure 27-1 illustrates how Administration Console uses SNMP to monitor Identity Server and Access Gateway.

If you are installing or upgrading Access Manager on a Linux server, the Master Agent is automatically installed. A Windows server has an in-built SNMP Master Agent, but it does not support the AgentX protocol. The AgentX protocol is used for communication between the Master Agent and Sub Agent. Due to this, if you are installing Access Manager on a Windows server, the Master Agent has to be downloaded and installed manually. For more information about installing the Master Agent on a Windows server, see Section 27.5.2, Installing and Enabling Monitoring for Access Manager on Windows
