Monitor the automation events associated with an element using the Properties dialog box.
To monitor an element’s automation events:
In the
pane, right-click an element, then select to open the property page.In the left pane, click
to open its property page.If multiple automation definitions are defined for the element, click the
drop-down list, then select the automation.A filter is assigned an automation definition that specifies the automated action taken when the filter triggers the action.
To update an automation:
In the

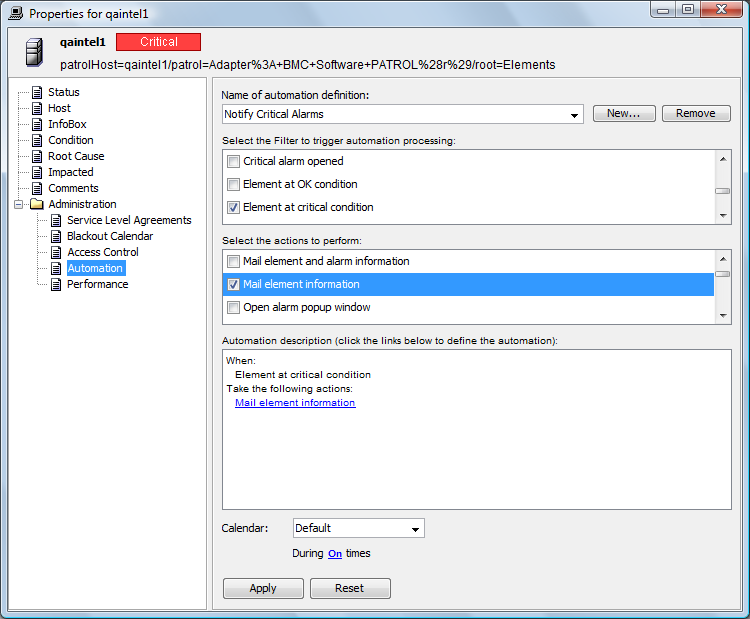

pane, navigate to the element with the automation definition.Right-click the element, then select
to open the property page.In the left pane, click
to open its property page.Click the
drop-down list to select the automation definition.Automation settings display:
Make the necessary edits.
Click
to save changes.If

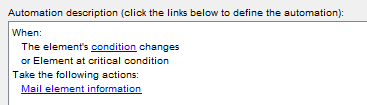

is a filter, no condition level is defined by default, so the filter is triggered with any condition change.To specify a condition level to trigger an automation event:
In the

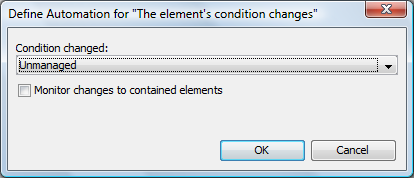

section, click the condition link to open the Define Automation dialog box for setting the condition:Click the
drop-down list, then select a condition:Select the element condition that determines when the filter is used.
For example, selecting
triggers the action only when the element condition changes to Unmanaged.Click
to close the Define Automation dialog box.
