7.0 Ports Used

Sentinel uses different ports for external communication with other components. For the appliance installation, the ports are opened on the firewall by default. However, for the traditional installation, you must configure the operating system on which you are installing Sentinel to open the ports on the firewall. The following figure illustrates the ports used in Sentinel:

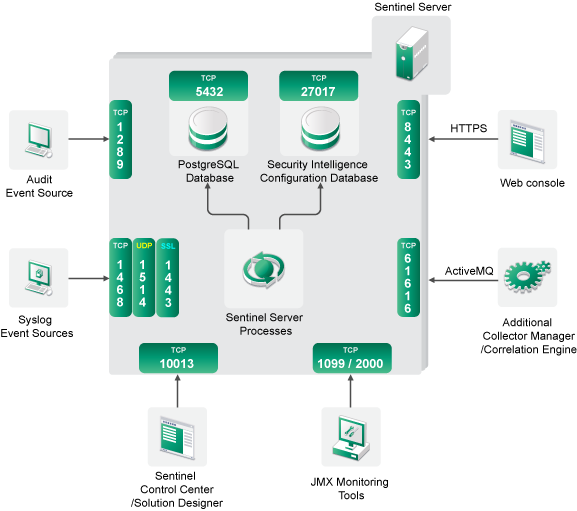

Figure 7-1 Ports Used in Sentinel
