Vulnerability Visualization provides a textual or graphical representation of the vulnerabilities of selected destination systems. Vulnerabilities for the selected destination IPs can be seen for the current time or for the time of the selected events.
Vulnerability Visualization requires that a vulnerability Collector is running and adding vulnerability scan information to the Sentinel database. The Novell Sentinel Content provides Collectors for several industry-standard vulnerability scanners, and additional vulnerability Collectors can be written by using the Sentinel SDK.
NOTE:Vulnerability Collectors are distinct from Event Collectors and use different commands.
There are several Vulnerability Visualization views:
HTML
Graphical
Circular
Organic
Hierarchical
Orthogonal
The HTML view is a report view that lists relevant fields, depending on which vulnerability scanner you have:
IP
Host
Vulnerability
Port/protocol

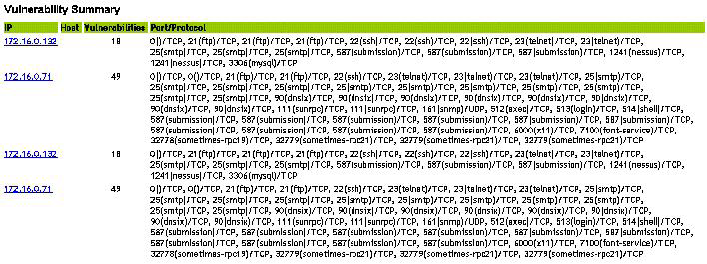

Figure 3-6 Viewing Vulnerability
The graphical display is a rendering of vulnerabilities that link them to an event through common ports. Below are the examples of the four available views:

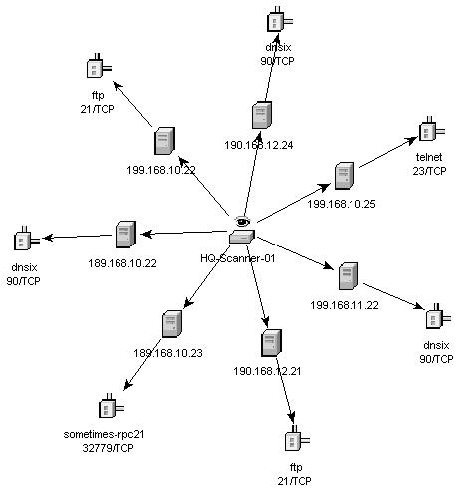

Figure 3-7 Organic View

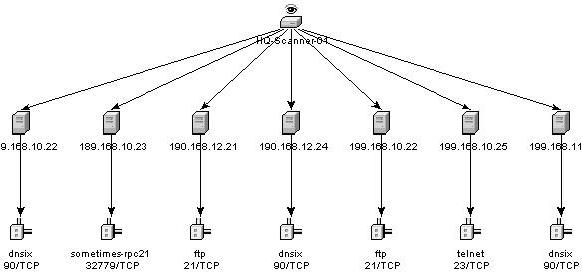

Figure 3-8 Hierarchical View

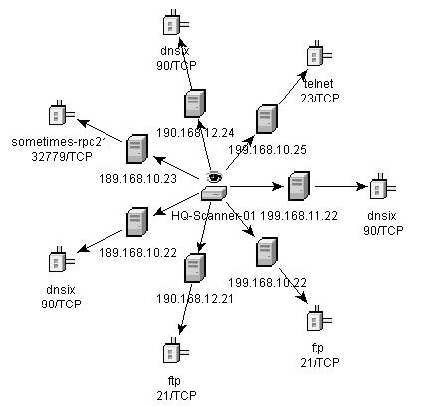

Figure 3-9 Circular View

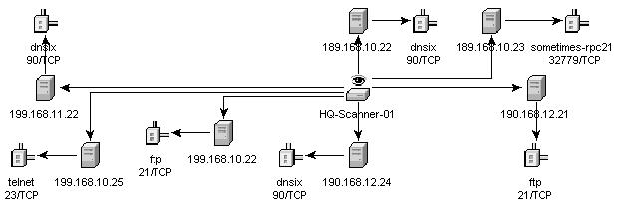

Figure 3-10 Orthogonal View
The graphical display has four panels:
Graph panel
Tree panel
Control panel
Details/events panel
The graph panel display associates vulnerabilities to a port/protocol combination of a resource (IP address). For example, if a resource has five unique port/protocol combinations that are vulnerable, there are five nodes attached to that resource. The resources are grouped together under the scanner that scanned the resources and reported the vulnerabilities. If two different scanners are used (ISS and Nessus), there are two independent scanner nodes that have vulnerabilities associated with them.
NOTE:Event mapping takes place only between the selected events and the vulnerability data returned.
The tree panel organizes data in same hierarchy as the graph. The tree panel also allows users to hide/show nodes at any level in the hierarchy.
The control panel exposes all the functionality available in the display. This includes:
Four different algorithms to display
The ability to show all or selected nodes which have events mapped to them
Zooming in and out of selected areas of the graph
There are two tabs in the Details/Events panel. When you are in the
tab, clicking a node displays node details. When you are in the tab, clicking an event associated with a node displays the node in tabular form as in a Real Time or Event Query window.To run a Vulnerability Visualization:

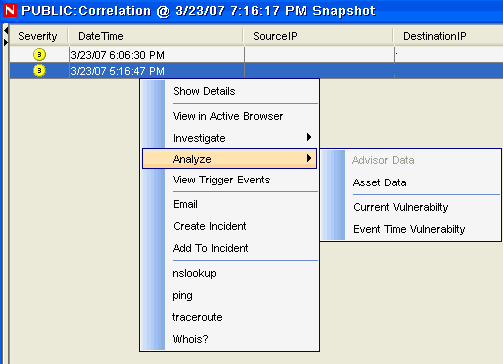

In a Real Time Event Table of the Navigator or Snapshot, right-click an event or a series of selected events and click
Current Vulnerability: Queries the database for vulnerabilities that are active (effective) at the current date and time.
Event Time Vulnerability: Queries the database for vulnerabilities that were active (effective) at the date and time of the selected event.
At the bottom the vulnerability results window, click one of the following:
(For Event to Vulnerability Graph) Adjust the display as desired:
Move nodes and their labels
Use one of four different layout algorithms to display the graph
Show all nodes or only those nodes that have events mapped to them
Use in-line tree filtering if a large number of resources are returned as vulnerable
Zoom in and out of selected areas
