3.2 Introduction to the User Interface

In an Active Views, you can see Create Active View, Event Real Time, and Event Query. You can navigate to these functions from:

Table 3-1 Active Views User Interface

User Interface	Description
	The Active Views menu in the menu bar
	When you create a filter, the Active Views menu has these additional options.
	The Navigation tree in the Navigation pane
	The toolbar buttons

Active Views provides two types of views that display the events in tables and graphs.

The Table format displays the variables of the events as columns in a table. You can sort the information in the grid by clicking the column name.

Figure 3-1 Active View Tabular Format

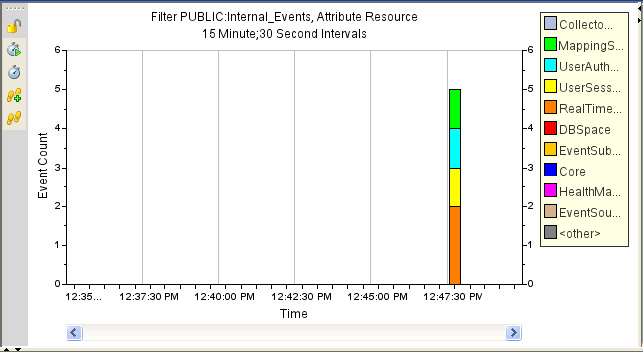

The Graphical format displays events as graphs. You can change the chart types to display other chart types.

Figure 3-2 Active View Graphical Format

There are two types of Active Views:

Near Real Time Event Table:
- Holds up to 750 events per 30-second period. If there are more than 750 events, the events are displayed in the following priority order: correlated events, events that are sent to the GUI by using a global filter, and all remaining events.
- By default, the client maintains a 24-hour period of cached events. This is configurable through Active View Properties.
- By default, the smallest possible display interval of an active view is 30 seconds. This is represented by a gray line in the event table.

  Figure 3-3 Gray Line Smallest Possible Display Interval

  If there are more than 750 events per 30-second time period, a red separation line displays indicating that there are more events than are displayed. The other events can be viewed by using Historical Queries.

  Figure 3-4 Red Line More Events Displayed
- On saving user preferences, the system continues to collect data for four days. For instance, if you save your preferences, log out, and log back in the following day, your Active View displays data as if you never logged off.
- If an Active View is created and not saved, it continues to collect data for an hour. If an identical Active View is created within that hour, the Active View displays data for the last hour.
Snapshot: Time-stamped views of a Real Time Event View table.

Active View provides the following unique features:

Filter assigned to an Active View
The z-axis attribute
The security filter assigned to a user

The Active Views tab allows you to:

Reconfigure total display time
Add events to an incident
Close a Snapshot or Navigator window
Create an incident
Custom menu options with events
Investigate an event query
Investigate a graph map
View Advisor data
Manage columns Send messages about events by e-mail
Show or hide event details
Take a Snapshot of a Navigator window
View events that triggered a correlated event
View vulnerability visualization
View asset data
Integrate with the ticketing system

You can change labels (column names) to user-friendly names and the new names are populated throughout the system. For more information, see Section 3.15, Using Custom Menu Options with Events.
