10.1 Understanding the Download Manager User Interface

You can access the Download Manager GUI from the Tools menu and also by clicking the shortcut icon in the toolbar.

NOTE:Ensure that you have permission to access the Download Manager feature. For more information on user permissions, see Administration in the Sentinel 6.1 Rapid Deployment Reference Guide.

The Download Manager window lists the download configurations and displays the status of the previous download for each download configuration. By default, a download configuration is available that is partially configured for Advisor. You can use the same configuration to download the Advisor feed, by specifying the login credentials and other details, and activate the download configuration.

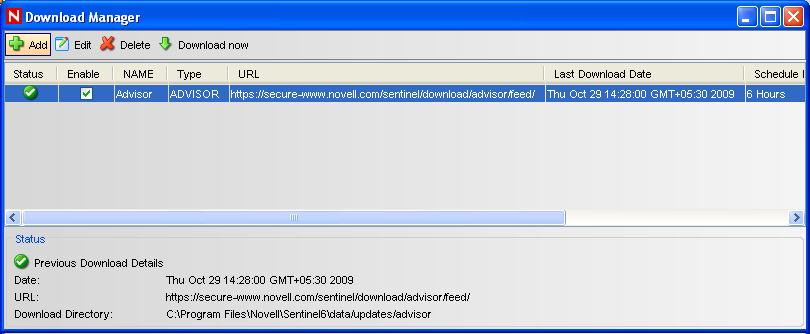

Figure 10-1 Download Manager

Table 10-1 Download Configuration Status

Status

Icon

Description

Download in progress

Indicates that the download is in progress.

Download successful

Indicates that the latest download was successful.

Download not initiated

Indicates that a download has never been initiated.

This status does not display any icon.

Download failure

Indicates that all or some of the files were not downloaded.

This might be because of a faulty or failed internet connection, or if you have entered invalid credentials.

The status bar displays the previous download details of the selected download configuration, such as the status, date, time, URL, download directory, and errors. If there are any errors, click Error to view the error details.
