10.6 Export Configuration

Export configuration helps you export the configuration of ESM objects along with their Collector script and the Connector plugins.

NOTE:You can export any object in the ESM panel. Depending on the object selected, all its children and parent should be displayed in the Select Data window of Export Configuration wizard.

To export your configurations:

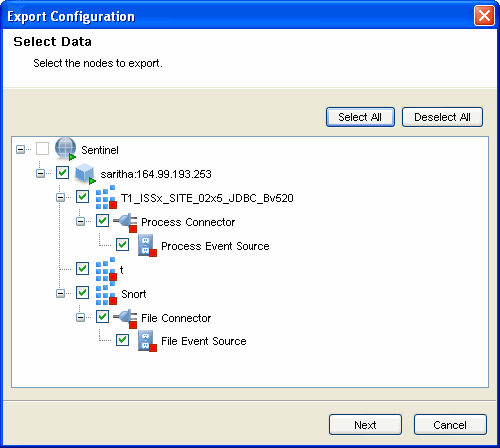

  1. Go to Menu Bar and click File > Export Configuration or right click an object in the ESM panel and select Export Configuration. Export Configuration window displays.

  2. Check the data to export and click Next. Select Collector Scripts window displays.

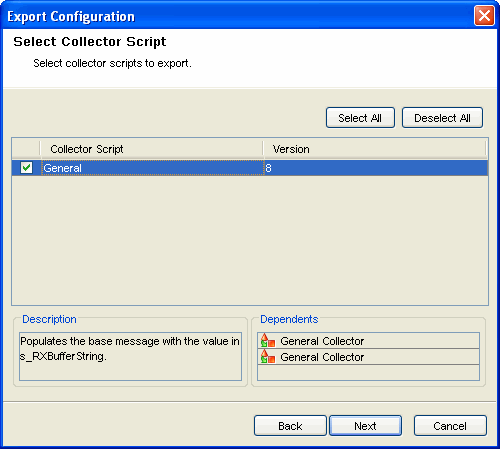

  3. Select the Collector scripts from the list to export. You can select or deselect all. Click Next. Select Connectors Plugin window displays.

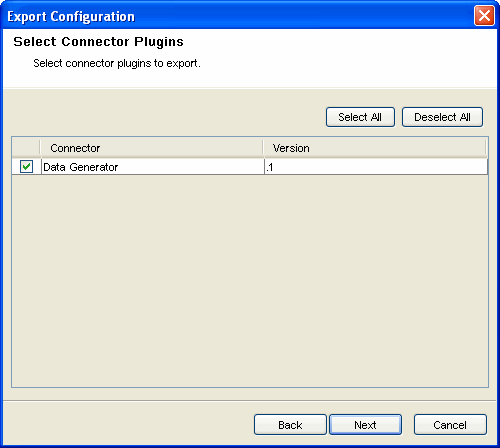

  4. Select the Connector Plugins from the list to export. You can select or deselect all. Click Next. Specify Export File window displays.

    NOTE:If you want to view the description and dependents of a particular plugin in the above window, select that plugin from the table.

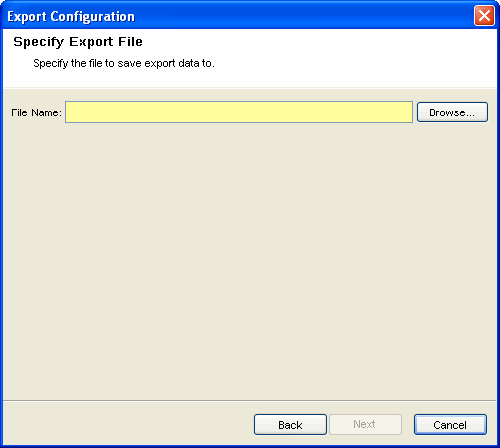

  5. Browse a location to save the configuration and click Next.

    NOTE:You can save the configurations only to a zip file.

  6. Summary page with the details of the configurations and plugins selected to export displays.

  7. Click Finish to export. The file is exported in zip format.
