11.4 Servers View
Through Servers View you can Start/Stop/Restart the processes that get installed on the product installation. Server Views allows you to monitor the status of all Sentinel Server processes across the system. The following are the Sentinel Server processes:
-
Collector_Manager
-
Correlation_Engine
-
DAS_Aggregation
-
DAS_Binary
-
DAS_Proxy
-
DAS_Query
-
DAS_RT
-
DAS_iTRAC
-
Unix Communication Server
-
Windows Communication Server
NOTE:Windows Communication Server and Unix Communication Server will run for their respective platform.

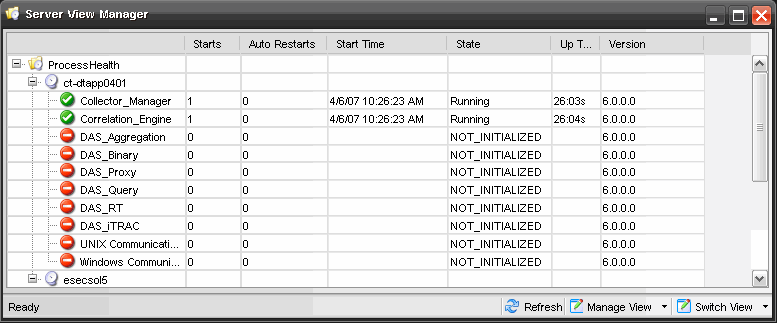

Figure 11-2 Server View window
-
Start, stop or restart processes: These actions can be taken on a process by right clicking on the process entry.
NOTE:The options in the right click actions on the Windows Communication Server and Unix Communication Server are not enabled because stopping these Communication Server will result in losing contact with all of the processes.
The terms Starts and AutoRestarts, in the context of the Server View, are defined as follows:
-
Starts: The number of times the process was started, for whatever reason. This includes starts initiated by the user through the GUI or done automatically.
-
AutoRestarts: The number of times the process was automatically restarted. Because this only applies to purely automatic restart scenarios, it does not apply to restarts initiated by a user. This field is helpful for determining if the process exited (For example, because of an error) and was automatically restarted by Sentinel Watchdog.
11.4.1 Monitoring a Process
To Monitor a Process:
-
Click the Admin tab.
Click Servers View. Alternatively, in Navigator click Servers View > Servers View. You can also click Servers View icon.
-
Expand the server view. All the processes will list as shown in the above figure.
11.4.2 Creating a Servers View
To Create a Servers View:
-
Click the Admin tab.
Click Servers View. Alternatively, in Navigator click Servers View > Servers View. You can also click Server View icon.
-
To create a new view, on the bottom right corner click Manage View drop down arrow. Click Add View.
-
Specify your Option Name
-
To arrange which fields you want to be shown, click Fields
-
To group different attributes, click GroupBy
-
To sort by different attributes, click Sort
-
To filter, click Filter
-
To change the display values of the processes shown in the servers view, click Leaf Attribute
-
-
Click Save.
11.4.3 Starting, Stopping and Restarting Processes
To Start, Stop and Restart Processes:
-
Click the Admin tab.
Click Servers View. Alternatively, in Navigator click Servers View > Servers View. You can also click Servers View icon.
-
Expand the servers view. All the processes will list as shown in the above figure.

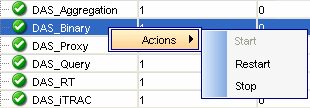

Select a process, right-click > Actions > select a function (Start, Restart or Stop).
NOTE:You cannot stop the Windows Communication Server and Unix Communication Server using this feature.
