2.4 Selecting and Identifying Screens and Controls

You can identify the controls of an application by dragging the Choose icon to the fields within the application. The wizard moves behind the all the other windows and allows you to choose the correct field.

To confirm if the fields are identified correctly, click Show me. It highlights the identified fields.

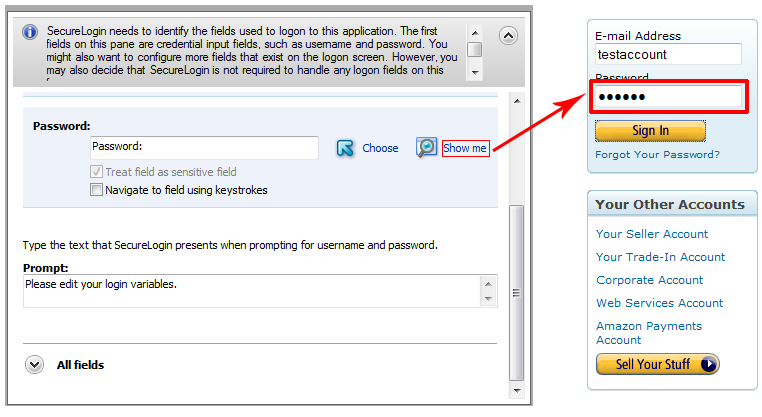

Figure 2-20 Identifying the Control

SecureLogin detects most standard user interface elements. If an application uses a non-standard framework, the Application Definition Wizard does not select or highlight the controls.

For example, the wizard does not detect non-native UI framework such as Gecko, and Qt^* but single sign-on can be achieved by manually scripting the application. Similarly, applications such as Mozilla* Thunderbird* 2.0.0.18 and Novell iFolder® cannot be enabled for single sign-on by using the wizards. The wizard fails to detect the control to enable these applications.

For such applications, you must identify the fields by recording keystrokes, as described in Recording Keystrokes.
