21.3 Viewing a Workload NIC and Volume Summary

The Workload Summary allows you to view key original and proposed workload information without opening the Edit Workload dialog. The information pops up as a tool-tip when you mouse over the workload name.

To view the workload NIC and disk summary:

  1. In the Web Interface, select Planning in the toolbar, then select the Workloads tab.

  2. Use the Filter and Advanced Search options to locate the workload of interest.

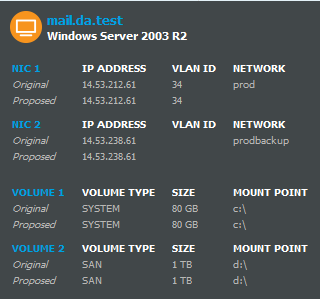

  3. (Optional) Mouse over a workload name to view a summary of its original workload and proposed workload configurations for NICs and volumes.

  4. Move the mouse away from the workload name to exit the summary pop-up.
