4.1 Configuring the Required LCD Display Name

PlateSpin Forge requires a display name for the LCD for hardware that provides an LCD screen on the front panel.

To configure the LCD display for Forge:

  1. Access the System Setup utility.

    See Section 3.1, Accessing the System Setup Utility.

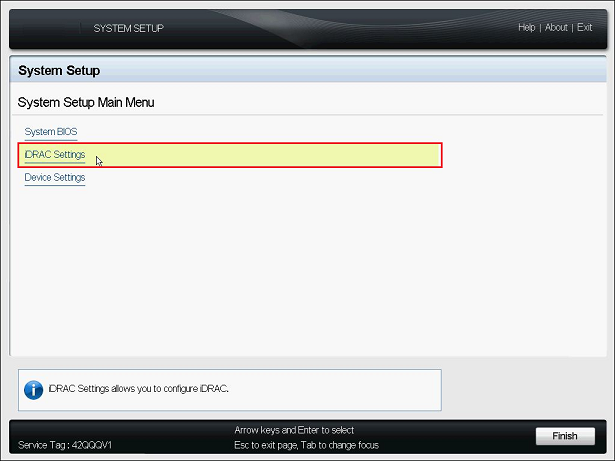

  2. In the System Setup Main Menu, select iDRAC Settings.

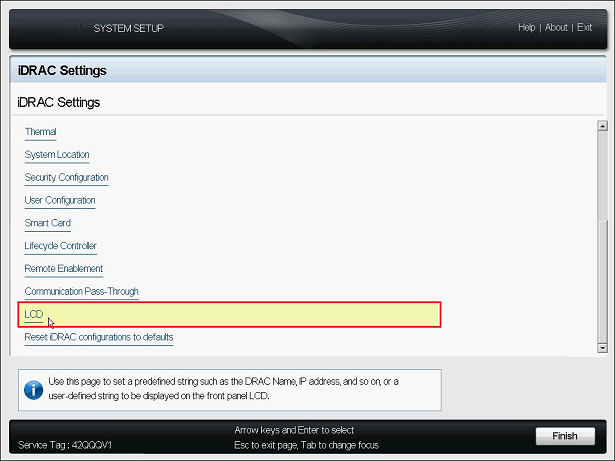

  3. On the System iDRAC Settings page, select LCD.

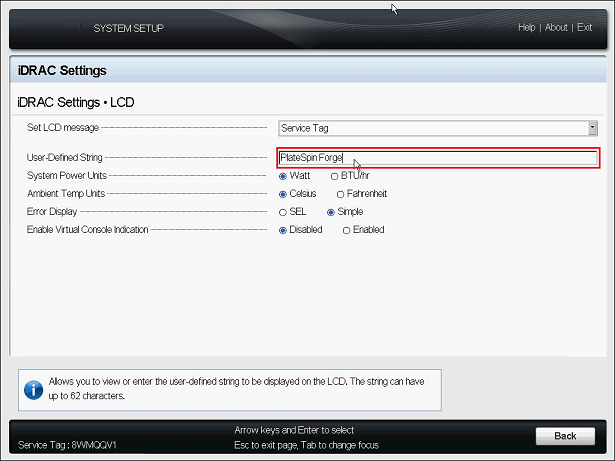

  4. On the LCD page, type PlateSpin Forge as the value for User-Defined String.

  5. Press Esc three times to return to the System Setup Main Menu.

  6. (Conditional) If you are prompted to save the changes made to the iDRAC settings, click Yes.

    You should see a message indicating that the changes were saved successfully. Click OK to dismiss the confirmation.

  7. Exit the System Setup utility.

    See Section 3.4, Exiting the System Setup Utility.
