12.3 Assigning Profiles at the Element Level

After profiles are started and elements are matched for performance and/or alarm history monitoring, it is possible to view the profiles in which a particular element participates. It is also possible to assign a profile to an element through the element’s Performance property page.

To view the profiles in which an element participates:

  1. From the Explorer pane, right-click an element, then select Properties to open the Status property page.

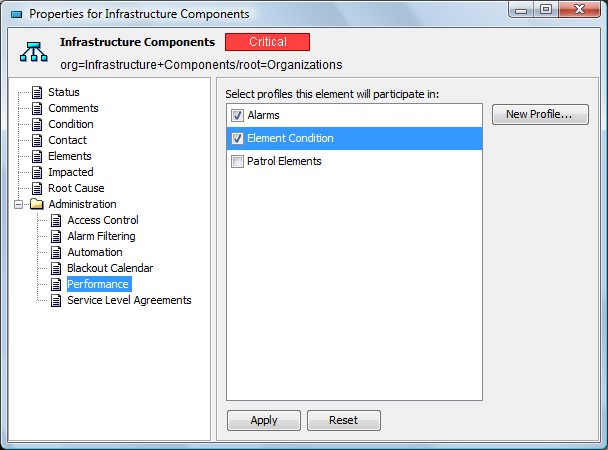

  2. In the left pane, click Performance to open its property page:

    Profiles with a marked check box collect data for the element.

  3. To add the element to a profile, select the check box next to the profile.

  4. To detach a profile from an element, deselect the check box next to the profile name.

  5. Click Apply to save the changes.
