The icon specified at the adapter definition level is associated with the adapter element displayed under Adapters in the Operations Center console. Select an adapter-related icon from the Operations Center Metamodel icon class browser.
To specify an icon for an adapter:
Select the root element in the Definition Navigator pane.
If you have just created the adapter, it is already selected.

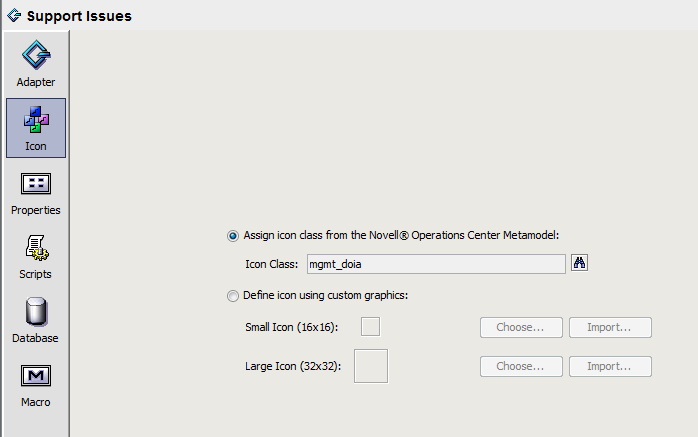

In the right pane, click Icon to define icon properties:
Select a radio button:
Assign icon class from the Operations Center Metamodel: Uses an icon class from the Operations Center Metamodel browser.
Next step: Click Browse Class, then select an icon class.
Define icon using custom graphics: Enables specifying custom small and large icon graphics.
Next step: Click Choose or Import to select the graphic file for Small Icon and Large Icon. Imported graphics must be in a GIF or JPEG format. Click Choose only if you have previously saved an imported graphic.
HINT:When defining custom graphics, set Small Icon to 16 x 16 pixels for best viewing results. Set Large Icon to 32 x 32 pixels for best viewing results.
