By default, the Operations Center server saves data related to various garbage collection and memory activities that can help when diagnosing memory errors. The actual properties can vary, depending on the virtual machine running.
To chart server memory statistics:
In the
pane, expand the root element > .Click the
tab to display the view.Adjust the timeline to select the desired time range.
Select the memory properties in the
pane.Select all four
properties.Click
.Select all four
properties.Click

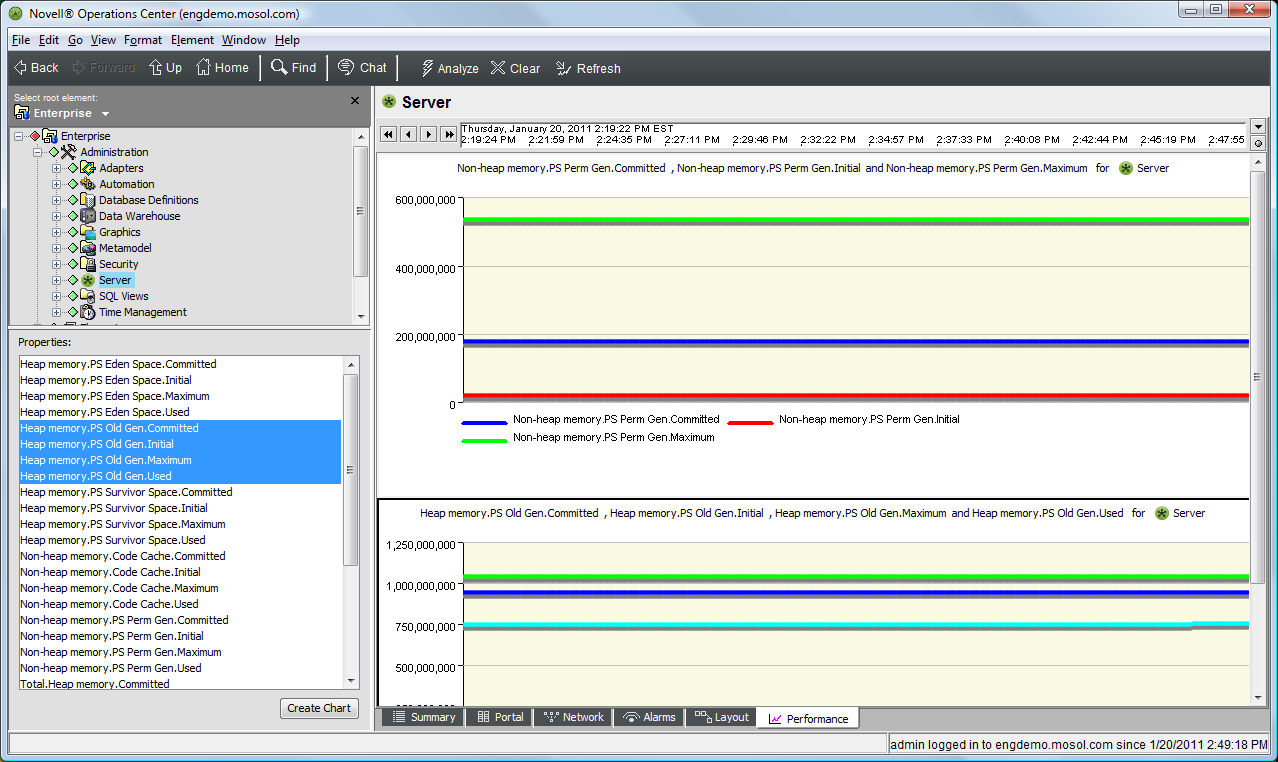

.This creates a single view of the two most important memory charts related to the Operations Center virtual machine. Take a screen shot of these charts and include it with the memorysamples.dat and fsgc.log files from the Operations Center log directories when working with Technical Support on memory issues.
