An alarm can occur based on the response time in a scenario. Specify the acceptable time range for a response in the
tab in the Create Scenario dialog box.To set rules for response time validation:
Click the
tab in the Create Scenario dialog box to display the tab.Click the

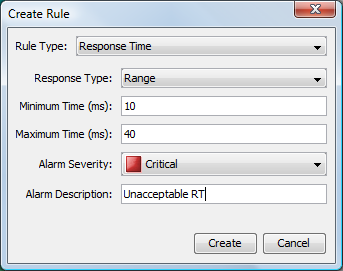

icon to open the Create Rule dialog box.Click the
drop-down list and select if it is not already selected.Click the
drop-down list and select a response type:Range: Generates an alarm when the response time is within a specified time range. Specify the time range by using the
and (in milliseconds) text boxes. Also select the drop-down list and select a severity to set for the alarm issued when the response time is within the specified time range.Upper Threshold: Generates an alarm when the response time exceeds the specified maximum time interval.
Lower Threshold: Generates an alarm when the response time is less than the specified minimum time interval.
If the Response Type is Lower or Upper Threshold, select the
drop-down list and select a severity to set for the alarm issued when a response time rule is violated.In the
text box, type a description for the alarm:Click the

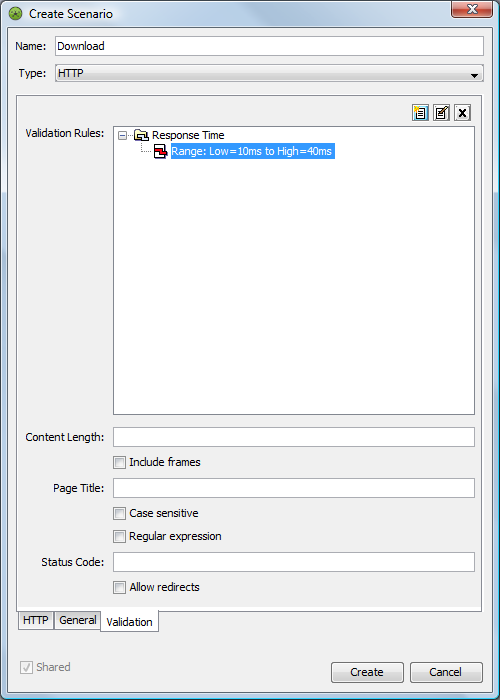

button to save the rule.The rule displays in the
tab:
