Parse DN

Converts the enclosed token’s DN to an alternate format.



Specify the RDN index to start with:

  • Index 0 is the root-most RDN

  • Positive indexes are an offset from the root-most RDN

  • Index -1 is the leaf-most segment

  • Negative indexes are an offset from the leaf-most RDN towards the root-most RDN


Number of RDN segment to include. Negative numbers are interpreted as (total # of segments + length) + 1. For example, for a DN with 5 segments a length of -1 = (5 + (-1)) + 1 = 5, -2 = (5 + (-2)) + 1 = 4, etc.

Source DN Format

Specifies the format used to parse the source DN.

Destination DN Format

Specify the format used to output the parsed DN.

Source DN Delimiter

Specify the custom source DN delimiter set if Source DN Format is set to custom.

Destination DN Delimiter

Specify the custom destination DN delimiter set if Destination DN Format is set to custom.


If start and length are set to the default values {0,-1}, then the entire DN is used; otherwise only the portion of the DN specified by start and length is used.

When specifying custom DN formats, the eight characters that make up the delimiter set are defined as follows:

  • Typed Name Boolean Flag: 0 means names are not typed, and 1 means names are typed

  • Unicode No-Map Character Boolean Flag: 0 means don’t output or interpret unmappable Unicode characters as escaped hex digit strings, such as \FEFF. The following Unicode characters are not accepted by eDirectory: 0xfeff, 0xfffe, 0xfffd, and 0xffff.

  • Relative RDN Delimiter

  • RDN Delimiter

  • Name Divider

  • Name Value Delimiter

  • Wildcard Character

  • Escape Character

If RDN Delimiter and Relative RDN Delimiter are the same character, the orientation of the name is root right, otherwise the orientation is root left.

If there are more than eight characters in the delimiter set, the extra characters are considered as characters that need to be escaped, but they have no other special meaning.


The example uses the Parse DN token to build the value the Add Destination Attribute Value action. The example is from the predefined rules that come with Identity Manager. For more information, see Command Transformation - Create Departmental Container - Part 1 and Part 2. To view the policy in XML, see predef_command_create_dept_container2.xml.

Policy to create department container part 2

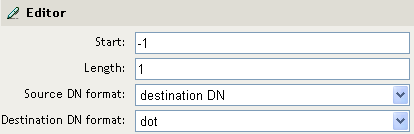

Parse DN

The Parse DN token is taking the information from the source DN and converting it to the dot notation. The information from the Parse DN is stored in the attribute value of OU.
