3.1 Viewing a Hierarchical Display of Version Information

  1. In iManager, click Identity Manager > Identity Manager Overview, then click Search to find the driver sets in the Identity Vault.

  2. Click the specific driver set in the list.

  3. Click Driver Set > Version information in the Driver Set Overview page.

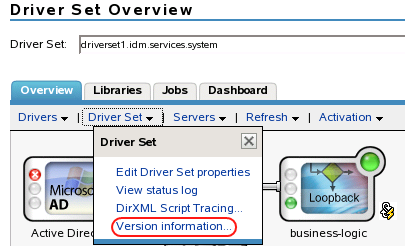

    Information button

    You can also select Identity Manager Utilities > Versions Discovery, browse to and select the driver set, then click OK.

  4. View a top-level or unexpanded display of versioning information.

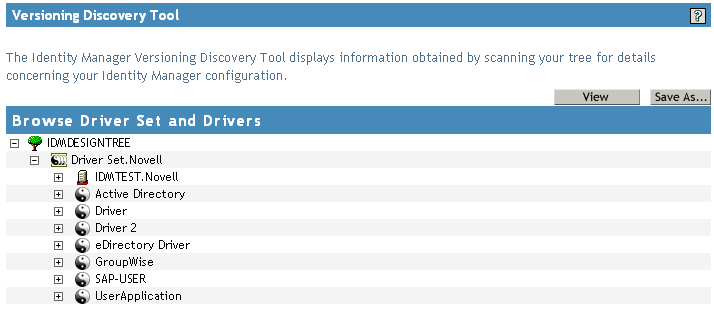

    Unexpanded view of servers and drivers

    The unexpanded hierarchical view displays the following:

    • The eDirectory tree that you are authenticated to

    • The driver set that you selected

    • Servers that are associated with the driver set

      If the driver set is associated with two or more servers, you can view Identity Manager information on each server.

    • Drivers

  5. View version information related to servers by expanding the server icon.

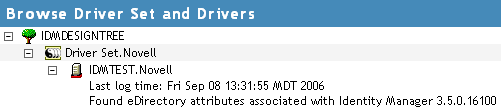

    Versioning information in an expanded server icon

    The expanded view of a top-level server icon displays the following:

    • Last log time

    • Version of Identity Manager that is running on the server

  6. View version information related to drivers by expanding the driver icon.

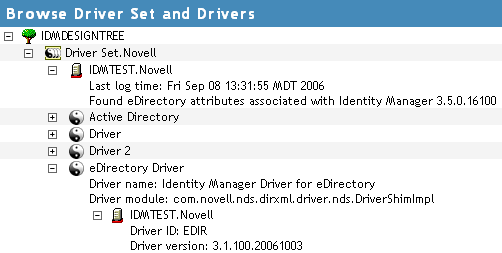

    Versioning information in an expanded driver icon

    The expanded view of a top-level driver icon displays the following:

    • The driver name

    • The driver module (for example, com.novell.nds.dirxml.driver.nds.DriverShimImpl)

    The expanded view of a server under a driver icon displays the following:

    • The driver ID

    • The version of the instance of the driver running on that server
