NetIQ Documentation: Policies in Designer 3.5

4.5 Conditions Builder

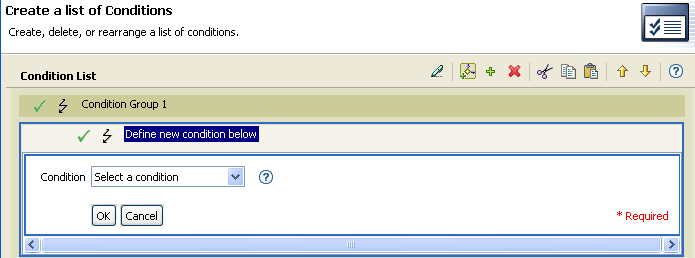

The Conditions Builder allows you to create a condition inside of an action. To launch the Conditions Builder, select one of the following actions, then click the Edit the actions icon Edit the conditions next to the If conditions field.

If
While

In the Conditions Builder, browse to and select the desired condition.
Define the condition, then click OK.

The Conditions Builder has additional options that the Condition Builder. Right-click the Conditions Builder.

Table 4-4 Conditions Builder Options

Option	Description
New > Insert Condition Group Before	Adds a condition group before the selected condition group.
New > Insert Condition Group After	Adds a condition group after the selected condition group.
Append Conditions	Appends a condition in the condition group.
Expand All Conditions	Expands all conditions that are part of the selected condition group.
Collapse All Conditions	Collapses all conditions that are part of the selected condition group.
Move up	Moves the selected condition group up in the rule.
Move down	Moves the selected condition group down in the rule.
Cut	Cuts the selected condition group from the rule and adds it to the clipboard.
Copy	Copies the selected condition group and adds it to the clipboard.
Paste	Pastes the condition group from the clipboard into the Conditions Builder.
Delete	Deletes the selected condition or condition group.
Undo	Undoes the prior action in the Conditions Builder.
Redo	Redoes the prior action in the Condition Builder.
Preferences	Allows you to set default functionality in the Policy Builder.

If you have multiple conditions and conditions groups, the And/Or icons are tied together. If you change the And/Or icon for the condition groups, it is changed for the conditions as well.

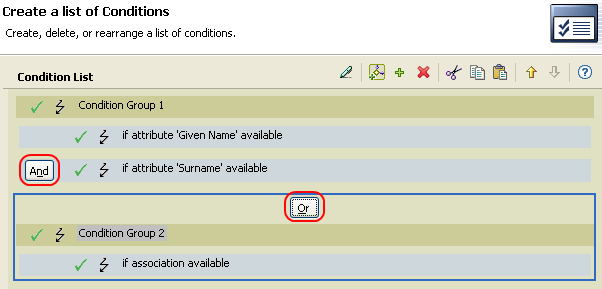

Figure 4-4 Conditions Builder And/Or Icons
